5-in-1 Combination Woodworking Machine
5-in-1 Combination Woodworking Machine
- Space-Saving Versatility
- Unmatched Precision
- Professional-Grade Power
- Robust Durability
- Compact Footprint
- Planer • Thicknesser • Mortiser • Circular Saw • Shaper
5-in-1 Combination Woodworking Machine

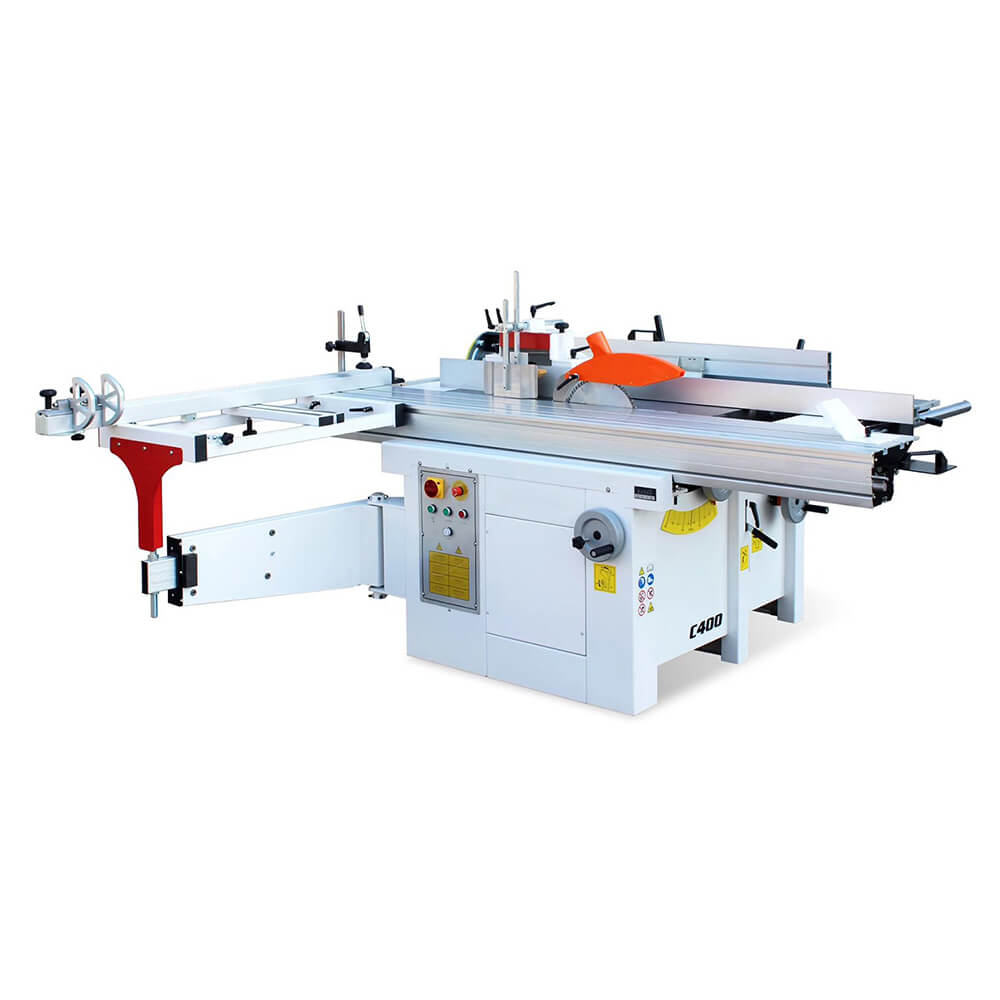

The BESTIN C400 5-in-1 Combination Woodworking Machine is an industrial-grade solution tailored for factories and small professional workshops.
Combining a sliding table saw, planer, thicknesser, spindle moulder, and mortiser in one compact unit, it delivers unmatched accuracy, power, and versatility.
Built on a rigid cast-iron frame with three independent Class 1 motors, the C400 ensures professional-level performance, effortless tool changes, and precision cuts that rival full-sized industrial machines.
Benefits
- Space-Saving Versatility
- Unmatched Precision
- Professional-Grade Power
- Robust Durability
- Compact Footprint
Features
- Panel Saw & Sliding Table
- Sliding Beam Design: Runs alongside the blade to eliminate deflection and ensure perfect paneling.
-
Scoring Unit: Pre-cuts veneered boards to prevent tear-out and chipping.
-
Accurate Cross-Cut Fence: Equipped with flip-stop settings for fast, precise angled cuts.
- Planer & Thicknesser
- High-Torque Cutterblock: 70 mm diameter with three knives delivers a flawless finish.
-
Adjustable Table: Up to 4 mm fine-tuning for exact material removal.
-
Compact Swing-Out Table: Inward parallel motion keeps the machine footprint small.
- Spindle Moulder
- Multi-Speed Shafts: 2,000 / 3,100 / 4,400 / 7,000 rpm speed options accommodate a wide range of moulding profiles.
-
Micro-Adjust Fence: Fine-tune fence position for consistent cutter engagement.
-
Easy Height Adjustment: 115 mm vertical stroke for deep, decorative mouldings.
- Mortiser Unit
- Rigid Chuck: 16 mm capacity with protective guard for safe, precise mortising.
-
Three-Axis Movement: Longitudinal, transversal, and vertical strokes for complex joinery.
- Ease of Use Enhancements
- Tool-Free Adjustments: Quick-release levers and knobs for rapid setup.
- Service Access: Removable covers and included wrenches simplify maintenance.
- Safety Guards: Comprehensive shielding on all cutting units for operator protection.
Technical Data
| Tenoning Carriage | C400 |
| Carriage Dimensions | 1800×315 mm |
| Carriage Stroke | 1800/2200 mm |
| Standard Accessories | C400 |
| N°2 Clamp Lever | ● |
| Sharper Fence | ● |
| Service Wrenches | ● |
| Mortiser Chuck | ● |
| Table Extensions With Swinging Arms | 860×600 mm |
| Guards On Mortiseur Chuck | ● |
| 3 Pcs. Planing Knives | ● |
| Planer Guide | ● |
| Saw Guide | ● |
| Bridge Sefety Hood On Planer | ● |
| 3-Phase Motor Power | 4.0 HP – 3.0 KW |
| Weight | 645 kgs |
| Optional Accessories | C400 |
| Single-Phase Motor | 4,0 HP- 3,0KW |
| Increasing 3-Phase Motor | 5.5 HP- 4.0 KW |
| Contouring Fence | ● |
| Wescott(Chuck) | 16 |
| Carriage Stroke | 2200/2200 mm |
| Carriage Stroke | 2600/2600 mm |
| Carriage Stroke | 2200×2200 mm |
| Tenoning With Protection Shelf | ● |
| Planer | C400 |
| Working Tables | 400×1800 mm |
| Cutterblock Diameter | 70 mm |
| Cutterblock Rotation Speed | 5700 r.p.m |
| N. Of Knives | 3 n° |
| Knives Dimensions | 400x20x3 mm |
| Max Table Adjustement | 4 mm |
| Thicknesser | C400 mm |
| Working Table | 400×760 mm |
| Feed Speed | 7 m/1′ |
| Max. Working Height | 220 mm |
| Min. Working Height | 4 mm |
| Cutterblock Rotation Speed | 5700 r.p.m. |
| Max. Cutting Depth | 4 mm |
| Mortiser | C400 |
| Working Table | 250×500 mm |
| Longitudinal Stroke | 205 mm |
| Trasversal Stroke | 95 mm |
| Vertical Stroke | 90 mm |
| Churck | 16 mm |
| Churck Rotation Speed | 5700 r.p.m. |
| Circular Saw | C400 |
| Working Table | 326×1112 mm |
| Shaft Rotation Speed | 4500 r.p.m. |
| Blade Diameter | 300 mm |
| Blade Bora Diameter | 30 mm |
| Cutting Height 90° | 100 mm |
| Max. Distance Between Blade And Fence | 730 mm |
| Blade Inclination | 45° |
| Max Cutting Height 45° | 50 mm |
| Shaft Rotation Speed Engraver | 7000 r.p.m. |
| Engraver Blade Diameter | 90 mm |
| Engraver Blade Bora Diameter | 22 mm |
| Shaper | C400 mm |
| Working Tables | 326×1112 mm |
| Shaft Rotation Speeds | 2000/3100/4400/7000 r.p.m. |
| Standard Shaft Diameter | 30 mm |
| Spindle Lenght | 105 mm |
| Shaft Vertical Stroke | 115 mm |
| Max. Tool Diameter | 180 mm |
| Max. Tenoning Depth | 65 mm |
