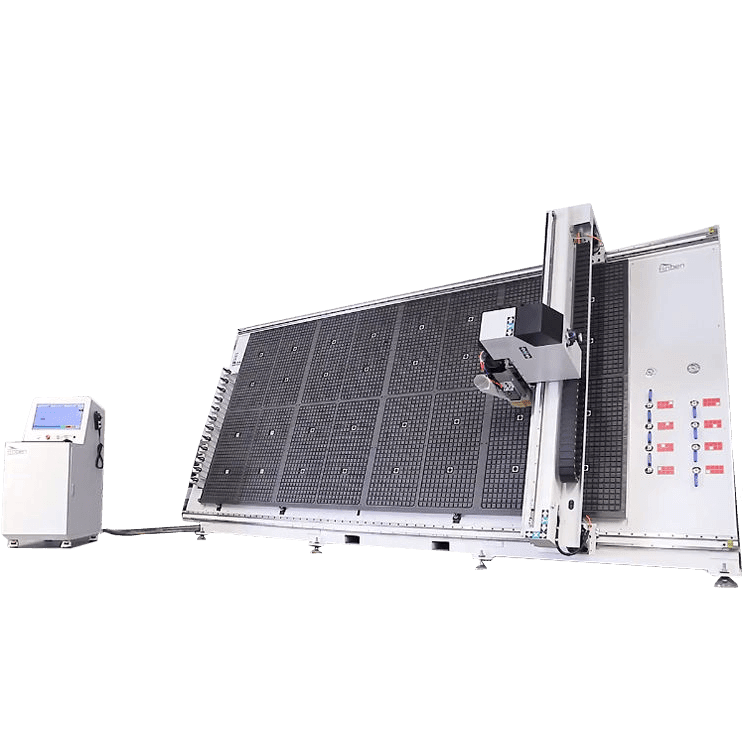

Vertical CNC Router

Vertical CNC Router

Our Vertical CNC Router will elevate your woodworking game, the latest addition to our lineup. Responding to the needs of our customers for a space-saving solution without compromising on cutting capacity, this machine delivers big results in a compact package.

Benefits

  • Versatile Performance
Built with robust components, our Vertical CNC Router is capable of milling aluminum and handling deep, wide cuts in wood with ease.

  • Space-Saving Design
Perfect for small space woodshops, this machine offers a compact footprint without sacrificing cutting capacity, optimizing your workspace for maximum productivity.

  • Durable Construction
Crafted with quality components, our CNC router is designed to withstand the rigors of daily use, ensuring longevity and reliability for years to come.

  • Precision Cutting
Crafted with quality components, our CNC router is designed to withstand the rigors of daily use, ensuring longevity and reliability for years to come.


  • Long-lasting Performance
Built with quality components and a heavy-duty industrial-class square tube frame, this CNC router is engineered to withstand the demands of daily use, ensuring years of reliable operation.

  • Precision Cutting
Experience unparalleled accuracy at scale, thanks to advanced features like rack and pinion drive, Germany ASK #25 rail linear bearings, and a vacuum adsorption table for secure material positioning.

  • Efficient Operation
With a max rapid travel rate of 50000mm/min and a max working speed of 30000mm/min, this machine delivers fast and efficient performance, allowing you to complete projects in less time.

  • Powerful Spindle
Equipped with an Italy HSD 9KW air cooling spindle and Japan Yaskawa drive motors, this CNC router offers high spindle speeds (0-24000rpm) for precise and powerful cutting.

  • User-Friendly Control
Featuring a Taiwan SYNTEC 60W-E control system, this machine offers intuitive operation, making it easy for both beginners and experienced users to achieve desired results.

  • Flexible Power Options
With a working voltage of AC380v, 50hz, and 3ph (option: 220v), this CNC router can be adapted to suit different power requirements, providing versatility and convenience.

Description

Working Area(X*Y*Z)

2100*4200*200mm

Cutting Accuracy

±0.03/1000mm

Table Surface

Vacuum Adsorption Table

Material Positioning Method

Repeat Positioning By Positioning The Cylinder.

Frame

Heavy-Duty Industrial Class Square Tube Strong Structure

X, Y Structure

Rack And Pinion Drive, Germany ASK #25 Rail Linear Bearings

Max. Rapid Travel Rate

50000mm/Min

Max. Working Speed

30000mm/Min

Z Structure

Taiwan Ball Screw

Spindle Power

Italy HSD 9KW Air Cooling Spindle

Operating System

Taiwan SYNTEC 60W-E Control System

Drive Motors

Japan Yaskawa Drive And Yaskawa 850W Servo Motors

Vfd

11kw Delta Vfd

Spindle Speed

0-24000rpm

Working Voltage

AC380v, 50hz,3ph (Option: 220v)

Command Language

G Code

Control Box

Place The Computer’s Big Control Box

Collet

Er25

Software Compatibility

Art Cam/Power Milltyep 3

Lubrication System

Automatic Lubrication System
