Sanding Machine for Wood.
BESTIN provides complete industrial wood sanding solutions for manufacturers of all sizes. There are four types wood sand machines, Wide Belt Sanding Machines, Brush Sanding Machines, Edge Sanding Machines, and Manual Brush Polishing Machines. We can help you build a complete sanding line from rough calibration to final finishing.
Machine Type
Wide Belt Sanding Machine
Heavy
R-R
- Two Sanding Unit
- Working Thickness: 3-110mm
- Working Width: 1300mm/ 1000mm/ 630mm
- Variable Speed Control
Vacuum
B-R-RP
- Two Sanding Unit+Planer Unit
- Working Thickness: 3-110mm
- Working Width: 1300mm/ 1000mm/ 630mm
- Variable Speed Control
Brush Sanding Machine
Heavy
6P
- Disc Brush Unit +Longitudinal Brushing Unit+ Cross Brush Unit
- Vacuum Table (Optional)
- Pull-Out Brush Unit
- Working Width: 1400/1100mm
- Working Thickness: 8-150mm
- Variable Speed Control
Economic
S
- Disc Brush Unit +Longitudinal Brushing Unit+ Cross Brush Unit
- Working Width: 1300/1000/630mm
- Working Thickness: 8-150mm
- Variable Speed Control
Edge Sanding Machine
Although surface quality is important, customers often notice the edges of furniture first. Poorly sanded edges can negatively affect edge banding quality, paint adhesion, and the overall appearance of the finished product.
Our Edge Sanding Machines are specifically designed to create smooth, consistent, and accurate edges before painting, laminating, or assembly.
Multi-unit
120DSX
- Belt Sanding +Edge Trimming +Brush Sanding +Pre-milling +Profile Milling +Profile Sanding+ Buffing
- Custom Unit
- Working Thickness: 5-40mm
- Working Width: min. 110mm
- Working Length: mini. 150mm
- Inverter Control
- Size:3350*810*1240mm
Compact
60DS
- 2 Brush Sanding Units +1 Belt Sanding Unit
- Custom Unit
- Working Thickness: 5-40mm
- Working Width: min. 110mm
- Working Length: mini. 150mm
- Inverter Control
- Size: 2250*800*1260mm
“Not Sure Which Machine I Should Use?”
Which Sanding Machine Do You Need?
Rather than purchasing equipment one machine at a time, successful manufacturers often plan their sanding process as an integrated system.
Consider the following factors when selecting your sanding equipment:
- Product Type: Flat panels, profiled doors, solid wood, or decorative components.
- Material: MDF, plywood, particle board, veneer, bamboo, or hardwood.
- Production Volume: Small-batch workshops have different needs from high-volume automated factories.
- Surface Finish Requirements: Painted, laminated, veneered, or natural wood finishes all require different sanding sequences.
Our engineering team can design complete sanding solutions based on your factors.
|
If You Produce |
Recommended Machine |
|
Kitchen Cabinets |
Wide Belt + Brush + Edge |
|
Wardrobes |
Wide Belt + Edge |
|
Office Furniture |
Wide Belt |
|
Wooden Doors |
Wide Belt + Brush |
|
Solid Wood Furniture |
Wide Belt + Brush + Manual Brush |
|
Decorative Panels |
Brush + Edge |
|
MDF Panels |
Wide Belt |
|
Plywood |
Wide Belt + Edge |
|
Acoustic Panels |
Brush Sanding Machine |
|
Custom Furniture |
Brush + Manual Brush |

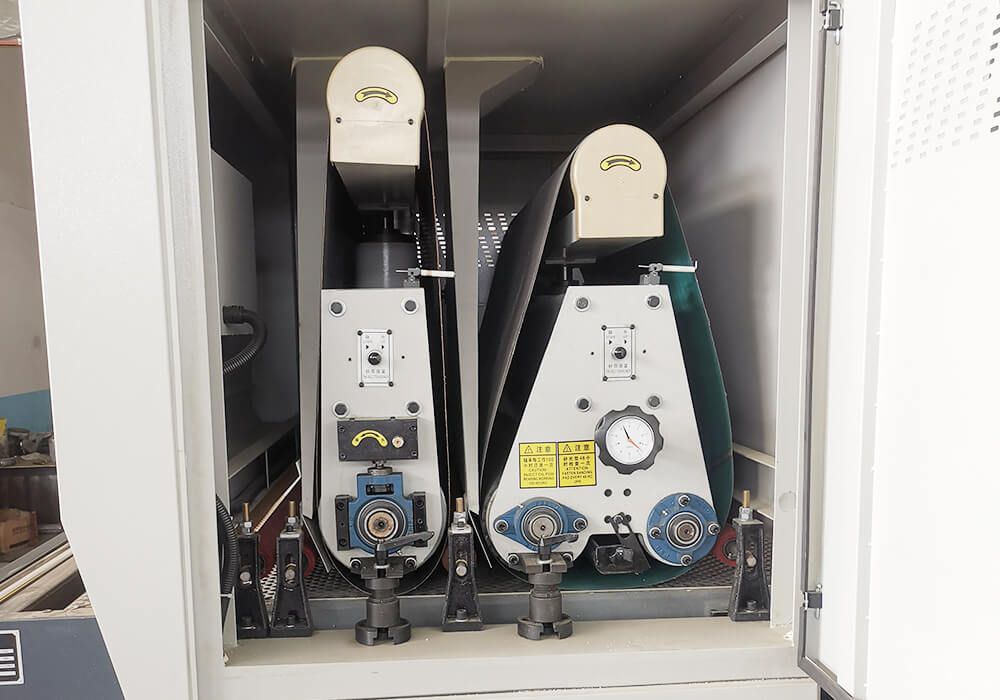

Wide Belt Sanding Machine Feature
Our Wide Belt Sanding Machine is designed to process large panels quickly while maintaining exceptional thickness accuracy and surface quality.
- Heavy-Duty Machine Frame
- Precision Conveyor System
- Variable Feed Speed
- Automatic Belt Oscillation
- Digital Thickness Adjustment
- Multiple Sanding Heads

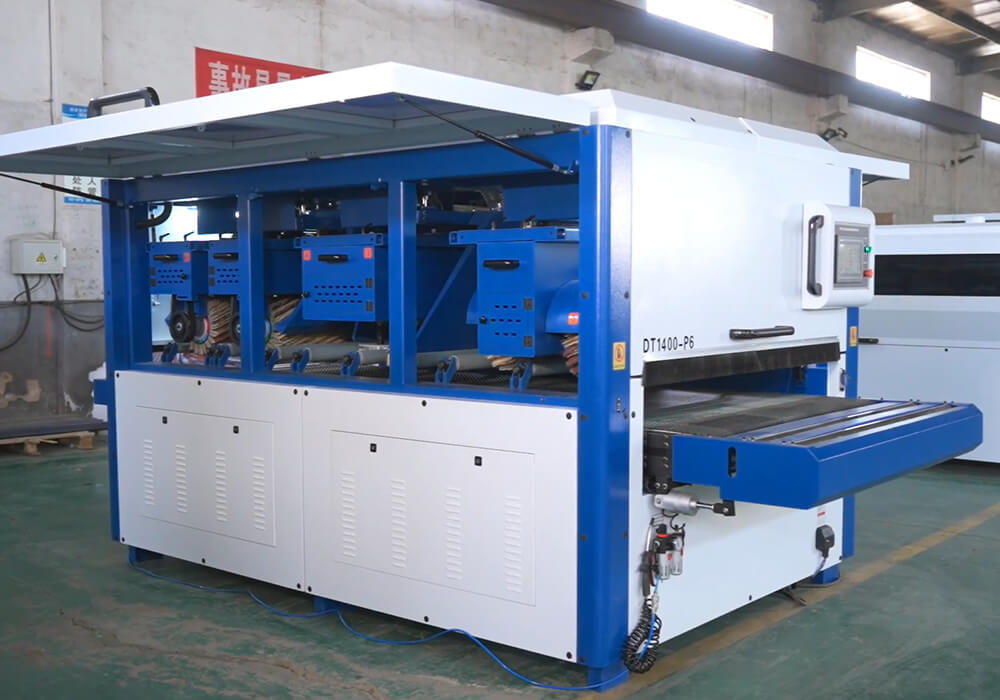

Brush Sanding Machine Feature
Flat sanding belts cannot effectively process grooves, carvings, curved surfaces, or decorative profiles. Our Brush Sanding Machines solve this problem using flexible abrasive brushes that automatically adapt to the shape of the workpiece.
- Adjustable Brush Pressure
- Multiple Brush Rollers
- Variable Brush Speed
- Quick Brush Replacement

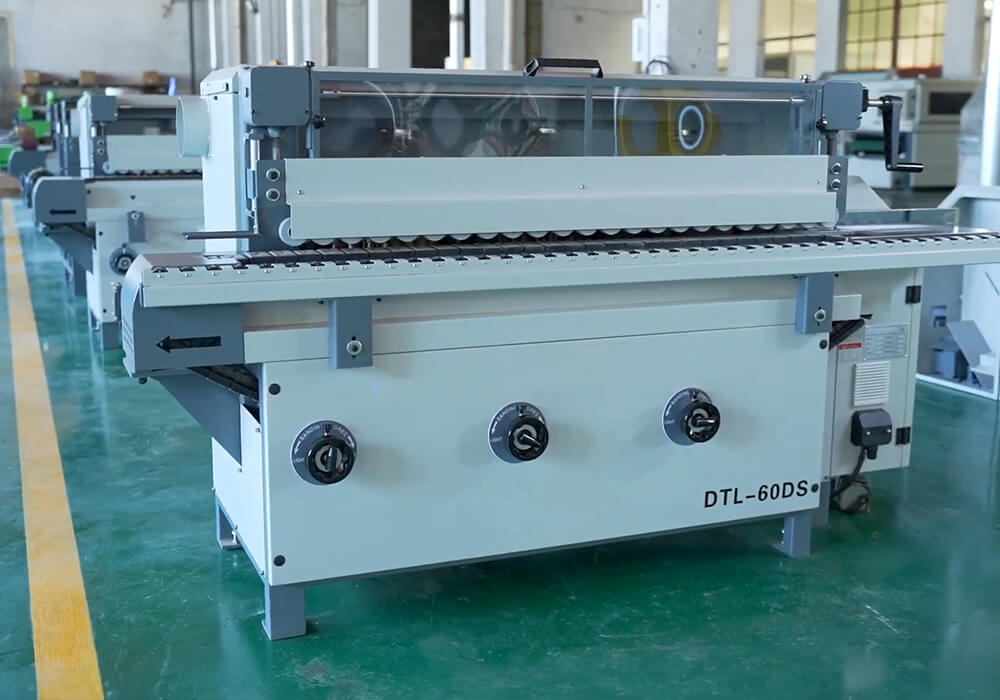

Edge Sanding Machine Feature
High-quality furniture requires perfectly finished edges. Our Edge Sanding Machines are designed to produce smooth, uniform edges before painting, laminating, or edge banding.
- Belt Sanding Unit
- Brush Sanding Unit
- Adjustable Guide Fence
- Conveyor Feeding

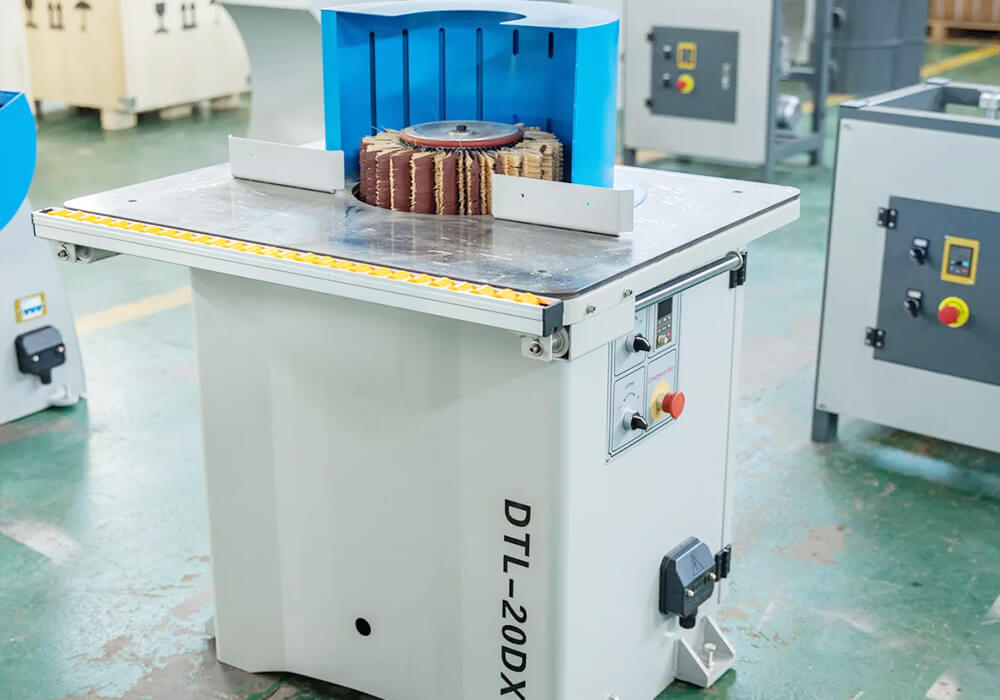

Manual Brush Polishing Machine Feature
Our Manual Brush Polishing Machines provide you with excellent flexibility when polishing painted surfaces, repairing furniture, or processing customized workpieces.
- Flexible Brush System
- Compact Design
- Simple Operation
- Suitable for Multi-shaped Workpieces
Application
Furniture
Kitchen Cabinet
Interior Door
Decorative Wall Panels
Affordable Solutions
Elevate your woodworking projects with our state-of-the-art sanding machine.
Contact us now to learn more about our products, request a quote, or schedule a demonstration.
FAQ About Sanding Machines
Do Your Sanding Machines Include Dust Collection Systems?
Yes! Most Bestin Group models feature integrated vacuum ports (sanding machine for wood with vacuum) to minimize airborne particles. Our brush and edge sanders prioritize dust-free operation for safer workshops. Explore Dust-Free Models →
Can I Customize A Sanding Machine For Unique Materials Or Workflows?
Absolutely. We specialize in customized sanding machines for wood, adapting grit types, feed speeds, and automation to handle exotic woods, composites, or high-volume production. Request a Custom Quote →
What Maintenance Do Industrial Sanding Machines Require?
Are Your Machines Suitable For Small Workshops?
What’s The Difference Between A Belt Sander And A Drum Sander?
- Belt sander machine for wood: Uses a continuous loop for fast, even finishes on flat surfaces (e.g., panels, tabletops).
- Drum sander: Employs rotating cylinders for heavy material removal (e.g., leveling floors, stairs).
Do Your Machines Comply With Industrial Safety Standards?
All Bestin Group equipment meets ISO and OSHA guidelines, with emergency stops, guards, and noise reduction.
Can I Automate An Existing Sanding Machine?
Yes! Upgrade older models with our automatic plywood sanding machine for wood kits, featuring robotic arms and AI-driven calibration. Learn About Automation →
What Grit Should I Use For Furniture Vs. Flooring?
- Furniture: Start with 80–120 grit (coarse) and finish with 180–240 (fine) (sanding machine for wood furniture).
- Flooring: Use 40–60 grit for leveling, then 100+ for polishing.
Do You Offer Warranties Or Spare Parts?
All machines include a 1-year warranty, with lifetime access to genuine spare parts like belts, brushes, and motors. Learn Our After-Service →
