ATC CNC Router Machine is short for Automatic Tool Changer CNC router machine. The automatic tool change CNC machine can achieve the goal of changing mills quickly and automatically when the machine can’t need to stop the work.
Estimated Shipping: 5-7 WEEKS
Technical Info
- New Top Grade Heavy Duty Welded Steel Frame
- High Precision HQD 9KW ATC Air Cooling Spindle
- Perfect Protection Function Fuling Inverter
- High Precision Stepper Motors And Drivers
- Strong T-Slot Vacuum Table
- High Accuracy Taiwan Hiwin
- Linear Guide For XYZ Axis
- High Precision Helical Rack And Gear Transmission
- High Reliability And Smooth Operation Taiwan TBI Ball Screw
Model |
| BI1325ATC | BI1530ATC | BI2030ATC |
Travel | X-Axis | 1300mm | 1500mm | 2000mm |
Y-Axis | 2500mm | 3000mm | 3000mmm | |
Z-Axis | 200mm | 200mm | 200mm | |
Traveling Positioning Accuracy | 0.01/300mm | |||
Repositioning Accuracy | 0.03mm/300mm | |||
Max. Rapid travel Rate | 50000mm/min | |||
Max. Working Speed | 30000mm/min | |||
Spindle | Spindle Power: | 9.0KW | ||
Spindle Type | HQD ATC air cooling spindle | |||
Speed: | 0-24,000 RPM | |||
Power Required | Motor | Yaskawa Servo motor and driver | ||
Working Voltage | AC380V/50/60HZ,3PH(Option:220V) | |||
Machine Specs | Table Type | Vacuum and T-slot Working Table | ||
Table Size | 1300mm*2500mm | 1500mm*3000mm | 2000mm*3000mm | |
X, Y Structure | Hiwin Rail Linear Bearings, Rack and Pinion Drive | |||
Z Structure | Ball Screw, Hiwin Rail Linear Bearings | |||
Machine Footprint | 3670mm*2270mm | 4170mm*2270mm | 4170mm*2270mm | |
Overall System Height | 2080mm | 2080mm | 2080mm | |
Typical System Weight | 1300KG | 1500KG | 1750KG | |
Linear Motion | Axis Motion | Ballscrew and Stepper Driver | ||
Guideways | Precision Linear Guideway | |||
Construction | Stand | Welded Steel (Included) | ||
Machine Base | Cast Iron | |||
Gantry | Aluminum | |||
Operation | Operating System | Osai / Siemens / Syntec | ||
Command Language | G Code &M Code | |||
Tool Holder | HSK63F | |||
Collet | BT40 | |||
Highlight Component
Square Steel Integrated Gantry.
It adopts a square steel gantry with a thickness of one centimeter after heat treatment. It makes the machine work smooth and increases excellent accuracy and precision.
HSD Italian Spindle.
It uses high-quality bearings, which gives it longer service life. The bearing has a dust cover, which can effectively isolate dust and make it safer to operate the machine. High-strength power gives CNC router large engraving force, high precision, and long life. It adopts the grinding process, which can improve the concentricity of the motor and prolong the service life.
Imported Servo Motor.
The imported servo motor enables more precise control and shorter settling times. Each model is equipped with a package of software algorithms that tune automatically, suppress vibration, and compensate for friction and ripple effects.
Taiwan TBI Ball Screw.
Rigidly selected materials, intensive heat treating, and processing techniques, backed by years of experience, have resulted in the most durable ball screws manufactured. The high efficiency of ball screws is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.
PMI Linear Guideway.
PMI linear guideway was applied to the CNC router machine. The frictional resistance of a linear guideway is only 1/20th to 1/40th of that in a slide guide. With a linear guideway, good lubrication can be easily achieved by supplying grease through the grease nipple on the carriage or utilizing a centralized oil pumping system, thus the frictional resistance is decreased and the accuracy could be maintained for long period. Due to the characteristic of low frictional resistance, the required driving force is much lower than in other systems, thus the power consumption is small. Moreover, the temperature rising effect is small even under high-speed operation.
Material&Application
If you are running a medium-sized workshop or factory and planning to open your business to larger projects, the ACT CNC Router Machine is a good choice among many stylist CNC routers machines. The automatic tool change CNC machine can achieve the goal of changing mills quickly and automatically when the machine can’t need to stop the work. It saves lots of time and lower mistakes for your CNC work. it can ensure you process an abundance of different materials such as:
CNC router machine has good performance in furniture......
CNC router machine has good performance in furniture......
CNC router machine has good performance in furniture......
CNC router machine has good performance in furniture......
CNC router machine has good performance in furniture......
Our CNC routers can cut soft metals like aluminium......
Our CNC routers can cut soft metals like aluminium......
Our CNC routers can cut soft metals like aluminium......
Our CNC routers can cut soft metals like aluminium......
Our CNC routers can cut soft metals like aluminium......
Our CNC router machine designed for plastics provides an opportunity to maximize productivity.......
Our CNC router machine designed for plastics provides an opportunity to maximize productivity.......
Our CNC router machine designed for plastics provides an opportunity to maximize productivity.......
Our CNC router machine designed for plastics provides an opportunity to maximize productivity.......
Our CNC router machine designed for plastics provides an opportunity to maximize productivity.......
Related Product
What Is ATC CNC Router Machine?
When you are going to buy CNC Router Machine, you must hear some people talk about ATC CNC machines or 5-axis ATC CNC routers
ATC CNC Router Machine Guide
ATC CNC Router Machine is short for Automatic Tool Changer.
The automatic tool changes CNC machine can achieve the goal of changing mills quickly and automatically when the machine can’t need to stop the work.
When Non-ATC CNC machines need to change mills, the operator should stop the machine and change mills by hand. It decreased work efficiency and precision.
The ATC CNC machine can automatically change the tool.
It can save processing time and manpower. The automatic tool changer system depends on the control system and the mill magazine.

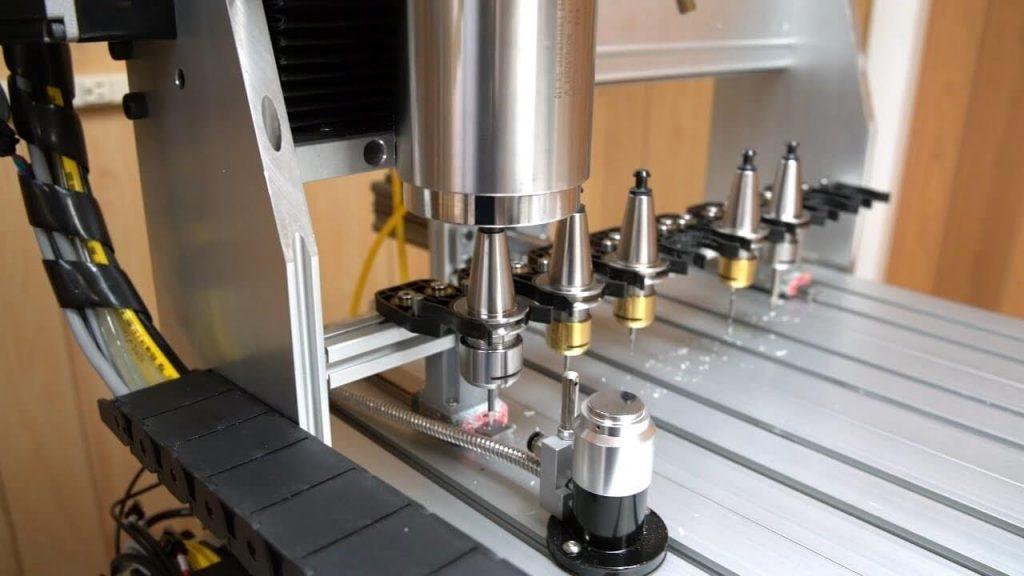

The control system of the CNC machine controls the movement of the gantry and the spindle, and multiple tools were put on the magazine.
When the first mill completes its machining work, the spindle moves to the mill magazine and releases the tool automatically.
Next, it will automatically grab the new tool for subsequent engraving or cutting.
The automatic tool change function is the new trend in the development of CNC router machines, and it is the best choice for large and multiplex workpieces.
There are two main types of automatic tool changers: line mill magazines and disc magazines. What is the difference?
ATC CNC Router Machine Line Mill Magazine System
Different from the in-line mill magazine, the disc-type mill magazine achieves the goal of changing mills through its rotation.
The mill on the mill magazine is installed parallel to the center of the spindle.

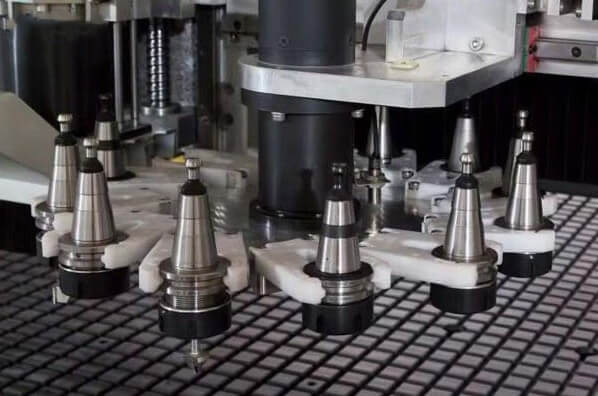

The disc tool magazine can be installed in different positions according to operator requirements, and the tool change process only takes a few seconds.
Our 5-axis CNC router machine uses this disc mill changer. The mill magazine is fixed on the side of the gantry and is always on the same level as the spindle.
And the mill change speed is very faster and easy.
It was equipped with an Italian Hiteco 12KW spindle.
It has a strong cutting ability and low noise, which can ensure the machine’s precision and real high speed for a long time.
ATC CNC Router Machine Disc-type Mill Magazine
Different from the in-line mill magazine, the disc-type mill magazine achieves the goal of changing mills through its rotation.
The mill on the mill magazine is installed parallel to the center of the spindle.
The disc tool magazine can be installed in different positions according to operator requirements, and the tool change process only takes a few seconds.
Our 5-axis CNC router machine uses this disc mill changer. The mill magazine is fixed on the side of the gantry and is always on the same level as the spindle.
And the mill change speed is very faster and easy.
It was equipped with an Italian Hiteco 12KW spindle.
It has a strong cutting ability and low noise, which can ensure the machine’s precision and real high speed for a long time.
Conclusion
ATC CNC router machines are very popular in various engraving industries, especially in the furniture industry.
It can achieve the goal of changing mills quickly and handling a variety of furniture styles without stopping work.
It has multiple functions such as cutting, engraving, grooving, drilling, and more.
This machine can not only process common furniture such as cabinets and doors, but also special furniture such as corrugated boards and screens for interior decoration.
ATC CNC router machines help you expand your markets and bring in more customers.
If you are interested in it, welcome to talk to us. We will offer the perfect solution to you.
