CNC Nesting Machine
CNC Nesting Machine.
BestIn’s CNC nesting machine enables precise and accurate formatting and drilling, saving you time and increasing your productivity. With its advanced software, you can easily program the machine to perform the required processes with the push of a button, eliminating the need for manual adjustments and reducing the risk of errors.
CNC Wood Cutting Machine
At BestIn, we understand the importance of efficiency and productivity in the production process. That’s why we’ve designed our CNC nesting machine to be a one-stop shop for all your formatting and drilling needs. With its advanced capabilities, you can achieve the desired results for your panel furniture in a fraction of the time it would take with traditional methods.
Choose our CNC nesting machine and experience the benefits of cutting-edge technology, superior performance, and increased productivity. You can streamline your production process and achieve optimal results for your panel furniture needs.
- Easy To Operate
- Precise Cutting
- Maximum Automation
- Save human Cost
CNC Nesting Machine For Sale
BestIn is committed to providing reliable, high-performance CNC nesting machines that are tailored to meet the specific needs of each customer. Our machines are customizable, with different models and sizes to suit a wide range of applications.
Item No. | BCN-K5 |
Processing Size | 2440*1220*50mm |
Travel Range | 2600*1300*200mm |
Spindle Power | 6KW*4 |
Spindle Speed | 18000r/min |
Speed of Work | 8-25m/min |
Empty Travel Speed | 60m/min |
Vacuum Pump | 7.5KW |
Total Power | 34KW |
Size | 3150*2500*2150mm |
Weight | 2300kg |
Item No. | BCN-K5L |
Processing Size | 2440*1220*50mm |
Travel Range | 5300*1300*50mm |
Spindle Power | 6KW*4 |
Spindle Speed | 18000r/min |
Speed of Work | 15-25m/min |
Empty Travel Speed | 60m/min |
Vacuum Pump | 7.5KW*2 |
Total Power | 34KW |
Size | 6000*2500*2150mm |
Weight | 3500kg |
Item No. | BCN-K6 |
Drill Package | 5+4 |
Processing Size | 2480*1240*50mm |
Spindle Power | 6KW*2 |
Speed of Work | 15-25m/min |
Empty Travel Speed | 60m/min |
Vacuum Pump | 7.5KW |
Total Power | 27KW |
Rotating Speed | 18000r/min |
Size | 6000*2500*2150mm |
Weight | 2300kg |
Item No. | BCN-K8L |
Processing Size | 2820*1220*50mm |
Travel Range | 3300*1800*200mm |
Spindle Power | 9KW |
Speed of Work | 15-25m/min |
Empty Travel Speed | 80m/min |
Vacuum Pump | 11KW |
Total Power | 34KW |
Spindle Speed | 24000r/min |
Size | 3800*2500*2150mm |
Weight | 2800kg |
Item No. | BCN-K8LR |
Processing Size | 2440*1220*50mm |
Travel Range | 2650*1300*200mm |
Spindle Power | 9KW |
Speed of Work | 12-30m/min |
Empty Travel Speed | 80m/min |
Working Voltage | AC380V/3Ph/50Hz |
Driving System | Servo Drive |
Spindle Speed | 24000r/min |
Locate Mode | Movable High Precision Positioning Cylinder |
Table Structure | Zone Adsorption Table |
CNC Nesting Machine Feature
Sturdy Base
Strong power makes machine running steady.
Automatic
The automatic handling feature maximizes production capability and saves human costs.
Precise Cutting
Precision in machining even the most difficult workpieces.
Easy Operation
The "Quick-Set-System" enables you to make rapid adjustments to different materials.
12-Too Servo ATC.
Our CNC nesting machine is equipped with a state-of-the-art servo-controlled rotary ATC 12-tool carousel, this machine can perform tool changes in under 8 seconds. The carousel is mounted on the gantry for at-the-location tool changes, which complements the rapid travel of 2500 inches per minute.

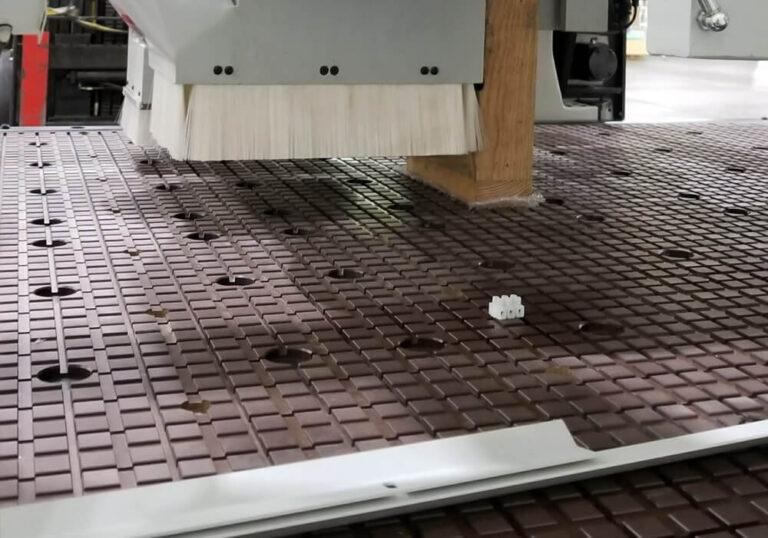

Perfect Matrix Table.
The matrix table provides full surface support for workpieces of all designs and sizes, ensuring that they are held firmly in place during the machining process.
In addition, the optimized grid geometry of the matrix table guarantees the exact positioning of each workpiece.

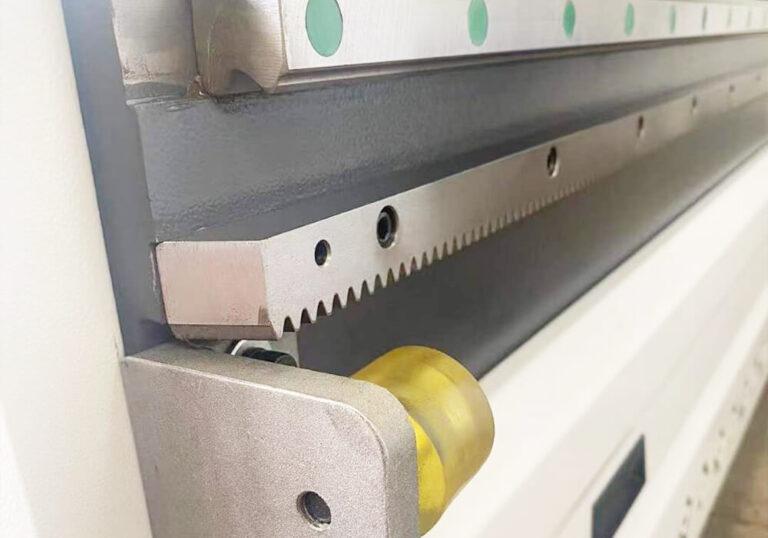

Helical Rack & Pinon.
Our machine features a dual-side driven gantry that guarantees maximum precision and repeatability. It ensures that every product you manufacture is of the highest quality.
With a rack and pinion drive in the X and Y direction, our CNC nesting machine boasts top traverse speeds for the shortest processing times and tool-changing times. It means that you can increase your production output without sacrificing quality.

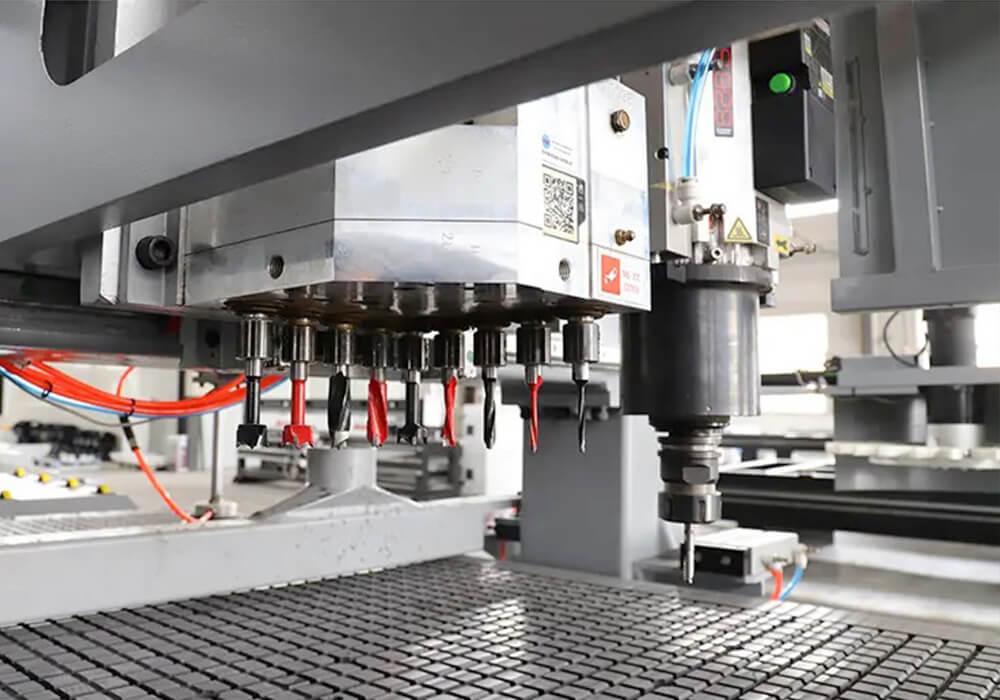

HSD Air-Cooled ATC Spindle.
our state-of-the-art equipment is equipped with a powerful 12HP HSD air-cooled ATC spindle that operates with precision and speed. Unlike traditional circular units, our machine boasts an Italian-made HSD spindle that is pneumatically driven with oval-section pistons, guaranteeing a 35% increase in thrust and a remarkable increase in production by up to 30%.

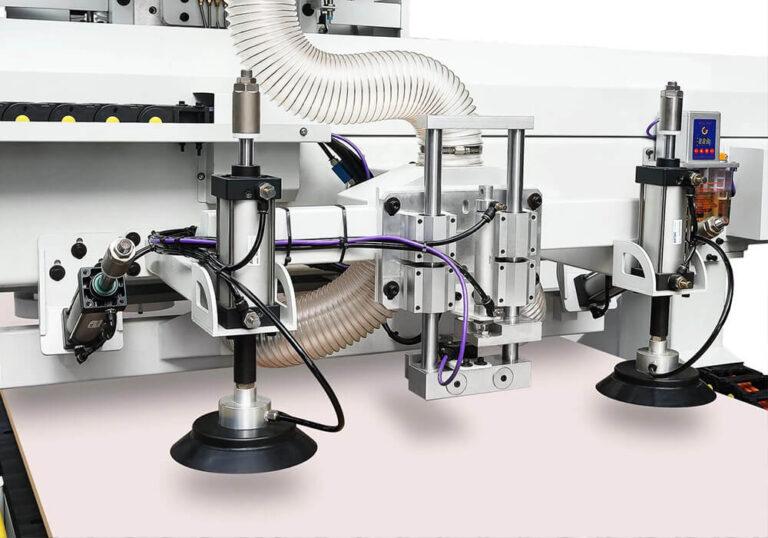

Automatic Suction Cups.
The suction cups on our loading unit provide a secure and stable hold, ensuring that panels are placed precisely on the work table.
With our loading unit and suction cups, you can expect faster turnaround times, greater accuracy, and improved productivity.

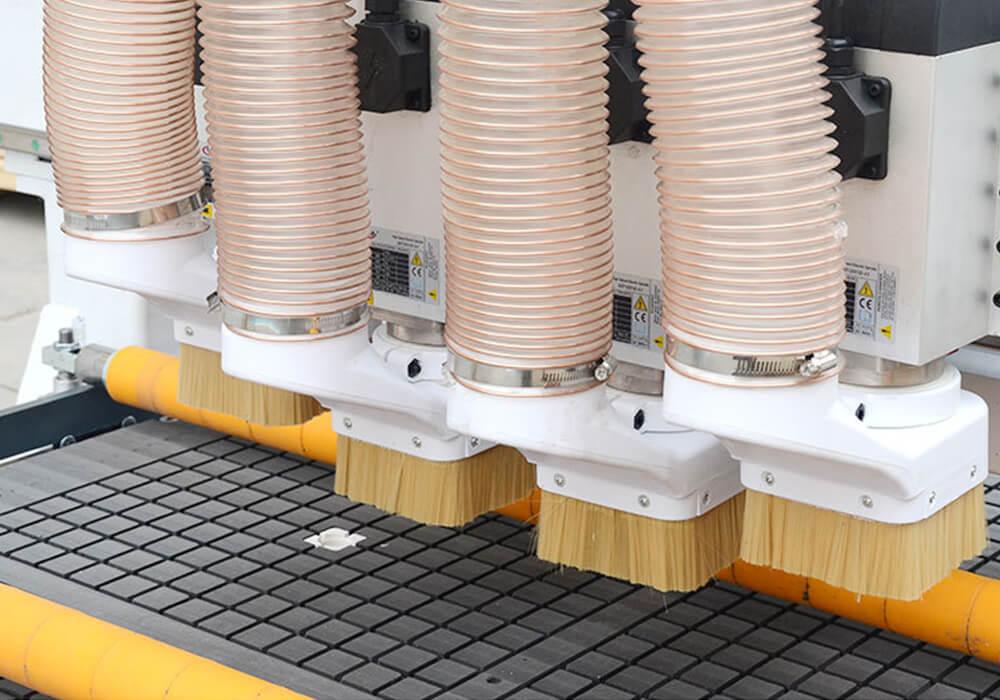

Four Spindles In One Machine.
Our machine with multiple spindles is designed to provide unparalleled flexibility and efficiency, allowing you to complete multiple tasks on a single platform. With its advanced spindle system, you can achieve precise and accurate cuts, drills, and slots with ease.
A variety of spindles allows you to create intricate designs and shapes on your furniture pieces, adding a unique touch to your creations.
CNC Nesting Machine Cutting Sample
BestIn CNC nesting machine is specifically designed to optimize the use of materials such as wood, metal, plastic, and composites. It can efficiently cut workpieces into required shapes and sizes with minimal waste.
Door &Cabinet
Furniture
