Compact Edge Banding Machine
Edge Banding.
Compact Edge Banding Machine.
BESTIN provides a complete range of compact edge banding machine, which is designed for small workshops, cabinet makers, and modern furniture manufacturers. We help customers achieve industrial-level edge finishing in limited workshop space.
- Smaller In Footprint
- Full Function
- More Affordable
Machine Type
Straight Edge

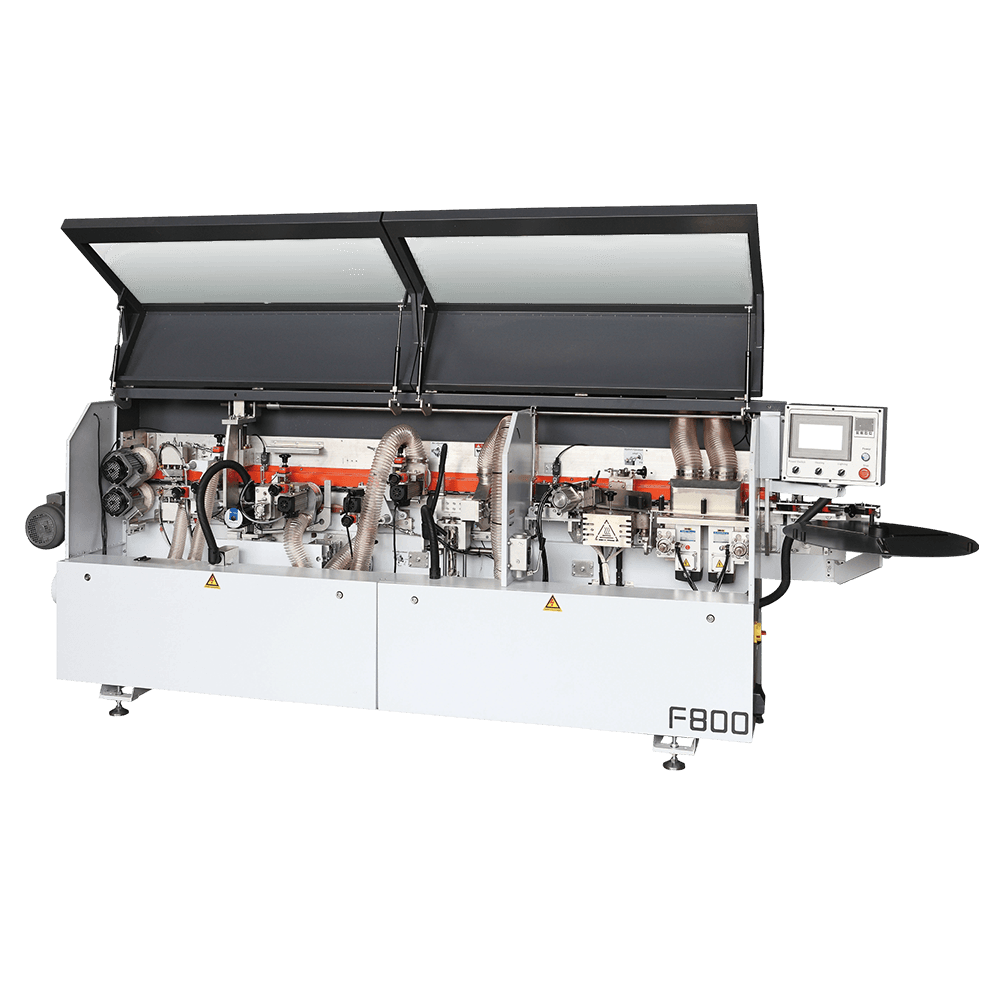

F800
- Pre-Mill —Glue —End Cut —Fine Trim —Corner Trim —Scrap —Flat Scrap—Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-50mm
- Size: 3550*640*1316mm
Straight Edge

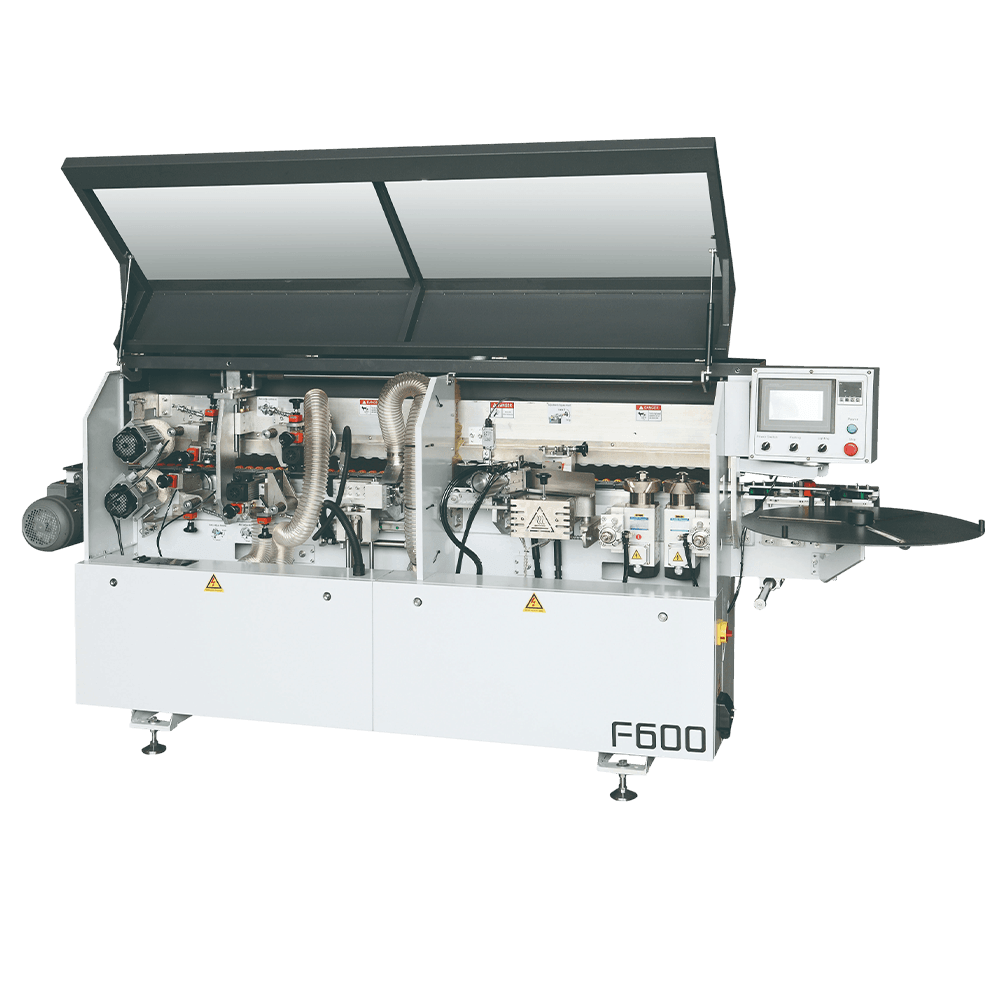

F600
- Pre-Mill —Glue —End Cut —Fine Trim —Scrap —Buffing
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-50mm
- Size: 2850x536x1316mm
Straight Edge

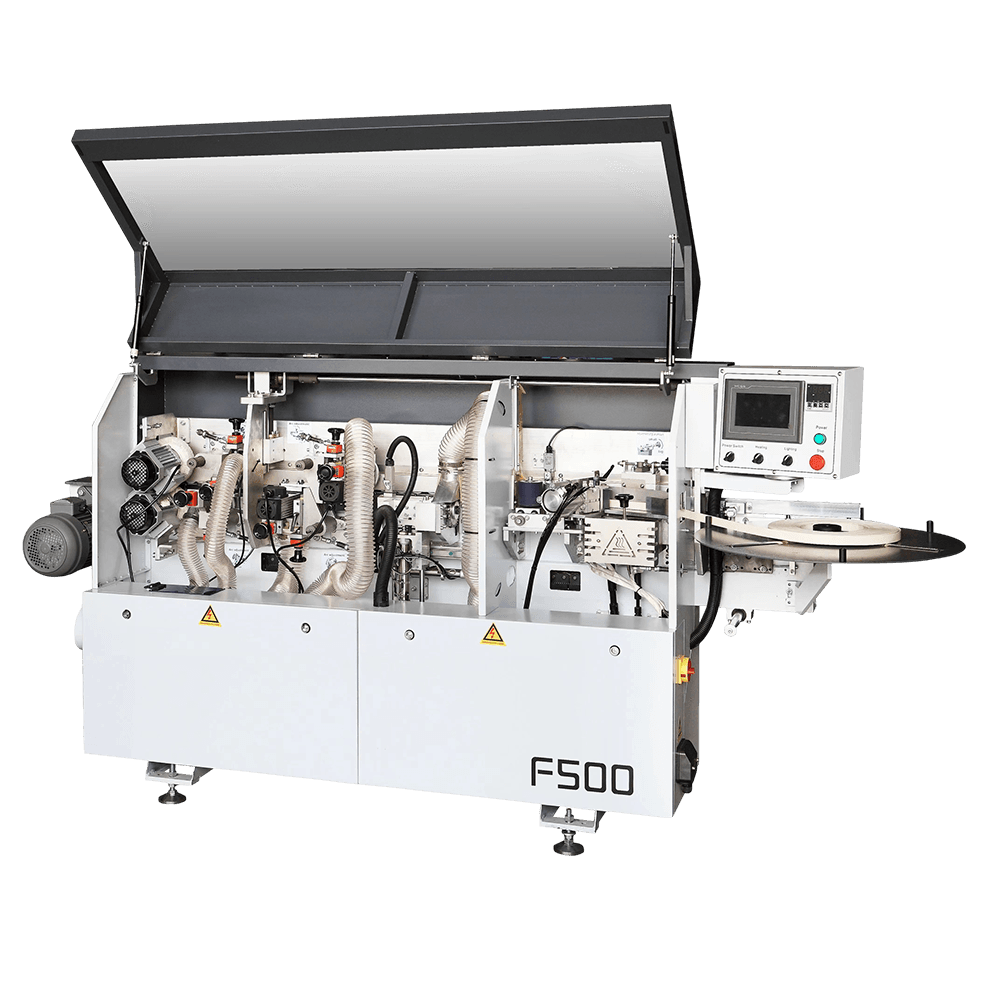

F500
- Glue —End Cut —Fine Trim —Scrap —Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-50mm
- Size: 2450x536x1316mm
Straight Edge

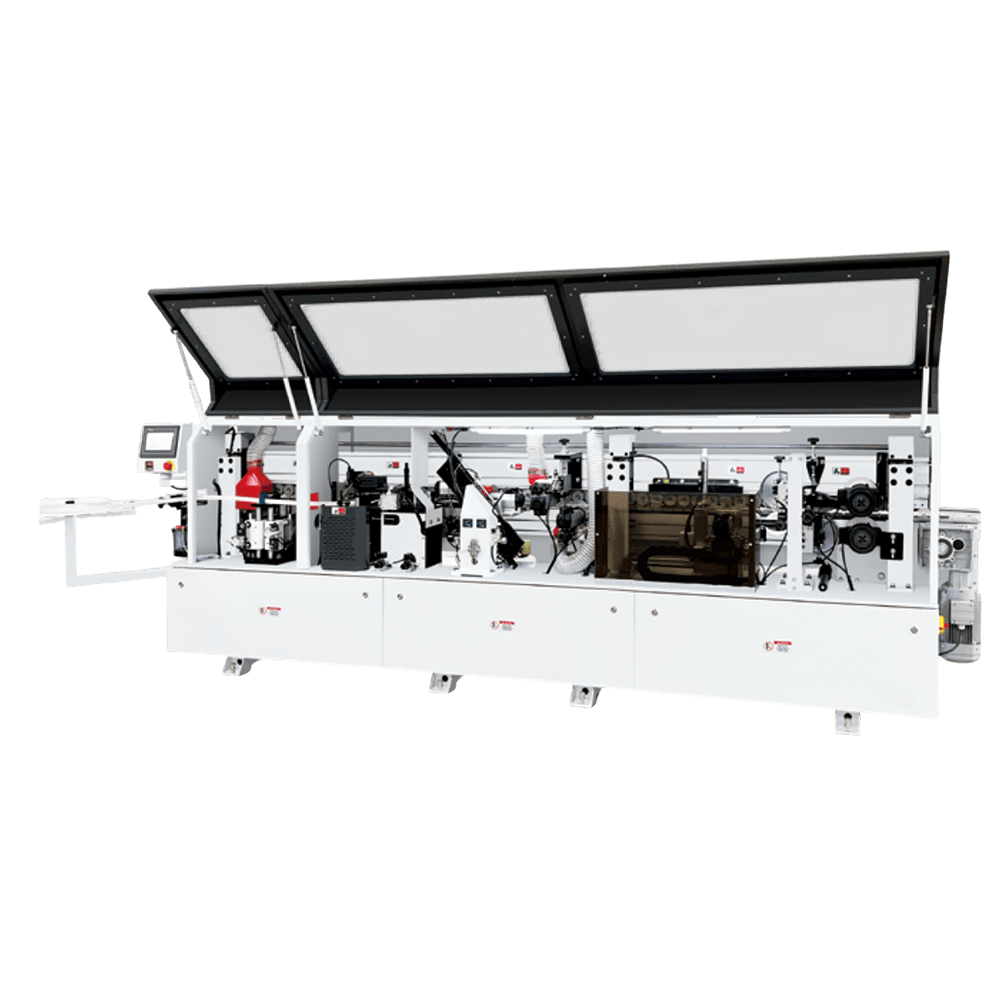

F1
- Pre-Mill —Glue —End Cut —Rough Trim —Fine Trim —Corner Trim —Scrap —Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-45mm
- Size: 4250×600×1400mm
Straight Edge

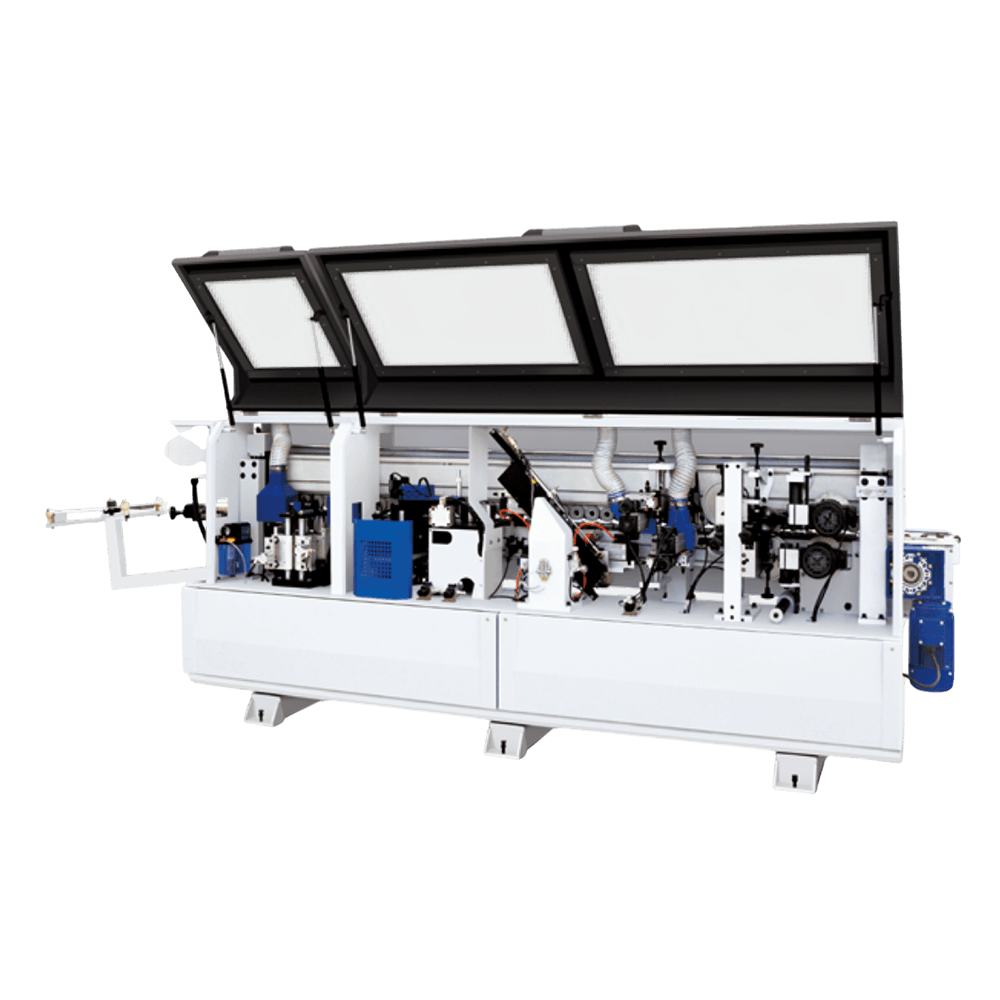

F2
- Pre-Mill —Glue —End Cut —Fine Trim —Scraping —Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-45mm
- Size: 3400×600×1400mm
Straight Edge

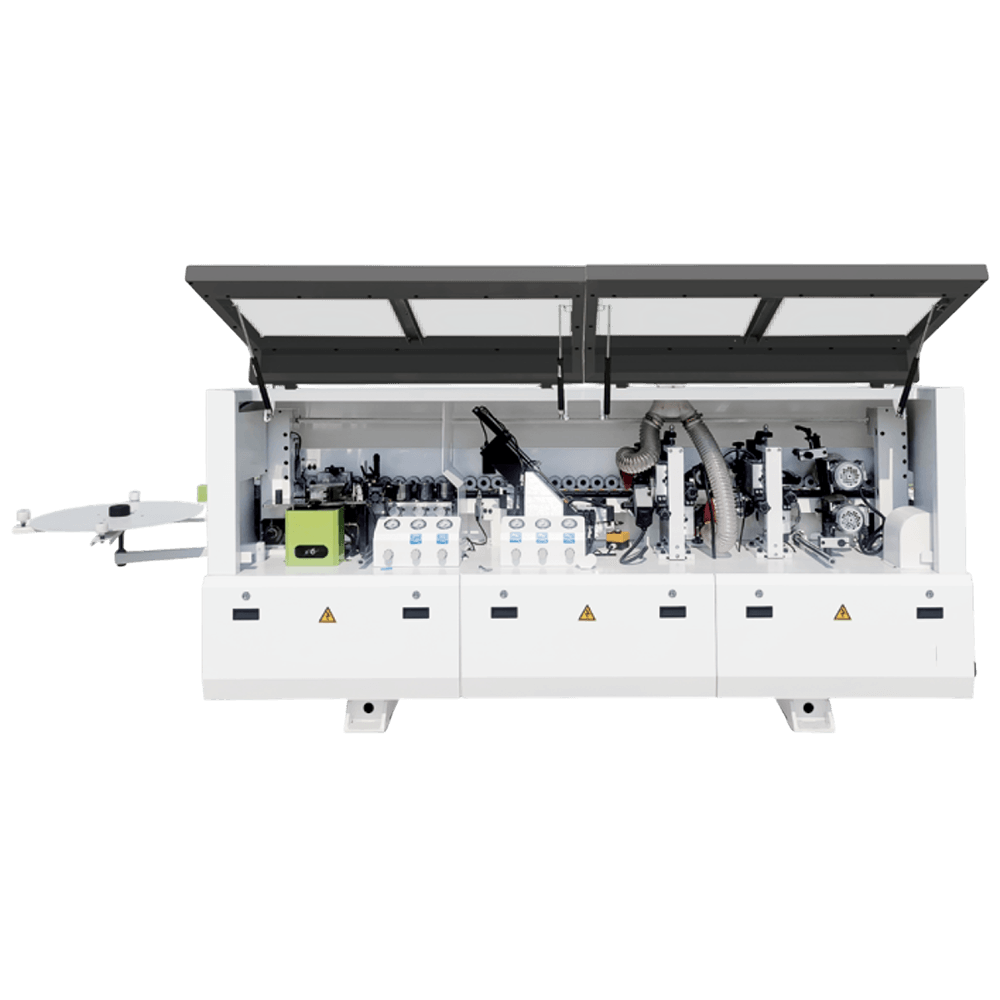

F3
- Glue —End Cut —Fine Trim —Scrap —Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-45mm
- Size: 2600×600×1400mm
45° Bevel.

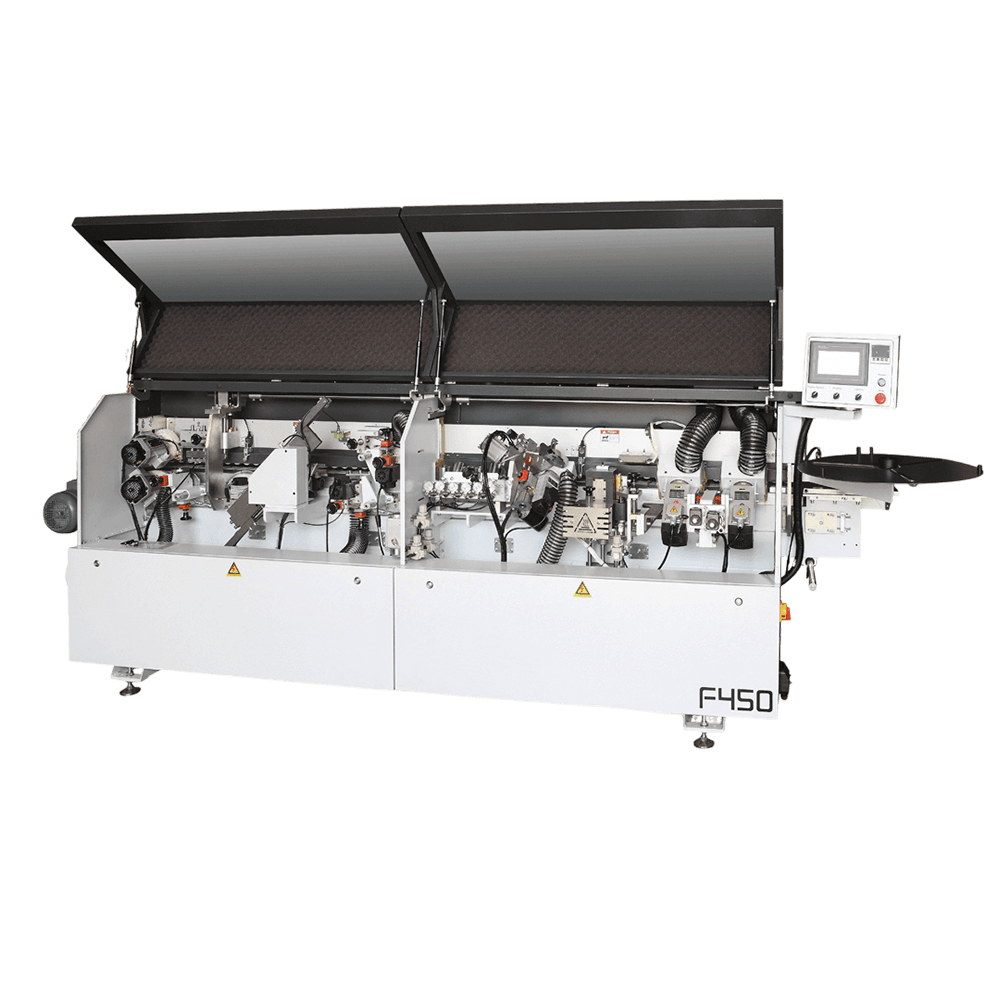

F450
- 45° Bevel Straight & Pure Bevel
- EVA
- Edge Banding Thickness: 0.8-2.0mm
- Panel Thickness:15-25mm
- Size: 3750*650*1540mm
Compact Edge Banding Machine Feature
Compact Structure
The machine is specially designed for limited factory space environments(20–100㎡ workshops).
Multi-Function
Despite its compact size, the machine integrates a full edge finishing system.
Hot Melt Glue System
A high-efficiency glue system ensures strong bonding performance.
Easy Operation
The "Quick-Set-System" enables you to make rapid adjustments to different materials.
Compare Compact Edge Banding Machine Types
|
Machine |
Glue |
Edge |
Function |
|
F800 |
EVA |
Straight |
Pre-Mill —Glue—End Cut —Fine Trim —Corner Trim —Scrap —Flat Scrap—Buff |
|
F600 |
EVA |
Straight |
Pre-Mill —Glue —End Cut —Fine Trim —Scrap —Buff |
|
F500 |
EVA |
Straight |
Glue —End Cut —Fine Trim —Scrap —Buff |
|
F3 |
EVA |
Straight |
Glue —End Cut —Fine Trim —Scrap —Buff |
|
F2 |
EVA |
Straight |
Pre-Mill —Glue —End Cut —Fine Trim —Scraping —Buff |
|
F1 |
EVA |
Straight |
Pre-Mill —Glue —End Cut —Rough Trim —Fine Trim —Corner Trim —Scrap —Buff |
|
F450 |
EVA |
45° Bevel |
45°Pre-Mill —Glue —Tape Groove—Fine Trim —End Cut—Scrap —Buff |

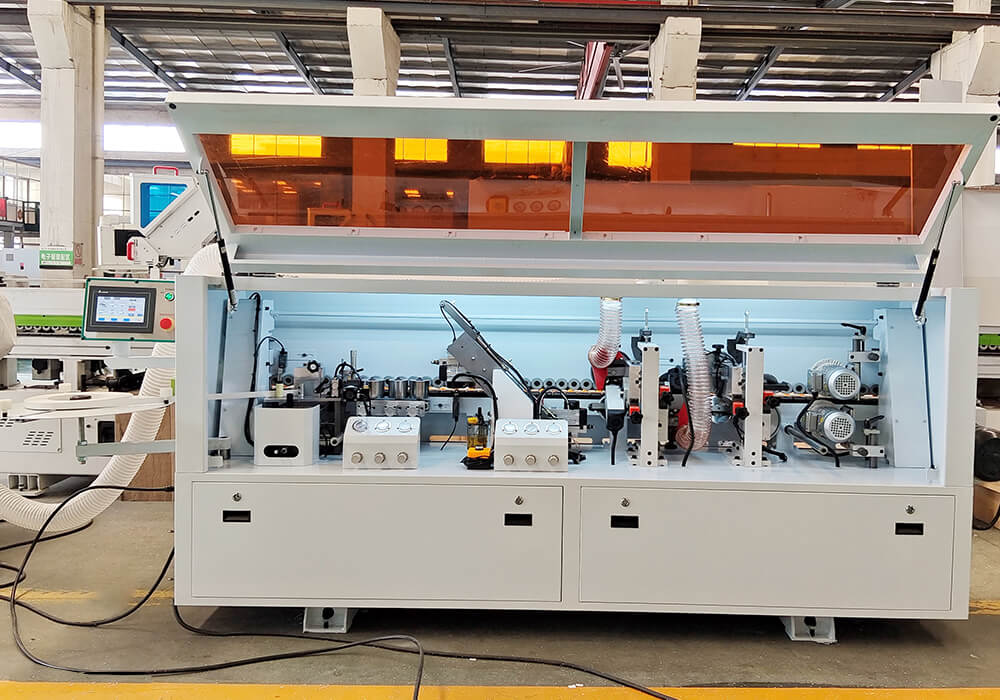

Why Choose Compact Edge Banding Machines?
In today’s furniture manufacturing industry, many workshops are shifting toward smaller, more flexible production spaces because the rent costs rises. That is where we need a compact edge banding machine.
Our compact edge banding systems is designed specifically for small workshops and custom furniture producers, allowing manufacturers to produce high-quality panels without requiring a large factory footprint.
- Designed for workshops with limited floor space.
- Lower investment compared to full production lines.
- Suitable for both skilled and semi-skilled workers.
- Quick changeover between different orders.
- Industrial-level finishing in a compact design.

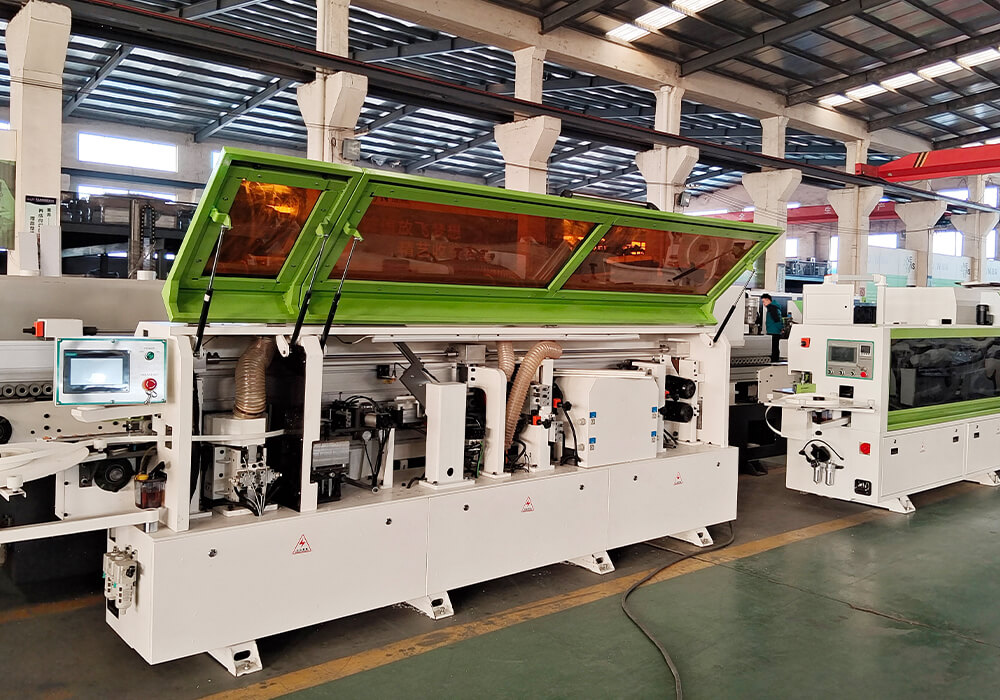

How Does It Work?.
1. Panel Feeding
2. Pre-Milling (Optional)
In upgraded compact models, the panel edge is milled before gluing.
- Removes saw marks and uneven surfaces
- Creates a perfectly straight bonding edge
- Improves adhesive strength and surface accuracy
3. Glue Application
Hot-melt adhesive is applied evenly to the panel edge.
- Precise glue roller system
- Stable temperature control
- Even coating without overflow
4. Edge Banding Pressing
The edge banding strip is automatically applied and pressed onto the panel.
- Strong pressure system ensures tight bonding
- Eliminates air gaps
- Suitable for PVC, ABS, veneer, and melamine strips.

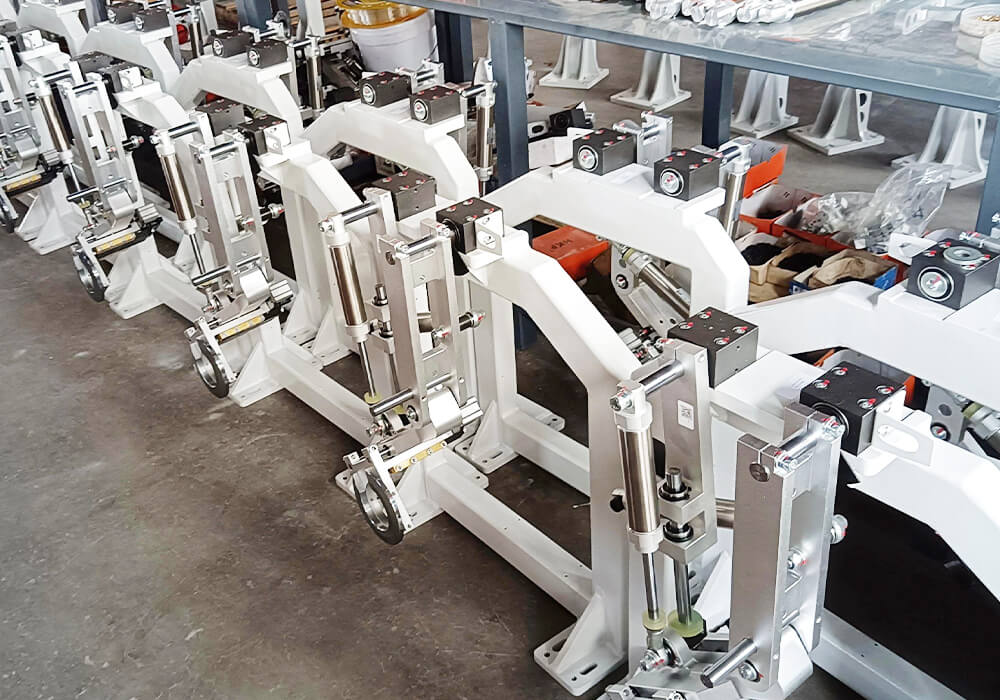

5. End Cutting Unit
After bonding, excess edge material is cut precisely at both ends.
- High-speed pneumatic cutting system
- Clean and flush edge ends
- No manual trimming required

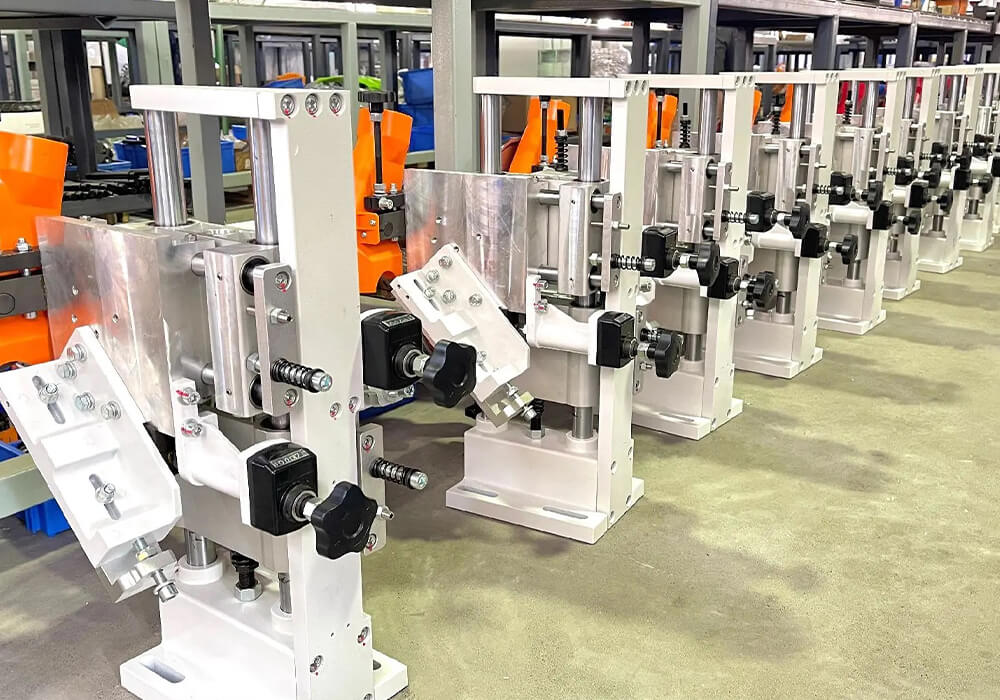

6. Fine Trimming Unit
Upper and lower excess edge material is removed.
- High-precision trimming blades
- Smooth surface finishing
- No edge burrs or roughness

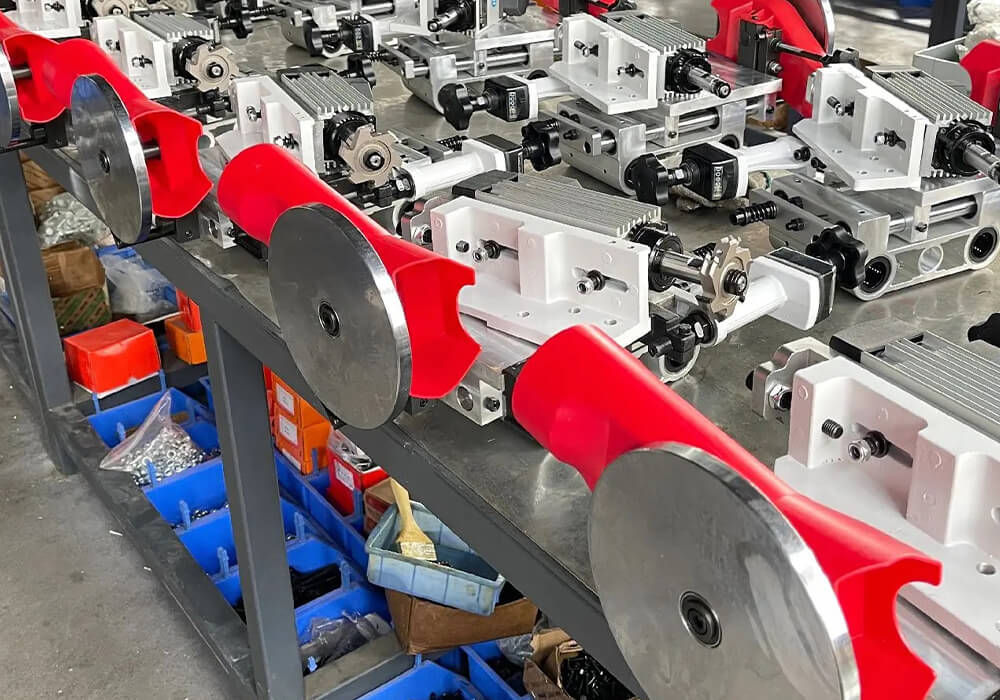

7. Scraping Unit
Fine scraping removes micro imperfections left after trimming.
- Eliminates glue residue
- Refines edge surface smoothness
- Improves touch and visual quality
8. Buffing / Polishing Unit
Final polishing step improves surface appearance.
- Soft polishing wheels
- Enhances edge brightness
- Removes dust and fine marks
Edge Type
Our Compact Edge Banding Machine supports two main processing types, designed to meet both standard furniture production and modern handleless cabinet design requirements.

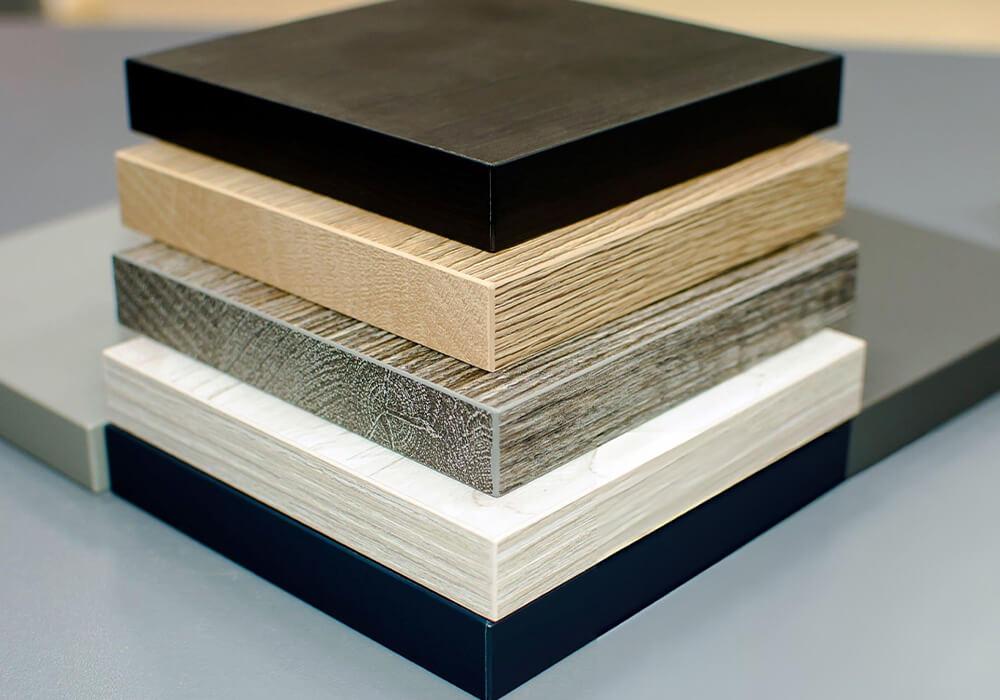

Straight Edge Banding
Straight edge banding is the most widely used method in cabinet and furniture manufacturing. It applies edge banding material directly to a flat 90° panel edge. Key Features:
- Simple and stable edge application
- Compatible with PVC, ABS, melamine, veneer
- High efficiency for mass production
- Clean and durable edge finishing

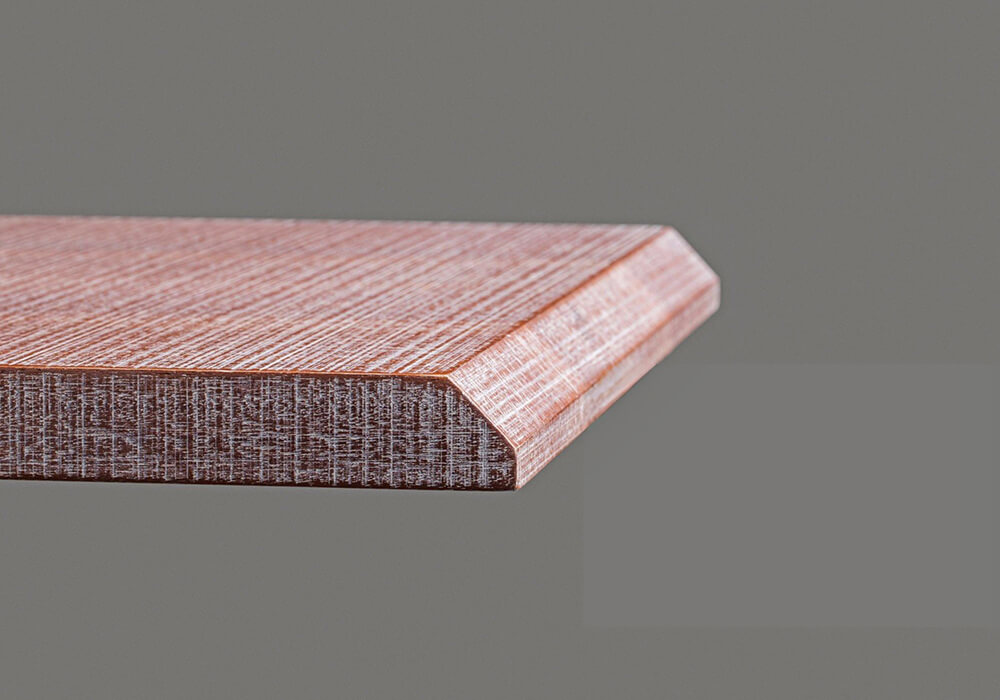

45° Bevel Edge Banding
45° bevel edge banding is designed for advanced furniture structures such as sharknose finger pull.
Key Features:
- Precision 45-degree edge machining
- Seamless integration for handleless design
- High-end modern furniture appearance
- Strong bonding and stable structure
Compact Edge Banding Machine Application
Cabinet Manufacturing
Compact edge banding machines are a core solution for cabinet production lines.
Typical Applications:
- Kitchen Cabinets
- Bathroom Cabinets
- Modular Cabinet Systems
Wardrobe & Closet Production
Our compact edge banding machine is widely used in residential and commercial wardrobe manufacturing.
Typical Applications:
- Sliding Door Wardrobes
- Built-In Closets
- Walk-In Wardrobe Systems
Office Furniture
Our compact edge banding machine is used in production of modern office furniture systems.
Typical Applications:
- Office Desks
- Filing Cabinets
- Workstations
- Conference Tables
Why Choose Us

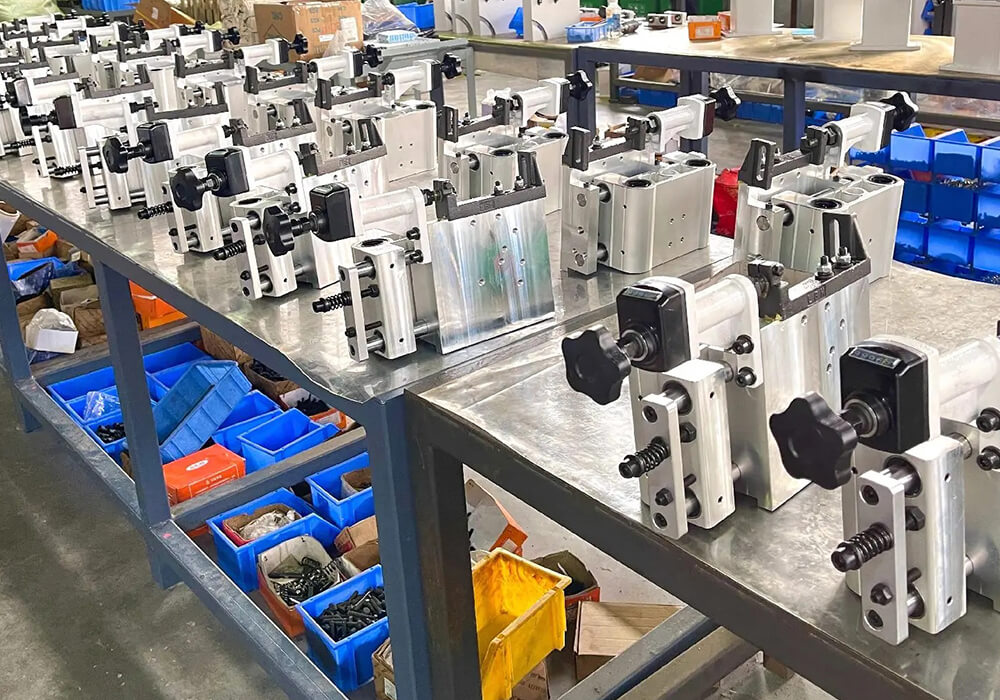

Our metal fabrication workshop ensures that every machine frame is built with precision, rigidity, and long-term stability. A stable machine frame directly affects edge banding accuracy, glue line consistency, and long-term machine lifespan.
Our in-house fabrication ensures every edge banding machine operates with high precision even under continuous industrial production.

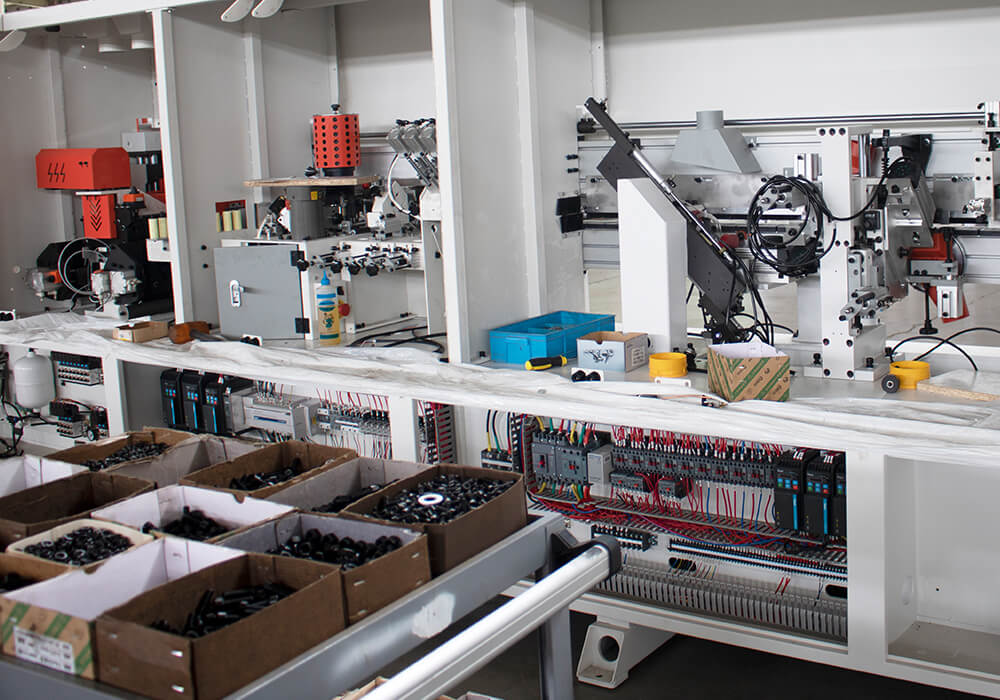

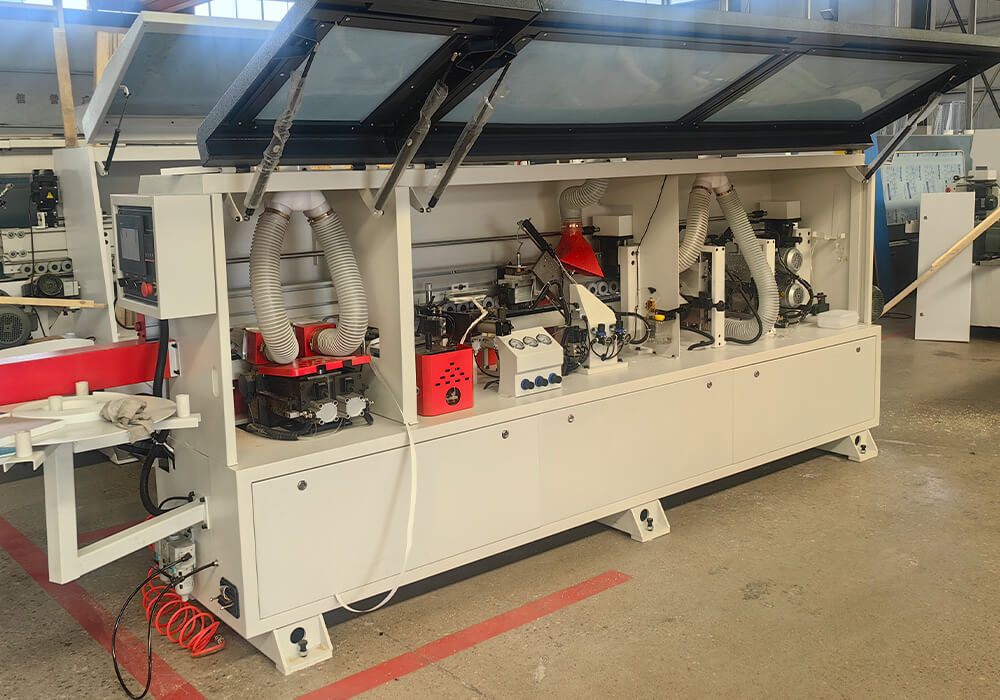

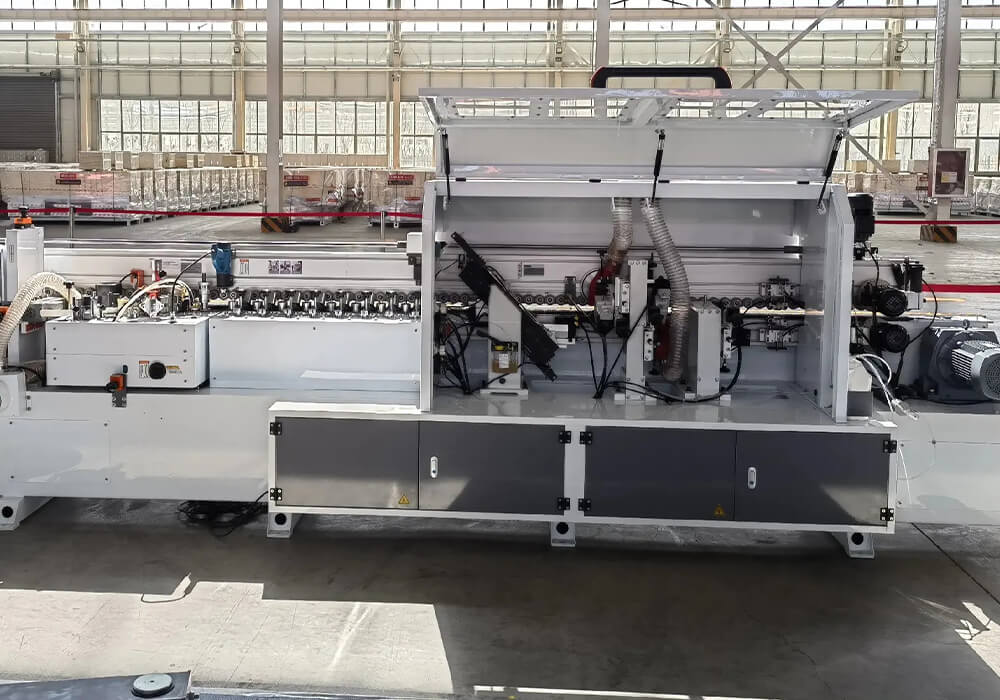

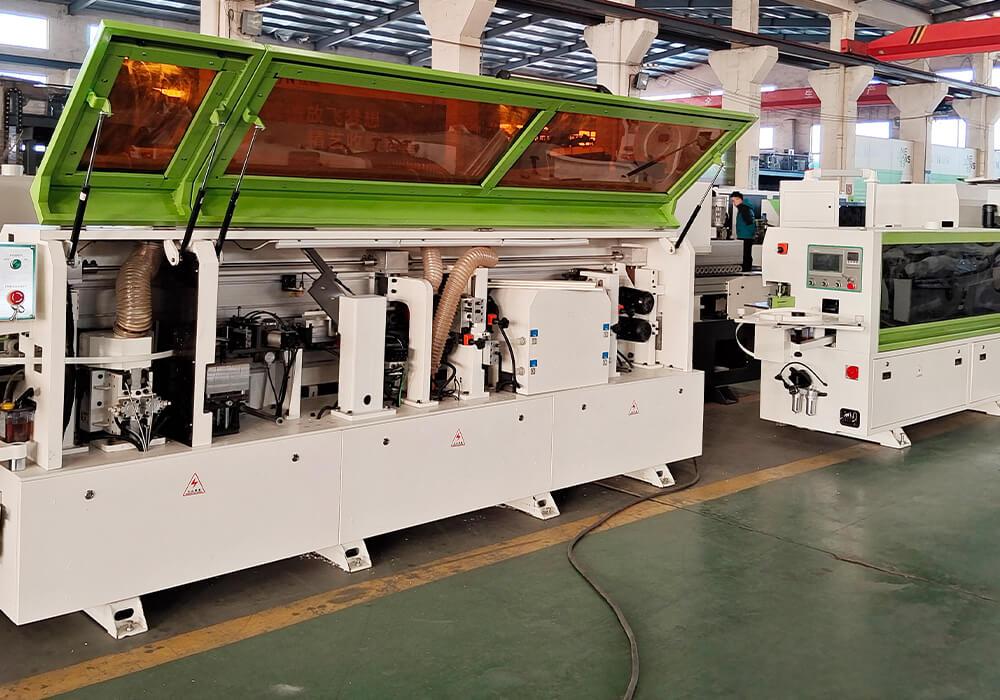

Our assembly workshop is where every edge banding machine is carefully built, tested, and calibrated before shipment. Every machine is tested under real working conditions before shipping. This ensures stable performance, smooth operation, and reduced installation issues at your factory.
We focus on delivering machines that are ready to run, not just ready to install.
Affordable Solutions
Elevate your woodworking projects with our state-of-the-art Compact Edge Banding Machine.
Contact us now to learn more about our products, request a quote, or schedule a demonstration.
