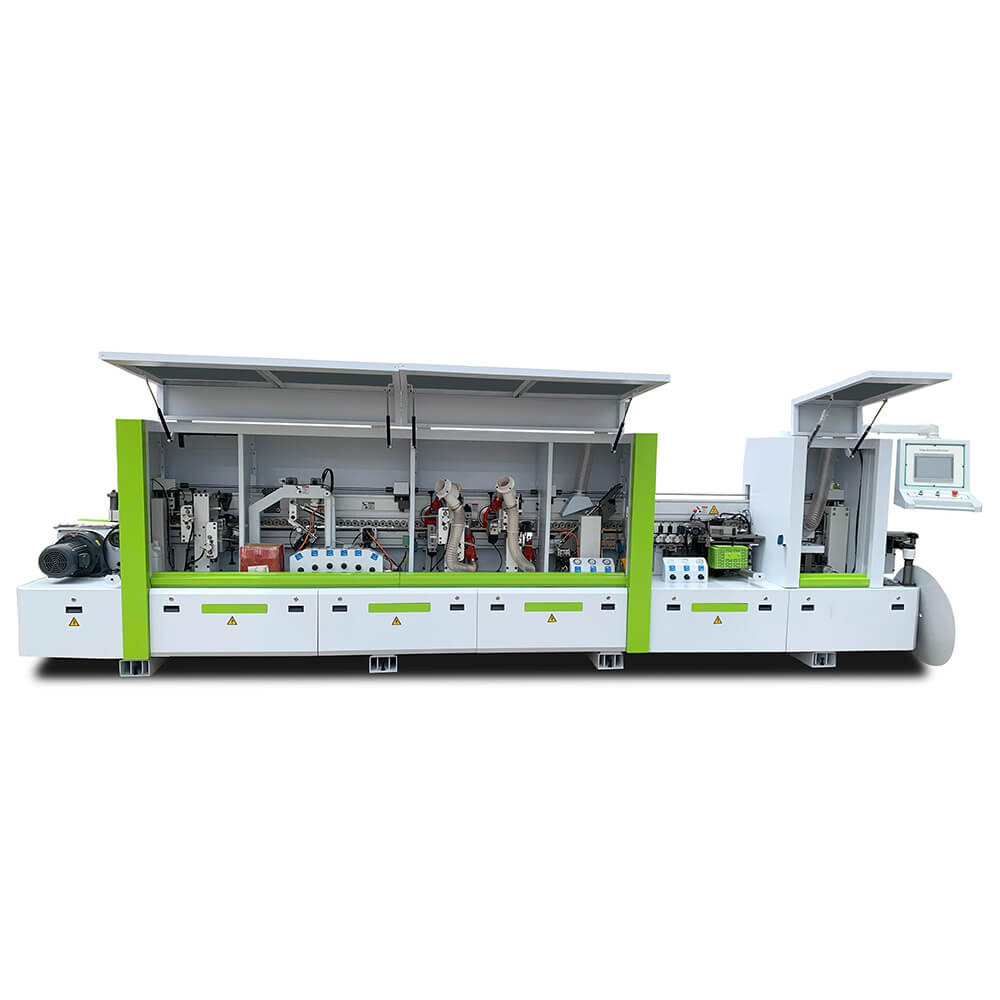

Corner Rounding Edge Banding Machine.
Bestin Corner Rounding Edge Banding Machine can create consistently smooth, rounded panel corners. These machines can accurately profile the front and rear corners, as well as the top and bottom edge transitions, of the workpiece after edge banding.
Our corner rounding edge banding machines combine precision machining, reliable automation, and robust industrial construction to help customers achieve consistent, high-quality edge finishing while improving production efficiency.
Machine Type
PUR

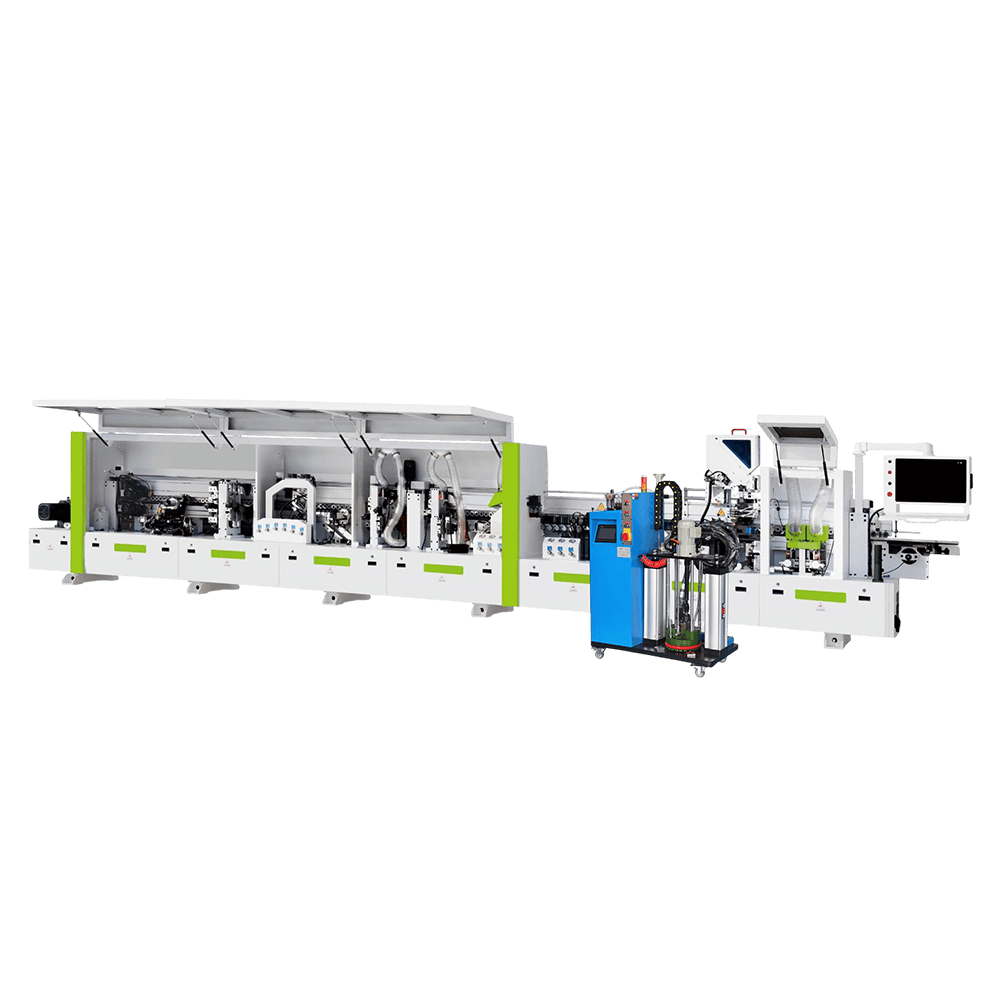

F450DJ-PUR
- Pre-Mill —Glue —End Cut —Fine Trim —Corner Trim —Scrap —Flat Scrap—Buff
- PUR
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-60mm
- Size: 9400×950×1850mm
Straight Edge
F450DJ
- Pre-Mill —Glue —End Cut —Fine Trim —Corner Trim —Scrap —Flat Scrap—Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-60mm
- Size: 6800×950×1850mm
Straight Edge

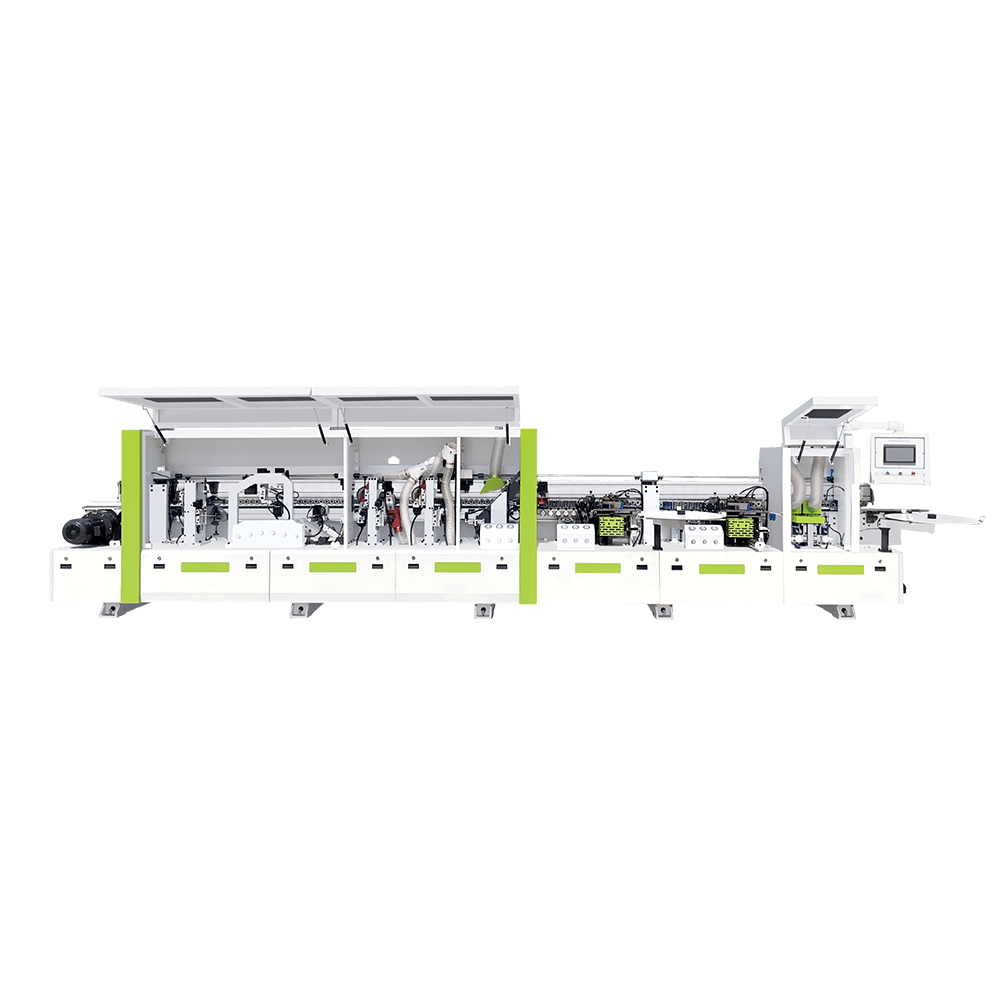

F450DJS
- Pre-Mill —Glue —End Cut —Fine Trim —Corner Trim —Scrap —Flat Scrap—Buff
- EVA
- Double Glue Unit
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-60mm
- Size: 8300×950×1850mm
Straight Edge
F800
- Pre-Mill —Glue —End Cut —Fine Trim —Corner Trim —Scrap —Flat Scrap—Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-50mm
- Size: 3550*640*1316mm
Straight Edge
F1
- Pre-Mill —Glue —End Cut —Rough Trim —Fine Trim —Corner Trim —Scrap —Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-45mm
- Size: 4250×600×1400mm
“Not Sure Which Machine I Should Use?”

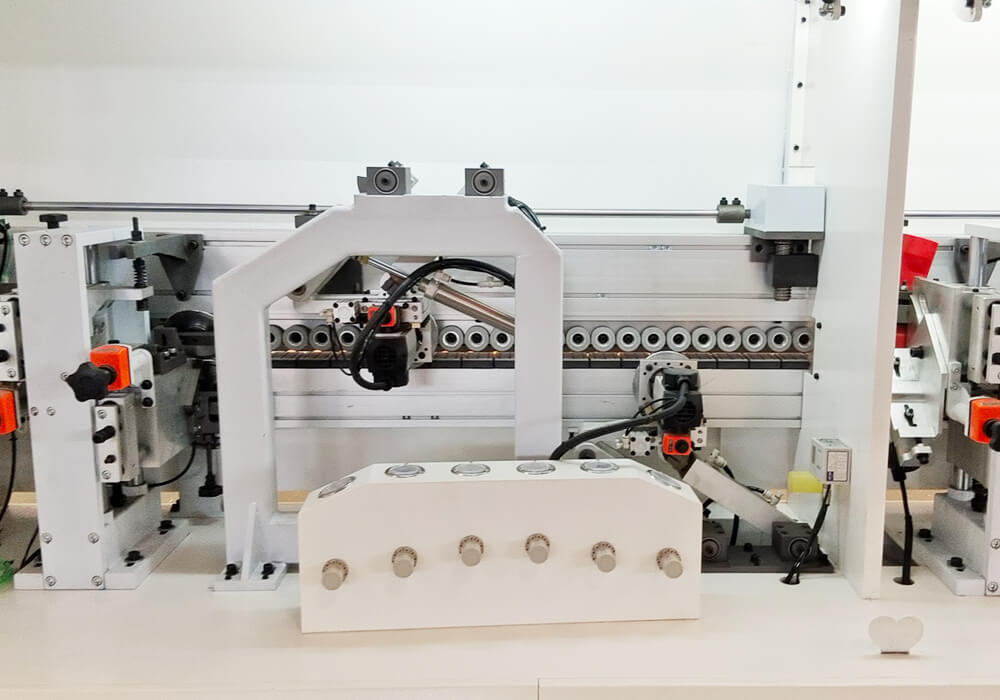

What Is Corner Rounding?
A corner rounding unit is a finishing station used on an edge banding machine.
After the edge material has been applied to a panel, the corner rounding unit profiles the excess edge material around the panel corners. It can create a smooth, continuous transition between the edge band and the panel surface.
Without accurate corner rounding, the front and rear corners of an edge-banded panel can appear sharp, uneven, or visibly unfinished.
This is especially noticeable on cabinet doors, drawer fronts, and tables. A properly adjusted corner rounding unit helps eliminate these rough transitions and creates a more refined finished appearance.

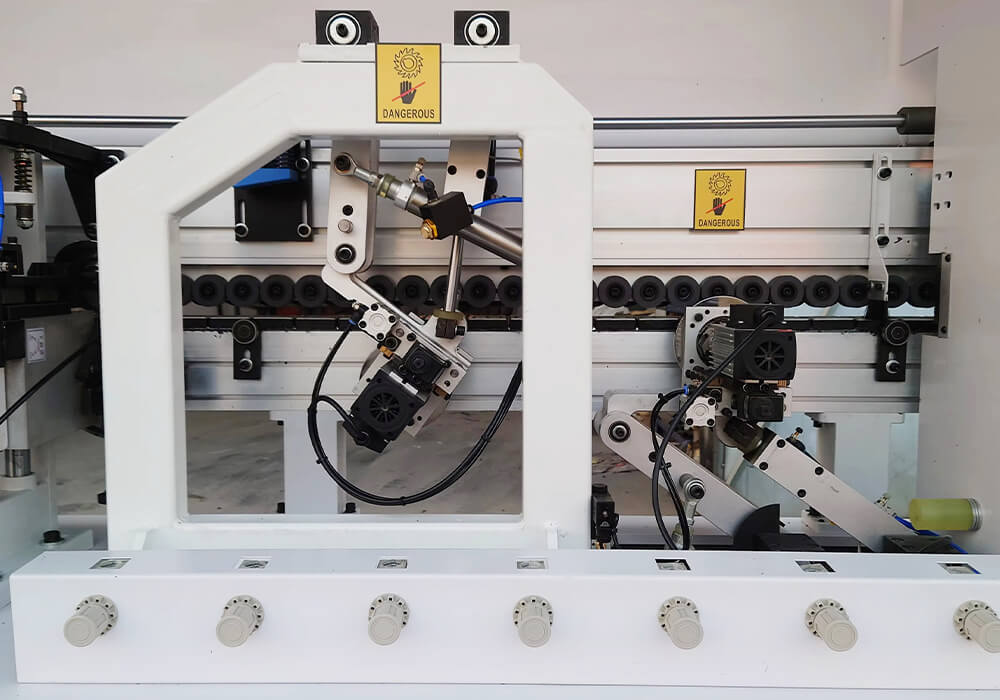

Why Is Corner Rounding Important?
Sharp corners and rough edge transitions can negatively affect the appearance of cabinets and furniture, even when high-quality materials are used.
Automatic edge banding machines were equipped with corner rounding unit to ensure every panel meets demanding quality standards.
- Create a smooth, continuous edge profile
- Minimize chipping, cracking, and premature edge lifting
- Smooth radiused corners help reduce the risk of accidental injuries.
- Automated corner rounding eliminates time-consuming manual trimming and sanding
Corner Rounding Type

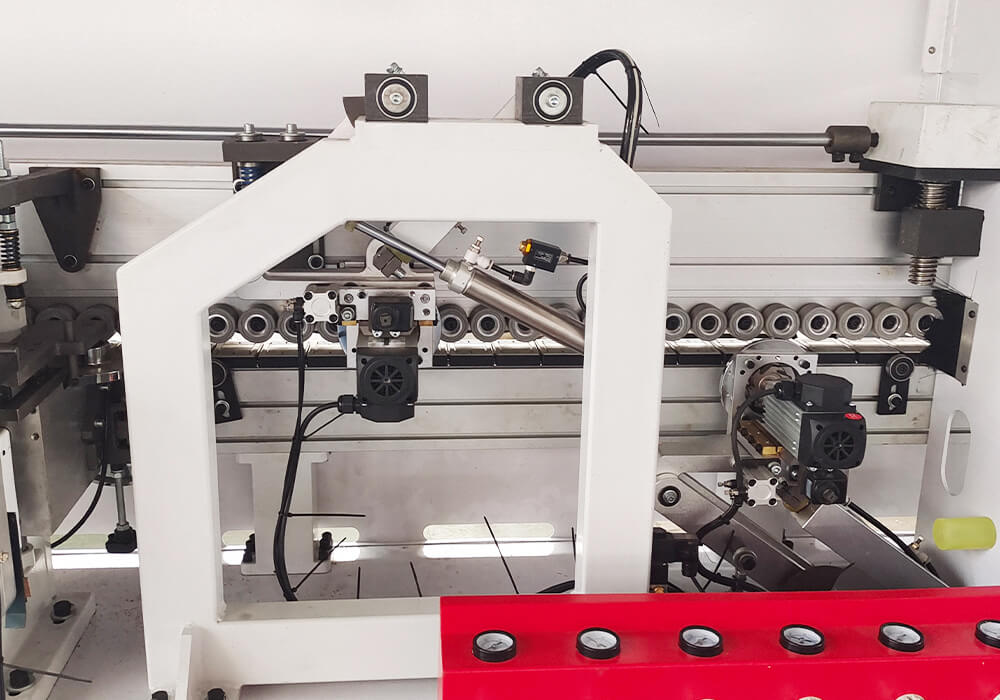

Two-Motor Corner Rounding Unit
The standard Two-Motor Corner Rounding Unit is ideal for most furniture manufacturing applications. It is equipped with two independent high-speed motors that simultaneously machine the upper and lower corners, ensuring a smooth and consistent radius on all four panel corners.
Features
- Two independent high-speed motors
- Simultaneous upper and lower corner machining
- Front and rear corner rounding
- Quick-release centering device
- Heavy-duty vibration-resistant structure

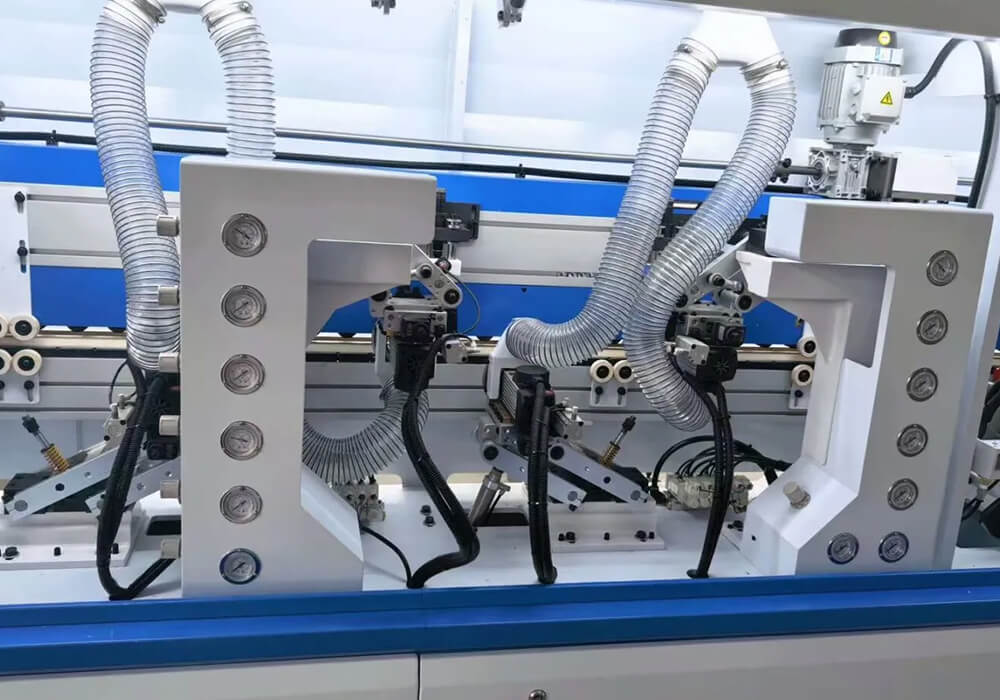

Four-Motor Corner Rounding Unit
For manufacturers processing more complex profiles or premium materials, we offer an optional Four-Motor Corner Rounding Unit. In addition to the standard upper and lower corner machining, the four-motor configuration provides greater cutting flexibility and improved profiling capability for demanding applications.
Features:
- Four synchronized high-speed motors
- Enhanced profile machining capability
- Simultaneous multi-directional cutting
- Superior radius consistency
- Improved machining stability
- Heavy-duty industrial construction
Corner Rounding Edge Banding Machine Application
Cabinet Manufacturing
Kitchen cabinets are exposed to frequent use, moisture, and repeated contact. Rounded corners improve durability while providing a cleaner appearance that complements modern kitchen designs.
- Cabinet Doors
- Drawer Fronts
- Side Panels
- Shelves
- End Panels
Wardrobe & Closet Production
Wardrobes often feature large visible panels where finishing quality directly affects the overall appearance.
Corner rounding creates smooth transitions that enhance premium wardrobe systems and walk-in closet furniture.
Office Furniture
Office desks, filing cabinets, conference tables, and storage systems require professional edge finishing for both aesthetics and user safety.
Rounded corners improve comfort while creating a more modern corporate appearance.
Why Choose Us
An edge banding machine’s performance starts with the quality of its mechanical structure. Our workshop was equipped with laser cutting machines, CNC machining machines, laser welding machines, and metal bending machines.
We will process machine frames and structural components are manufactured with precision and strict quality control. A rigid and accurately manufactured machine frame helps reduce vibration during high-speed machining, improving:
- Corner rounding accuracy
- Edge banding consistency
- Machine stability
After fabrication, each machine enters our dedicated Machine Assembly Workshop for complete assembly, adjustment, and testing. Experienced technicians carefully complete mechanical installation, electrical wiring, pneumatic system setup, processing unit adjustment, and parameter calibration.
Before shipment, every machine is tested to ensure all functions operate smoothly and meet production requirements.
A woodworking machine’s reliability depends not only on its design but also on the quality of its components. To ensure stable performance and easier maintenance, we purchase key spare parts and components from verified suppliers with proven quality standards.
By working with reliable suppliers, we help customers reduce risks and maintain stable production performance over the entire machine lifetime.
Affordable Solutions
Elevate your woodworking projects with our state-of-the-art Edge Banding Machine.
Contact us now to learn more about our products, request a quote, or schedule a demonstration.
