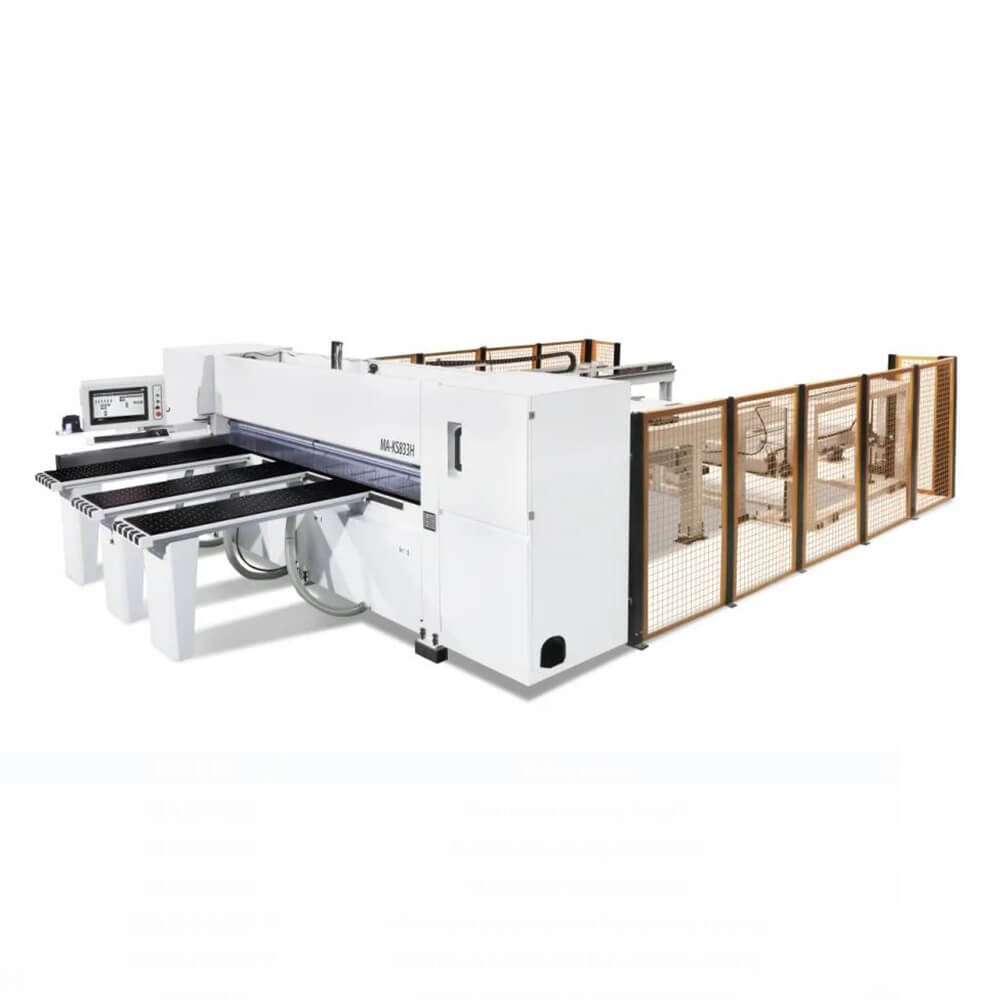

Industrial Beam Saw MA-KS833H
The Industrial Beam Saw MA-KS833H is a cutting-edge woodworking machine designed for high-precision panel cutting in industrial settings.
Ideal for furniture manufacturing, cabinetmaking, and other woodworking industries, this beam saw combines advanced automation, precision engineering, and robust construction to deliver unparalleled accuracy, efficiency, and safety.
With its ability to handle large panels up to 3300 x 3300mm and thicknesses up to 100mm, the MA-KS833H is a versatile solution for modern woodworking needs.
Benefits
- Enhanced Productivity
Automated features like rear loading and precise positioning reduce manual labor and increase cutting speed, boosting production rates. The automatic rear loading system, capable of lifting 2 tons of boards, streamlines material handling, saving valuable time.
- Superior Accuracy
Advanced control systems and high-precision components ensure each cut is accurate to ±0.1mm, minimizing material waste and improving product quality. The magnetic grating ruler and servo-controlled robotic arms provide exceptional positioning accuracy.
- Safety and Reliability
Comprehensive safety features, including a safety fence and intelligent monitoring, ensure a secure working environment and long-term machine reliability. The durable body structure prevents deformation, maintaining consistent performance over time.
- Versatility
Handles a wide range of panel sizes (minimum 5mm for horizontal cutting, 40mm for vertical) and thicknesses up to 100mm, making it suitable for diverse woodworking applications, from plywood to MDF.
- Cost-Efficiency
Optimized board utilization, reduced setup times, and high-speed operation lead to significant cost savings over time. The intelligent board layout optimization software maximizes material usage, reducing waste.
Feature
Considerations for Buyers
When considering the MA-KS833H, ensure your facility can accommodate its large footprint (9150 x 5840 x 1900mm) and power requirements (32kW or 34kW optional).
The machine’s air pressure requirement of 0.6-0.8 MPa and four vacuum cleaners (Φ100mm) suggest a need for adequate dust extraction and compressed air systems.
Comparing the MA-KS833H with other beam saws, such as those from HOLZ-HER, which emphasize compact designs, or KDT, which offer twin pusher options, can help determine the best fit for your needs.
Additionally, verify the availability of after-sales support, as seen with brands like Leda Machinery, which provide nationwide servicing.
Technical Data
|
MA-KS833H |
|
|
Maximum
Sawing Length |
3300mm |
|
Maximum
Sawing Thickness |
100mm |
|
Maximum
Sawing Width |
3300mm |
|
Minimum
Plate Size For Horizontal Cutting |
5mm |
|
Minimum
Board Size For Vertical Cutting |
40mm |
|
Outer
Diameter Of Main Saw Blade |
360mm-400mm |
|
Inner
Diameter Of Main Saw Blade |
80mm |
|
Air Flotation
Table Specifications |
1750*540mm |
|
Oversize
|
9150*5840*1900mm |
|
Size
Of Lifting Platform |
5250*2210*1400mm |
|
Display
Screen |
19 inches |
|
Main
Saw Power |
16.5kw(18.5kw
Optional) |
|
Auxiliary
Saw Motor Power |
2.2kw |
|
Traction
Motor Power (Rack And Pinion Drive) |
2.0kw |
|
Robot
Servo Motor |
2.0kw |
|
Power
Of Lifting Platform |
5.5kw |
|
High
Pressure Fan |
4kw |
|
Total
Power |
32kw
(34kw Optional) |
|
Positioning
Method |
Automatic |
|
Servo
Positioning Accuracy |
0.02mm |
|
Sawing
Accuracy |
±0.1mm |
|
Main
Saw Speed |
4800r/min |
|
Blade
Speeds |
0-100
m/min |
|
Return
Speed |
120m/min |
|
Air Pressure |
0.6-0.8mpa |
|
Vacuum
Cleaner |
Φ100mm*4 |
|
Number
Of Robotic Arms |
13PCS |
