Planer Thicknesser Combo

Space & Cost Efficiency
Industrial Precision
Seamless Workflow
Robust Durability
Reduced Maintenance Costs
Planer • Thicknesser • Mortise(Optional)

Planer Thicknesser Combo

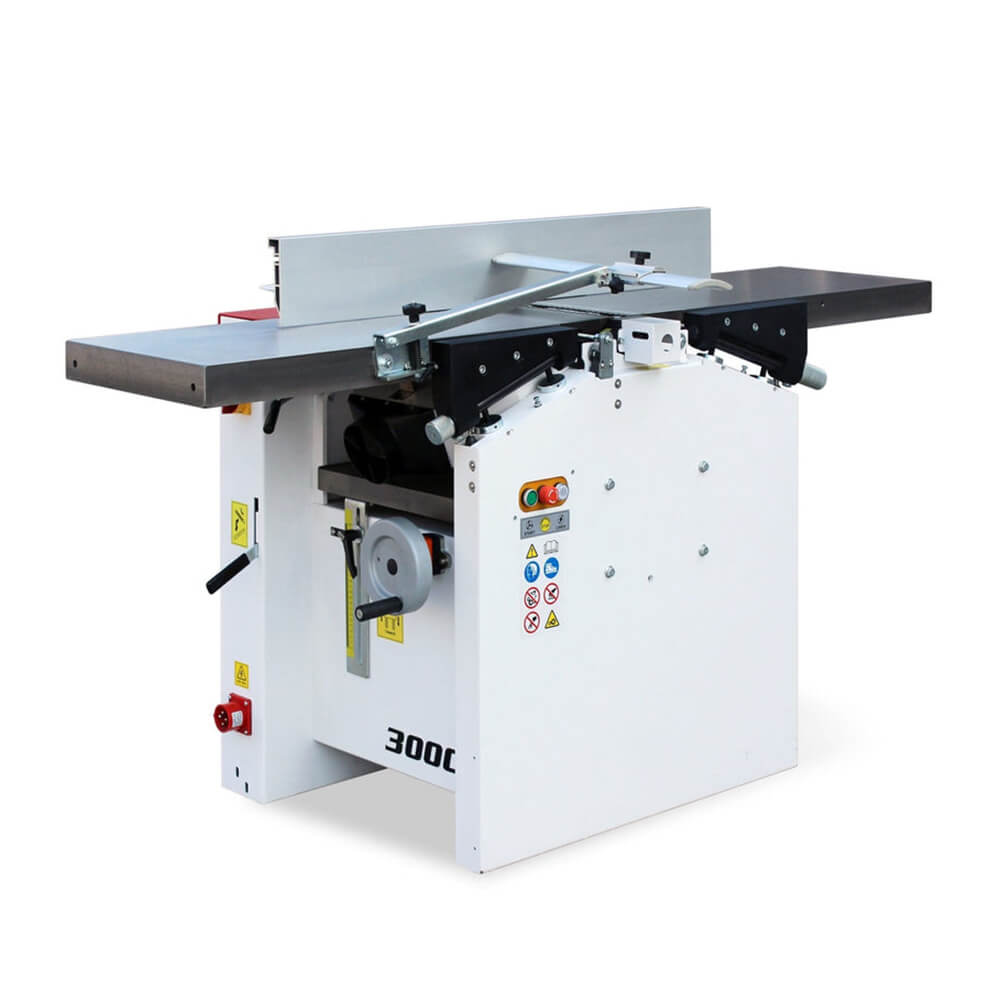

The BESTIN 300C Planer Thicknesser Combo is an industrial-grade, space-saving powerhouse that integrates a high-precision planer, thicknesser, and mortiser in a compact footprint for factories and small professional workshops.

Its robust cast-iron construction delivers unmatched precision and durability, while three independent Class 1 motors enable instant switching between functions—no belt changes required.

With professional-level power, micro-adjust accuracy, and versatile mortising capabilities, the 300C elevates workflow efficiency, reduces equipment costs, and ensures consistently flawless results.

Benefits

Space & Cost Efficiency

Combining planer, thicknesser, and mortiser functions into a single machine saves valuable shop floor space and reduces capital expenditure compared to purchasing three standalone units.

Industrial Precision

Solid cast-iron tables on both the planer and thicknesser ensure absolute flatness and rigidity, translating into perfectly flat surfaces and uniform thickness across every board.

Seamless Workflow

One cutter head serves both planing and thicknessing operations—simply switch tables without stopping the spindle—minimizing downtime and streamlining production.

Robust Durability

Cast-iron construction and a sturdy mortiser frame absorb vibration and maintain alignment even under heavy or dense workpieces, guaranteeing long-term reliability.

Reduced Maintenance Costs
A single cutting head and motor mean fewer knives to sharpen or replace and simplified servicing compared to separate machines, lowering ongoing upkeep expenses.


Features

Planer Unit

Working Table: 300 × 1,500 mm for handling large panels with ease.
Cutterblock: 70 mm diameter with three industrial-grade knives rotating at 5,700 rpm for a silky-smooth finish in a single pass.
Fine Adjustment: Up to 4 mm of micro-adjustable table movement for exact material removal.

Thicknesser Unit

Working Table: 300 × 660 mm accommodating long boards while maintaining compact overall machine size.
Feed Speed: 7 m/min for efficient throughput without compromising surface quality.
Height Range: 4 – 220 mm for thicknessing from veneers to heavy stock.

Mortiser Unit

Table Size: 250 × 500 mm with three-axis movement (205 mm longitudinal, 95 mm transversal, 90 mm vertical) for precise joinery.
Chuck: 16 mm capacity rotating at 5,700 rpm to handle standard mortising bits.

Safety & Ease of Use

Quick-Release Adjustments: Tool-free levers and knobs allow rapid function changes and setup.
Protective Guards: Comprehensive shields on the planer and mortiser units ensure operator safety and cleanliness.
Service Accessibility: Removable covers and included wrenches facilitate fast blade and bit changes.

Technical Data

Planer	Unit	300C
Working Tables	mm	300×1500
Cutterblock Diameter	mm	70
Cutterblock Rotation Speed	r.p.m	5700
N. Of Knives	n°	3
Knives Dimensions	mm	300x20x3
Max Table Adjustement	mm	4

Thicknesser	Unit	300C
Working Table	mm	300×660
Feed Speed	m/1′	7
Max. Working Height	mm	220
Min. Working Height	mm	4
Cutterblock Rotation Speed	r.p.m.	5700
Max. Cutting Depth	mm	4

Mortiser	Unit	300C
Working Table	mm	250×500
Longitudinal Stroke	mm	205
Trasversal Stroke	mm	95
Vertical Stroke	mm	90
Churck	mm	16
Churck Rotation Speed	r.p.m.	5700

Standard Accessories	Unit	300C
Service Wrenches		*
Mortiser Chuck		*
Guards On Mortiseur Chuck		*
3 Pcs. Planing Knives		*
Planer Guide
Bridge Sefety Hood On Planer		*
3-Phase Motor Power	HP – KW	3,0 – 2,2
Weight	kg	290

Optional Accessories	Unit	300C
Single-Phase Motor	HP – KW	3,0 – 2,2
Increasing 3-Phase Motor	HP – KW	4,0 – 3,0
Wescott(Diameter)	mm	16
