Table Saw And Planer Combo

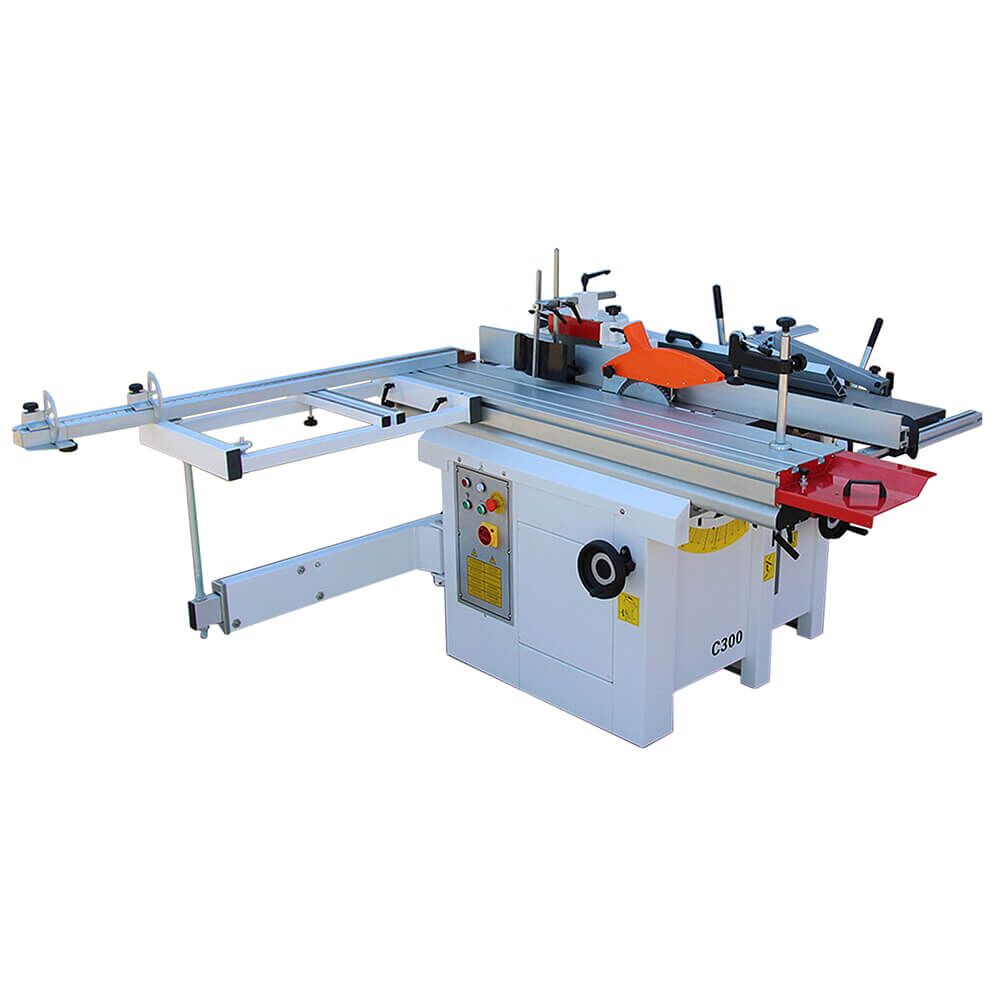

The BESTIN C300 Table Saw & Planer Combo is a professional-grade solution engineered to bring industrial performance into factories and small workshops.
Combining a precision sliding table saw with a powerful planer–thicknesser unit, the C300 delivers unmatched accuracy, versatility, and durability in a compact footprint.
Its cast-iron construction, independent Class 1 motors, and user-friendly adjustments make it the perfect all-in-one machine for demanding woodworking environments.
Benefits
Space & Cost Efficiency
Integrates two critical woodworking functions—panel cutting and surface planing—into one machine, reducing floor space requirements and equipment investment.-
Industrial-Level Precision
Sliding beam saw and accurate cross-cut fence ensure perfect, repeatable cuts; the planer’s fine table adjustment guarantees uniformly smooth boards every time. -
Seamless Workflow
Three independent 2.2 kW motors allow instant switching between sawing and planning functions at the flick of a switch—no belt changes or downtime. -
Robust Durability
Heavy-duty cast-iron frame and swinging-arm extensions absorb vibration and maintain alignment under the stress of large or dense workpieces. -
Compact Footprint
An inward-swing thicknessing unit and integrated sliding table keep the overall dimensions minimal, making the C300 ideal for small-footprint shops.
Features
- Sliding Table Saw
- Sliding Beam Design: Precision-ground beam runs alongside the blade for zero deflection and 100% accurate cross-cuts.
- Scoring Unit: Pre-cuts veneered panels to prevent tear-out and chipping on delicate surfaces.
- Flip-Stop Cross-Cut Fence: Quick, repeatable angle settings for fast batch cutting.
- Planer & Thicknesser
- High-Torque Cutterblock: 70 mm diameter block with three industrial-grade knives delivers a perfect finish in a single pass.
- Micro-Adjust Table: Up to 4 mm of fine-tuning for precision material removal, ensuring consistent board thickness.
- Inward Swinging Table: Compact design swings in when not in use, reducing the machine’s overall footprint.
- Ease of Use & Safety
- Tool-Free Adjustments: Quick-release levers and knobs for rapid setup and changeovers.
- Integrated Safety Guards: Full shielding on both saw and planer units to protect operators from debris and accidental contact.
- Service Accessibility: Removable covers and included wrenches simplify routine maintenance and blade/knife changes.
Technical Data
| Planer | C300 |
| Working Table | 300*1500 mm |
| Cutter Block Diameter | 70 mm |
| Cutter Block Rotation Speed | 5700 r. p. m |
| Dimension Knives(3 Knives) | 300*20*3 mm |
| Max Table Adjustment | 4 mm |
| Thickness | C300 |
| Working Table | 300*660 mm |
| Feeding Speed | 7 m/1’ |
| Working Height | 4-220 mm |
| Cutter Block Rotation Speed | 5700 r. p. m |
| Max. Cutting Depth | 4mm |
| Mortiser | C300 |
| Working Table | 250*500 mm |
| Longitudinal /Trasversal /Vertical Stroke | 205/95/90 mm |
| Churck ( M18*1.5-S) | 0-16 mm |
| Churck Rotation Speed | 5700 r. p. m |
| Circular Saw | C300 |
| Working Table | 220×1000 mm |
| Shaft Rotation Speed | 4500 r. p. m |
| Blade Diameter | 250 mm |
| Blade Bora Diameter | 30 mm |
| Cutting Height 90° | 80 mm |
| Max. Distance Between Blade And Fence | 500 mm |
| Blade Inclination | 45° |
| Max Cutting Height 45° | 50 mm |
| Shaft Rotation Speed Engraver | 7000 r. p. m |
| Engraver Blade Diameter | 90 mm |
| Engraver Blade Bora Diameter | 22 mm |
| Shaper | C300 |
| Working Tables | 220×1000 mm |
| Shaft Rotation Speeds | 2000/3100/4400/7000 r. p. m |
| Standard Shaft Diameter | 30 mm |
| Spindle Lenght | 105 mm |
| Shaft Vertical Stroke | 115 mm |
| Max. Tool Diameter | 160 mm |
| Max. Tenoning Depth | 55 mm |
| C300 | |
| Motor | 3kw/2.2 KW |
| Weight | 550 kgs |
