CNC Woodworking Machines have changed how doors are made. These machines are very precise, with accuracy as close as ±0.01mm.
They can copy detailed designs while keeping the quality the same. Companies using these machines see profits grow by 42% because they work faster. Smart features let the machines run without workers, cutting labor costs by over 30%. New CNC machines also save energy and help the environment. Whether you need to make more doors or create unique designs, these machines improve door-making in big ways.
This guide will help you understand cnc woodworking machine for doors.
Featured Resource
Table of Contents
1. CNC Door Fabrication Workflow
1.1. Design and Planning
The first step in making CNC doors is planning. This step decides how the door will look and work. A digital plan is made using CAD software. This software shows the door’s size, patterns, and details before making it. Keeping designs simple saves time and avoids mistakes. Removing extra features also makes the process faster.
To get good results, keep tolerances correct. This helps the door fit well and balances cost and quality. Picking the right tools is also key. Tools for fast cutting or smart paths work better and last longer. Careful planning makes the process smooth and accurate.
Tip: Always check your design carefully before moving forward. A small mistake in the plan can cause big problems later.

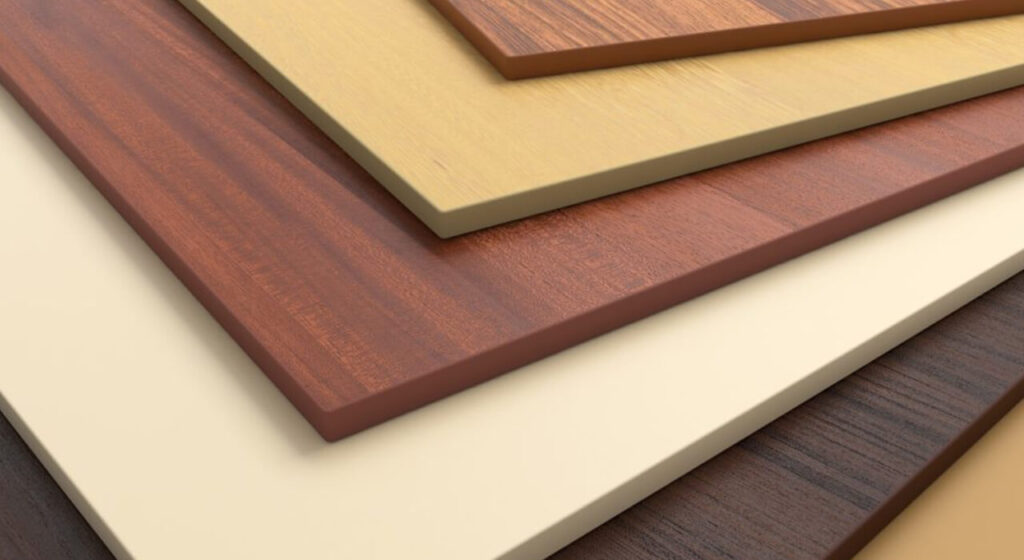

1.2. Material Selection
-
Board or Panel Choice: The door core and decorative panels can be solid wood, plywood, MDF or other engineered materials. CNC machines handle various densities – from softwoods for fast roughing to hardwoods for elegant solid doors.
-
Fixture Setup: Doors or panels are clamped on tables (vacuum or mechanical clamps) to secure them during milling and drilling.
|
Material |
Description |
Advantages |
Disadvantages |
Best Use Cases |
|
Solid Wood |
Natural |
– – High strength and durability – Takes carving well |
– – – |
Luxury |
|
Plywood |
Engineered |
– Good – – |
– – |
Interior |
|
MDF |
Medium |
– Very – Easy – Low |
– Less |
Painted |
1.3. CNC Cutting and Profiling
-

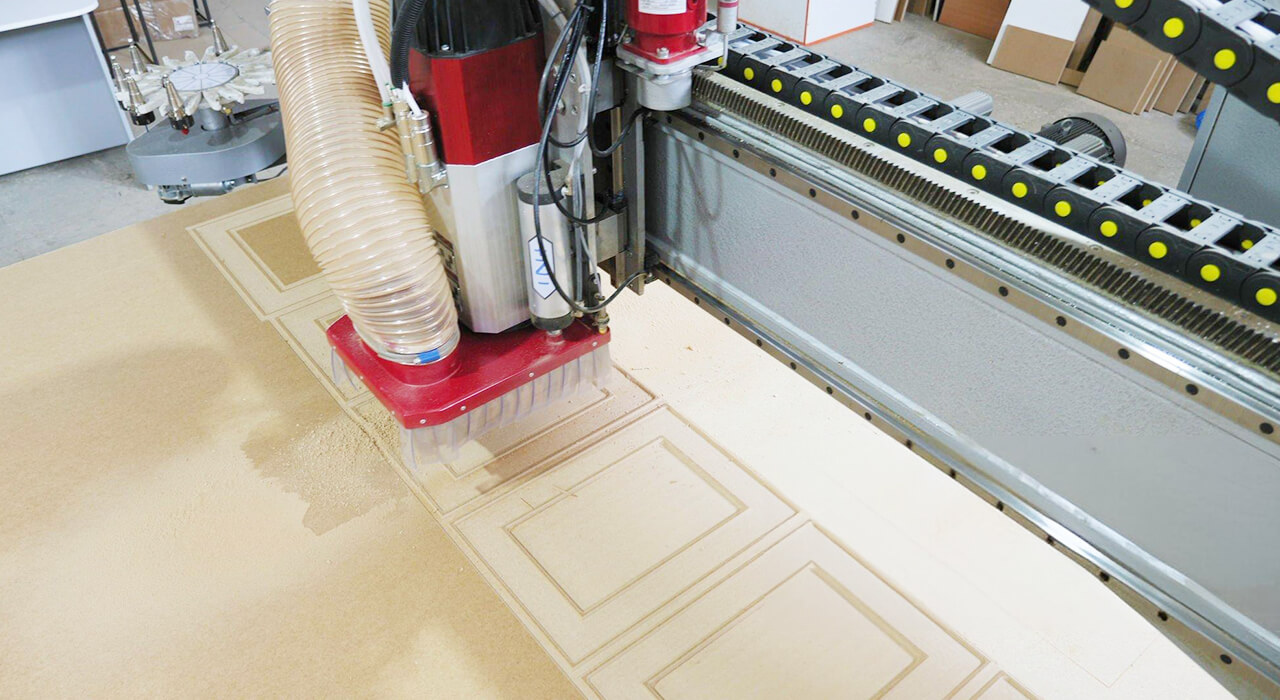

Panel Cutting: A CNC wood router (often 3- or 5-axis) cuts door blanks to shape and routs panel recesses. High-speed end mills can shape door outlines with smooth edges. CNC routers excel at “high-speed door milling” – carving out material rapidly with precise feeds.
-
Edge Profiling: Decoratively shaped bit profiles add chamfers or ogee edges to door faces. These features are fully programmable for consistency across batches.
-
Custom Inlets: Spaces for glass inserts or pre-hung frame fittings are precisely milled.
1.4. Joinery and Hardware Grooves

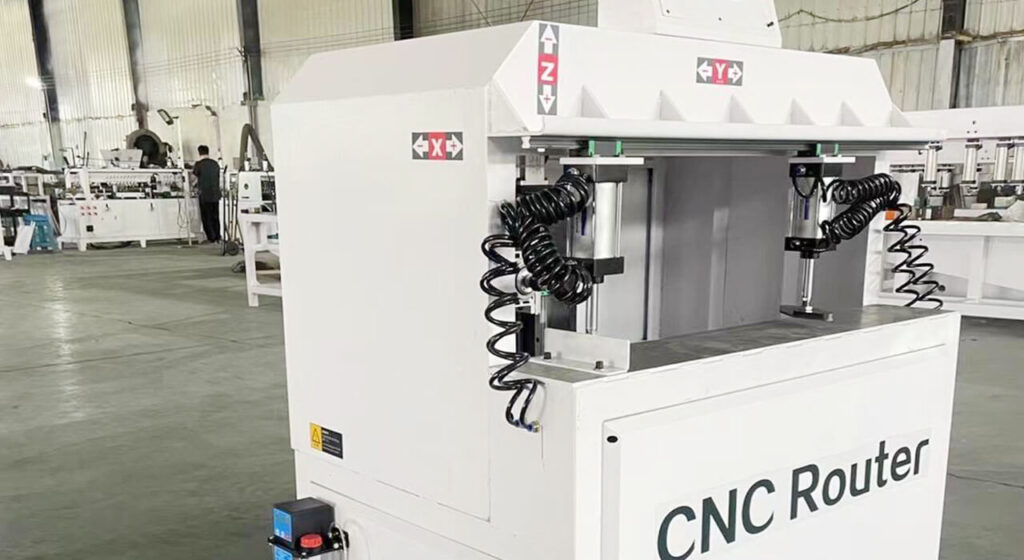

1.4.1. Mortises and Dovetails
For frame-and-panel doors, CNC machines cut mortises (e.g. tenon slots) and dowel holes with tight fits.
1.4.2. Lock and Hinge Drilling
A door drill machine bores holes for handles, locks, and hinges. CNC accuracy is critical – installers rely on “precise holes for door locks and handles”. Modern CNC door and lock drill machines often use multi-spindle heads to punch all lockset and hinge holes in one cycle.
Automated 6-sided drilling machine can simultaneously process both door faces, edges, and ends. These rigs feature multiple servo-driven spindles so that dozens of lock and hinge holes are drilled per cycle (see Figure below).

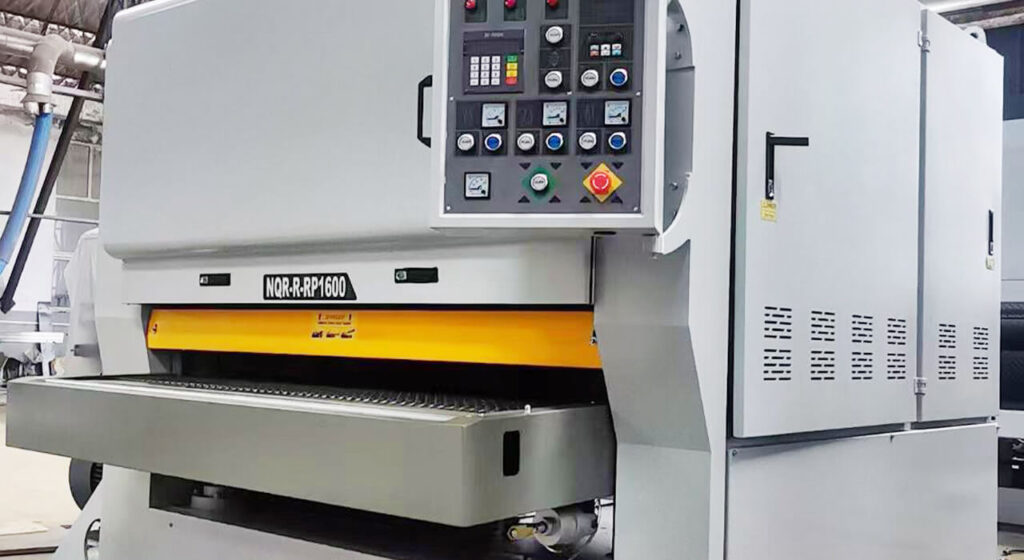

1.5. Surface Preparation and Finishing
Surface preparation and finishing are the last steps in making CNC doors. These steps make the door look nice and protect it from damage. Good preparation helps the finish stick well and last longer.
Start by sanding the door to remove rough spots. CNC machines leave little roughness, but sanding makes the surface smooth. Use fine wide belt sanding machine for the best results. After sanding, clean the door to remove dust. A clean surface is important for a good finish.
Next, apply a primer to seal the wood and create a smooth base. Primers also protect the wood from moisture. Once the primer is dry, add the topcoat. Pick a finish that matches the door’s use. Polyurethane is great for outdoor doors. Water-based finishes are better for indoor doors because they dry fast and have low odor.
Tip: Test the finish on a small hidden spot first. This ensures the color and texture are what you want.
CNC machines can also add detailed designs like engravings or patterns. You can highlight these with stains or paints for a unique look. By learning surface preparation and finishing, you can make doors that are both useful and beautiful.
2. Tools and Machine for CNC Door Production
2.1. CNC Woodworking Machines Overview
CNC Woodworking Machines are key tools for
making doors today. They are very precise and work fast, helping create great
doors. These machines do jobs like cutting, joining, and preparing surfaces.
They make smooth edges, handle tricky joinery, and use materials like MDF and
plywood with little waste.
|
Performance Metric |
Description |
|
Makes smooth edges and accurate door
shapes. |
|
|
Joinery Techniques |
Handles complex joinery like mortise and
tenon easily. |
|
Surface Preparation |
Sanding and finishing for strong and
nice-looking doors. |
2.1.1. Six-Side CNC Drill Machines: Features and Benefits

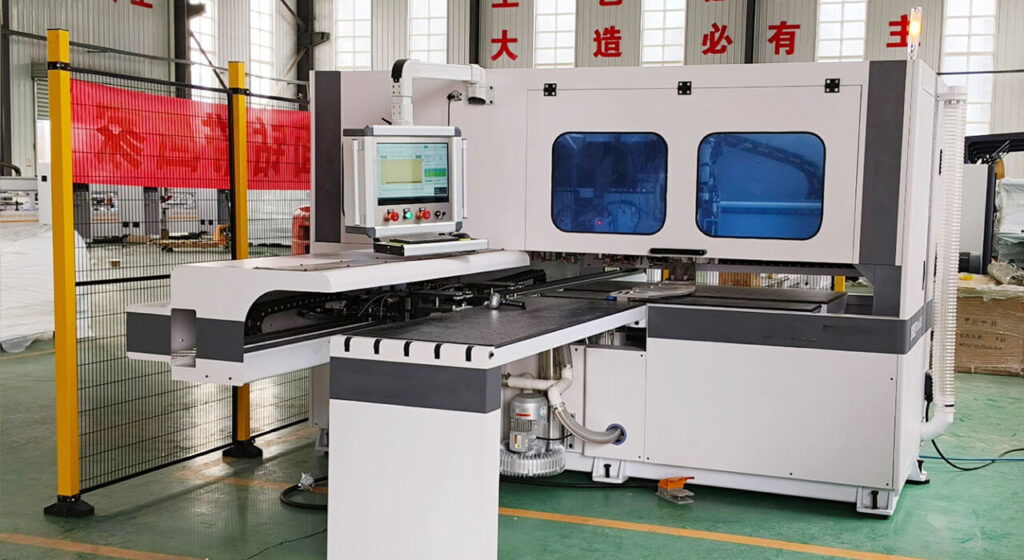

Bestin CNC (and similar suppliers) offer specialized Six-sided CNC door drilling machines. These robust machines are built for high throughput door production. Key features include:
-
Six-sided access: Hydraulic or linear lifters flip the door blank so that both faces and all four edges are drilled or milled in one setup. This eliminates manual re-fixturing.
-
Multi-spindle drilling heads: Multiple drills (sometimes dozens of spindles) operate in parallel. A multi-spindle router head can cut hinge mortises, lock pockets, and edge holes simultaneously. For example, some machines have “2 drill set 30 motors” to drill up to 30 holes at once.
-
Heavy-duty construction: Precision linear guides (X/Y gantry rails, Z-ball screws) ensure micron-level repeatability. High-quality steel frames and imported drill bits improve durability.
-
Servo-driven motion: High-torque servo motors with reducers enable high-speed door milling and drilling across wide panels (virtually “no limit to board width”). Automatic lubrication and brush dust extraction maintain reliability in 24/7 production.

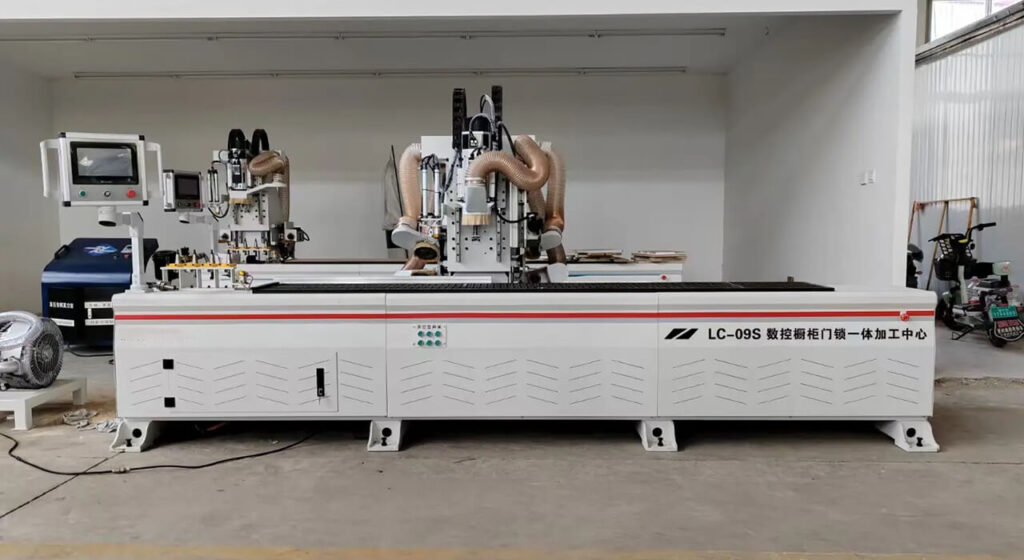

2.1.2. CNC Door and Lock Drilling
CNC Door Drilling Machines are specifically applied to hardware preparation in door manufacturing. Typical use cases:
- Lockset and Handle Holes: Drilling door faces and edges to fit mortise locks, cylinder holes, and knobs. CNC mills the precise pocket shape and through-holes for each lock model.
- Hinge Drilling: Cutting hinge mortise cavities on the door edge or face. A high-end CNC drill machine can rout multiple hinge pockets with exact depth control.

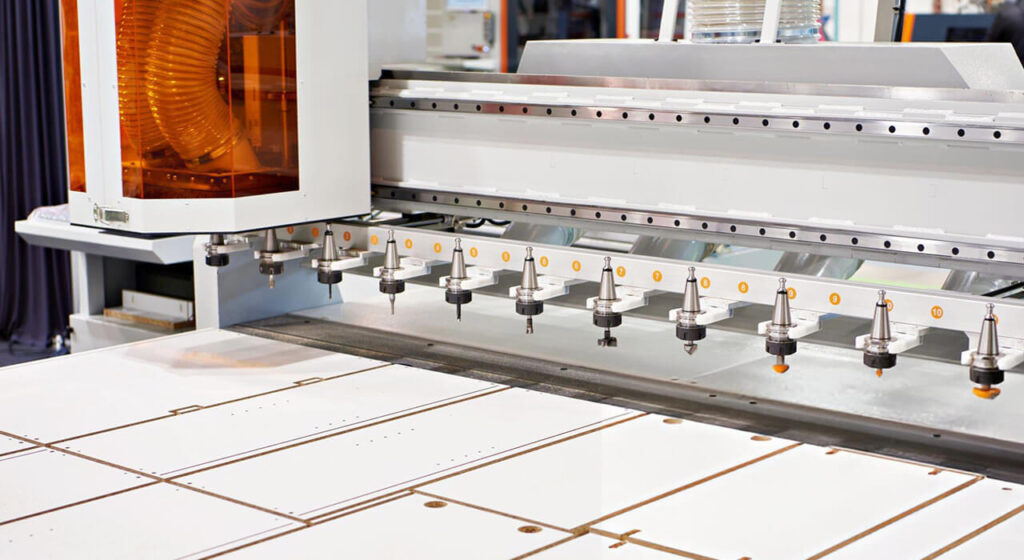

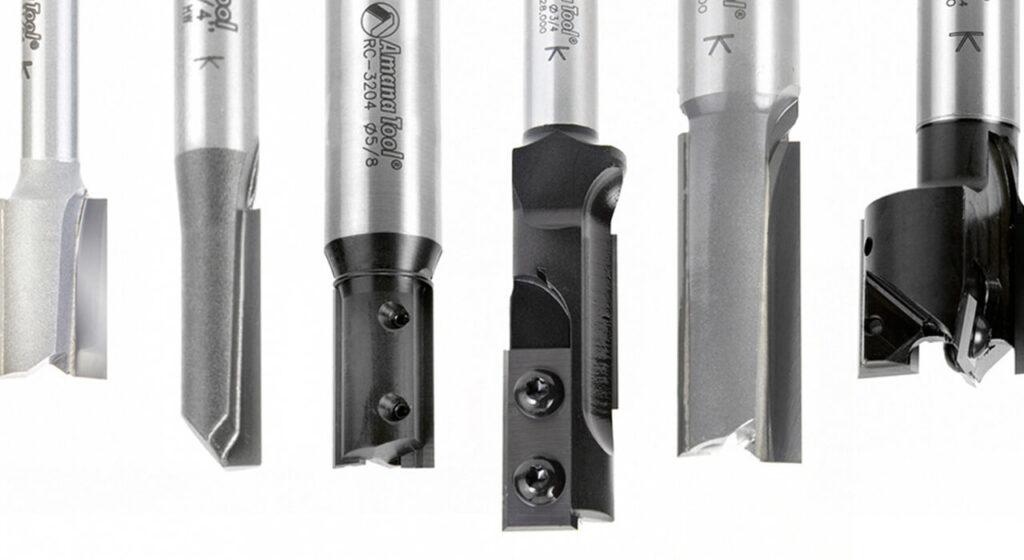

2.2. Router Bits and Cutting Tools
Router bits and cutting tools are important for shaping door designs. These tools cut materials and add patterns. Straight bits make clean cuts, while V-groove bits create designs. Good tools last longer and give better results.

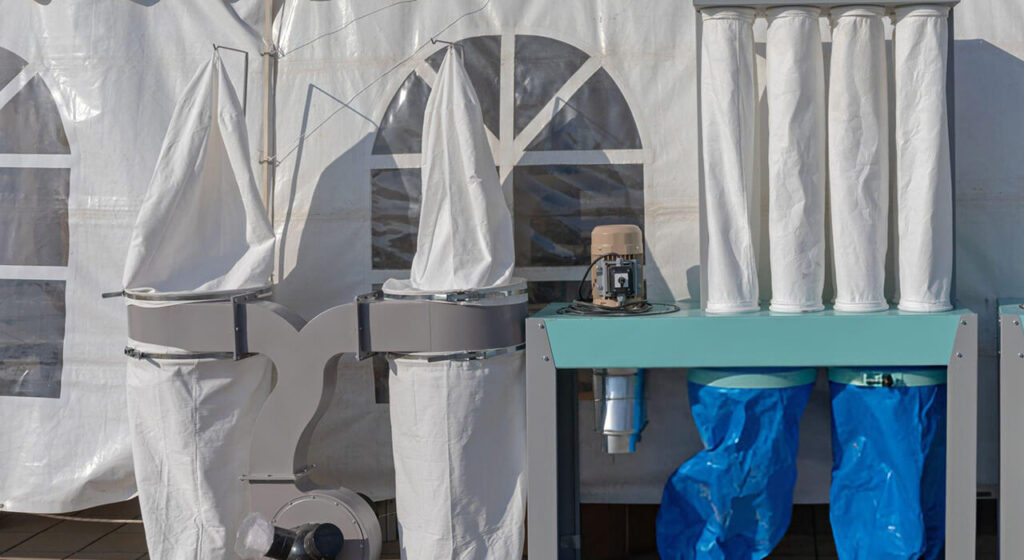

2.3. Dust Collection Systems
Dust Collection Systems keep your workspace clean and safe. CNC machines make a lot of dust, which can harm machines and air quality. A dust system removes dirt, protects tools, and keeps the air fresh.

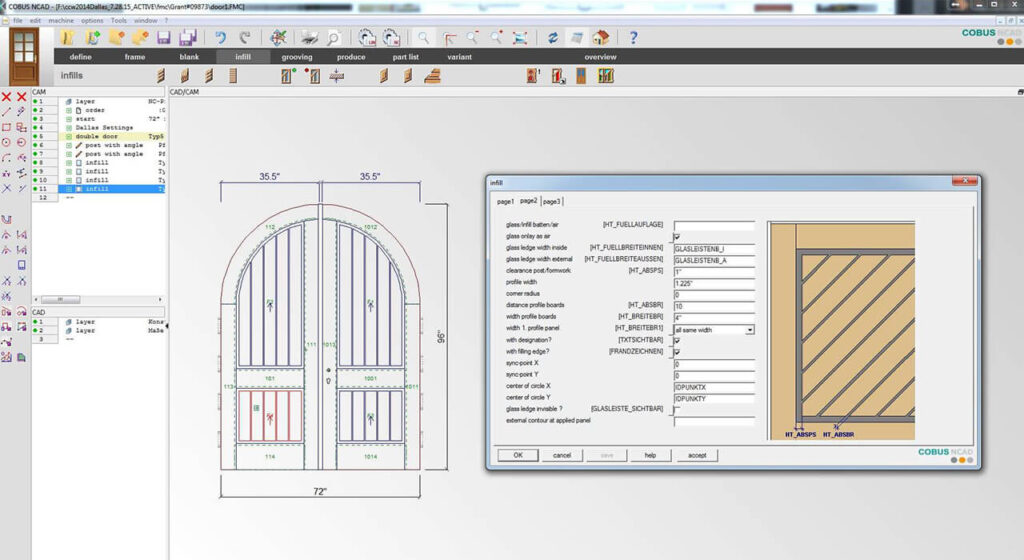

2.4. CAD/CAM Software
CAD/CAM software is very important for making CNC doors. It helps you plan, design, and run tasks easily. CAD (Computer-Aided Design) software creates detailed door models. These models include sizes, patterns, and complex designs. CAM (Computer-Aided Manufacturing) software turns these models into instructions for machines. This ensures accurate and smooth production.
2.5. Safety Gear
Safety
gear is very important when working with CNC machines. These machines are fast
and use sharp tools, so safety is key. Wearing the right gear lowers risks and
follows safety rules.
Here’s a
table of useful safety gear for CNC work:
|
Safety
Gear Type |
How
It Helps |
|
Safety
Switches |
Stops
machines when doors open, preventing accidents. |
|
Interlock
Safety Switch |
Keeps
machines off if doors are open, protecting workers. |
|
Safety
Switch Systems |
Automatically
stops machines when doors open, improving safety. |
|
Safety
Door Locks |
Blocks
access to dangerous areas, reducing risks and following rules. |
Safety
switches are great for stopping machines quickly if doors open. Interlock
switches are common in CNC centers to keep workers safe. Safety door locks add
extra protection by keeping people out of risky areas.
Note:
Check and maintain safety gear often to keep it working well. Spending a little
on safety can save money and prevent accidents.
3. Choosing the Right CNC Machine
3.1. Production Volume Considerations
Think about how many doors you want to make. Machines for high production have features like fast spindles and tool changers. These features help make many doors quickly. If you need fewer doors, a simpler machine works fine.
3.2. Design Complexity Requirements
The type
of door designs you make matters a lot. Machines with more axes are better for
tricky designs. They can cut complex shapes easily. For simple designs, a basic
3-axis machine is enough.
Here’s
how design complexity affects your choice:
|
Machining
Aspect |
How
Complex Designs Affect It |
|
Machining
Time |
Complex
designs take longer to cut and handle |
|
Cost
Estimation |
Harder
to predict costs for detailed designs |
|
CNC
Machine Choice |
Complex
designs need advanced machines with special features |
For
detailed designs, pick machines with 5-axis or laser engraving. These machines
make unique patterns without losing accuracy.
3.3. Budget and Cost Analysis
Your budget is key when picking a CNC machine. The price of the machine is just one part. You also need to think about running and repair costs.
Here are some cost factors to consider:
- The price depends on the machine’s features and abilities.
- Running costs include electricity and other utilities.
- Repairs and parts can cost more over time.
- Extra costs like shipping and training may surprise you.
A good machine may cost more at first but saves money later. It works better, breaks less, and boosts productivity. Training workers to use it well also helps you get the most out of it.
3.4. Machine Size and Workspace Needs
Picking the right CNC machine size is very important. The machine should fit your workspace and match your production needs.
First, measure your workspace carefully. Make sure there’s enough room for the machine and workers. Leave space for storing materials and moving around. Compact machines save space but still work well. For example, tabletop CNC routers are perfect for tight spaces.
Think about the machine’s weight and setup needs. Heavy machines need strong floors and secure installation. Lighter machines are easier to move and set up. Check if the machine needs special power connections. Some machines may require electrical upgrades.
Tip: Plan your workspace layout before buying a machine. This avoids setup problems and keeps things running smoothly.
Also, think about future needs. If you plan to grow, get a machine that can handle more work later. A bigger machine might cost more now but saves money on upgrades later.
3.5. Support and Maintenance Services
Good support and maintenance keep your CNC machine working well. Regular care stops problems before they happen and keeps production steady. Predictive maintenance is especially helpful for avoiding downtime.
- Predictive maintenance uses sensors to find problems early. This helps you fix issues before they cause big delays. While it costs more upfront, it saves money by avoiding breakdowns.
- Keeping the machine running is key to staying productive. Sudden failures can stop work and cost money. Having spare parts ready makes repairs faster and reduces delays.
- Companies using predictive maintenance can plan better. They schedule repairs during slow times, so production isn’t affected much.
Note: Check your machine often and replace worn parts quickly. This helps it last longer and work better.
Pick a CNC machine brand with good support services. Look for warranties, help with technical issues, and training options. Companies with strong customer service can solve problems fast and keep your machine in top shape.
Tip: Stay in touch with your machine supplier. They can give you tips and updates to improve your work.
By focusing on support and maintenance, your CNC machine will stay useful and reliable for many years.
4. Optimizing CNC Door Production
4.1. Regular Machine Maintenance
Taking care of your CNC machine keeps it working well. A good maintenance plan stops big repairs and delays. Follow this schedule to keep things running smoothly:
|
Frequency |
Maintenance Tasks |
|
Daily |
Look for oil leaks, check hydraulic pressure, and test cooling. |
|
Weekly |
Clean the filter in the control cabinet for better airflow. |
|
Monthly |
Add grease to chains and check coolant filters. |
|
Every 6 Months |
Clean the coolant tank, empty the hydraulic tank, and check leveling. |
|
Annually |
Inspect spindle alignment, check headstock and tailstock, and run backlash tests. |
Regular maintenance can save up to 18% in costs. It also prevents sudden breakdowns. Adjust your schedule based on how often you use the machine. Check lubrication and cooling systems daily to spot problems early.
Tip:
Teach your team to notice warning signs like strange sounds or shaking. Fixing small issues early avoids bigger troubles.
4.2. Operator Training
Well-trained
operators make CNC machines work their best. Training programs help workers
learn faster and make fewer mistakes. Group learning helps teams share ideas,
while flexible sessions fit different schedules. Quizzes and skill tests ensure
workers understand key tasks.
|
Feature |
Description |
|
Group
Assignments and Peer Learning |
Helps
workers share knowledge and solve problems together. |
|
Analytics
and Progress Tracking |
Monitors
learning and matches it with production needs. |
Simple
training tools make learning easier for everyone. Advanced tools like AR/VR
help workers handle tough tasks quickly. This improves efficiency and reduces
errors.
Note:
Test workers regularly to see how they’re improving and find areas to work on.
5. Summarize
CNC woodworking machines have changed how doors are made. They are precise, fast, and flexible, making the process easier and better.
Key Advantages:
- Faster production: Companies like DoorCo now make 26% more doors with real-time tracking.
- Better accuracy: These machines handle tight fits and detailed designs easily.
- Less waste: Accurate cutting saves materials, lowering costs and helping the environment.
Picking the right machine and tools is very important. Newer machines are faster, more accurate, and use less energy than older ones.
|
Feature |
New Machines (150 doors/hour) |
Older Machines (60-90 doors/hour) |
|
Speed |
150 doors/hour |
60-90 doors/hour |
|
Assembly |
< 0.5 mm |
N/A |
|
Energy |
25% less energy used |
N/A |
|
Uptime |
95% or more |
N/A |
Using advanced CNC machines helps you work faster, waste less, and make better doors. Try this technology to improve your work and stay ahead in the market.
