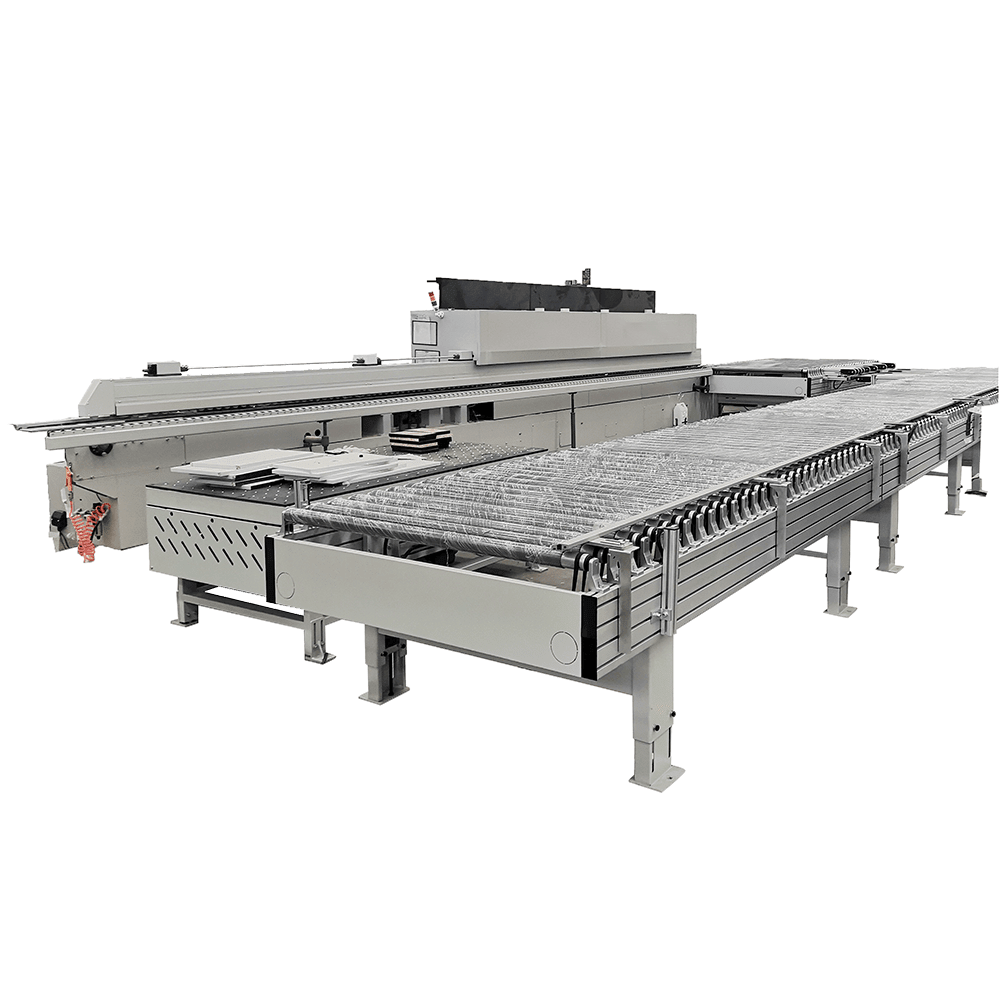

Automatic Edge Banding Return Conveyor UX-22
Unlock the full potential of your woodworking production with our roller-type returning conveyor line for edgebanding machines, the ultimate complement to your single-side edge banding machines. It is mainly used in the full-automatic edge banding assembly line for producing furniture board, cabinet board, and big-size and heavy-weight woodwork pieces. It can reduce costs and enhance efficiency.
Benefits
- Fast ROI: Payback In Serial Days a Month
Experience a rapid return on investment, with the Roller-type Returning Conveyor Line paying for itself in as little asserial days of month operation.
- Effortless Setup: Get Started Quickly
No extensive training is needed. Assembling and connecting this conveyor line is a breeze, ensuring you can start boosting your productivity right away.
- Flexible Operator Organization
Optimize your workforce with an economic one-man operation. This conveyor line adapts to your workflow, allowing you to do more with less.
- Ergonomic Operation
Prioritize the well-being of your operators. With this system, heavy physical work becomes a thing of the past.
- Enhanced Quality Control
Maintain superior quality standards and respond swiftly to material adjustments, ensuring precision in every workpiece.
Features
- Seamless Integration with BestIn Edge Banding Machines
The Roller-type Returning Conveyor Line perfectly aligns in terms of size, capacity, and speed with BestIn Group’s single-side edge banding machines. Achieve seamless synergy in your production.
- Optional Sensor-Controlled Turning Bolt
Effortlessly handle short and narrow parts, such as drawer fronts, with the optional sensor-controlled turning bolt. Precision meets efficiency with every use.
- Optional Small Roller Gib
The optional small roller gib provides essential support when working with wide workpieces, ensuring flawless results for every piece.
- Transform Your Edge Banding Process
Take your furniture and cabinet board production to new heights with the Roller-type Returning Conveyor Line. Automate, streamline and enhance your edge banding process for unparalleled efficiency and precision.
Technical Data
| Model | UX22 |
| Workpiece Range | 300*300-1200*2400mm |
| Workpiece Thickness | 10~60mm |
| Maximum Loading Weight | 100kg |
| Working Speed | 12~28M/min |
| Total Power Supply | 7.5KW |
- Part One: Machine Head-1
| External Dimension | L3500*W2330mm(1815)*H900±50mm |
| Roller Length | 1700mm and 1400mm |
| Main Beam | 240*50 Aluminum profile |
| Roller Dia | 56mm with rubber covered |
| Rubber Thickness | 3mm |
| Distance Between Rollers | 120mm |
- Part Two: Machine Head-2
| External Dimension | L3000*W2660mm (1615)*H900±50mm |
| Roller Length | 1500mm |
| Main Beam | 240*50 Aluminum profile |
| Roller Dia | 56mm with rubber covered |
| Rubber Thickness | 3mm |
| Distance Between Rollers | 120mm |
| Add With Bakelite Plate To Hold The Panel | |
- Part Three: Powered Roller Conveyor
| External Dimension | L6900*W1415mm*H900±50mm |
| Main Beam | 240*50 Aluminum profile |
| Roller Dia | 56mm with rubber covered |
| Roller Length | 1300mm |
| Rubber Thickness | 3mm |
| Distance Between Rollers | 120mm |
- Part Four: Pneumatic Ball-Floating Table
| Total Dimension | L2500*W1200*H800~900mm |
| Material Of The Table-Board | 8#U-steel with Bakelite plate |
| Main Frame | 60*40*3mm rectangular tube |
| Power Supply | 1.5 KW |
| With Lifting Function, Lifting Range Is Around 100mm | |
- Part Five: Pneumatic Ball-Floating Table
| Total Dimension | L1800*W600*H900±50mm |
| Material Of The Table-Board | 8#U-steel with Bakelite plate |
| Air Blower | 1.5 KW, brand |
| Leg | 60*40*3mm rectangular tube |
| Main Frame | 40*60 steel |
