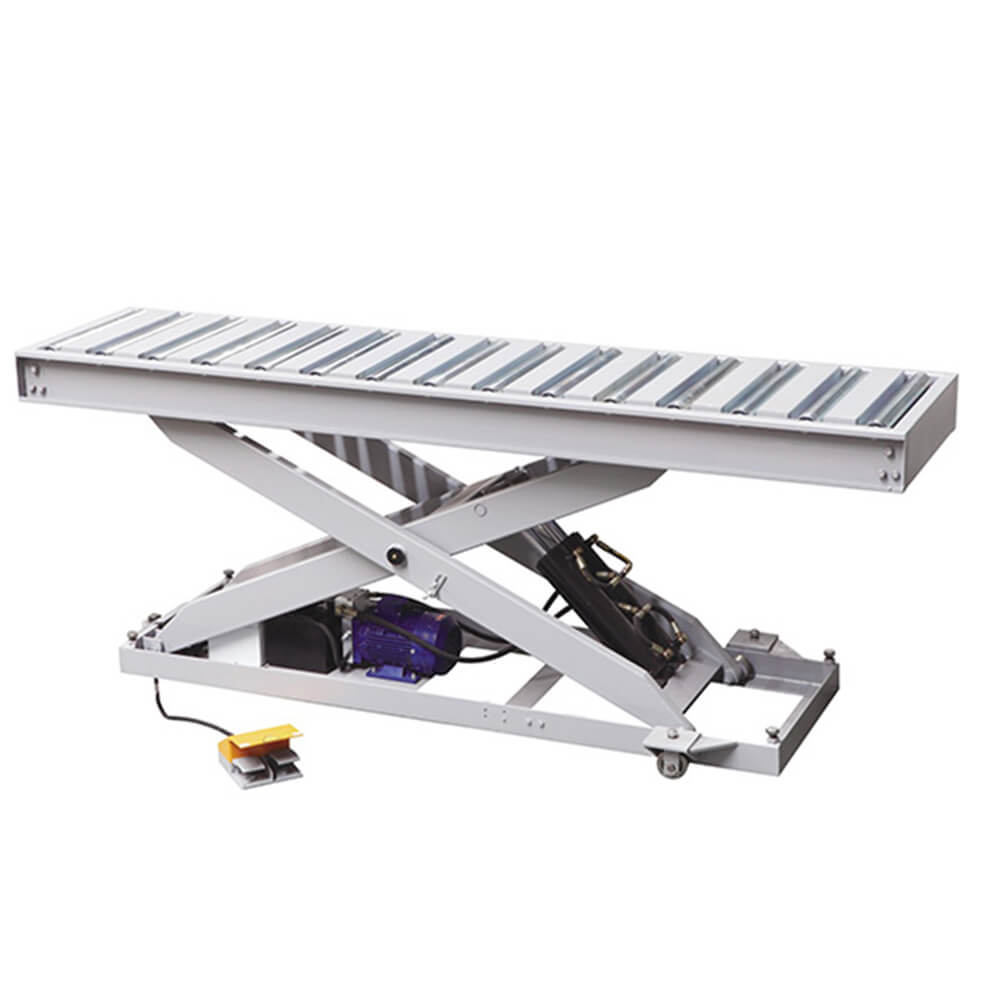

BESTIN Roller Lift Table
The BESTIN Roller Lift Table offers a smart solution for effortless material transfer between different heights.
Designed for edge banding machines and connected workshop roller lines, it ensures smooth operations and high efficiency.
Benefits
- Streamlined Material Handling
Ideal for manual feeding and discharging, simplifying transitions between workstations.
- Durable Build
Equipped with hot-dip galvanized rollers, resistant to corrosion and wear.
- Smooth Lifting Performance
Stable hydraulic system with imported components ensures leak-free and consistent operation.
- Flexible Options
Choose from standard or 90-degree turning models for customized applications.
- Enhanced Worker Efficiency
Double-pedal foot switch provides easy control and safety protection.
Features
- Capacity
Handles up to 1 ton with ease.
- Lift Range
Height adjustable from 300mm to 1100mm without requiring pits.
- Roller Specs
φ60mm rollers ensure smooth movement of materials.
- Hydraulics
High-quality cylinders and NCK seal rings for reliable performance.
- Construction
Laser-cut fork arms for precision and long-term durability.
Technical Data
| Model | Roller Lift Table |
| External Dimension | L2500*W600*H300mm |
| Height Stroke | 300-1100mm, no digging |
| Roller Size | φ60*1.6mm |
| Roller Diameter | φ12 |
| Power Supply | 1.5kw(3 phase 380V,50Hz) |
| Hydrocylinder | 80*40*2 |
| Seal Ring | NCK |
| Scissors Tube | 120*40 |
| Actual Load | 1000kg |
