Vacuum Panel Lifter
Vacuum Panel Lifter
- Boost Productivity
- Reduce Labor Costs
- Improve Safety
- Perfect for Large Panels
- Affordable Automation
Vacuum Panel Lifter

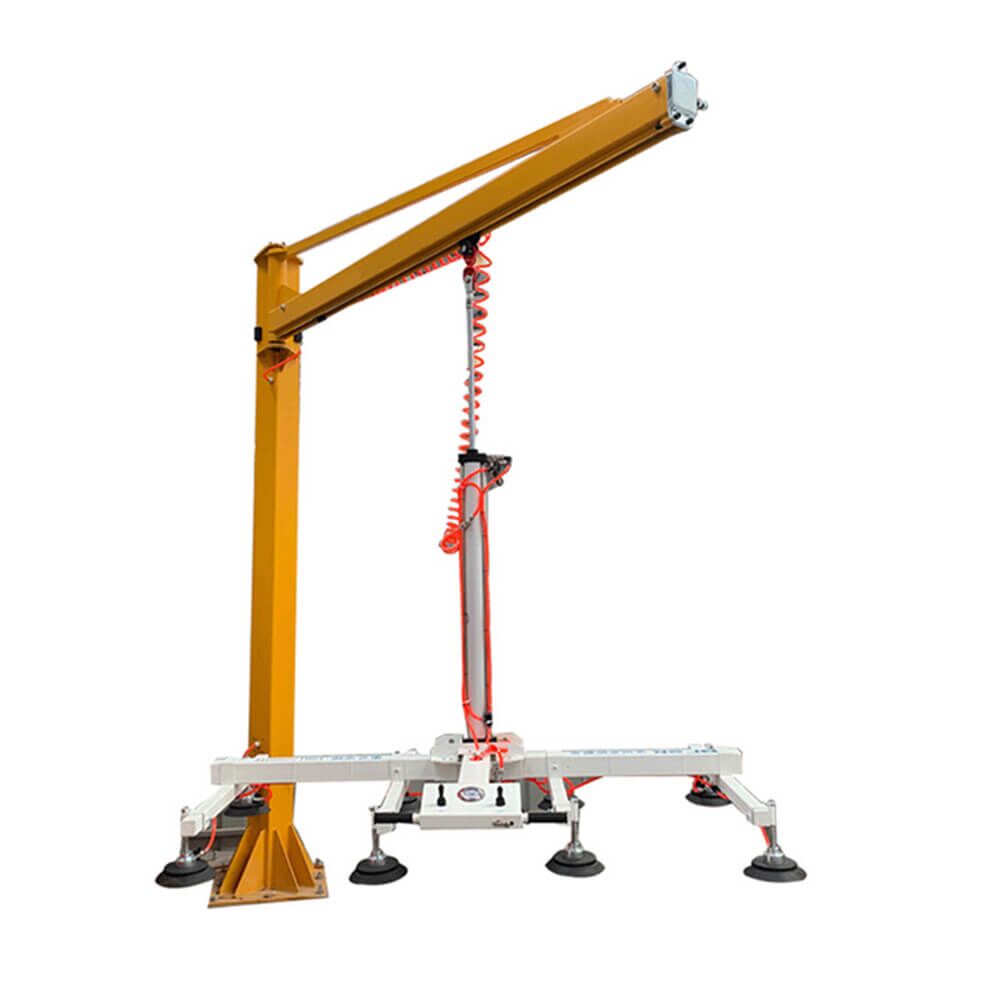

The Bestin Vacuum Lifter HC-Q100-3M is the ideal solution for handling large panels with ease. Designed for woodworking, plastic, composite, and cement board applications, this vacuum panel lifter allows a single operator to lift, tilt, and maneuver sheets up to 100 kg over a 3-meter arm radius (6-meter working area).

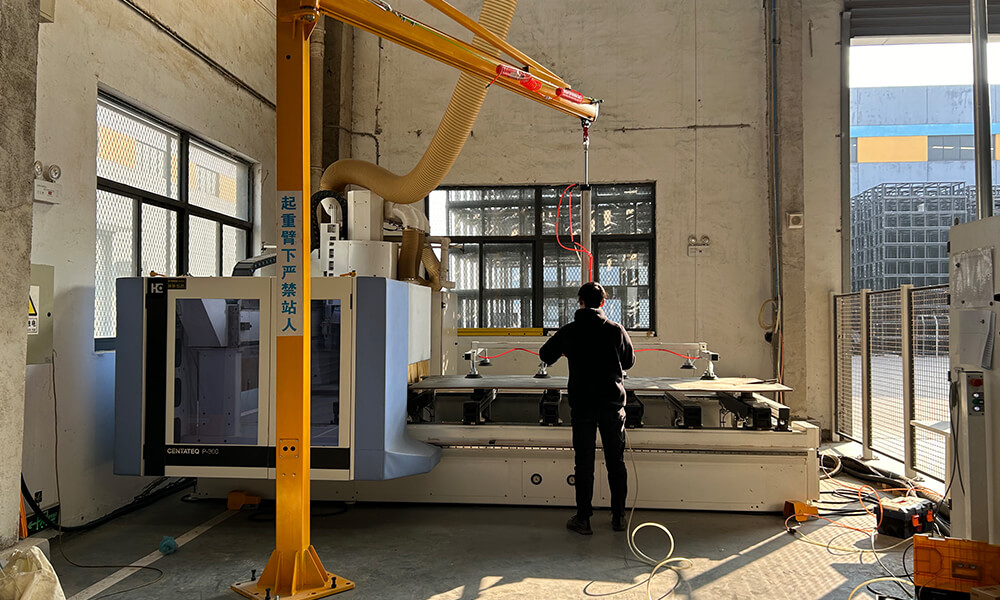

Whether you’re feeding a CNC Router, Panel Beam Saw, or stacking system, this vacuum lifter boosts productivity, reduces labor, and prevents handling damage and injuries. It’s your workshop’s extra hand—reliable, powerful, and cost-effective.
Benefits
- Boost Productivity
Load panels quickly and effortlessly with just one operator.
- Reduce Labor Costs
Replace two-man lifting teams with one efficient machine.
- Improve Safety
Minimize risk of back injuries and material damage.
- Perfect for Large Panels
Lift sheet sizes up to 3000×1500mm without panel bending.
- Affordable Automation
Industrial-grade lifting at a workshop-friendly price.
Features
- Heavy-Duty Pneumatics
Reliable lift with industrial-grade cylinders and vacuum generators.
- Flexible Installation
Ideal for CNC router loading zones, saw infeed areas, and vertical panel handling.
- Durable Design
Built for continuous operation in professional woodworking environments.
Technical Data
| Feature | Specification |
|---|---|
| Model | HC-Q100-3M |
| Max Lifting Capacity | 100 kg |
| Arm Radius / Working Reach | 3 m radius / 6 m working reach |

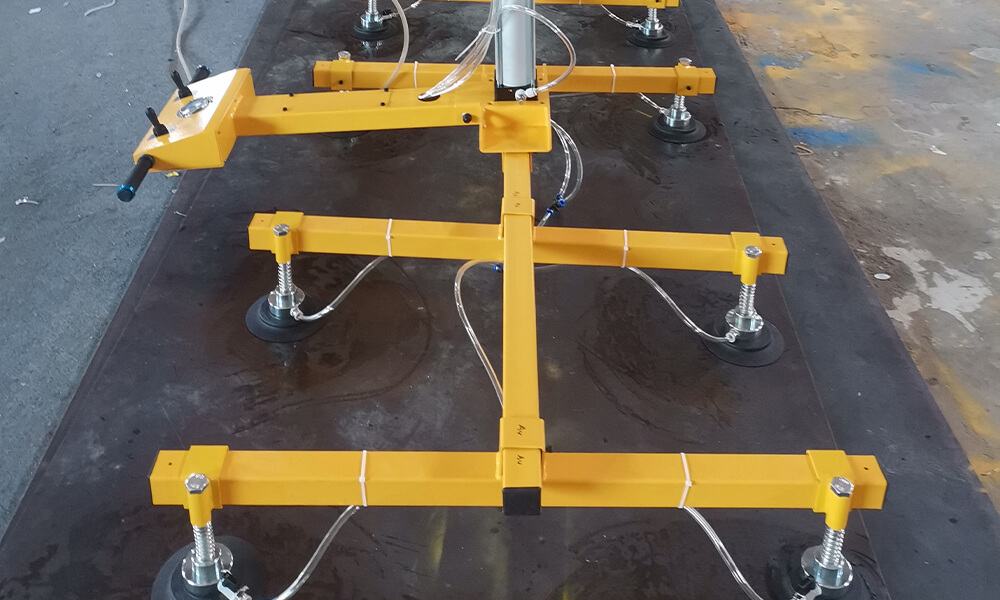

| Vacuum Pad Size | Ø150 mm rubber pads |
| Number of Vacuum Pads | 8 pcs (large contact area, reduced bowing) |
| Cylinder Stroke | 1200 mm lift range |
| Panel Size Capacity | Up to 3000×1500 mm sheets |
| Cylinder Diameter | Ø80 mm |
| Control System | Manual pneumatic with hand valve control |
| Vacuum Generator Brand | Airtac/SMC (Made in China) |
| Environment Suitability | -5℃ to +40℃, indoor, clean, dry, non-corrosive |
