Wood Veneer Press are indispensable machines in professional woodworking and industrial manufacturing.
These heavy-duty presses bond thin sheets of wood (veneer) to core panels (like MDF, plywood, or particleboard) under controlled pressure and often heat.
This guide explains the different types of veneer presses, benefits, maintenance needs, and troubleshooting tips. Let’s Go.
Featured Resource
Table of Contents

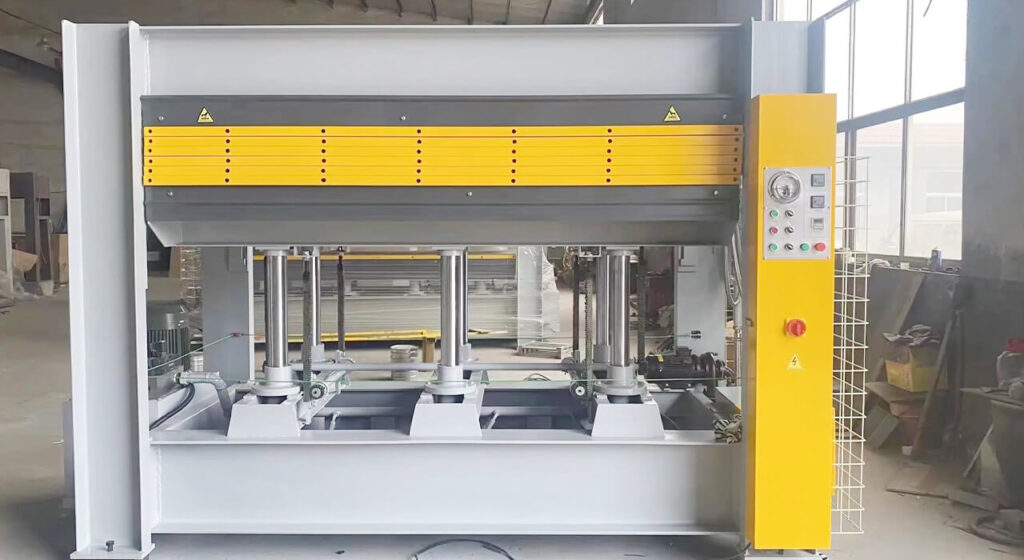

1. What Is a Wood Veneer Press?
A wood veneer press is a machine designed to laminate thin wood slices onto a substrate. This process requires uniform pressure (and often heat) to bond the veneer and substrate with adhesive, producing a smooth, durable surface.
Wood veneers themselves are thin slices of timber (typically under 3 mm thick) that provide an attractive wood grain finish on economical core panels. The veneer press ensures the adhesive cures with perfect contact, eliminating bubbles or gaps.
Industrial presses feature stiff frames and precision platens so that the pressing force is distributed evenly across the entire panel. Many presses are also equipped with heating plates (up to ~130–200 °C) to accelerate curing and improve bond strength.

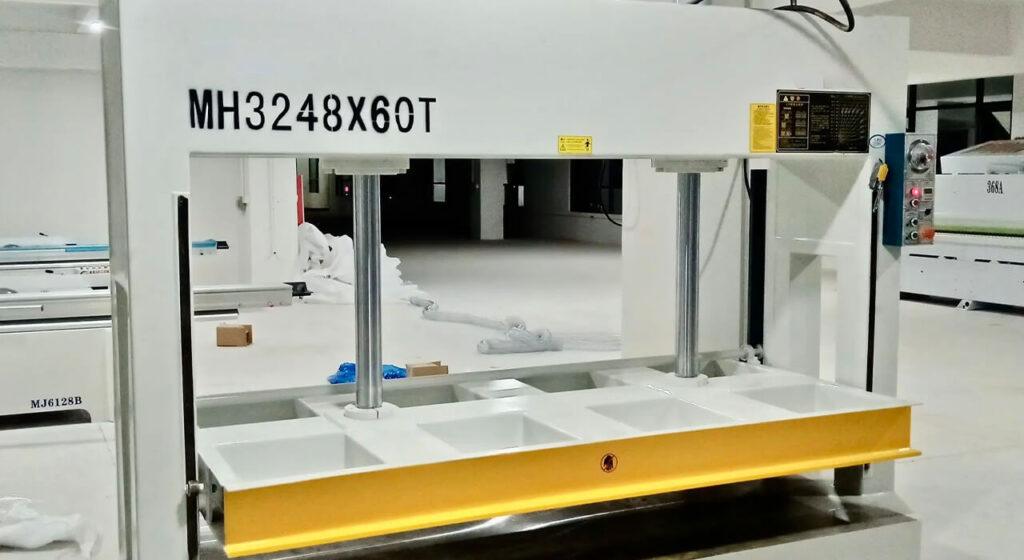

2. Veneer Press Structure
Vood Veneer Press is a strong and stable frame. Typically, this frame is built from solid steel beams welded into a box-shaped body. It provides the rigidity needed to apply uniform pressure without bending or shifting during operation.
Between the lower beams of the frame, you’ll usually find the hydraulic pressure system—the heart of the press. Above this lies the pressure table, equipped with heated platens that bond the veneer to the workpiece.
Downstroke vs. Upstroke Presses
There are two main press types based on how the platens move:
| Type | Description |
|---|---|
| Downstroke Press | Cylinders mounted above push down onto the workpiece. |
| Upstroke Press | Cylinders located below lift the platen up toward the top plate. |
To maintain perfect alignment under pressure, modern veneer presses use toothed rack guides. These guides balance the movement and help ensure both platens close evenly—critical for top-quality pressing.
3. Types of Wood Veneer Press Machines
Industrial veneer presses come in several major types, each suited to different production needs. The main categories are:

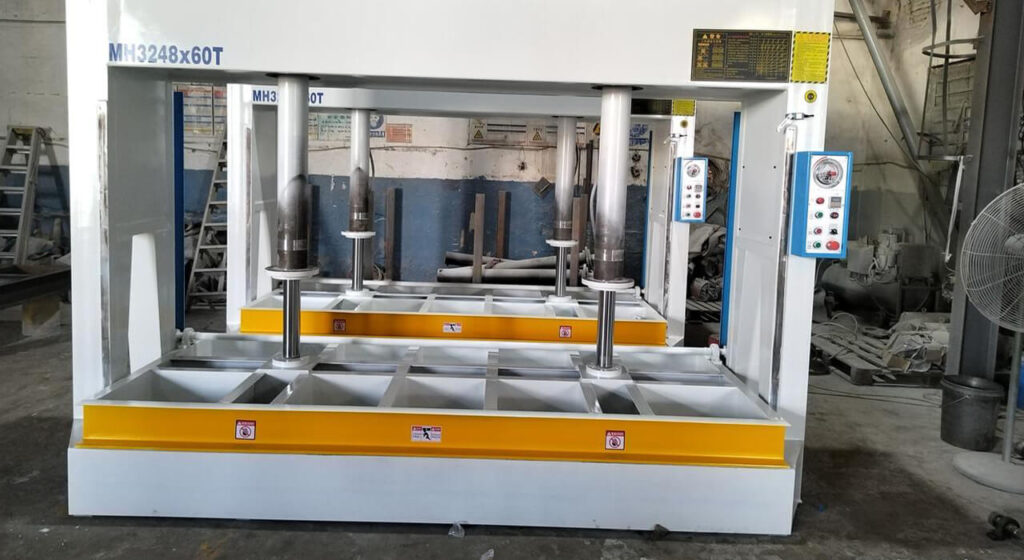

3.1. Cold Press (Hydraulic Press)
Cold Press uses hydraulic cylinders to apply pressure without added heat. Cold presses typically operate at room temperature, requiring longer cure times (often several hours) for the glue to set.
They are robust and energy-efficient, making them ideal for heavy-duty, batch production where fast cycle time is less critical. Their main advantages are lower energy costs and simpler operation. The downsides are slower throughput and it depends on the adhesive’s room-temperature cure rate.
3.2. Hot Press (Heated Hydraulic Press)
Hot Press combined hydraulic pressure with heated platens. The press plates (made of aluminum or steel) are heated (commonly to ~130°C, and some systems up to 200°C) and then pressed onto the wood panel.
Hot presses laminate boards in minutes rather than hours, dramatically boosting productivity for large-volume runs. They ensure rapid curing of heat-activated adhesives and deliver uniform heating across the veneer.
Hot presses may have large single or double platens; some systems (multi-daylight presses) can laminate multiple boards side by side.
In summary, hot hydraulic presses offer very fast cycle times and precise, even heat distribution, but they consume more energy and require safety measures for high temperatures.
3.3. Vacuum (Membrane) Press
Vacuum (Membrane) Press uses vacuum pressure and a flexible membrane to clamp the veneer.
In a vacuum press, the workpiece (with glue and veneer) is placed in an airtight bag or under a silicone membrane plate. When air is evacuated, atmospheric pressure (~14.7 psi at sea level) presses the membrane down onto the wood.
This method is excellent for irregular or curved surfaces – the flexible membrane conforms to contours and wraps around shapes. It creates perfectly even pressure over the surface, ensuring flat, void-free bonds.
3.4. Wood Veneer Press Machines Compare
Below is a summary table of the common press types:
| Press Type | Pressure Method | Heating | Speed | Typical Use | Pros | Cons |
| Cold Hydraulic | Hydraulic Pump | None | Slow (hours) | Heavy-duty panel lamination | Low energy cost; simple design | Long cycle time; slower output |
| Hot Hydraulic | Hydraulic Pump | Yes (130–200°C) | Fast (minutes) | High-volume veneer lamination | Very fast cure; uniform bonds | High energy use; higher cost |
| Vacuum (Membrane) | Vacuum Pump | Optional | Moderate | Curved/irregular panels | Conforms to shapes; even pressure | One panel at a time; bag maintenance |

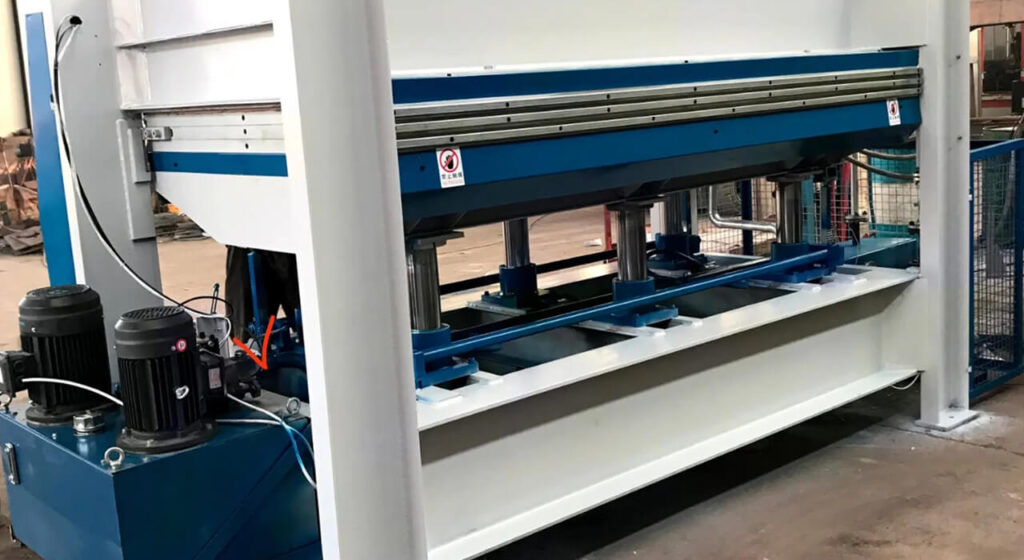

4. Benefits of Using a Veneer Press
Investing in a commercial veneer press brings several compelling benefits for industrial users:
-
Superior Quality and Consistency: Press machines apply consistent, even pressure across the entire panel.
-
Increased Productivity: Automated presses dramatically speed up production. A well-tuned wood laminating press can cycle in minutes, far faster than manual clamping.
-
Material Efficiency and Waste Reduction: Precise presses limit excess adhesive and scrap. Because the bonding surfaces are fully compressed, the glue cures in the exact joint area with little spillage.
-
Design Versatility: Many industrial presses (especially vacuum/membrane types) can handle flat and non-flat geometries. They can press curved surfaces and free-form shapes that caul jigs alone cannot achieve. This flexibility lets shops explore innovative designs (wavy panels, 3D curves) without complex tooling. Even woodworking veneer presses made for smaller shops often support multiple veneer types (paper-backed, flexible PVC, etc.), enabling a wide palette of finishes.
-
Safety and Ergonomics – Modern presses include safety interlocks and ergonomic controls. For example, high-end presses have auto-reverse features: if a piece is misaligned, sensors trigger an emergency stop and re-open the platens. This protects both the operator and the equipment.
5. How to Choose the Right Veneer Press
Selecting the optimal veneer press depends on your production demands, material, and budget. Here are key factors to consider:
5.1. Panel Size and Throughput
Determine the largest sheet dimensions and daily volume. Larger or high-volume operations may require a wide, multi-daylight hot press or continuous press, whereas smaller shops might use bench-style or single-daylight presses.
Common Plate Sizes:
| Width (mm) | Length (mm) |
|---|---|
| 2200 | 1100 |
| 2550 | 1350 |
| 2750 | 1350 |
| 3000 | 1350 |
| 3300 | 1350 |
| 3600 | 1350 |
5.2. Press Type (Hot vs. Cold vs. Vacuum)
Choose based on material and cycle time.
- The hot press is your first choose (heated platens) if you need fast curing or are laminating heat-activated veneers.
- Use a cold press (no heat) if your adhesive cures slower or if you wish to save energy, but plan for longer press times.
- Select a vacuum press if you must laminate complex shapes or require very even clamping over tight tolerances. Many shops keep both hot and cold presses for flexibility.
5.3. Press Specifications
Look at maximum pressure (tonnage), platen heating capability, and speed. For example, presses may range from tens to several hundred tonnes. Higher pressure usually means stronger bonds and suitability for dense veneers.
5.4. Features and Controls
Modern presses have advanced controls (touchscreen PLCs, memory for recipes, sensor feedback). Some have automatic lifters, built-in feeders, or pressure monitoring. Decide which features you need: for example, an integrated glue spreader or automated press unloading can boost throughput.
5.5. Service and Support
Choose a reputable vendor with good service. Qualify their warranty, spare parts availability, and training.
In summary, identify your most critical needs (panel size, speed, shape), then choose the press type and size to match. Consult with press manufacturers and compare models.

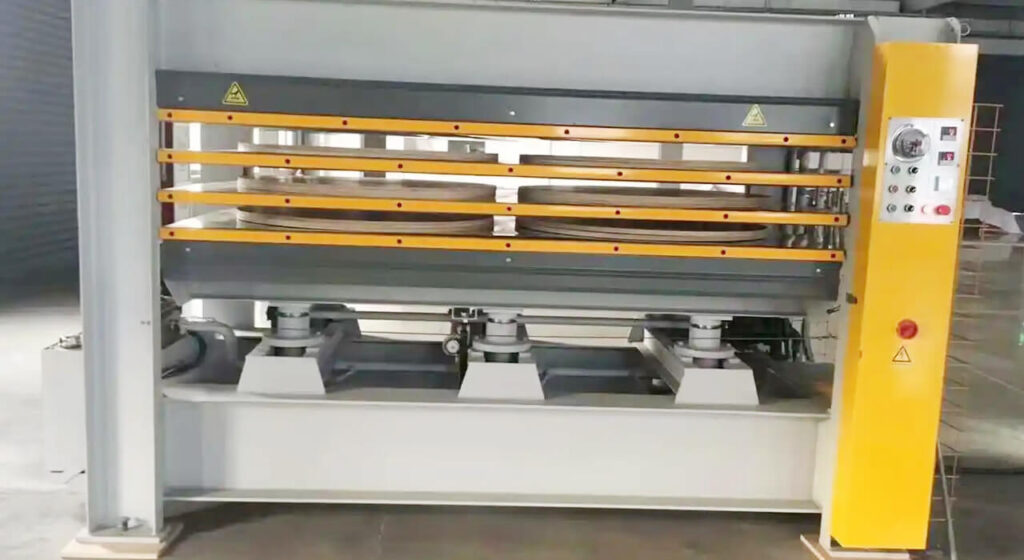

6. Maintenance of Veneer Presses
Like any industrial woodworking machinery, wood veneer presses require regular maintenance to ensure reliable, long-term operation:
-
Daily Cleaning: After each use, clean the pressing platens and membrane surfaces of excess glue. Cured adhesive or resin can cause uneven pressure. Use appropriate solvents or scraping tools as recommended by the manufacturer. Ensure no debris on the platens that could indent the veneer.
-
Lubrication and Inspection: Periodically lubricate moving parts such as hinges, guide rails, and bearings. Check hydraulic oil levels and filter condition on hydraulic presses – top off or change the oil as the manufacturer advises. On pneumatic or vacuum presses, ensure air lines and fittings have no leaks. Inspect vacuum bags and seals for wear or punctures; even a small leak can degrade clamping force.

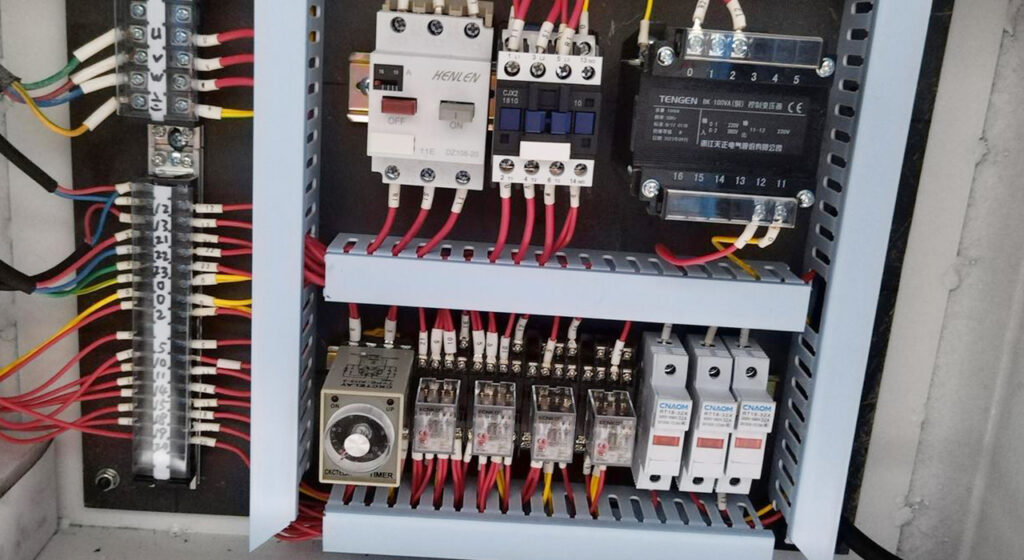

- Hydraulic and Electrical Checks: Keep hydraulic cylinders and hoses clean and check for leaks. Replace worn seals to prevent pressure loss. Verify that electrical components (motors, heaters, pumps) are running smoothly and that wires and connectors are intact. Thermal imaging can help spot overheating circuits or bad connections.
-
Safety Systems Test: Regularly test emergency stops, light curtains, and safety interlocks.
-
Alignment: Ensure the press bed and gantry are square and level. An out-of-level bed can cause uneven pressing. If the press uses a vacuum membrane, make sure the membrane is flat and properly tensioned. Misalignment often shows up as one side of the panel bonding before the other. Adjust frame leveling feet or support points as needed.
-
Documentation and Logs: Keep a log of maintenance work, press run hours, and any issues encountered. This helps with warranty claims and prevents overlooked wear items from causing downtime. Follow the manufacturer’s schedule for major servicing (like replacing vacuum pump oil or hydraulic fluid).
Proper upkeep extends the service life of the press. Many industrial veneer presses operate reliably for decades.
7. Troubleshooting Common Issues
Even with good maintenance, presses can encounter issues. Here are some frequent problems and fixes:
-
Press Won’t Start or Respond: First check power supply – ensure the unit is plugged in and the electrical breaker/fuse is not tripped. Inspect the emergency stop button; if it’s engaged, reset it. Some presses have overload relays on the motor. If the press simply hums without moving, a motor starter or fuse may have failed.
-
Uneven Pressure or Bonding: If one edge of the veneer is not fully adhered, the press platen may be slightly off-level. Re-level the bed or turnbuckle adjustments so the platens make flat contact. Also check that the workpiece was placed squarely. Loose or worn clamp fixtures can cause slippage; tighten any bolts or replace damaged clamps.
-
Excessive Noise or Overheating: Grinding or squealing sounds often mean a mechanical issue. For hydraulic presses, low fluid or bad valves can make noise; verify hydraulic fluid level. If the motor overheats or sounds labored, let it cool and then investigate whether the pump or gearmotor needs servicing.
- Vacuum Leak (for Vacuum Presses): If using a vacuum press, a common issue is loss of vacuum. Listen for hissing, and spray soapy water around bags and fittings to find leaks. Repair or replace any damaged vacuum hose or silicone membrane. Ensure the workpiece edges are sealed (sometimes a bead of silicone sealant is applied around curved parts to prevent air ingress).
-
Poor Adhesion/Glue Issues: If veneer lifts or shows bubbles, the cause might be the adhesive or process rather than the machine. Check that the glue was spread evenly and not dried before pressing. Verify press dwell time (hold time under pressure) is sufficient. Also confirm that the press temperature matches the glue’s requirements (e.g. some adhesives cure properly only above 100 °C).
-
Safety Triggers: If the press unexpectedly stops mid-cycle, it may be tripping a safety sensor. Many presses have light curtains or sensors that halt if wood is misaligned. Check that all guards and sensors are clear, and reset the press. This feature often prevents damage when material isn’t seated properly.
When facing problems, always consult the press manual. Many issues have simple fixes (loose wire, blown fuse, low oil). If troubleshooting does not resolve the issue, contact a qualified service technician. Continuing to use a faulty press can damage veneers and risk operator safety.
8. Conclusion
Wood veneer press machines can deliver consistent and high-quality finishes, improving productivity.
By comparing wood veneer presses, you can select the right machine to boost your business.
