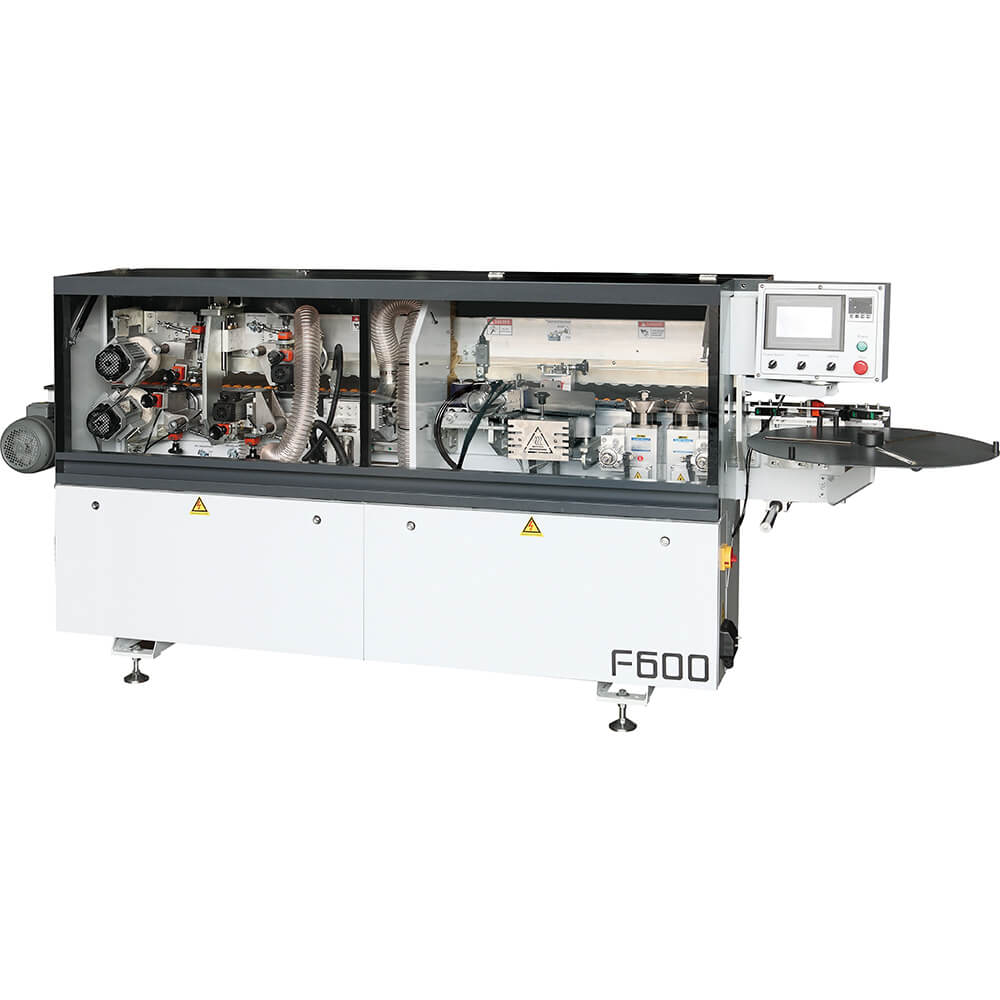

Compact Edge Banding Machine With Premilling
Compact Edge Banding Machine With Premilling
- Versatile Function In One
- Compacted Design For Small Space
- Working Unit: Pre-Milling Glue —End Cutting —Fine Trimming —Scraping —Buffing
- Easy To Operate
- Size: 2850x536x1316mm
Compact Automatic Edge Banding Machine
Elevate your woodworking production with the BESTIN Compact Edge Banding Machine With Premilling.
Designed as an entry-level, high-performance automatic edgebander, this machine is the perfect blend of quality and affordability for small workshops and cabinet makers.
Its integrated pre-milling unit, combined with advanced trimming, scraping, and buffing functions, ensures every panel receives a flawless edge finish.
Benefits
- Optimum Edge Quality
The dual counter-rotating diamond cutterheads pre-mill each panel, creating a perfectly straight edge before glue application. This ensures maximum adhesion and a superior final product.
- Enhanced Productivity
With fully automatic functions including edge feeding, end trimming, flush trimming, and PVC scraping, production becomes faster and more consistent. The chain feed system guarantees steady, scratch-free material handling
- User-Friendly Operation:
Featuring a PLC control system an optional touchscreen interface, adjustments are quick and precise. Change edge tape thickness effortlessly between 0.4mm and 3mm, ensuring versatility across projects
- Space-Saving Design
The compact design is ideal for small workshops, delivering industrial-level performance without requiring excessive floor space.
Features
- Pre-Milling Unit
Equipped with two counter-rotating diamond cutterheads, the pre-milling unit ensures the panel edge is flawlessly prepared for optimal glue penetration and tape adhesion.
- End Trimming
An 8800 RPM dual saw blade and 10500 RPM top & bottom trimmers (with insert knife cutters) provide clean, precise cuts. Quickly switch from flush to bevel and radius trimming for a tailored finish.
- Advanced PVC Scraping & Buffing
The radius scraping unit fine-tunes the edge while removing excess glue. Follow this with the 2800 RPM buffing units that polish ABS and PVC edges, erasing discoloration and enhancing visual appeal.
- Efficient Glue Application
The 1.2kg Teflon-coated hot-melt glue pot, paired with an adjustable glue roller, ensures even and reliable glue distribution for strong, lasting bonds.
- Robust and Reliable Mechanics
A heavy-duty chain feeder and a spring-loaded pressure system (with dual pressure rollers – chrome and rubber) provide consistent workpiece feeding and pressure, ensuring flawless edge results every time.
- Heated Infeed Fence
Pre-heats panels for optimal glue penetration, contributing to the durability and quality of the edge banding.
Technical Data
|
F600 |
|
|
Total
Power |
10.9KW |
|
Overall
Dimensions |
2850x536x1316mm |
|
Feed
Speed |
9m/Min |
|
Edge
Thickness |
0.4-3mm |
|
Panel
Thickness |
10-50mm |
|
Panel
Length |
≥150mm |
|
Panel
Width |
≥120mm |
|
Working
Air Pressure |
≥0.6Mpa |
|
Weight |
620KG |
