In modern woodworking, an Edge Banding Machine Station is essential for giving panels a clean, durable finish.
In cabinetmaking and furniture production, an edge banding machine for furniture ensures raw panel edges are sealed and aesthetically matched to surfaces.
Edge banding involves covering the raw edges of wood-based panels (plywood, MDF, particleboard, etc.) so the final product looks solid and high-quality.
This not only improves appearance but also protects the panel cores from moisture, wear, and chipping. Proper edge banding enhances safety (smooth edges prevent snags or splinters) and functionality (drawers slide smoothly, doors close perfectly).
In short, edge banding greatly extends the durability and aesthetic value of furniture components.
For those seeking guidance on these systems, this comprehensive edge banding machine guide will cover the workflow, key stations, benefits, specifications, and more for fully automatic edge banding machines used in professional shops.
Featured Resource
Table of Contents
1. How a Fully Automatic Edgebanding Machine Works
A fully automatic edge bander feeds each workpiece through a sequence of stations, applying, trimming, and finishing the banding in one pass. The general workflow is as follows:
-
Panel Feed – The board is gripped by a chain or belt conveyor (with rubber or polymer-coated pads) that pulls it into the machine at a constant speed.
-
Pre-milling (optional) – An initial milling head can trim the raw panel edge to remove any saw-cut taper, tearing or surface ripple. This ensures a perfectly flat, perpendicular edge for bonding. (In machines without a pre-mill, fine feed tolerances or inspection is needed.)
-
Glue Application – The machine’s glue pot (heated reservoir) applies hot-melt adhesive to either the strip, the panel, or both. This pot holds and heats the bonding agent to the proper temperature and consistency for optimal adhesion. Some machines even have dual glue pots so you can switch between color or type (EVA vs. PUR) without delay. The adhesive is usually spread by rollers onto the workpiece as it passes by.
-
Edge Banding – As glue is applied, the edge band (PVC, ABS, wood veneer, etc.) is pressed onto the panel edge. A pressure roller section (often one large roller plus multiple smaller rollers) firmly squeezes the band against the panel to ensure it sticks without gaps or bubbles. Proper pressure roller tension and alignment are critical – they provide a consistent clamp that prevents band peeling or misalignment during travel.
-
End Trimming – After the banding strip is stuck on, a powered end-trimmer cuts off any excess overhang at the leading and trailing ends of the panel. This is usually done by one or two high-speed saw blades. Some machines call this a guillotine shear (for rough end cuts) or “sliding end cutter.” Accurate end trimming yields clean, square corners on the finished piece.
-
Top/Bottom Trimming – Next, rough trim and fine trim cutterheads remove the surplus band above and below the panel surfaces. The rough trimming station cuts close to the panel’s surface, while the fine-trim station (often with a smaller or differently shaped cutter) makes a flush, smooth edge. In many machines there are separate upper and lower cutter spindles (two high-frequency motors) for top and bottom trimming, which can be set by pneumatic or mechanical adjustment to the required.
-
Corner Rounding (Profile) – For applications requiring rounded or bevelled edges (such as snake-nose profiles or simply smoother corners), a corner-rounding unit is included. This unit uses dedicated cutters or grinding wheels to round off the end of the panel’s banded corner to a specified radius (e.g. R1 or R2). High-end machines allow quick-change of corner radius heads. Corner rounding gives a professional finish and reduces chipping on exposed corners.
-
Scraping/Clean-Up – After trimming and profiling, the edge may still have tiny uneven spots or glue residues. A scraping station uses special blades to remove these. There are typically two types: a radius scraper (or profile scraper) that burnishes and refines any curved edges or drops linear machine marks, and a flat (glue) scraper that scrapes off any squeeze-out glue on flat portions. These scrapers produce an ultra-smooth edge and ensure no glue strings or ridges remain.
-
Buffing/Polishing – Finally, the buffing unit uses cloth or felt wheels (often multiple stages) to polish the newly banded edge. Buffing removes minor scratches and imparts a glossy uniform finish, especially important for high-gloss PVC/ABS banding. It can also remove slight discolorations (for example, PUR glue yellowness) so the edge matches the panel top and bottom exactly.
-
Cleaning Spray (optional) – Some advanced lines include spray systems: a release agent sprayer before the glue station (to prevent glue from sticking to unwanted surfaces) and a cleaning agent sprayer before the buffing station. These mists can improve finish quality and facilitate cleaning by preventing adhesive build-up.
-
Dust Extraction – Finally, integrated dust collectors pull dust and debris from the trimming units. Fully automatic machines usually have 2–3 dust ports (e.g. 127 mm/5″ diameter each) wired to shop vacuums or a dust extraction line. Good dust removal is essential to keep the glue area clean and ensure an accurate finish.
Throughout the process, Programmable Logic Controllers (PLCs) and a touchscreen interface control speeds, temperatures, and station settings.
This allows the operator to select panel thickness, edge thickness, glue type, feed speed, etc., and the machine adjusts automatically.
Modern units even allow simple changeovers from one edge thickness to another by pneumatic actuators rather than manual adjustments. The result of all these steps is a panel exiting with a fully finished, polished edge right off the machine – ready for use or assembly.
2. Edge Banding Station Breakdown
A fully automatic edge banding machine is essentially a modular assembly of stations. Here’s a closer look at each station’s function:
2.1. Pre-Milling Station (Chamfer/Cleaning)
Located at the front of the line, a pre-mill has one or two rotating diamond-tipped cutterheads that shave the raw edge of the board.
Its job is to remove saw-cut burrs, slopes, or uneven thickness in the stock so that the edge is flat and perpendicular.
By milling off up to a few millimeters of material, it guarantees the banding tape will align perfectly with the panel.
Pre-milling also helps eliminate chipping and creates the ideal surface for strong bonding. (In machines without pre-milling, it’s critical to use straight, well-cut panels.)
2.2. Gluing Station

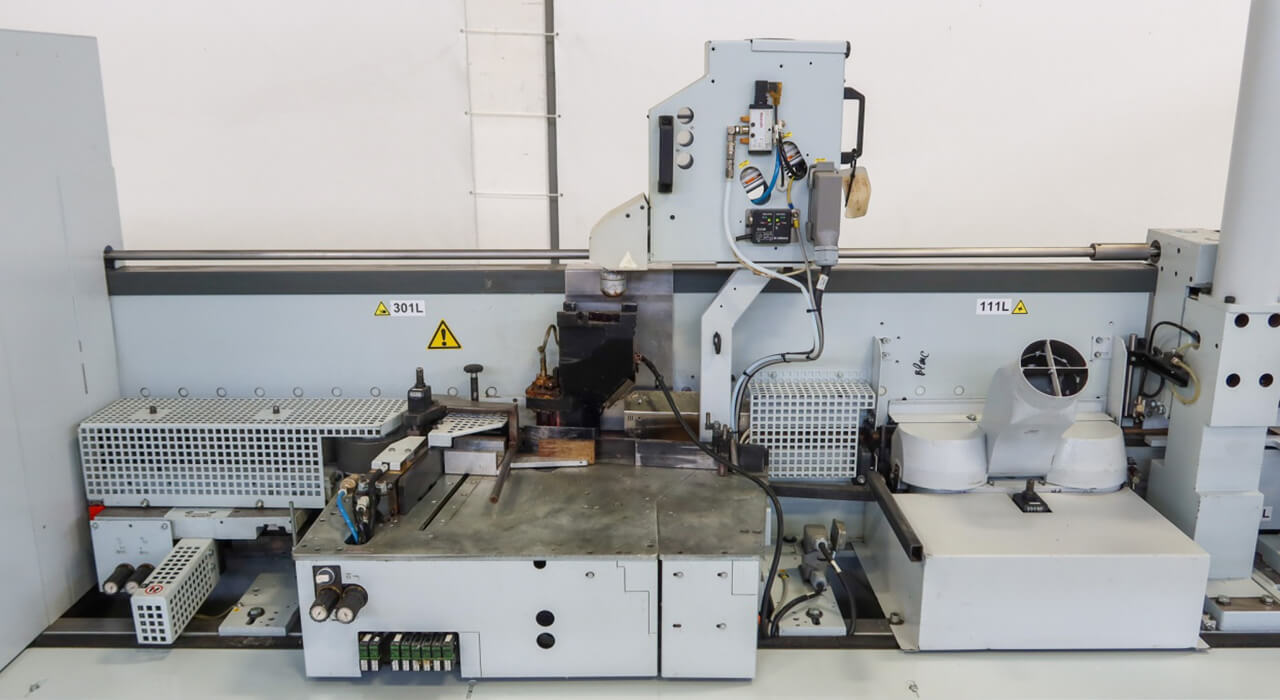

Here the heated glue pot applies hot-melt adhesive to bond the band strip to the panel.
The glue pot (see photo) melts EVA (ethylene-vinyl acetate) or PUR (polyurethane) hot-melt glue and dispenses it by a roller onto the appropriate surface.
Maintaining the proper temperature in the pot is vital for consistent glue quality. Advanced machines often use a Teflon‑coated pot for easy cleaning and allow quick pot exchange (for color or glue type changes).

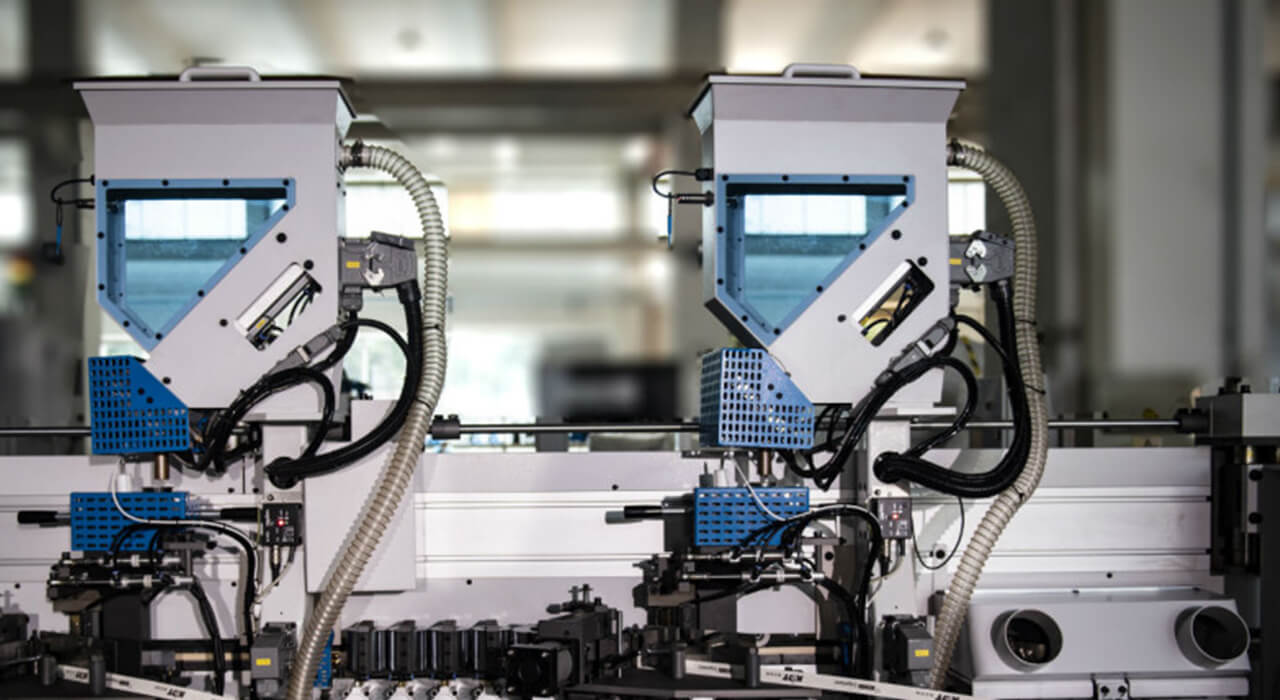

Some systems feature dual pots, enabling simultaneous use of two glue formulations without clean-out downtime.
Overall, the gluing station sets up a uniform “glue curtain” on the panel or edge strip so that, when the band is pressed on, it forms a firm, gap-free bond.
Gluing Station (glue pot and applicators). The glue pot melts adhesive (EVA or PUR) and applies it to the workpiece. Temperature control and clean glue rollers ensure a strong, even bond.

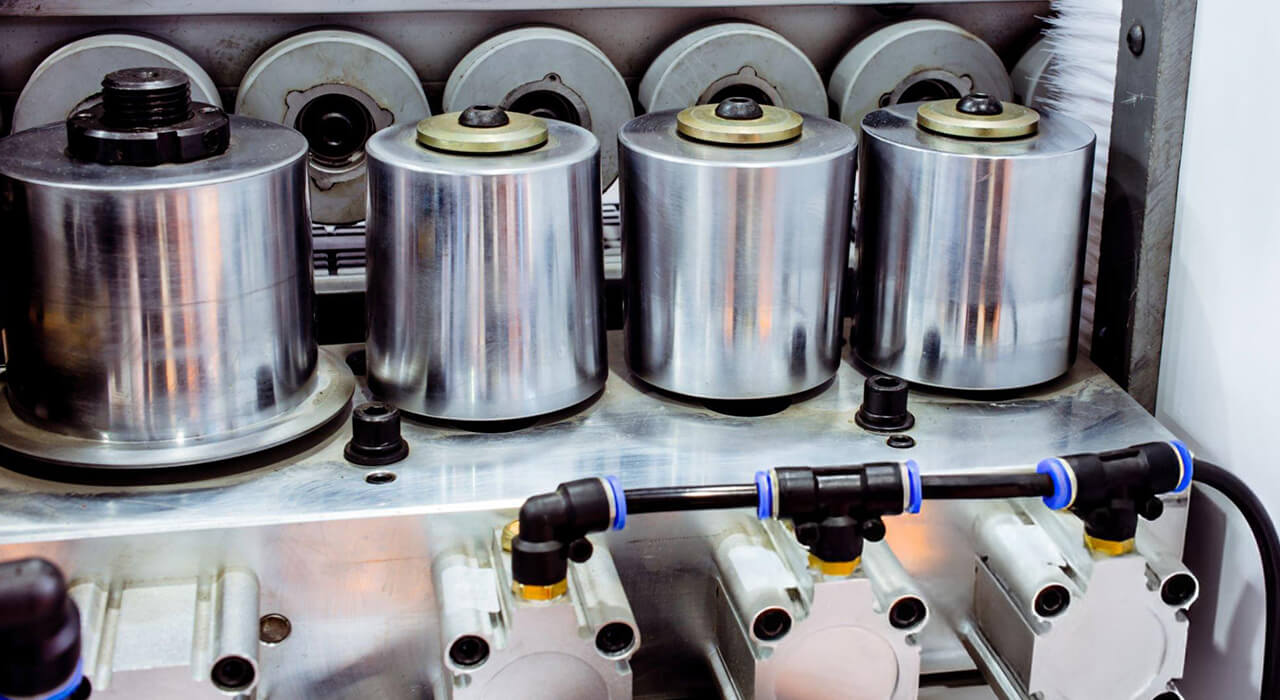

2.3. Pressure and Feeding System
Once glue is applied, pressure rollers or pads press the strip onto the panel as it passes through.
Usually this is a combination of one large and several smaller rollers arranged along the panel’s top and bottom surfaces.
The panel is kept moving forward by a heavy-duty chain or belt conveyor with rubber-coated pads.
The chain drive grips the piece and synchronizes it with the roll pressure.
The goal is to hold the panel firmly so that the adhesive bonds without the strip slipping. Uniform pressure prevents glue joint gaps and also squeezes out any trapped air.
Proper tension on these rollers is critical: too little pressure causes poor adhesion; too much can squeeze out excessive glue or deform the edge.
2.4. End Trimming Station
After the edge is glued on, the end trim unit chops off the band overhang at the panel’s front and rear.
Typically, a pair of high-speed saw blades (a “guillotine” or linear shear) are used to slice the tape flush with the panel ends.
Many machines use dual motors for end cutting, which allows boards to be closely spaced and trimmed simultaneously.
Accurate end trimming yields clean 90° edges with no manual finishing needed.

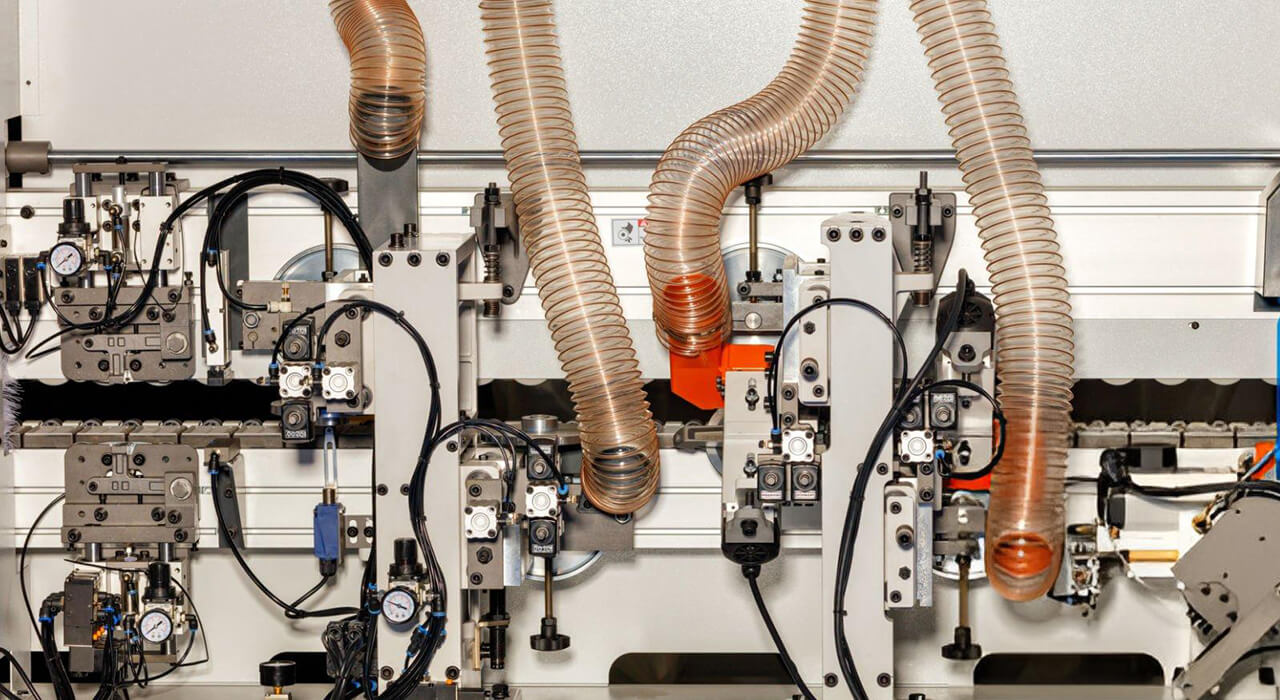

2.5. Trimming Station
-
Rough Trimming Station: Next are the top and bottom rough trim units. These high-speed cutter heads remove the bulk of the excess band above and below the panel surfaces. Rough trim brings the band close to the correct thickness (for example, cutting a 2 mm strip down to flush with the board). In a standard configuration, one motor drives a pair of cutters – one trimming the top edge and one trimming the bottom simultaneously. Some machines, like the NewCNC Fuse 9, use separate double-head units for top and bottom, increasing speed and board spacing efficiency. After rough trim, the strip is just slightly proud of the board faces.
-
Fine Trimming Station: Immediately following, fine trim heads make the edge perfectly flush and smooth. Fine trim uses sharper or slower-cutting blades (often with a smaller diameter or different profile) to “finish” the cut from rough trim. This station eliminates any small material ridges and ensures the band is exactly co-planar with the panel surfaces. Like rough trim, it usually trims top and bottom in one pass. Properly set, fine trimming leaves a seamless joint – any imbalance in these knives (blunt blades or misalignment) will be noticeable as unevenness, so operators check and replace them frequently.
2.6. Corner Rounding Station
If a rounded corner is required, the cornering unit is engaged.
This station uses a profile cutter or radius drum to round off the panel’s edge to a small radius (often R1 or R2, e.g. 1 or 2 mm).
It’s especially used for decorative finishes (snake-nose profiling) or to soften sharp edges. Dual motors are common (two radius sizes), which can be quickly switched on the fly.
Once the panel has been cut to length by end trimming, the cornerer rounds the end grain of the edge band.
This gives a professional “arc” finish on the strip’s corners, reducing the risk of corner chipping in use.
2.7. Scraping Station
Even after trimming, some micro-roughness or glue residue can remain.
The scraping stations cure this. There are usually two sets of scrapers: radius scrapers (profile scrapers) and flat/glue scrapers.
Radius scrapers have convex blades that follow curved or angled edges, fine-tuning any slight profile irregularities left by corner rounding.
Flat scrapers have straight blades that press against the flat top and bottom of the edge band, literally scraping off any glue squeeze-out or tiny burrs.
Scraping is an abrasive, burnishing cut – it yields an ultra-smooth edge surface and ensures the band is perfectly flush.
Without scraping, small burrs or gummy glue spots would require hand-sanding later.
2.8. Buffing/Polishing Station
The final station is buffing.
Here, soft polishing wheels (usually cloth or felt buff wheels) spin and buff the newly applied edge.
The buffing action smooths any minor scratches and imparts a gentle gloss to the banding.
It can also remove slight discolorations – for instance, PUR glue often causes a faint haze on dark PVC edges, which a buffing wheel eliminates.
The result is a finished edge that is silky to the touch and visually matches the panel surfaces.
Modern machines sometimes have two buffing wheels (one on the top edge, one bottom) so both surfaces are polished simultaneously.

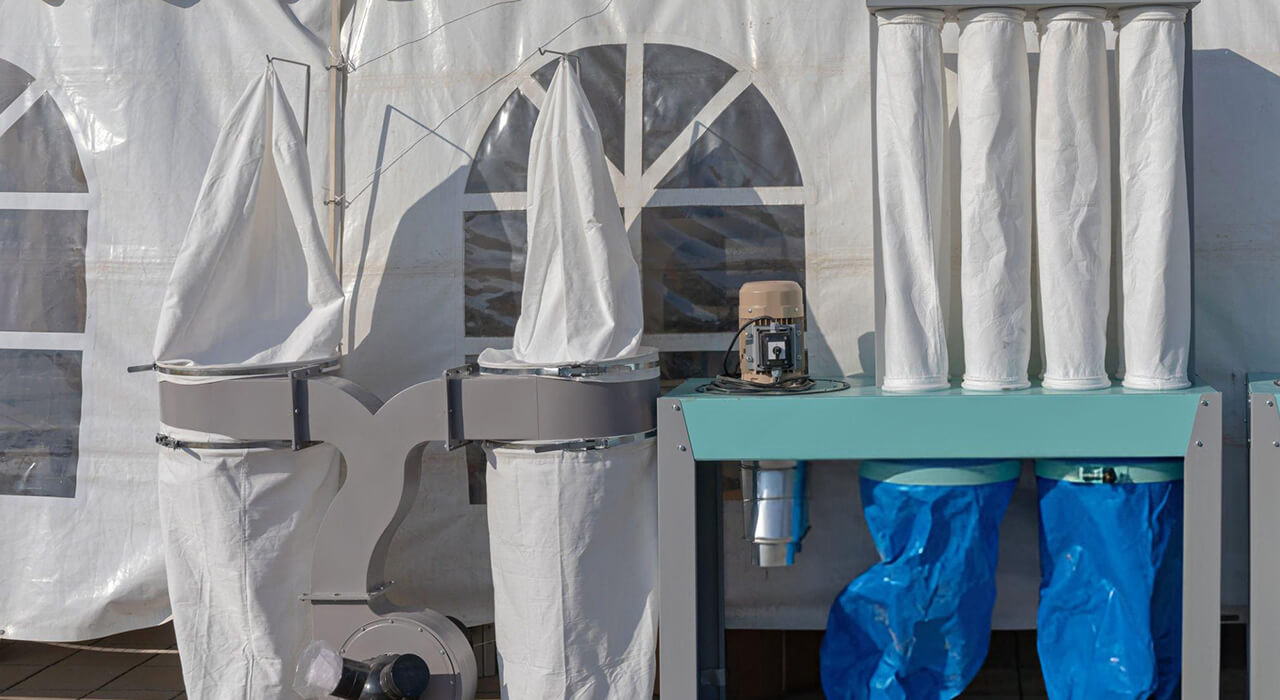

2.9. Dust Extraction & Cleaning
Finally, the machine collects and clears any debris.
Large dust ports under the trimming heads suck off wood shavings and trimming waste.
Additionally, some automatic lines spray cleaning agents: a release agent can be misted on before banding to prevent unwanted glue adhesion, and a fine cleaning spray before buffing to help polish and remove residual glue.
All scrapings and trimmings should be captured so that no dust remains on the finished panel.
Typical exhaust connections (e.g. 3 outlets of 127 mm diameter) handle the heavy chip load
Throughout this process, automation controls coordinate the stations.
Programmable Logic Controllers (PLCs) set feed speed, glue temperature, and knife positions with high precision.
Many machines allow the operator to save recipes or quickly change settings for different panel thicknesses or edge materials.
For example, Cantek’s RapidEdge Pro uses a PLC touchscreen to “graphically” adjust each unit’s position and quickly diagnose errors.
The overall effect is a fully continuous line where raw panels enter one end and perfectly trimmed, polished panels exit the other, often at production speeds of 10–20 m/min or more.
3. Station Specifications
When selecting a fully automatic edge bander, manufacturers and buyers pay close attention to technical specs:
-
Panel Thickness Range: Determines how thick the boards can be. Common ranges are 10–60 mm (0.4–2.36″). Some machines accept as thin as 8 mm or as thick as 80 mm depending on design. Make sure the machine covers your board thickness (e.g. typical cabinet carcase panels are 16–25 mm).
-
Edge Thickness (Tape/Strap): Most auto banders handle edge tapes from 0.4 mm up to 3 mm, which covers standard PVC/ABS tape widths. Some machines can do thicker 4–5 mm ABS strips (for thicker profile edges) or very thin melamine edging (0.2 mm) if needed.
-
Feed Speed (Throughput): Speed is given in meters per minute (m/min) or feet per minute (ft/min). Medium machines often run at 10–15 m/min (30–50 ft/min). High-end continuous-duty machines can exceed 20 m/min (60+ ft/min). Faster feed means higher production (but glue must set in time, so ambient conditions and glue type affect max speed).
-
Trimming Motor Power: Cutting units typically use 1–2 kW high-frequency motors for trimmers. For example, some models use 1.5 kW @12,000 RPM for trim heads. Pre-mills often use 1.5–2.0 kW motors. End-cut saws also use around 1–2 kW. Higher power generally means better cutting of hard edges or thick banding. Ask if motors are permanent magnet (higher torque) or inverter-driven.
-
Glue Pot & Adhesive: Check if the machine uses standard EVA hot-melt glue or also PUR. PUR (polyurethane reactive) requires specialized glue pots and drying, but gives superior bond strength and water resistance. If you plan to band high-end panels (bathroom cabinetry, etc.), a PUR-capable machine can be worth it. Also note glue capacity (e.g. 1.2 kg pot) and heating time.
-
Control System: Leading machines use industrial PLCs (e.g. Siemens or Delta) and HMI touchscreens. This allows storing multiple jobs and precise control. A built-in display should show errors and diagnostics, which greatly helps troubleshooting.
-
Feed/Conveyor Type: The quality of the feed system affects reliability. Look for heavy-duty chain drives with multiple rubber pads, or steel conveyor belts, depending on application. Also check maximum panel width and minimum size. For very small work, some machines have special narrow-board handling.
-
Pressure Rollers: Number and arrangement of pressure rollers can vary. Many use 5–6 rollers (one large central plus 4–5 smaller). Some designs allow easy replacement of roller covers. Ensure they are spring-loaded and adjustable to different edge thicknesses.
-
Dust Collection: Check how many dust ports and what diameter (common is Ø127 mm x3, or Ø100 mm for each station). A good machine will seal around cutters to channel dust to a vacuum.
-
Machine Footprint: These machines can be very long (4–7 meters) and heavy (1–5 tons). Ensure you have enough floor space and that building flooring can support it. Also note electrical requirements (typically 3-phase, 220–480VAC, e.g. 26A@230V) and compressed air needs (~6–8 bar for pneumatics).
-
Glue Type Compatibility: If you need PUR, confirm if an upper glue pot is available (some machines mount PUR pot above the panel, which avoids dripping).
-
Additional Features: Some edgebanders offer servo-controlled units, energy-saving standby modes, or the ability to do special edging (sharknose, laser edge finishing, thin profile tracing). These can be paid upgrades. Also consider warranty, parts availability, and whether the machine includes a stacker or table.
In short, when buying, compare panel/edge thickness ranges, speeds, motor power, control system, and extras like pre-milling or PUR glue.
Make sure the machine’s specs match your production needs (e.g. cabinet thickness, tape width) and your workshop infrastructure.
4. Recommended Brands and Models
For furniture manufacturers, the fully automatic edgebander market includes both established European brands and newer CNC builders. Below are some examples of noteworthy machines (with links to detailed specs):
-
Bestin Edge Banders: Bestin (also known as BestIn or Bestin Woodworking Machines) offers both compact and automatic models. Their lineup includes machines with PLC control and features like 45° sharknose machining. (No specific official specs were cited, but Bestin’s machines are known in industry circles.)
-
NewCNC Fuse 9: This heavy-duty automatic is designed for continuous duty in commercial shops. It features a double-motor pre-mill, 5-roller pressure, dual end-trim, top/bottom rough & fine trim, dual corner round, radius and flat scrapers, and dual top/bottom buffing. It can reach speeds up to 75 ft/min. NewCNC machines use a straightforward mechanical design and touch-screen controls.
-
Cantek RapidEdge Pro: A North American model by Cantek, the RapidEdge Pro is a heavy machine with quality components. It includes a two-head pre-mill (with diamond cutters) up to 3 mm stock removal, a quick-change Teflon-coated glue pot for EVA glue, a powerful guillotine end shear, one large + one small pressure roller, top/bottom trim units (each with an HF 12,000 RPM motor), pneumatic thickness adjustment for 0.5/1/2 mm band changes, plus corner rounding and dual scraping units. It also has release/cleaning spray units and a buffing station.
-
Leabon 368JP (PUR Edge Bander): Foshan Leabon Machinery’s 368JP is built for high-end cabinet work. It features a dedicated PUR glue pot (with external heating) as well as EVA compatibility. The machine uses a Taiwan Delta PLC and Airtac pneumatic valves for durability and precision. It offers heavy-duty performance similar to European machines but at a very competitive factory price. (Leabon also makes an EVA-only model.)
-
JNIGolden Automatic Edgebander: JNIGolden (iGolden CNC) produces a range of automatic edgebanders that are popular in Asia. Their machines include all standard stations: pre-mill, glue, trimming, corner round, buffing, etc. They emphasize features like insulated cabinets for noise reduction and dust collection ports, and their blog highlights multi-head trimming and polishing. (See the JNIGolden furniture edgebander info page for details.)
When choosing, consider not only brand but local support and parts availability.
Many of the above companies offer multiple models (basic vs. high-end versions) so you can match functionality to budget.
It’s wise to see live demos and ask for sample output quality (they often trim, scrape and buff a test panel for you).
5. Maintenance Tips
Proper maintenance is critical for long-term reliability of an edge banding machine. Follow the manufacturer’s schedule and these general guidelines to keep the machine running smoothly:
-
Daily:
-
Clean the machine after each shift. Use a soft brush or vacuum to remove wood dust and debris from stations. Wipe down surfaces to remove any glue drips. Keeping the interior clean prevents buildup that can cause jams or uneven pressure.
-
Inspect cutting and trimming units. Check end-trim blades and trim knives for wear or chips. Dull or broken blades will degrade edge quality and strain the motors. Replace or resharpen them as needed.
-
Lubricate moving parts. Grease or oil bearings, chains, gear racks, and other moving parts according to the manual. Proper lubrication reduces friction and wear on mechanical components.
-
-
Weekly:
-
Glue system check: Inspect the glue pot and rollers for clogged or dried glue. Clean out the pot when changing glue types or if residues form. Make sure the glue application roller spins freely and is free of buildup, for even coating.
-
Fasteners: Check and tighten any loose bolts, screws or fittings that may have vibrated loose. A loose roller mount or end-trimmer head can throw off accuracy.
-
Electrical check: Visually inspect cables and connections for any wear or damage. Also ensure fuses and circuit breakers are in good shape.
-
-
Monthly:
-
Deep cleaning: Disassemble removable guards and clean hidden areas where daily cleaning can’t reach. Remove scrapings from inside panels and under stations.
-
Calibrate & align: Verify the alignment of the feed conveyor, pressure rollers, and trim heads. Over time things can drift; use a feeler gauge or test cut to ensure knives are precisely set at the same height. Adjust feed belt tension if the panel is not being gripped evenly.
-
Conveyor belt & pads: Inspect the feed belt or chain for wear, and check that all conveyor pads (chain pads) are intact. Clean or replace as necessary to prevent slippage.
-
-
Periodic (seasonal or yearly):
-
Replace worn parts: Any wear items (knife rings, feed belts, scraper blades, rubber rollers, bearings) should be swapped out before failure. Use genuine spare parts where possible to maintain precision.
-
Software updates: If the machine has a CNC or PLC controller, check for firmware updates that the manufacturer may release. These updates can fix bugs or improve performance.
-
Professional servicing: It’s wise to have a service technician inspect the machine annually. They can perform preventative maintenance on motors, electrical systems, and calibrate instrumentation. This helps prevent costly downtime.
-
-
General: Always follow the manual. Each machine comes with specific maintenance instructions and schedules – adhere to them. Train operators to report any anomalies (noises, cuts, or finishes that aren’t right) immediately. Keep a maintenance log of all inspections and repairs. This documentation helps track machine health and plan part replacements before failures.
6. Common Issues & Troubleshooting
Even well-maintained edge banders can experience hiccups. Here are some typical problems and what to check:
-
Poor Adhesion (Band Peeling Off):
-
Causes: Glue too cool, dirty/old glue, wrong glue type, insufficient pressure.
-
Check: Verify glue pot is at the correct temperature. Clean out any dried glue in the pot and on rollers. Make sure pressure rollers are clean and properly tensioned. If using PUR, ensure proper drying time or use of release agent to avoid saponification.
-
-
Uneven or Wavy Edge (Misaligned Band):
-
Causes: Uneven panel edges, mis-set trim knives, feed misalignment.
-
Check: Use the pre-milling station to flatten the panel’s edge if it is crooked. Inspect fine trim knives – a dull or chipped cutter can “wobble” and cut unevenly, so replace it. Ensure the panel is running true under the pressure rollers (no tilt or feed belt creep).
-
-
Burrs or Tear-Out:
-
Causes: Worn blades or cutters, material pushing out.
-
Check: Tighten or replace trimming heads; dull cutters often leave rough edges. Also check that the feed speed is not too fast for the blade RPM – sometimes slowing the feed helps. Verify that infeed/outfeed supports and bearings are aligned so the panel doesn’t flex under cutting pressure.
-
-
Glue Stringing or Overflow:
-
Causes: Overheated glue pot or wrong adhesive viscosity, excessive glue application.
-
Check: Reduce glue pot temperature if smoking or dripping occurs. Clean any overflow or glue string on panels. If strings appear, clean the glue pot gate and check for wear. Ensure the glue spreader/roller is properly set (a loose or worn-out roller can deposit too much glue).
-
-
Noisy Operation or Vibrations:
-
Causes: Loose parts, unbalanced rollers, gearbox issues.
-
Check: Turn off machine and inspect for any mechanical wear. Tighten any loose bolts in the trim or buffer units. Check the balance of buffers. Lubricate bearings as needed.
-
-
Electrical/PLC Errors:
-
Causes: Sensor fault, overload, or communication error.
-
Check: Read the error code on the screen. Common fixes include restarting the machine, re-seating cable connectors, or replacing a blown fuse. Refer to the manual for error codes. Regularly back up any CNC programs so you don’t lose settings after a power failure.
-
Most issues boil down to maintenance: dirty glue rollers, dull blades, or loose parts are the culprits in a majority of cases. Keeping the machine clean and well-tuned (blades sharp, glue fresh, feeders aligned) will prevent nearly all problems.
7. To Sum Up
This comprehensive guide covers the essentials of fully automatic edge banding machines, from station functions to buying criteria.
With the right machine and proper use, you can transform panel edges into factory-quality finishes quickly and reliably.
