Choosing the right Panel Saw can make or break your woodworking business. Whether you’re crafting cabinets, cutting plywood, or working with soft aluminum or acrylic sheets, the right machine boosts productivity, improves precision, and saves money.
In this complete guide, you’ll learn everything about how to choose the best panel saw for your small business. We’ll cover key features, comparisons, maintenance tips, and how to buy directly from China. Let’s dive in.
Featured Resource
Table of Contents
1. What Is a Panel Saw Used For
A Panel Saw, also called sliding table saw, is a type of woodworking machine designed to make accurate, straight cuts in large panels and sheet materials like plywood, MDF, or melamine. Unlike a regular table saw, it features a sliding table or carriage next to the saw blade that moves back and forth, allowing the operator to push the material through the blade with stability and precision.
Key Features:
- Sliding Table (or Carriage): Glides smoothly on rails to support and guide large panels during cutting.
- Main Saw Blade: Cuts through wood or panels, often supported by a scoring blade to prevent splintering.
- Rip Fence: Adjustable guide for ripping boards lengthwise.
- Crosscut Fence: Helps in cutting angles or crosscuts accurately.
- Heavy-Duty Construction: Built for durability and industrial use.
2. Panel Saw Cutting Capacity
A panel saw is engineered for cutting large panels accurately. Its sliding mechanism allows a smooth, effortless stroke, reducing tear-out. Typical uses include:
- Cabinet making: Ensures precise, repeatable cuts for doors and frames.
- Furniture production: Quickly squares up sheet goods.
- Sign making: Accurate slicing of acrylic and aluminum sheets.
Most panel saws include two synchronized blades:
- Main blade: Performs the full-depth cut through the material.
- Scoring blade: Makes a shallow pre-cut on the surface to prevent tear-out when the main blade passes.
- Rip cuts: Cut along the length of a board or panel
- Crosscuts: Cut across the width
- Miter cuts: Angled cuts using adjustable fences
- Bevel cuts: Tilt the blade for angled edges
3. Panel Saw vs Table Saw: What’s the Difference
If you’re running a small workshop, you might wonder whether to choose a panel saw or a table saw. Here’s how they compare:
| Feature | Panel Saw (Sliding Table Saw) | Table Saw |
|---|---|---|
| Sheet Cutting | Excellent for large sheets | Hard to handle large sheets |
| Accuracy | High precision with guides | Medium precision |
| Footprint | Larger | Compact |
| Versatility | Designed for panels | Good for general cuts |
| Safety | Higher due to stable sliding | Moderate |
Verdict: Choose a panel saw if you cut large sheets frequently and need accuracy. Choose a table saw if space is tight and you work on smaller projects.
4. Things to Consider Before Buying a Panel Saw for Small Businesses
A panel saw can be a game-changer for small woodworking shops. It boosts cutting precision, workflow speed, and safety. But before investing, it’s important to understand what to look for. Here are the key things you should consider:
4.1. Workshop Space
- Footprint: panel saws take up more room than standard saws. Measure your available space.
- Mobility Needs: If you need to move the saw often, look for compact models or optional wheel kits.
4.2. Cutting Capacity
- Crosscut Length: Choose a model with enough stroke length for your largest sheet goods (like 8×4 ft plywood).
- Rip Capacity: Ensure the rip fence can handle wide cuts for furniture panels or cabinet sides.
4.3. Motor Power
- Power Rating: For hardwoods or high-volume work, a motor with at least 3HP is ideal.
- Voltage Requirements: Check if it runs on single-phase or three-phase power to match your shop’s setup.
4.4. Precision and Stability
- Sliding Table Quality: Look for smooth gliding action with minimal play or wobble.
- Build Material: Cast iron tables and steel frames offer better accuracy and longevity.
4.5. Ease of Use
- Control Panel: Clear, accessible controls and digital readouts improve efficiency.
- Fence System: A T-square or heavy-duty fence helps ensure straight cuts every time.
4.6. Safety Features
- Blade Guard: Essential for operator safety—some come with riving knives and anti-kickback features.
- Emergency Stop: Large, easily accessible stop buttons are a must.
4.7. Dust Collection
- Dust Ports: Dual ports (top and bottom) improve dust capture.
- Compatibility: Ensure the ports match your dust extractor or shop vacuum.
4.8. Budget
- Total Cost: Include shipping, installation, and possible upgrades (like scoring units or digital scales).
- Warranty & Support: Longer warranties and responsive customer service save money over time.
5. Best Panel Saw for Small Business Owners Recommended
These samll panel saws offer precision, power, and compact design—ideal for small workshops.
5.1. Bestin MJ6116TY
The BESTIN MJ6116TY is built for small shops that demand industrial-level performance. With its solid sliding table and precise cutting system, it’s a reliable choice for both wood and plastic panel cutting.
Key Features:
- Heavy-duty aluminum sliding table
- Smooth gliding for accurate long cuts
- Optional scoring unit for chip-free cuts
- Easy-to-use control panel
- CE-certified
Specifications:
| Specification | Value |
|---|---|
| Sliding Table Length | 1600 mm |
| Max Cutting Length | 1600 mm |
| Main Blade Diameter | 300 mm |
| Scoring Blade | Yes |
| Cutting Height @ 90° | 75 mm |
| Motor Power | 4.0 kW |
| Voltage | 380V / 3 Phase |
| Ideal For | Wood, MDF, PVC |

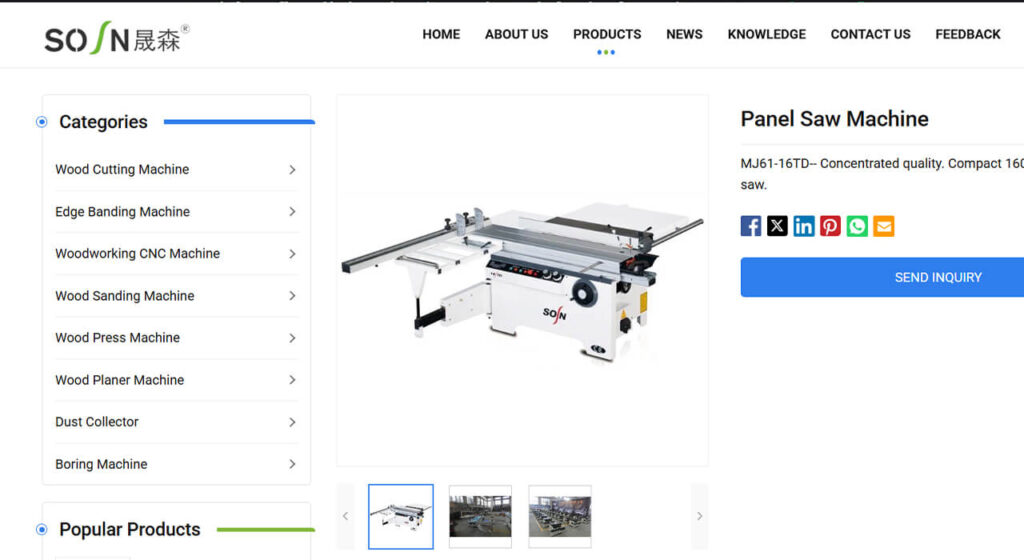

5.2. SOSN MJ61-16TD
A budget-friendly saw with professional features. The SOSN MJ61-16TD offers stability and performance for new or growing woodworking shops.
Key Features:
- Compact footprint for space-saving
- Scoring saw for flawless finishes
- Easy blade height adjustment
- Precision fence system
Specifications:
| Specification | Value |
|---|---|
| Sliding Table Length | 1600 mm |
| Max Cutting Length | 1600 mm |
| Main Blade Diameter | 305 mm |
| Scoring Blade | Yes |
| Cutting Height @ 90° | 80 mm |
| Motor Power | 3.8 kW |
| Voltage | 380V / 3 Phase |
| Ideal For | Wood, PVC panels |

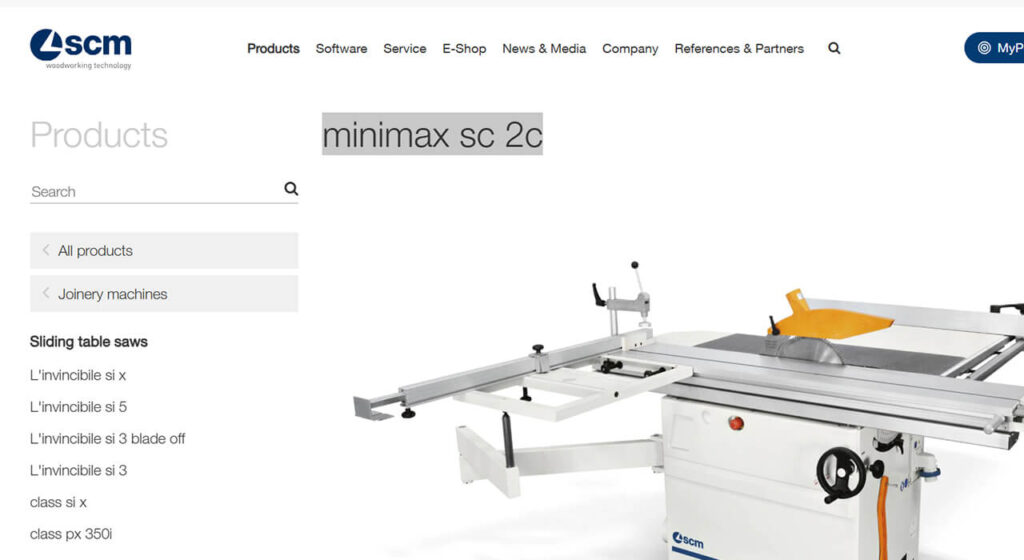

5.3. Motor Power
A compact sliding table saw from Italy’s premium SCM brand. The Minimax SC 2C is a precision tool designed for craftspeople.
Key Features:
- High-quality SCM build
- Smooth and durable sliding carriage
- Optional scoring blade
- Ergonomic control handles
Specifications:
| Specification | Value |
|---|---|
| Sliding Table Length | 1600 mm |
| Max Cutting Length | 1660 mm |
| Main Blade Diameter | 300 mm |
| Scoring Blade | Optional |
| Cutting Height @ 90° | 100 mm |
| Motor Power | 4.0 kW |
| Voltage | 3 Phase |
| Ideal For | MDF, laminate, ply |

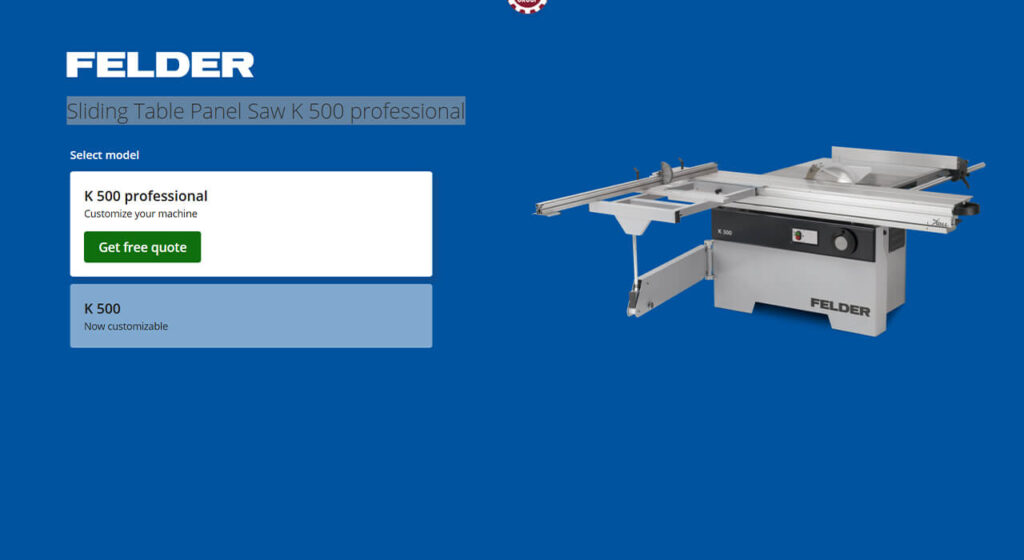

5.4. Felder Sliding Table Panel Saw K 500 professional
A robust option from a trusted European manufacturer. The K 500 Professional is ideal for small businesses aiming for consistent, precise cuts.
Key Features:
- Dual tilt saw blade
- Cast iron saw unit for durability
- Digital readout and angle scale
- Telescopic crosscut fence
Specifications:
| Specification | Value |
|---|---|
| Sliding Table Length | 3000 mm |
| Max Cutting Length | 3200 mm |
| Main Blade Diameter | 315 mm |
| Scoring Blade | Yes |
| Cutting Height @ 90° | 104 mm |
| Motor Power | 5.5 kW |
| Voltage | 3 Phase |
| Ideal For | Cabinetry, joinery |

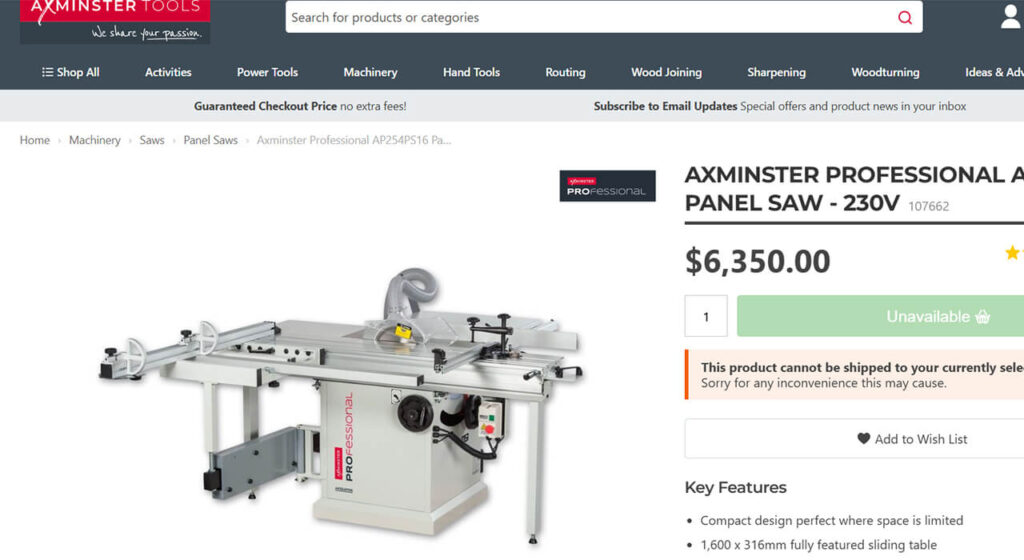

5.5. Axminster Professional AP254PS16 Panel Saw
Perfect for small workshops and hobbyists. The Axminster AP254PS16 offers reliability at an affordable price point.
Key Features:
- Lightweight but stable design
- Simple fence locking system
- Compact for smaller spaces
- Safety blade guard included
Specifications:
| Specification | Value |
|---|---|
| Sliding Table Length | 1600 mm |
| Max Cutting Length | 1600 mm |
| Main Blade Diameter | 254 mm |
| Scoring Blade | No |
| Cutting Height @ 90° | 80 mm |
| Motor Power | 2.2 kW |
| Voltage | 230V / 1 Phase |
| Ideal For | Light workshop use |

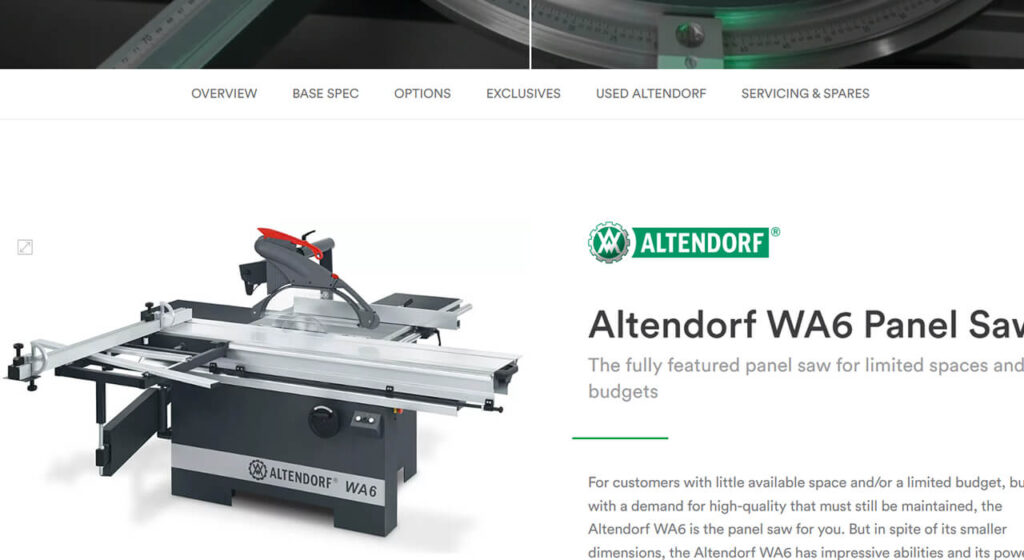

5.6. Safety Features
Known globally for quality, Altendorf WA6 is an entry-level panel saw that still delivers German precision.
Key Features:
- Premium linear guide system
- Tilting saw blade (0°–45°)
- Integrated scoring unit
- Adjustable rip fence
Specifications:
| Specification | Value |
|---|---|
| Sliding Table Length | 2600 mm |
| Max Cutting Length | 2600 mm |
| Main Blade Diameter | 315 mm |
| Scoring Blade | Yes |
| Cutting Height @ 90° | 100 mm |
| Motor Power | 4.0 kW |
| Voltage | 3 Phase |
| Ideal For | High-precision work |

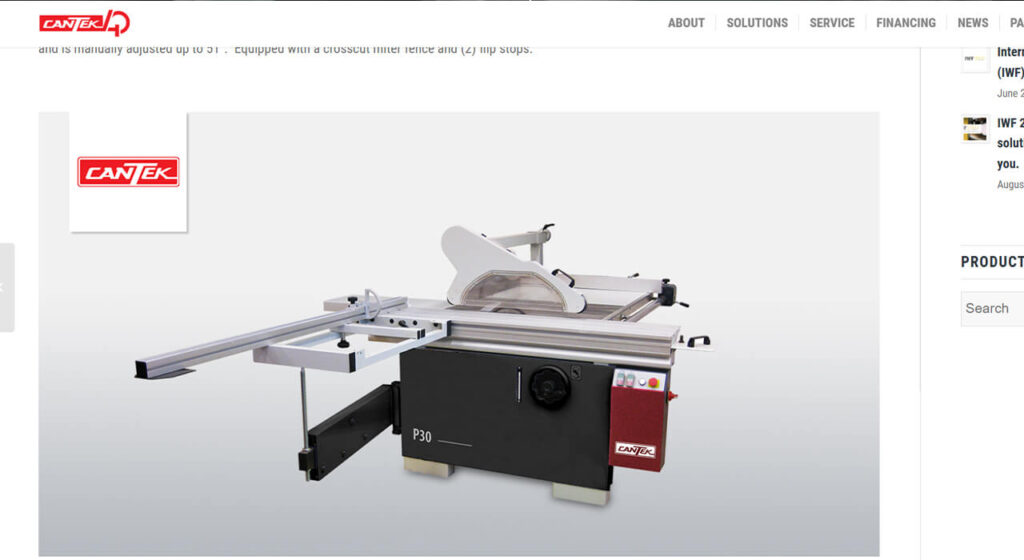

5.7. CANTEK | P30 5′ SLIDING TABLE SAW
A compact powerhouse. The CANTEK P30 is ideal for job sites and shops with limited space.
Key Features:
- Adjustable scoring blade
- Heavy-duty fence with micrometer adjustment
- Simple blade change system
- Compact footprint
Specifications:
| Specification | Value |
|---|---|
| Sliding Table Length | 1600 mm |
| Max Cutting Length | 1600 mm |
| Main Blade Diameter | 300 mm |
| Scoring Blade | Yes |
| Cutting Height @ 90° | 80 mm |
| Motor Power | 4.0 kW |
| Voltage | 3 Phase |
| Ideal For | Shops with tight space |

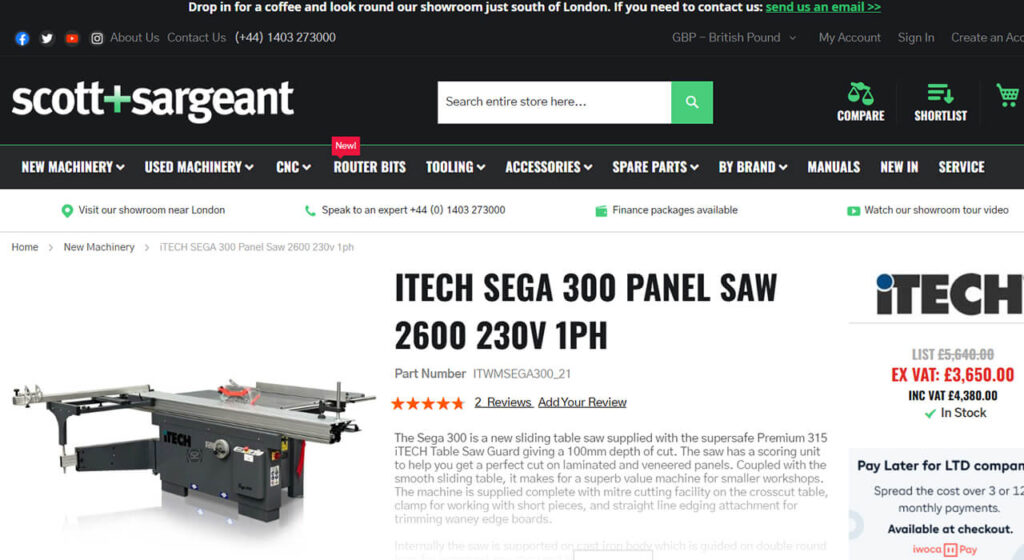

5.8. iTECH SEGA 300 Panel Saw 2600 230v 1ph
If you’re limited to single-phase power, the iTECH SEGA 300 is a powerful and efficient option for small businesses.
Key Features:
- Ready-to-use with 1-phase power
- Smooth gliding table
- Easy tilt mechanism
- Integrated riving knife
Specifications:
| Specification | Value |
|---|---|
| Sliding Table Length | 2600 mm |
| Max Cutting Length | 2600 mm |
| Main Blade Diameter | 300 mm |
| Scoring Blade | Yes |
| Cutting Height @ 90° | 90 mm |
| Motor Power | 3.0 kW |
| Voltage | 230V / 1 Phase |
| Ideal For | Small businesses |

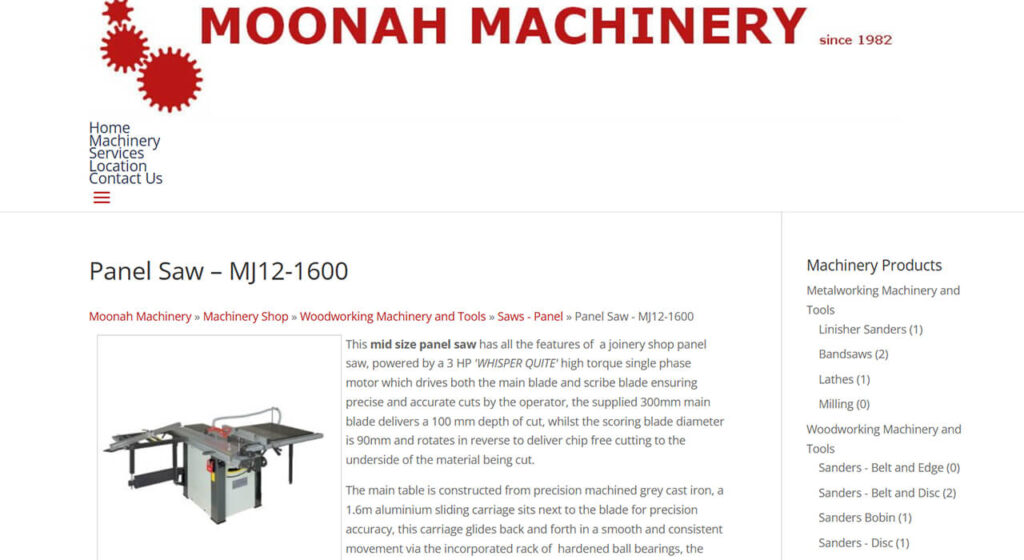

5.9. Moonah Machine Panel Saw – MJ12-1600
A general-purpose, economical choice for cutting sheet material. The MJ12-1600 is great for light commercial work.
Key Features:
- Simple control panel
- Affordable price point
- Adjustable rip fence
- Strong base for stability
Specifications:
| Specification | Value |
|---|---|
| Sliding Table Length | 1600 mm |
| Max Cutting Length | 1600 mm |
| Main Blade Diameter | 305 mm |
| Scoring Blade | Yes |
| Cutting Height @ 90° | 80 mm |
| Motor Power | 3.8 kW |
| Voltage | 3 Phase |
| Ideal For | Entry-level shops |
6. Panel Saw Maintenance: Keeping Your Investment in Top Shape
Maintaining your panel saw ensures it lasts for years and performs optimally. Follow these tips:
- Regular Cleaning: Clean the base and moving parts, like the saw carriage, weekly to remove dust and debris.
- Lubrication: Lubricate the axes of the pusher and saw carriage monthly to keep movements smooth.
- Electrical Maintenance: Vacuum electrical parts, especially the panel, every two months to prevent dust buildup.
- Belt Checks: Inspect belts on the cutting blade and scorer every 3-4 months for wear, replacing as needed.
- Debris Removal: Frequently clear debris from the chip channel, especially after heavy use, to maintain efficiency.
- Blade Maintenance: Ensure the blade is sharp and properly aligned for clean cuts, checking regularly.
Regular maintenance not only extends the life of your saw but also enhances safety and performance, making your woodworking projects smoother and more enjoyable.
7. FAQ About Panel Saw For Small Business
What is a panel saw used for?
A panel saw is specifically designed to cut large sheet goods—such as plywood, MDF, particleboard, melamine, phenolic laminate, and other composite panels—into smaller, more manageable pieces. By holding the blade fixed within a vertical or horizontal frame, panel saws allow you to:
- Rip-cut long panels (cut along the grain or length of the board) with ease and accuracy.
- Cross-cut panels (cut across the shorter dimension) without needing to lift or manipulate a heavy sheet on the floor.
- Achieve consistent, straight cuts by guiding the panel along built-in fences or tracks, reducing reliance on handheld circular saws.
- Save shop space, since vertical models store sheets upright against the wall, and horizontal models nest small stacks of panels on a sliding carriage.
- Increase safety and ergonomics, as operators don’t need to “walk” large sheets through a table saw; instead, the panel remains supported by the frame while the blade cuts.
What are the disadvantages of a panel saw?
While panel saws excel at processing sheet materials, they come with certain drawbacks:
-
Space Requirements (Vertical Clearance & Footprint):
-
Vertical panel saws need 7–8 ft of clear wall height to stand upright.
-
Horizontal models require floor space for the swinging or sliding carriage plus clearance on either side to feed long panels.
-
-
Limited Versatility Beyond Sheet Goods:
-
Designed primarily for ¾″–1¼″ thick panels; cutting thicker solid wood boards or non-orthogonal joinery (e.g., tenons) is not practical.
-
You cannot perform dado, rabbet, or deep groove work that a table saw or router table can handle.
-
-
Accuracy Over Time (Tracking & Calibration):
-
Frames, rails, and fences can drift if not regularly checked. Even a small misalignment in the vertical track or sliding carriage can introduce a slight taper over long cuts.
-
-
Blade Selection Constraints:
-
Generally uses a single “combination” or “fine crosscut” panel-saw blade (80–120 T), which is optimized for finish cuts on laminates. Changing to specialty blades (e.g., coarse rip, non-ferrous metal-cutting, or dado stacks) is not as straightforward—most panels are limited to an 8″–10″ diameter blade.
-
-
Cost of Entry‐Level Quality:
-
A good quality vertical panel saw (with a rigid frame, quality bearings, and a stable fence system) can cost $1,200–$3,000 for basic models, and $5,000+ for heavy-duty industrial versions. Horizontal beam saws (the “next step up”) can exceed $20,000.
-
-
Operator Skill & Maintenance:
-
You must learn to square panels to the fence, adjust the blade height/tilt properly, and keep the rails clean. Poor setup or lack of routine calibration leads to inaccurate cuts.
-
What can you cut with a panel saw?
A panel saw’s primary use is to cut flat sheet materials into smaller parts. Typical materials include:
-
Woodbased Panels:
-
Plywood (softwood, hardwood, marine) up to 1¼″ thick
-
MDF (standard or moisture-resistant)
-
Particleboard or chipboard (melamine-faced or raw)
-
-
Laminate & Decorative Panels:
-
Melamine panels
-
HPL (high-pressure laminate) over particleboard or MDF
-
Veneer-faced panels
-
-
Plastic & Composite Sheets:
-
PVC, HDPE, or acrylic sheets (with an appropriate fine-tooth blade)
-
Phenolic resin panels (e.g., Formica)
-
-
Lightweight Non-Wood Boards:
-
Hardboard (Masonite), fiberboard
-
Honeycomb core or aluminum composite panels (if blade and feed speed are matched)
-
You can also cut trim-sized solid wood pieces up to the machine’s maximum thickness, but panel saws are not intended for deep dadoes, resawing thick stock, or non-straight joinery. For those tasks, use a table saw, band saw, or router table.
How thick can a panel saw cut?
Standard Shop & Garage Models: Most vertical panel saws accommodate ¾″–1″ thick sheets (18 mm to 25 mm). Some will handle up to 1¼″ (30 mm) panel material if you adjust the blade height and feed the board carefully.
-
Heavy-Duty Industrial Models: With a more powerful motor and a larger blade (8″–10″ arbor), industrial vertical saws or dedicated horizontal/beam saws can cut 1½″–2″ (38 mm–50 mm) thick panels. Always check the manufacturer’s specifications for maximum “cutting depth” before attempting to exceed stock thickness.
-
Specialty “Sandwich” Capabilities: Some industrial panel saws can process two ¾″ panels glued with a thin core (total ~1⅝″) in a single pass—useful for laminated countertops or solid-surface materials.
Best Practice: Never exceed the machine’s rated maximum board thickness (listed in the manual), as this will put excessive strain on the arbor, motor, and bearings—and can lead to dangerous binding situations.
Can a panel saw rip cut?
Yes. By definition, ripping is cutting lengthwise along the grain or long dimension of a board or panel. A panel saw can rip-cut in two main ways:
-
Vertical Ripping:
-
On a vertical panel saw, you stand your sheet upright against the fence, align the long edge to the blade, and pull the panel down (or push it up, depending on the machine’s design) to rip the sheet to a narrower width (e.g., turning a 4×8 sheet into a 12″-wide rip).
-
-
Horizontal Ripping (on Combination or Horizontal Models):
-
Some panel saw models allow you to lay the panel flat on a sliding carriage. In this “horizontal“ mode, you rip-cut along the length by sliding the carriage with the blade engaged.
-
Because panel saw fences are typically adjustable to any measurement (12″, 16″, 24″, etc.), ripping large panels in a single pass is faster and safer than trying to rip-cut the same sheet on a table saw (where you need ample infeed/outfeed support).
Can a panel saw cut angles?
Yes, most panel saws can make angled cuts, though the degree of flexibility varies by model:
-
Miter or Bevel Cutting (Up to 45°–90°):
-
Many vertical panel saws have a pivoting blade head that can tilt up to 45° (both directions). By rotating the blade to 22.5°, 30°, or 45°, you can produce precise beveled edge cuts on large panels.
-
-
Variable Angle Fence (Compound Angles):
-
Higher-end panel saws include a protractor-style fence that locks in common angles (15°, 30°, 45°, 60°, etc.). This allows you to cut mitered edges in one pass, which is useful for making cabinet carcass frames, angled corner cabinets, or custom shelves.
-
-
Limited Tilt Range on Entry-Level Models:
-
Budget panel saws sometimes only tilt in one direction (e.g., 0°–45°). Others don’t tilt at all, requiring you to pre-rip a narrower strip on a table saw and then re-miter on a chop saw for complex angles.
-
Tips for Angled Cuts on a Panel Saw:
-
Calibrate Your Tilt Scale: Confirm that your blade’s 45° marking is truly a 45° bevel by using a digital angle finder or carpenter’s square.
-
Lock the Fence Solidly: When cutting miters, ensure the fence’s angle detent or scale is securely clamped.
-
Make Test Cuts: Always run a scrap piece at your desired angle first to verify fit, especially if your cabinet faces or fillers need a perfect miter joint.
How many teeth does a panel saw have per 25 mm?
Blades on panel saws are typically specified by the total number of teeth and diameter (e.g., 10″ × 80 T blade). To estimate teeth per 25 mm (1 inch), you need to know the blade’s pitch (teeth per inch, TPI), which varies based on blade design:
-
Combination/General-Purpose Panel Blade (40–60 TPI):
-
Many standard panel saw blades are listed as 80–120 teeth on a 10″ diameter.
-
Calculation Example: A 10″ (254 mm) blade with 80 teeth. Its circumference ≈ π×254 mm ≈ 797 mm.
-
Teeth per mm = 80 / 797 ≈ 0.1004 teeth/mm
-
Teeth per 25 mm ≈ 0.1004 × 25 ≈ 2.51 ≈ 2–3 teeth per 25 mm.
-
-
-
Fine Finish or Non-Ferrous Blade (100–120 TPI):
-
A 10″×120 T blade (for ultra-clean laminate cuts or thin AKZ boards) has a circumference of 797 mm, so 120/797 ≈ 0.1506 teeth/mm → ~3.76 teeth per 25 mm (typically 3–4).
-
-
Ripping/Coarse Blade (24–40 TPI):
-
If you use a coarser ripping blade on a panel saw (less common for laminates), you might have 30 T (blade circumference 797 mm): 30 / 797 ≈ 0.0376 teeth/mm → ~0.94 ≈ 1 tooth per 25 mm.
-
Typical Ranges:
-
Coarse Ripping Panel Blades: ~1 to 2 teeth per 25 mm (24 T–40 T on a 10″).
-
General-Purpose Panel Blades: ~2 to 3 teeth per 25 mm (60 T–80 T).
-
Fine Finish / Non-Ferrous: ~3 to 4 teeth per 25 mm (100 T–120 T).
Always choose the blade tooth count to match your material: fewer teeth for rapid heavy cuts (risking more chip-out on laminate), more teeth for clean, chip-free edges on melamine or veneer.
8. Conclusion: Empower Your Woodworking with the Right Choice
Choosing the right small panel saw involves understanding your needs, comparing options, and maintaining your machine for longevity. Whether you’re a hobbyist or starting a small business, the right panel saw can transform your workflow, offering precision and efficiency.
Ready to take your woodworking to the next level? Explore our range of small panel saws and find the perfect one for your workshop today at Bestin!
