CNC routers are indispensable in modern woodworking and manufacturing, enabling precise cutting, carving, drilling, and engraving across wood, plastics, composites, and light metals.
Among the latest advancements, Automatic Tool Changer (ATC) systems stand out. An ATC-equipped CNC router can swap cutting tools (end mills, drills, V-bits, etc.) automatically during a job, eliminating the need for manual intervention.
As one authority explains, an ATC “improves the production and tool-carrying capacity of a machine by changing tools very quickly”, dramatically reducing machine downtime.
For professional woodworkers and industrial manufacturers, choosing an ATC-enabled router yields significant productivity, efficiency, and quality benefits compared to a standard single-tool machine.
Featured Resource
Table of Contents

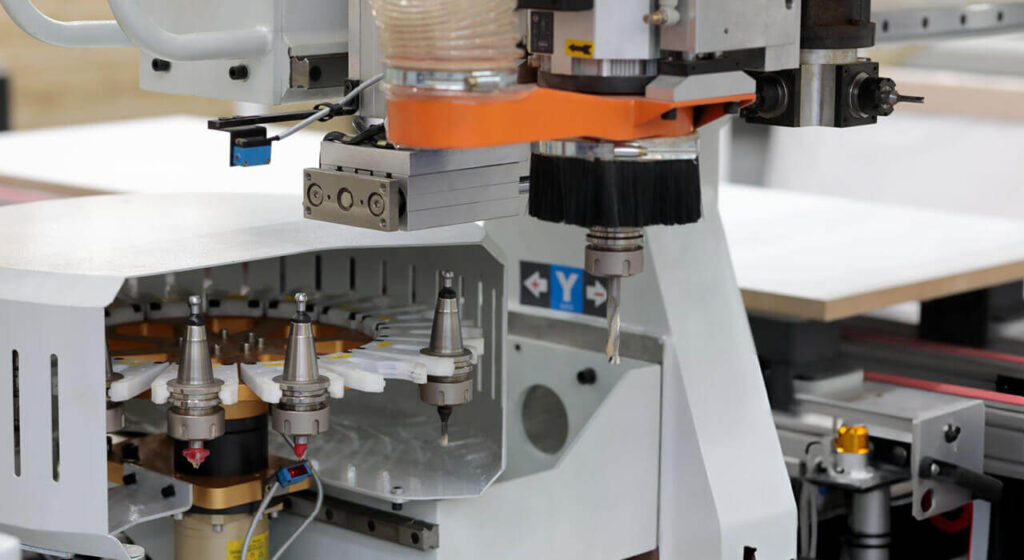

1. What Is an Automatic Tool Changer (ATC)?
An automatic tool changer (ATC) is a mechanism on a CNC machine that stores multiple cutting tools and swaps them in and out of the spindle rapidly, under computer control. In machining, ATCs allow a router or mill to “work with a large number of tools without operator intervention”.
Typically, tools are held in a magazine – either a rotary carousel or a linear chain – and a robotic arm or gripper moves tools between the magazine and the spindle.
A simple CNC router has only one tool at a time. With an ATC, the machine’s programming can specify any tool from its magazine at any step.
When the cutting path requires a different bit (e.g. switching from a roughing end mill to a finishing end mill, or adding a drill bit for pocket holes), the machine stops briefly, moves the spindle to a designated tool-change position, and the ATC mechanism automatically replaces the tool.
In practice, a high-quality ATC can complete a tool swap in a few seconds, with no operator needed. This automation is “one more step towards complete automation” in CNC machining.
ATC systems generally fall into two common types:
Drum (carousel) magazine: Tools are arranged around a rotating drum. Drum-type ATCs typically hold up to a dozen or so tools (often 6–12), making them ideal for mid-sized shops. The drum spins to position the desired tool for pickup.
Chain (linear) magazine: Tools are attached along a moving chain or bar. Chain ATCs can accommodate many more tools (sometimes 20–30+), trading off some change speed for huge capacity.
In both cases, the key is that the CNC controller can command a precise change: the spindle pauses, the gripper picks up the new bit and returns the old bit to the magazine, then machining resumes. This seamless handoff maintains precision and consistency, as tool lengths are calibrated in the magazine.
2. How ATCs Work (Step-by-Step)
The basic operation of an automatic tool changer involves a short sequence of steps. For example, a ShopSabre guide outlines the process:
-
Tool change command: The CNC program sends a command to change tools.
-
Positioning: The machine brings the current tool to a fixed tool-change position.
-
Tool removal: The ATC arm moves in, the spindle unlocks, and the old tool is gripped and retracted.
-
New tool pick-up: The arm retrieves the new tool from the magazine. The spindle receives the new tool, the chuck locks it in place.
-
Resume cutting: With the new tool in the spindle, the Z-axis re-engages, and the machine continues the job.
In practice, this entire sequence is completed in a matter of seconds. Advanced systems even include tool-length sensing and automatic calibration, so each tool’s exact length is known to the control software.
“In a matter of seconds, an ATC enables you to switch tools automatically without any need for human involvement (apart from programming the change).”
3. Key Benefits of ATC CNC Routers
Integrating an automatic tool changer into a CNC router unlocks multiple advantages for a professional workshop or factory. The main benefits include:
-
Higher Productivity: The machine no longer waits for an operator to change bits. Tool swaps take only a few seconds, keeping the spindle cutting most of the time. Automated tool changes “minimize machine idle time and maximize production output”. In other words, you can run longer unattended cycles and complete jobs faster. As AXYZ points out, pausing a job to change a tool “wastes a lot of time” – time that ATCs reclaim by keeping the machine running without interruption.
-
Reduced Downtime and Labor Costs: Manual tool changes are a bottleneck. Every pause to swap bits requires an operator present; with an ATC, total downtime and production time drop dramatically. This translates to lower labor costs: employees can oversee multiple machines or perform other tasks instead of babysitting the router. In short, “reducing labor costs” is a direct benefit of ATC automation.
-
Greater Accuracy and Consistency: When machines handle the tool exchanges, there’s less risk of human error. Each tool is loaded in a consistent way, and modern ATCs often include built-in tool-length probing. ShopSabre notes that ATCs provide “increased accuracy”. Yangsen’s industry guide confirms this: automated changes ensure “consistent and accurate machining”, as the machine controls the exact placement of each tool.
-
Increased Versatility (More Tools, More Operations): A CNC router with ATC can carry many tools (commonly 8–12 on drum systems, or dozens on chain systems). This means a single program can include drills, various-sized end mills, v-bit engravers, and more without stopping. Complex, multi-step projects become practical on one machine. Laguna Tools notes that multi-tool routers allow you to “automate the process of switching tools, saving time and increasing productivity”. The ability to hold many tools “eliminates the need for multiple specialized machines”, since one ATC router can perform all necessary cuts and holes.
-
Flexibility to Produce Complex Parts: Because different tools can be used in sequence, ATC routers can handle intricate or multi-stage designs in one setup. For example, routing a furniture panel might involve through-cutting shapes, drilling pocket holes, and carving decorative grooves. An ATC machine can do all these in one cycle. As Yangsen notes, ATCs enable “a wide range of tools to be used in a single operation, expanding the capabilities of CNC machines and accommodating various manufacturing requirements”. This flexibility is a boon for custom work and prototyping where many tool changes are required.
-
Better Surface Finish and Part Quality: With an ATC, you can use the optimum cutter at each stage. For instance, after a roughing end mill, the machine can switch to a finer finishing bit for a clean surface, or a small V-bit for engraving. ShopSabre highlights “increased edge finish due to more appropriate tooling per process”. In short, each step uses the best tool, improving the final part without manual tool juggling.
-
Enhanced Safety: Safety is often overlooked in tech discussions, but removing the need to handle sharp bits frequently is a real benefit. AXYZ explicitly calls ATCs “safer, as [they] eliminate the need for staff to change the tools directly”. ShopSabre similarly notes “increased safety for employees and equipment”, since operators are not reaching into the machine to swap cutters. Moreover, ATCs can handle large, heavy cutters that would be cumbersome (or dangerous) to change manually, further reducing risk.
-
Easier Use of Larger or Specialized Tools: An automated changer can accommodate heavy-duty mills, large-diameter bits, or specialized tooling that would be difficult to swap by hand. As ShopSabre points out, ATCs bring the “ability to change larger and heavier tools with ease”. This opens up machining strategies that require robust cutters for heavy cuts or milling thick materials.
“The use of automatic changers increases productive time and reduces unproductive time. It provides the storage of the tools… increases the flexibility of the machine tool, makes it easier to change heavy and large tools, and permits the automatic renewal of cutting edges.”Wiki
This broad range of benefits means that an ATC-capable CNC router can vastly outperform a basic single-tool router in commercial settings. It translates to more parts produced per hour, tighter lead times, and the ability to compete on jobs that would be impractical with manual changes.
4. Productivity in Numbers (Quick Comparison)
To illustrate, consider a table comparing a Standard CNC Router (manual tool changes) with a CNC Router with ATC:
| Feature | Standard CNC Router | CNC Router with ATC |
|---|---|---|
| Tool Changes | Manual. Operator stops machine, unlocks spindle, swaps bit by hand. | Automated. Machine pauses briefly (~5 seconds) and swaps tools on its own. |
| Machine Downtime | Frequent, every tool change. Idle time while operator is present. | Minimal. The spindle is idle only for seconds per change, with no operator delay. |
| Number of Tools | Typically 1 (requires reloading for each new bit). | Multiple. Commonly holds 6–12 tools (drum) or 20+ (chain). |
| Productivity | Limited by manual changes. Multi-tool jobs slow and labor-intensive. | Higher throughput. Unattended multi-step jobs are seamless, boosting output. |
| Labor Cost | Higher (operator must oversee each change). | Lower. Operators can manage multiple machines or tasks; machine runs with less supervision. |
| Consistency | Variable, depends on operator skill. Potential for human error in tool length. | High consistency. Machine-calibrated tool lengths and repeatability ensure uniform quality. |
| Safety | Higher risk. Manual handling of hot, sharp tools. | Safer. Tools exchanged inside enclosure; less physical interaction. |
| Machine Cost | Lower upfront cost. | Higher initial cost (ATC mechanism, servo drives, advanced controls). |
| Machine Versatility | Limited. Complex jobs need manual intervention or multiple machines. | Very versatile. Handles complex, multi-step operations in one setup. |
This comparison underscores why industrial users accept the higher initial investment in an ATC system: the gains in throughput, precision, and autonomy quickly pay off in a professional shop.
5. Types of Tool Magazines
The tool magazine is the heart of an ATC. Common magazine types include:
-

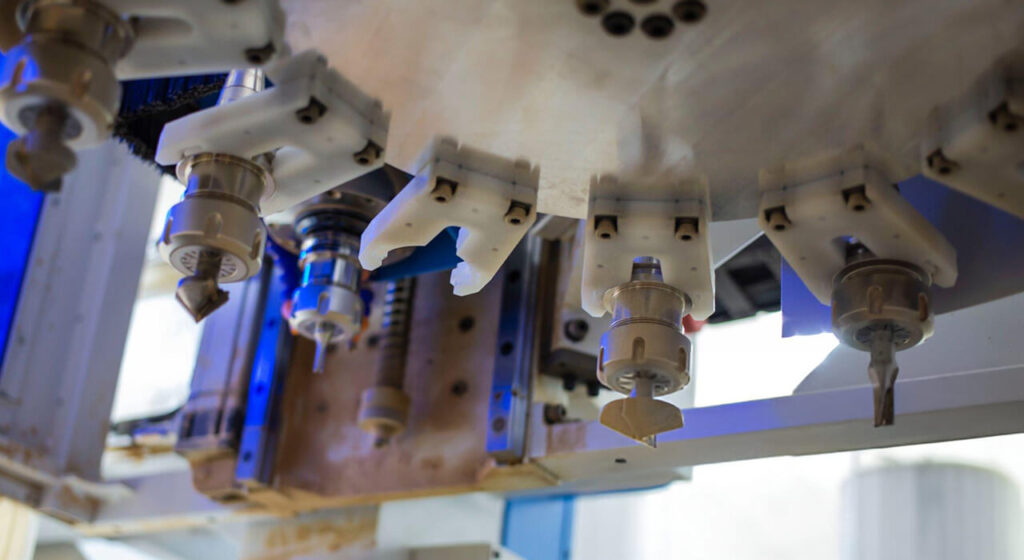

Drum-style (Carousel): A rotating disc or drum holds tool holders around its perimeter. This compact design is typical on woodworking CNC routers. Drum magazines usually hold from 6 up to ~14 tools, depending on size. Spinning the drum lines up each tool with the pickup position. These are reliable and relatively simple, but adding many extra tools eventually becomes bulky.
-

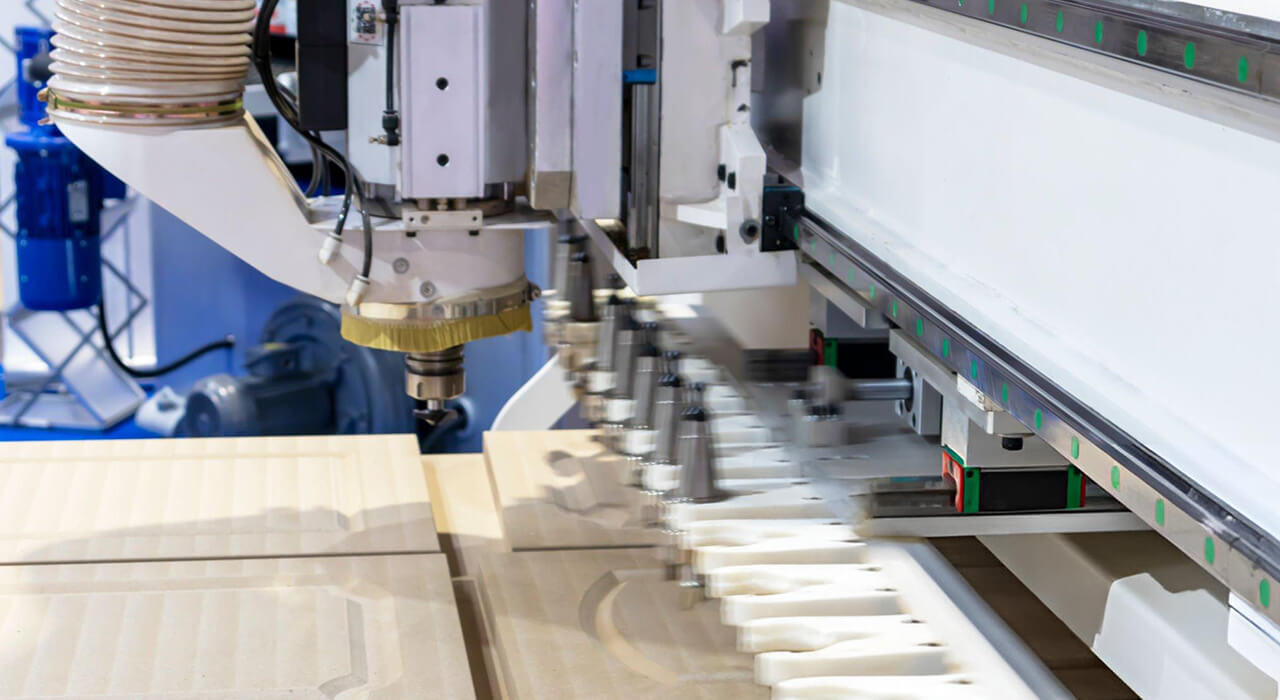

Chain/Linear-style: Resembling a chain or belt of tool pockets, this magazine can carry dozens of tools in a row. Chain magazines excel when a shop needs an extremely large tool capacity (30+ tools). The chain moves to position the correct tool at the changer. The trade-off is slightly slower tool index times compared to a drum.
Tool capacity is an important consideration: a higher count means fewer tool refills and longer unattended runs. For most woodworking shops, a carousel ATC with 8–12 positions suffices. For large industrial runs or multi-faceted jobs, a chain magazine can be worth the extra complexity.
Example: A router might have a 12-station drum ATC (like in the Best image above), giving immediate access to a dozen bits. Alternatively, a chain magazine might hold 8 tools along one side of the machine, allowing a single nest of material to use dozens of cutters without interrupting the program.
6. Key Considerations When Choosing an ATC CNC Router
When selecting an ATC-enabled CNC router for your shop, several factors matter:
6.1. Tool Capacity
- How many tools do you actually need?
- Think through your typical jobs.
- Does each job use many different bit types?
Choose a magazine size that comfortably exceeds your needs. An undersized ATC would force manual tool swaps, negating benefits. Yangsen’s guide advises ensuring “the ATC can accommodate the tools needed for your specific manufacturing requirements”
6.2. Tool Change Speed
Not all ATCs swap equally fast. If cycle time is critical, look for models with optimized changers. High-end systems can exchange tools in 2–3 seconds, while others may take 5–10 seconds. Even a small difference adds up on long runs. Manufacturers usually list a “tool change time” spec; faster is better. Yangsen recommends verifying that “the time taken to swap tools… aligns with the desired production cycle time”
6.3. Spindle and Motor Configuration
ATC routers often come with robust spindles (many use ISO30/HSK F63 holders) and servo drives to handle the demands of fast tool changes and heavier tooling. For example, budget ATC models might use a mid-range brand spindle (like HQD), whereas premium machines use top-tier spindles (like Italian HSD).
Check if the router’s spindle can safely use the tool holders you need. Also note whether the drive system is geared for precision: many ATC routers use closed-loop servos rather than steppers for reliable positioning under load.

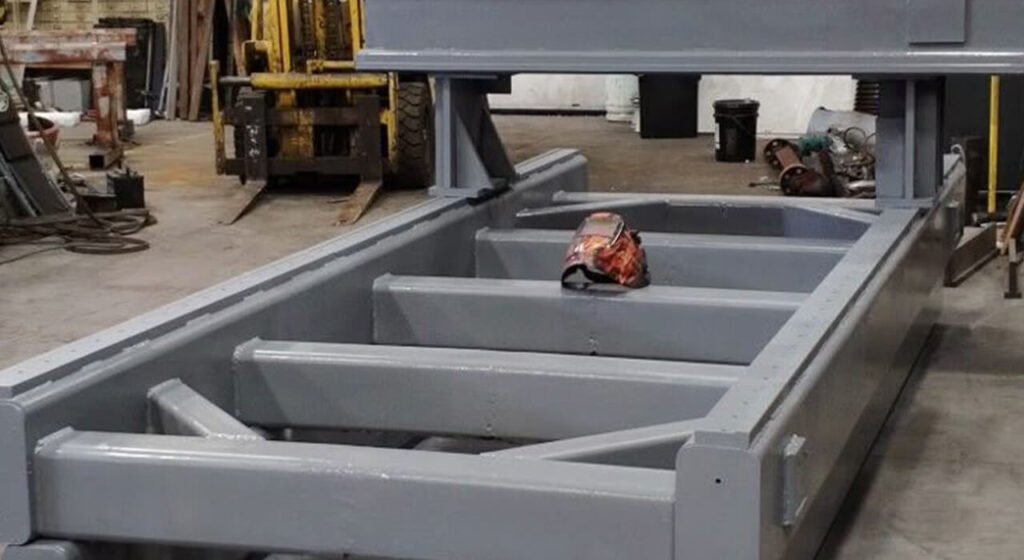

6.4. Machine Construction
Stability is key for accuracy, especially when swapping heavy tools. Look for a rigid, heavy-duty frame. For instance, EagleTec notes that routers with ATCs often have a heavy trapezoidal weldment bed for extra rigidity. A solid gantry and linear rails will keep repeatability tight during automatic changes and high-speed machining.

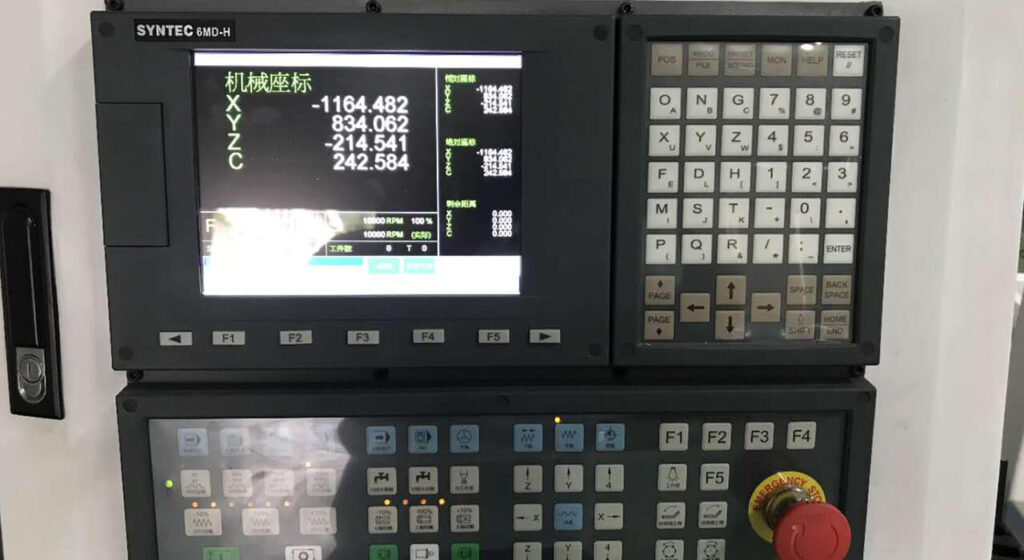

6.5. Control System
ATC functionality requires a capable CNC controller. Entry-level handheld controllers usually don’t support tool magazines. Most ATC routers come with computer-based controls (e.g. Syntec, Weihong, etc.) that manage tool tables and coordinated movements. Ensure the controller software can easily handle the number of tools and has an intuitive interface for tool management.
6.6. Maintenance and Support
Like any mechanical device, ATCs require maintenance (periodic cleaning, lubrication, checks). Choose a machine with good documentation and vendor support. Yangsen advises “ease of maintenance” as a factor, including easy access for cleaning and good manufacturer support.
7. Brand and Model Highlights
Many CNC manufacturers now offer ATC-equipped lines. While specific model names are beyond our scope, a few general points can help compare vendors:
-
Customization: Some vendors (Bestin, ShopSabre, Laguna Tools, etc.) offer modular ATC kits that can be added to existing machines or allow upgrading from 5 to 10 tool positions easily. This flexibility is useful if your needs grow over time.
-
Spindle Brand: Premium routers use premium spindles. If longevity and precision are critical, look for HSD or similar European spindles. Budget ATCs may use less expensive Chinese spindles (like HQD). (As one router maker explains, higher-end ATCs “use the Italy-brand HSD ATC spindle” vs. cheaper models.)
-
Aftermarket ATC Options: There are also standalone ATC units that can retrofit onto some CNC routers. However, integrated factory-installed ATCs tend to have better reliability and full system integration (e.g. the machine knows exactly where each tool is).
-
Software Features: Some controllers (like ShopSabre’s SMARTConsole) offer one-touch ATC setup and calibration, and easy tool-height monitoring. This can save time when loading or changing job setups. Check if the router’s software provides simple routines for toollength measurement and tool management.
It pays to review spec sheets: compare the number of tool positions, time per change, spindle power, and controller type across models. Many manufacturers provide data on material removal rates for given cutters, giving a practical sense of productivity.
8. Conclusion
For professional woodworking shops and industrial manufacturers, a CNC router with an automatic tool changer is a game-changer.
By automating the most laborious part of multi-tool operations, ATC routers significantly boost throughput, reduce costs, and expand what’s possible in a single machine.
Operators can load an entire job file with dozens of toolpaths, walk away, and confidently know the router will execute each step perfectly.
As summarized by industry experts, ATCs “increase productive time and reduce unproductive time,” make tool changes safer and simpler, and “permit the automatic renewal of cutting edges,” among other advantages. In practice, shops that adopt ATC technology often see faster job completion, higher quality parts, and the ability to take on more complex projects.
If your business demands high-volume production or intricate multi-step machining, investing in a router with an ATC is well worth it.
The upfront cost is offset by greater efficiency, lower labor, and the ability to scale up your capabilities. In today’s competitive market, an ATC router can be the key to staying productive, precise, and profitable.
