A scoring blade is a small saw which was mounted ahead of the main blade. It can cut a melamine cabinet panel and get a clean edge with no tear-out. In this guide, we’ll show how scoring blades work, why they matter on your table saw or panel saw, and how to get the best results.
Featured Resource
Table of Contents
1. What Is a Scoring Blade?
A scoring blade is a small, auxiliary saw blade mounted in front of the main saw blade. It pre-cuts the surface veneer or coating on a panel so the main blade can rip through without chipping out the surface.
In practice, the scoring blade only cuts the top layer of the material, and it spins opposite the main blade. The scoring blade makes a shallow scoring cut before the main blade, ensuring that delicate surfaces (like Melamine or Laminate) are cut cleanly.
The scoring blade usually only cuts the bottom surface of the board, with the main blade following through the rest of the thickness to finish the cut.
2. What Is a Scoring Table Saw?
A scoring table saw (often a sliding panel saw or cabinet saw with a scoring unit) is a saw equipped with a built-in scoring blade assembly. It’s common in European-style sliding table saws (like Bestin, Altendorf, Felder, SCM, etc.), but can also be an add-on for some North American panel saws.
The idea is a stationary or sliding saw has two synchronized blades: the main rip blade and an offset scoring blade that comes up in front of it.
Panel Saws (Sliding Table Saws) often include a scoring blade with the main blade. In practice, a scoring table saw has an extra arbor or motor for the scoring blade. The scoring blade usually sits in front of or even below the table, so that it cuts the panel just before the main blade finishes the cut.
In fact, for sliding table saws with scoring, one rule is that the scoring blade spins opposite the main blade – so that it cuts on the feed-in rather than on the feed-out, protecting the bottom face.
3. Benefits of Using a Scoring Blade on Table Saws and Panel Saws
Using a scoring blade offers major advantages whenever you cut coated or delicate panels:
3.1. Chip-Free Edges

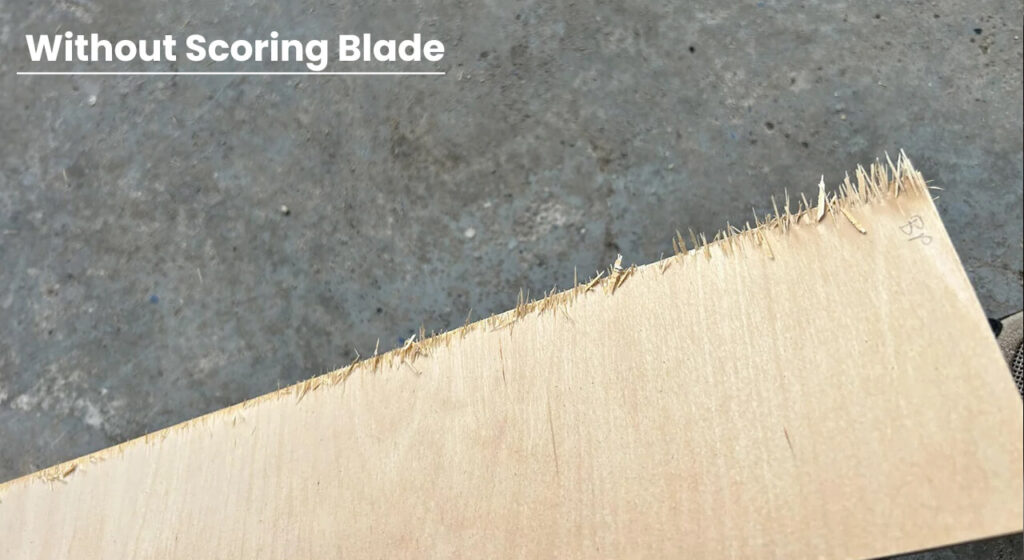

The biggest benefit of scoring blades is eliminating tear-out and splintering. The scoring blade slices the coating first, so when the main blade exits the panel, it doesn’t catch and chip the surface. In practice, Bestin says a scoring blade can minimize tear-out for a smooth, professional finish.
3.2. Dual-Sided Quality
A scoring blade ensures clean cuts on both sides of the panel. Without scoring, only one face is cut by the blade on the exit side, and the underside often chips. With scoring, both faces are pre-scored, so you get a flawless edge on the face and the back of the panel.
3.3. Reduced Waste and Rework
By preventing chips, you avoid cutting again or throwing panels away. This saves time and material costs. Even one good scoring cut can save hundreds of dollars in wasted panels over a big project. It also means fewer putty or sealant fixes at joints.
3.4. Blade and Tool Life
A scoring blade can also protect your main blade. Because the scoring blade takes the initial stress of cutting the coating, the main blade stays sharper longer.
3.5. Greater Accuracy
With scoring, the cut tends to pull the panel through more steadily, and there’s less tendency for tear-out to force a wandering cut. You can hold tighter tolerances on length and angle.
In summary, the benefits of a scoring blade include cleaner cuts, professional edges, less waste, and easier work. You’ll notice a huge improvement on tricky materials. If you often cut laminates, melamine, or veneered plywood on your table or panel saw, a scoring blade is almost indispensable.
4. Differences Between Main Blades and Scoring Blades
Scoring blades differ from regular main blades in several key ways. The table below highlights the contrasts:
| Feature | Main Blade (Regular Saw Blade) | Scoring Blade |
| Rotation | Standard (usually counterclockwise when viewed from the right side) | Opposite direction (often clockwise) |
| Position | Center of arbor | Mounted ahead (in front) of main blade |
| Diameter | Larger (common diameters 350mm-400mm.) | Much smaller (often 80–200mm) |
| Cut Depth | Full panel thickness | Shallow only (cuts upper surface coating) |
| Kerf (Cut Width) | Equal to blade thickness (e.g. ~3–4mm) | Typically 0.1–0.2mm wider than main blade, so it matches or slightly oversizes the kerf |
| Number of Teeth | Many (20–80+ teeth depending on application) | Few (often 10–24 teeth per blade set) |
| Tooth Style | Varies (ATB, TCG, etc., for smooth ripping or crosscuts) | Conical or alternate (for scoring cuts) |
| Cut Speed | Standard feed speed | Higher RPM (rotates faster to score cleanly) |
| Primary Purpose | Main cutting of material | Pre-cut to prevent tear-out (scoring) |
| Blade Setup | Single solid blade (one piece) | Usually a set of two thin blades (on an arbor ring), or one conical blade |
5. Common Materials Cut with Scoring Blades
Scoring blades shine on laminated and coated panels. Here are common materials that scoring blades handle best:

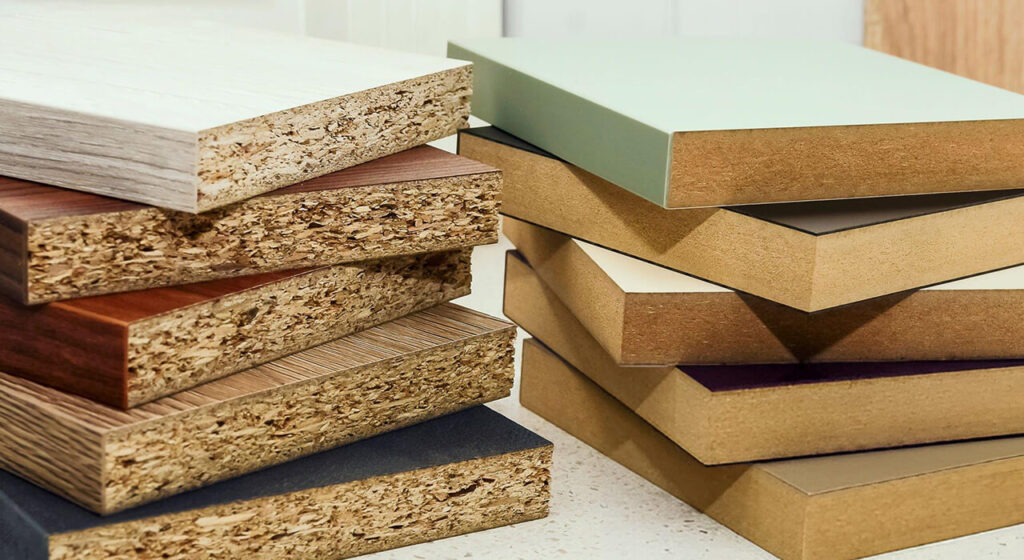

- Melamine and High-Pressure Laminate (HPL): These are particleboard or MDF sheets coated on one or both sides. Scoring blades cut the laminate cleanly.
- Veneered Plywood and MDF: Wood sheets covered with a thin wood veneer or melamine veneer will chip on cut edges. A scoring blade prevents that.
- Formica and Decorative Laminates: Significantly improves cuts on plastic laminates (e.g. Formica, Wilsonart).
- Glass-Faced or Melamine-Faced Particleboard: Many kitchen cabinet boxes use melamine-faced chipboard. Cutting these with a scoring blade keeps the white melamine edge intact.
- Compact Laminates: Very hard laminate boards (like Trespa or Stratobel) are easier to cut cleanly.
- Plastics and Acrylics: For thin plastic sheets or acrylic panels, the scoring blade can give a smoother cut line.
- Veneered MDF: Thin decorative veneers over MDF sheets.
In general, any double-sided or coated sheet material is a candidate for scoring. If the surface is prone to chipping, scoring is recommended.
For raw solid wood or non-coated boards, scoring is not necessary. But whenever one or both faces are delicate laminates, the scoring blade panel saw or table saw is what you want.
6. Maintenance Tips for Scoring Blades
Keeping your scoring blade in top shape is just as important as installing it correctly. Here are key maintenance tips:
-
Keep Blades Sharp: A sharp blade is critical for chip-free cuts. Sharpen or replace the scoring blade at the first sign of dullness. Experts note that a dull blade heats up and burns wood, so it should be sharpened before chipping occurs. Scoring blades (especially carbide or diamond-tipped ones) last a long time, but always check the teeth. If you hear the saw straining or see burn marks, sharpen or replace the blade.
-
Clean Off Buildup: Resin, pitch, or adhesive can accumulate on scoring blades when cutting adhesive-backed laminates. Clean the blade periodically with a safe blade cleaner or solvent.
-
Store Properly: Handle scoring blades carefully. Store them in a dry place, preferably in a protective case or holder, to avoid bent teeth or rust.
-
Inspect Before Use: Before each use, inspect the scoring blade for damage or debris. Make sure mounting collars or shims are tight and in place. The blade should spin freely without wobble.
-
Lubricate (if needed): Some scoring units have a track or bushings. Occasionally lightly lubricate moving parts (not the blade teeth) to ensure smooth adjustment.
-
Replace Worn Blades: Even diamond or carbide blades will wear out eventually. If the scoring cut is no longer clean despite adjustments, it’s time for a new blade.
Following these maintenance steps will keep your scoring blade working effectively. Remember, preventive maintenance (sharpening, cleaning, storing) is easier and safer than fixing problems after they happen. For blade care in general, see our Blade Sharpening Guide, which applies to scoring blades too.

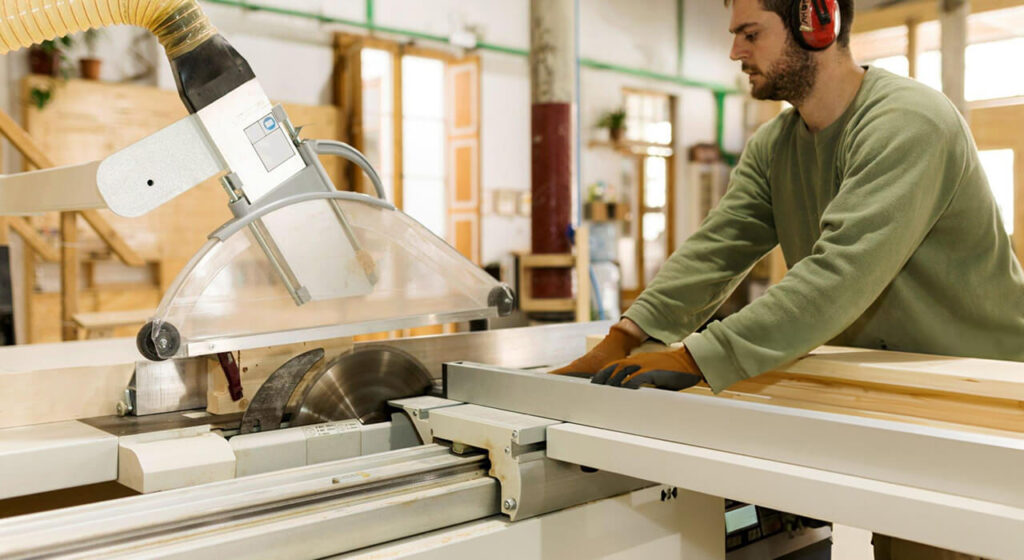

7. Safety Tips When Using Scoring Blades
Safety is paramount whenever you use a table saw or panel saw. The scoring blade adds an extra step, so keep these tips in mind:
- Use Push Sticks and Safety Gear: Always keep hands away from spinning blades. Use push sticks, featherboards, or push blocks to feed panels. Wear safety glasses or a face shield, hearing protection, and a dust mask when cutting laminated panels (which can produce fine dust).
- Riving Knife and Guards: Ensure the saw’s riving knife (if present) is aligned properly. Some scoring units retract the scoring blade during setup or when not cutting; make sure it is fully down and guarded when changing the main blade. Never leave the scoring blade spinning without material; retract or turn it off when not cutting.
- Secure the Scoring Assembly: Before cutting, double-check that the scoring blade collar or assembly is locked tightly to the arbor. A loose scoring blade can be extremely dangerous.
- Align Workpiece: Keep panels flat on the table and firmly against the fence. Use clamps or hold-downs on a panel saw’s sliding table if available, especially on long pieces.
- Follow Manual Instructions: Each machine is different. Read your saw’s manual for specific instructions on engaging or disengaging the scoring blade. For example, on some machines you must only activate the scoring blade when the saw is up to speed, and turn it off when raising the blade or when feeding isn’t happening.
- Avoid Back Cutting: Make sure the scoring and main blades are correctly aligned (parallel to fence and each other). If blades are not parallel, the scoring blade can grab and kick the panel. Adjust the scoring blade so its teeth enter smoothly.
- Turn Off for Adjustments: Whenever you adjust the scoring blade height, position, or replace it, turn off and unplug the saw.
By following standard table saw safety rules and taking extra care with the dual-blade setup, you can use scoring blades safely. They greatly improve cut quality, but they should be treated with as much respect as the main blade.
8. Panel Saw With Scoring Blade Recommend
8.1. CNC Sliding Table Saw
Overview: CNC Sliding Table Saw was combined traditional sliding table functionality with CNC automation for enhanced productivity.
-
Key Features:
- CNC control for programmable and repeatable cuts.
- Scoring blade ensures clean edges on laminated boards.
- Ideal for complex and high-volume cutting tasks.
Best For: Workshops seeking automation and precision in cutting operations.
8.2. Sliding Panel Table Saw MS6132D
-
Overview: MS6132D Sliding Panel Table Saw with Scoring Blade was designed for precision cutting, this saw is ideal for cabinet makers and professional workshops.
-
Key Features:
-
Integrated scoring blade to prevent chipping on laminated panels.
-
Robust sliding table for accurate and smooth cuts.
-
Suitable for large panel processing.
-
-
Best For: Professionals requiring high-precision cuts on various materials.
8.3. DIY Sliding Table Saw
-
Overview: DIY Sliding Table Saw With Scoring Blade was tailored for hobbyists and small workshops, offering professional features in a compact design.
-
Key Features:
-
Integrated scoring blade for clean cuts on veneered surfaces.
-
User-friendly interface for ease of operation.
-
Space-saving design without compromising on functionality.
-
-
Best For: DIY enthusiasts and small-scale woodworking projects.
9. Frequently Asked Questions
Do I really need a scoring blade for my table saw?
If you cut laminated or coated panels (melamine, veneer, HPL, etc.), a scoring blade is strongly recommended. Without one, the finish face of the panel will likely chip on every cut. Scoring blades pre-cut the surface and make cuts “splinter-free”. For raw wood or MDF without a facing, a scoring blade is not needed.
Can any table saw use a scoring blade?
No. You need a table saw (often a sliding panel saw) with a scoring arbor or attachment. Some sliding table saws come with a built-in scoring unit. On other saws, scoring blades may not fit.
How is a scoring blade different from a Dado stack or regular saw blade?
A scoring blade is specifically set to cut only the top veneer layer and runs in the opposite direction of the main blade. It is also narrower, fewer-toothed, and only cuts part of the thickness. A regular dado blade set cuts full depth, and regular blades cut full material. The scoring blade’s job is to protect the panel’s surface, not to create grooves or full-width cuts.
How do I know how wide (kerf) my scoring blade should be?
The scoring blade kerf must match or slightly exceed the main blade kerf. For example, if your main blade kerf is 3.2 mm, your scoring set should be adjusted to 3.2 mm total. Many scoring blade kits (like CMT’s) come with rings/shims to achieve common kerf ranges (e.g. 2.8–3.6 mm). Always check the combined kerf of your scoring blades against the main blade.
Do I run the scoring blade in the same direction as the main blade?
No, scoring blades are installed so they rotate opposite the main blade. This is intentional: it makes the scoring blade cut on the feed-in portion.
If you installed it the same way, it would tear out the panel instead. Many scoring sets are designed with that reverse direction in mind (for instance, the tooth geometry is conical with back-cutting edges).
10. Conclusion
A scoring blade on a table saw is the perfect wood-cutting machine. It may seem like an extra step, but the difference is striking: clean, professional edges every time.
