In modern woodworking and furniture production, CNC Nesting Machines are game-changers. These high-tech machines automate cutting and drilling of panel materials (like plywood, MDF, particle board) with extreme precision.
They use advanced software to layout parts on sheets, ensuring maximum material use and minimal waste. By combining multiple operations (cutting, grooving, drilling) in one pass, nesting machines boost productivity and lower costs.
This guide covers everything: what these machines are, how nesting works, maintenance tips, and more. We’ve packed it with key facts and helpful tables. Ready to revolutionize your shop? Let’s dive in.
Featured Resource
Table of Contents
1. Nesting System and Nesting Technology
The term “nesting system” often describes the whole production setup for nested manufacturing. It includes the CNC machine, the nesting/CAD/CAM software, and any automated feeders or conveyors.
Think of it as a complete nested-based manufacturing (NBM) cell. Instead of cutting panels on a saw and then machining holes separately, the cell does everything:
-
Nesting Software: This is the brain. It takes part designs (from CAD or other sources), fits them together like a puzzle on the sheet, and creates the CNC code. Autodesk defines nesting as arranging parts on a material to use as much of the material as possible and leave little waste. Good nesting software can hugely increase yield.
-
CNC Router Machine: The hardware that cuts and drills the parts according to the nest plan. It typically has a large vacuum table to hold the full sheet.
-
Material Handling: In advanced systems, there can be an automatic loader that places a raw panel onto the table and an unloader or labeling station that sorts parts at the end.
-
Data Flow: Modern nest cells often link seamlessly: a designer creates parts in CAD, imports them into nesting/CAM, and then sends the job to the machine. The whole process can be fast and “lights-out.”
2. How Does a Nesting System Work?
Let’s break down the typical workflow of a CNC nesting system:
Design the Parts: A designer creates the part shapes in CAD (or imports them from software). For furniture, this might include cabinet sides, shelves, doors, face frames, etc.
-
Import to CAM and Nest: The parts (often as DXF or CAM files) are imported into nesting software. This software calculates the best way to place (nest) the parts on standard sheet sizes. It adjusts positions and rotations to minimize waste. Often there’s a parts library, so you simply select which parts to make and how many.

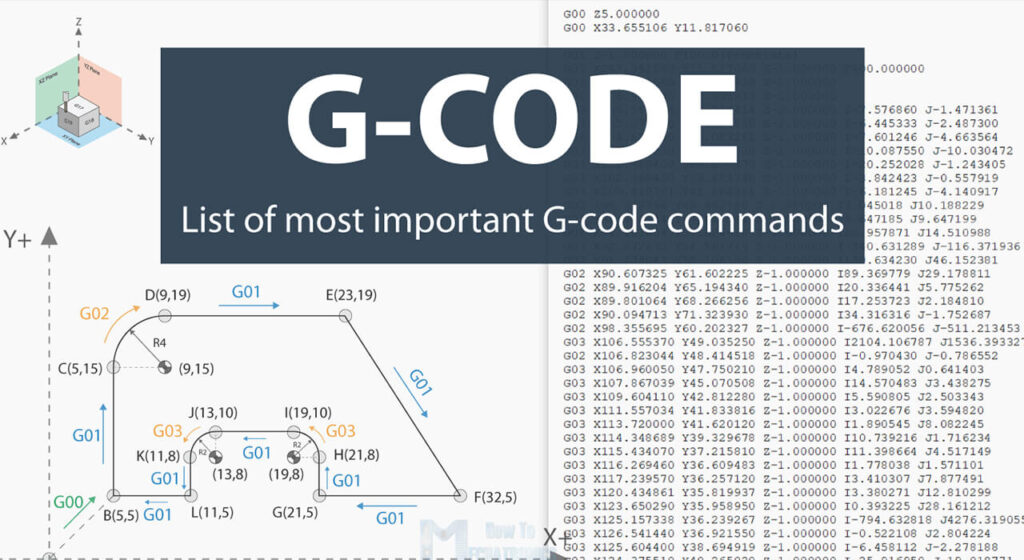

- Generate CNC Code: Once the nest is set, the software outputs G-code (or other CNC code) for the router. This code includes all cut paths, drill locations, and tool changes in the optimal sequence.
-
Load the Sheet: The operator places a sheet of material (e.g. 4×8 plywood) on the CNC router’s table. The table’s vacuum system activates to hold the panel securely.
-

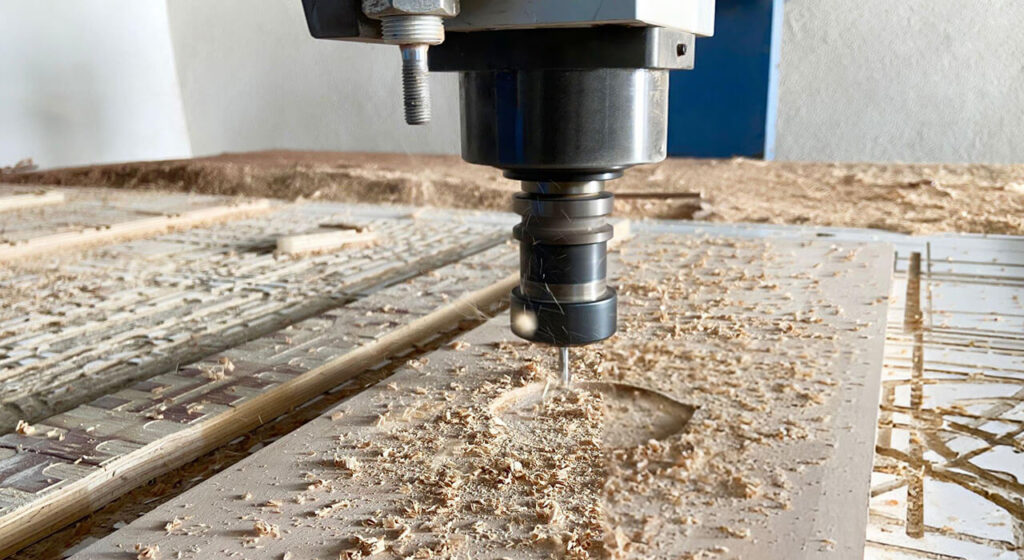

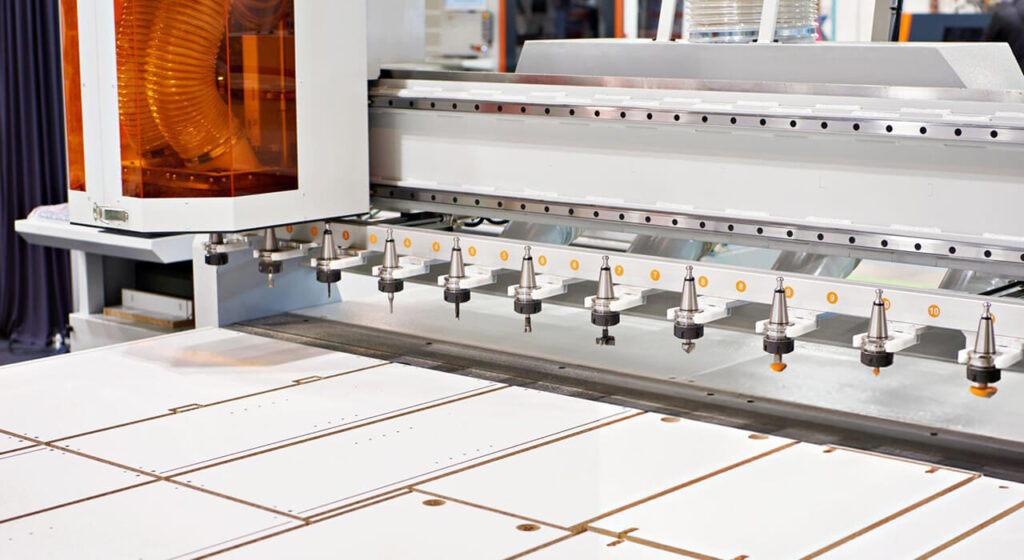

Machine Runs the Job: The CNC machine follows the G-code to cut and drill each nested part. With vacuum and precision, the cuts are clean and repeatable. In many machines, an automatic tool changer swaps end mills or drills as needed, so the operator doesn’t need to intervene.
-
Unload and Label: When finished, the machine stops. Some systems have conveyors or robots to unload cut parts. Others require manual removal. Nesting machines often label parts automatically, so workers can identify each piece for assembly.
-
Repeat: The operator can then load another sheet and continue. Because nesting eliminates idle time, these machines can run continuously, yielding dozens of sheets per shift.
Throughout this process, Nesting Software intelligently arranges parts within a material sheet, optimizing their placement to minimize waste and maximize material usage.
-

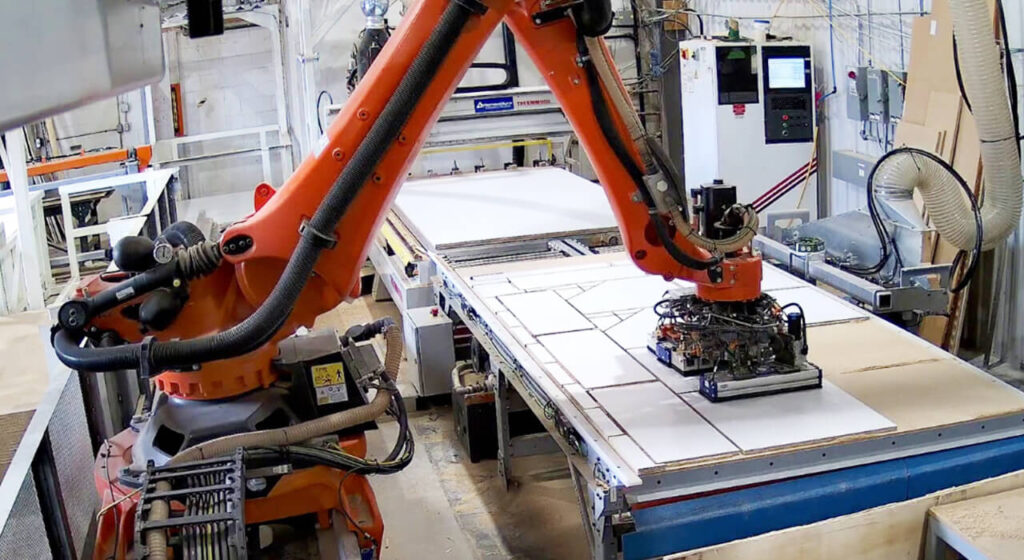

Automatic Feeding: A robotic lifter or roller table to bring raw panels in and take finished sheets out without stopping the machine.
-
Labeling Table: A station where each cut part is labeled with barcodes or text before sorting. This greatly simplifies downstream assembly.
-

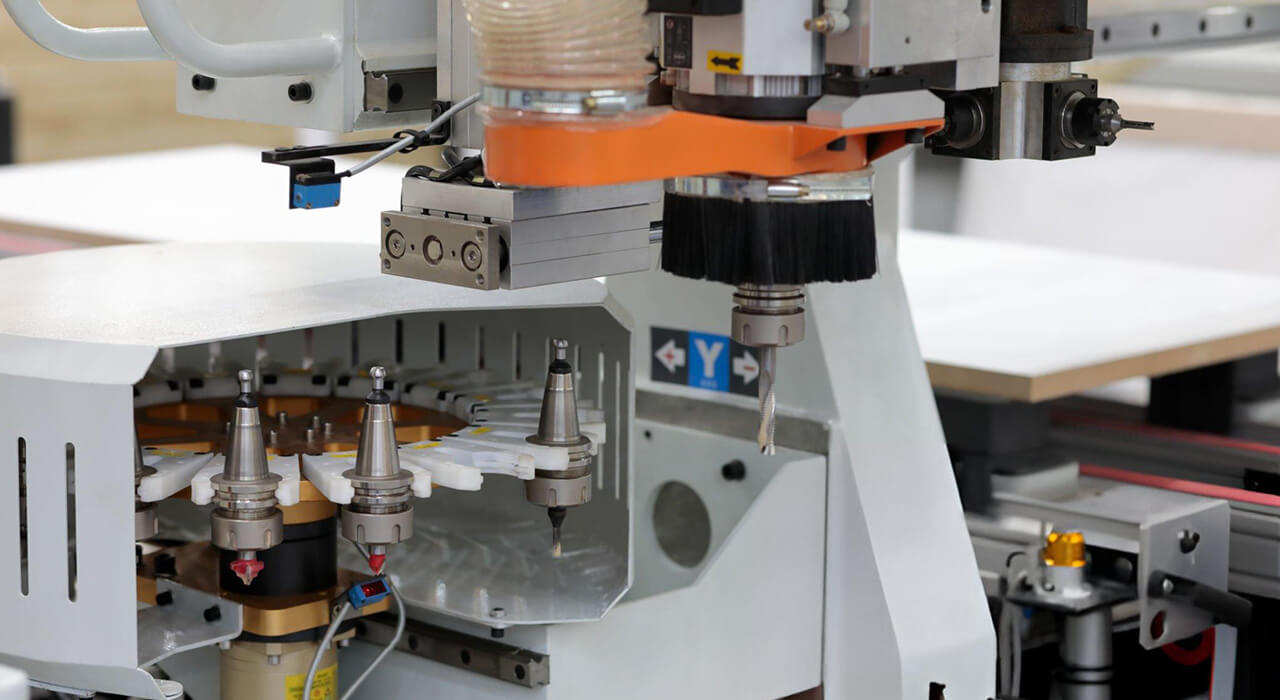

Tool Libraries: Some factories use pre-measured cutter heads or digital readouts to auto-set offsets for precise cutting.
All these features make a nesting system powerful. It can run a fully automated production, especially when integrated with CAD and ERP software for scheduling jobs. In short, a nesting system turns flat panels into kits of parts with minimal human effort.
3. CAD/CAM Integration & Nesting Optimization
A CNC nesting router relies on CAM software to do its work. Nesting optimization in CAD/CAM is the process of arranging parts on sheets to maximize yield.
Leading woodworking CAD packages (e.g. Cabinet Vision, Alphacam, Microvellum, XCab) allow the designer to lay out all required parts and then automatically compute the best nesting pattern.

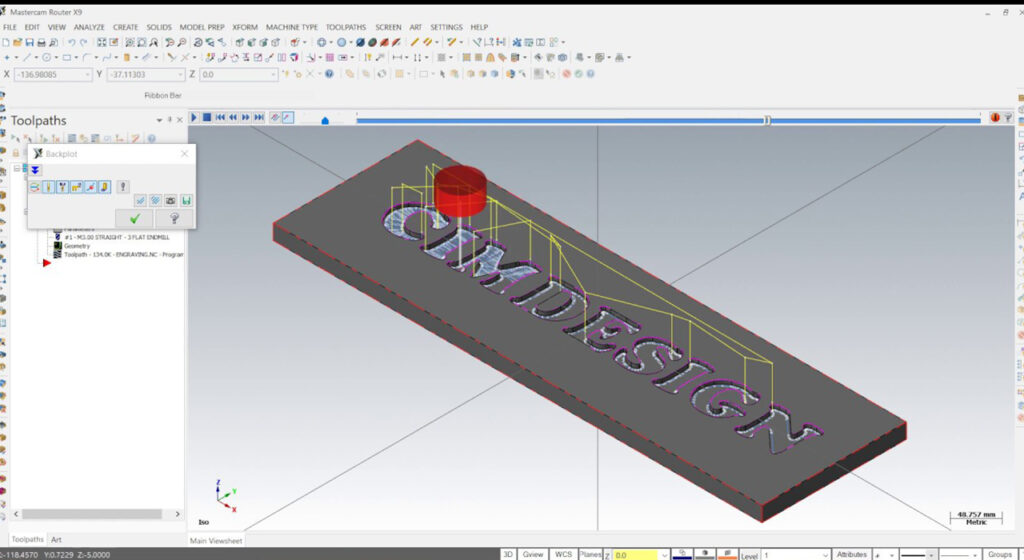

The software then generates toolpaths for drilling, profiling, and any 3D machining. Advanced systems can even report the efficiency of each nest (e.g. material utilization, cycle time) and produce labels or CNC codes for each part.
Key points on CAD/CAM integration:
-
CAD Input: Parts are usually imported as DXF, 3D model exports, or drawn in the software.
-
Nested Workflow: The CAM system allows setting parameters like grain direction, part spacing, leftover zones, and whether parts must be nested across grain. It then packs the panels and optimizes toolpaths.
-
Toolpath Post-Processor: The CAM outputs machine-specific G-code or NC files. Make sure your router’s control (e.g. BiesseWorks, Siemens, Heidenhain) is supported or that you have a post-processor.
-
Reports & Labeling: Many CAM systems can generate nest reports showing material savings and can label or barcode parts. These can be printed by the CNC or by separate labels.
-
Feedback and Simulation: Before cutting, operators often run simulation or “off-line” verification to catch any programming errors. Good nesting software will flag collisions or unreachable cuts.
Overall, strong CAM integration transforms a nesting CNC from a simple cutting machine into a high-efficiency manufacturing cell.
Choosing a machine that works well with your existing CAD/CAM tools can greatly accelerate ROI.
4. Nesting System Benefits
Nesting technology offers many advantages in practice:
-
Less Handling, Lower Labor: Since parts are nested and cut in sets, there’s no need to manually align or cut each piece. It’s all done automatically on the router through the software. You often only need one operator for the CNC instead of two people running a saw and a jointer.
-
Automated Programming: High-end nesting systems can eliminate manual programming. You could have a library of parts, specify the quantity of each part, and the machine’s software automatically creates the optimal nest for you. This means even a less-experienced operator can run complex jobs.
-
High Yield: Nesting technology increases the percentage of usable material.
-
Quality & Consistency: Nesting software ensures each part is positioned and cut accurately. There’s less human error.
-
Flexibility: Nesting excels when you have many different parts. If each product has unique pieces (as in custom furniture), nesting avoids the need to batch them.
5. What Is CNC Nesting Machine

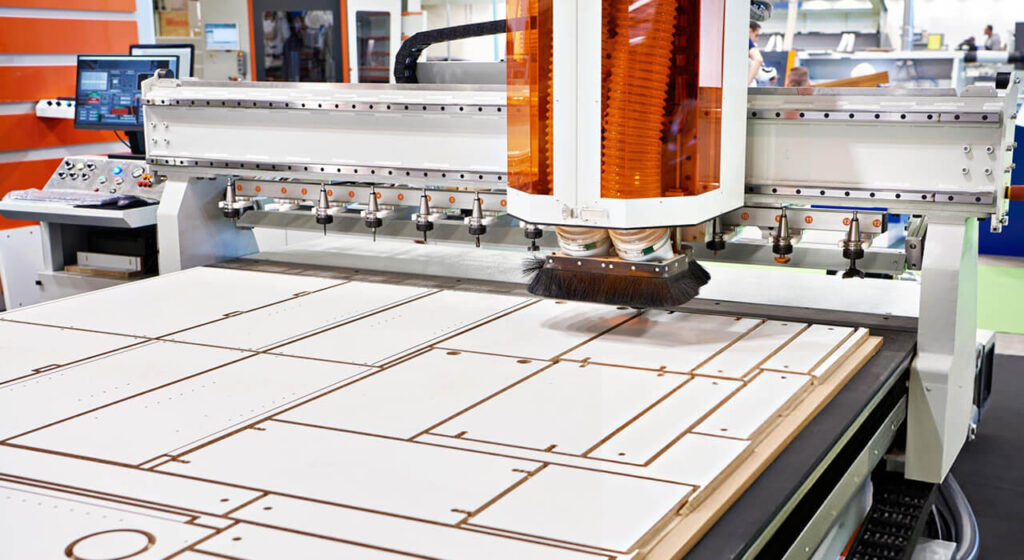

A CNC Nesting Machine is essentially a specialized CNC router for flat panels. It’s an automated cutting machine with at least 3 axes (X, Y, Z) that processes sheet materials.
The machine uses a computer control to cut wood or composites into parts for furniture, cabinets, and other products. What makes it special is the nesting software: parts are arranged (nested) on the sheet to use as much surface as possible, reducing scrap. In short, a CNC nesting machine:
- Automates panel cutting: It cuts panels into furniture parts without manual layout.
- Optimizes material use: The machine’s software arranges parts densely to cut waste.
- Combines functions: Many nesters can also drill holes or groove in the same cycle.
- Uses a vacuum bed: It holds sheets firmly with vacuum zones during cutting, improving accuracy.
- Is user-friendly: Operators load sheet designs, and the machine follows the CNC program.
In high-volume shops, nesting machines are essential. These machines have high-speed spindles, efficient vacuum systems, and user-friendly interfaces, ensuring accuracy and consistency in every cut.
6. CNC Router vs. CNC Nesting Machine
TA common question is: How is a CNC nesting machine different from a standard CNC router? The line can blur because technically a nesting machine is a CNC router with extra features. But here’s what sets them apart:
-
Nesting Focus: A CNC nesting machine comes with integrated nesting software to plan cuts for many parts. A standard CNC router typically cuts one item at a time without automatic layout. Nesters are built for batch panel cutting.
-
Vacuum Bed: Nesters usually include an advanced vacuum hold-down system covering the table. This allows cutting large, heavy sheets. A generic router might use clamps instead.
-
Automation & Multi-Tasking: Nesters often have options like Automatic tool changers, multi-spindle heads, or feeding systems for loading/unloading. They’re designed for continuous production. Many CNC routers have fewer automation features.
-
Setup and Programming: Nesting systems minimize manual programming. Some systems let you select a parts list and quantity, then automatically create the optimal nest for you. A traditional router may need more manual CAM programming for each part.
In practice, if you mostly cut random shapes from sheets and need to minimize waste, a nesting machine is superior. For simple one-off parts or sign-making, a CNC router works fine.
But for panel furniture production, nesting machines (for furniture and cabinetry) give the edge in speed and efficiency.
7. CNC Nesting Machine vs. Beam Saw
A beam saw (also called a panel saw) is the traditional machine for cutting sheet goods in a furniture shop. It makes straight cuts along the length or width of a large sheet. It’s very fast for rectangular panels. So how does a beam saw stack up against a CNC nesting machine?
-
Speed on Straight Cuts: A beam saw is typically faster for pure rip and crosscuts on stacks of panels. If you have hundreds of identical boards of fixed size, a beam saw can chop through sheets very quickly.
-
Complex Shapes: Beam saws cannot cut curves or drill holes. A nesting machine can cut any 2D shape and drill in one operation.
-
Material Utilization: Beam saws often have more waste. They cut off strips off the edge unless you stack sheets perfectly. Nesting machines arrange parts on the sheet to use nearly all of it. So nested cutting can save boards.
-
Small Batches & Custom Work: If you do varied or custom jobs with many different parts, nesting wins. For very large homogeneous runs, beam saws (with stack cutting) may be more efficient.
-
Floor Space & Handling: A beam saw typically needs an outfeed table or rollers. A full CNC nesting cell (router + loaders + unloader) can occupy more space, but you might replace multiple machines. However, smaller shops may find one nesting router is simpler than having both a panel saw and a separate machining center.
-
Setup Time: With a beam saw, you need to set fences and measure each stack. With nesting, once the job is programmed, you just feed sheets in sequence with no realignment.
In summary, the best choice often depends on production volume and flexibility. Many shops use both: a beam saw for large panel cutting runs and a nesting router for final shaping and drilling. But if your work is custom furniture or low-volume, a CNC nesting machine may be more versatile and cost-effective in the long run.
8. CNC Nesting Machine Maintenance
Like any CNC router, nesting machines require regular maintenance to stay accurate and reliable. Proper upkeep ensures the machine has a long life and cuts precisely every time. Key maintenance tasks include:
-

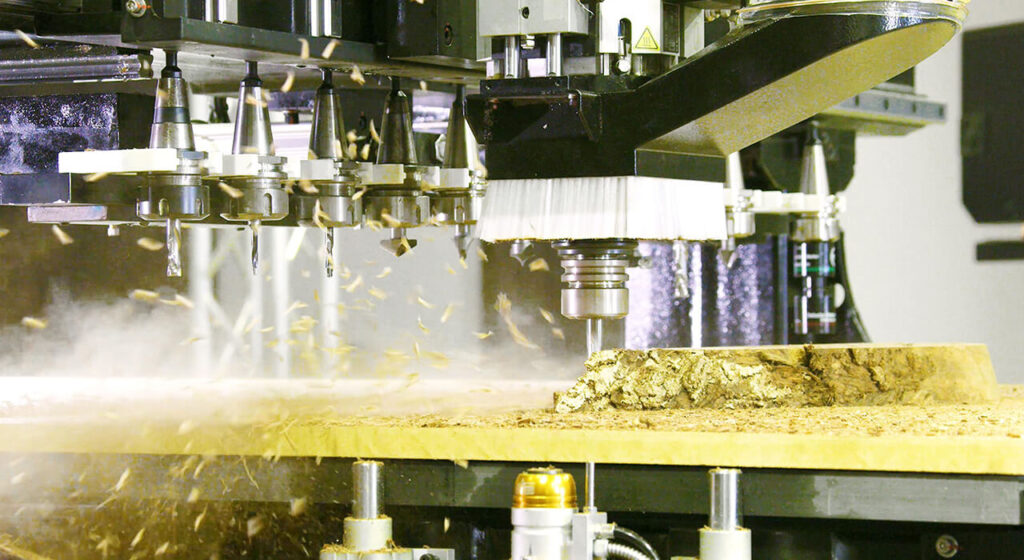

Daily Cleaning: Woodworking CNC routers generate a lot of fine dust and chips. At the end of each day (or even shift), vacuum out all debris from the table, spindle shrouds, gears, and rails. Pay special attention to the ball screws and linear guide rails. Dust can damage bearings and wear down components if left. Using brushes or air blow-offs, remove chips from the table holes (vacuum ports) so the hold-down stays strong.

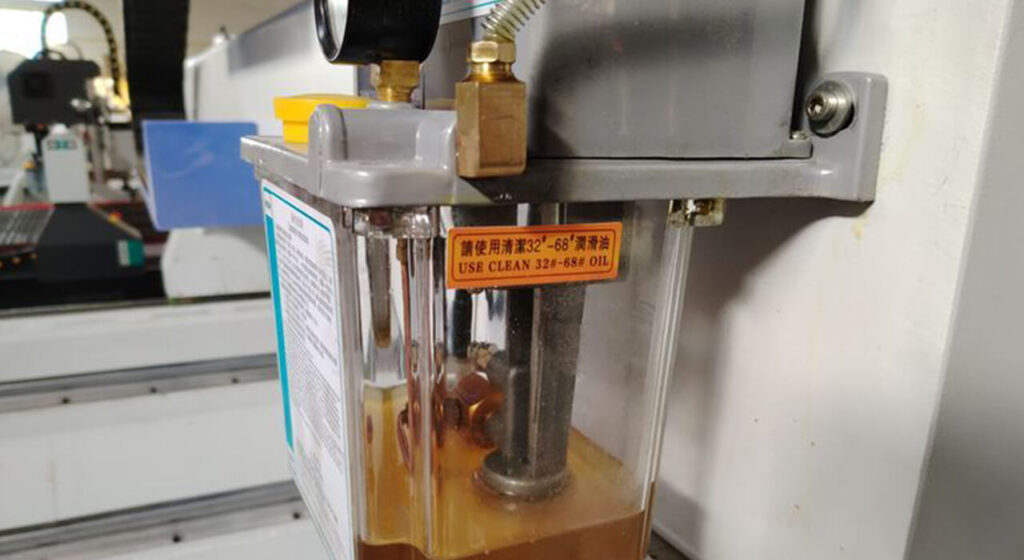

- Lubrication: Most CNC machines have grease fittings or an automatic lube system for guide rails and screws. Follow the manufacturer’s schedule: many recommend daily or weekly lubrication. Check oil reservoirs and grease points. Proper lubrication prevents wear and keeps motion smooth.
-
Check Moving Parts: Regularly inspect belts, gears, and couplings for wear and tension. Tighten any loose screws or bolts on the machine structure. Over time, wood dust and vibration can loosen parts. A quick weekly check can catch issues early.
-

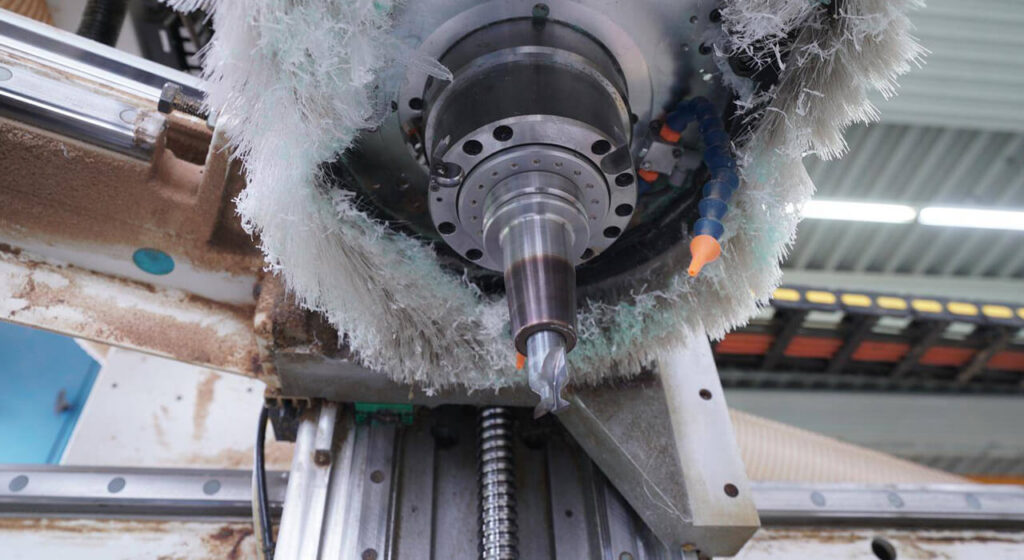

Spindle and Collets: Keep the spindle clean and balanced. If it has cooling (air or liquid), ensure the fans or water chiller are functioning. Check the collet nut tightness and clean out any swarf in the spindle. Replace worn or damaged collets.
-
Vacuum System: Change filters and inspect the vacuum pump or generator. Dust clogs the filters quickly, reducing holding power. Clean or replace filters as needed. Also, verify the vacuum zones on the table are working; a broken seal or connection can reduce suction.
- Electrical Cabinet: Ensure the control cabinet is dust-free and well-cooled. A clogged fan or overheated electronics can cause faults. Keep the cabinet sealed so sawdust doesn’t invade sensitive boards.
-
Tool Checks: Regularly inspect end mills and drill bits. Dull tools cut poorly and strain the machine. Replace or sharpen cutters before they break. Some shops keep a tool inspection log.
-
Alignment and Calibration: Periodically verify squareness and alignment. You may need to “tram” the spindle to ensure it is square to the table. Check that the axes run true; any play or misalignment can cause defects. Modern machines have laser calibration or dial indicators to help with this.
-
Software and Controller: Keep the CNC controller software updated if updates are provided. Back up your machine parameters regularly.
Following a routine maintenance schedule keeps the machine running smoothly and avoids costly downtime.
9. What to Consider When Buying a CNC Nesting Machine
Investing in a CNC nesting machine is a big decision. Here are the key factors and features to compare:
-
Table Size: Look at the maximum sheet size the machine can handle. Common sizes are 4×8 ft (1300×2500 mm) and larger 4×10 or 5×10 ft machines.
-
Routing Heads/Spindles: Many nesting routers offer single or dual heads. A dual-head machine can machine two parts at once for faster throughput. Check the spindle power (in kW): higher power cuts thicker or denser materials faster. Typical spindles range from 3 kW to 15 kW. Consider if you want tool changers (ATC) vs. fixed tools.
-
Software and Control System: What CNC controller is included (e.g. Mach3/4, Syntec, Beckhoff, Siemens)? Is the nesting software integrated or provided separately? Look for a user-friendly CAD/CAM or nesting program. Ensure it supports common file formats (DXF, CAD files) and has post-processors for your control. Some systems even run popular CAM suites like Mastercam or Alphacam.
-
Vacuum System: The vacuum hold-down is crucial. Check how many vacuum zones and how strong the pump is. More zones allow odd shapes to be held securely. A powerful vacuum pump ensures flatness during fast cutting.

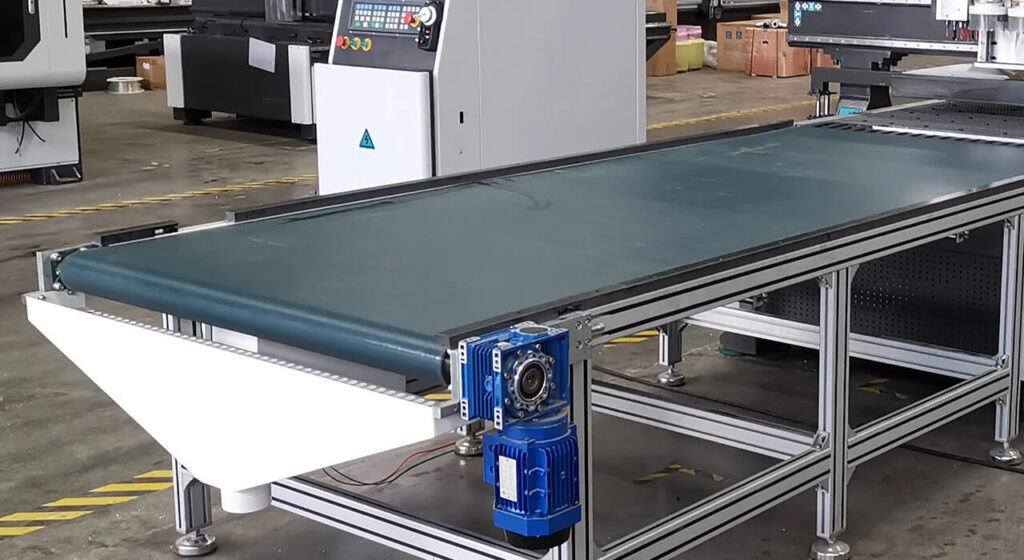

- Load/Unload Features: Basic machines require manual sheet loading. Advanced systems may have conveyors or robotic loaders to automate feeding and discharging boards. Automatic labeling tables and part-sorters are helpful if you need true lights-out operation.
-
Build Quality: Look at the machine’s frame and gantry construction. Steel or cast iron structures are more rigid. A rigid machine can cut faster and last longer with precise accuracy.
-
Warranty and Support: Choose a supplier with good technical support and service. Training and documentation are important for smooth operation. Ask about warranty terms on parts like motors and spindles.
-
Price and ROI: CNC nesting machine price varies widely. According to industry figures, entry-level machines might start around $12,000, while high-end automated cells can reach $50,000 or more. Features like auto-loading, ATC, and larger size drive up cost. However, calculate the return on investment by considering how much labor and material waste the machine will save.
-
Operating Costs: Remember to budget for tooling (router bits, drills), electricity, and maintenance supplies (lubricants, filters). Also consider training staff to use the new system effectively.
-
Future Needs: Anticipate if you might need to upgrade. For example, if you expect bigger or more complex jobs later, it may pay to buy a machine that can grow (like adding a stacker or extra head).
10. Conclusion
Whether you’re cutting cabinets, closets, doors, or custom furniture, a CNC nesting machine can transform your workflow.
