Vertical CNC Router.

Machine large panels in a vertical format while keeping the production footprint focused. Bestin vertical CNC routers are configured for woodworking manufacturers that need accurate routing, drilling and profile machining.

Share your panel dimensions, material, machining process and target output, and we will help you confirm whether a vertical configuration fits your production plan.

Machine Type

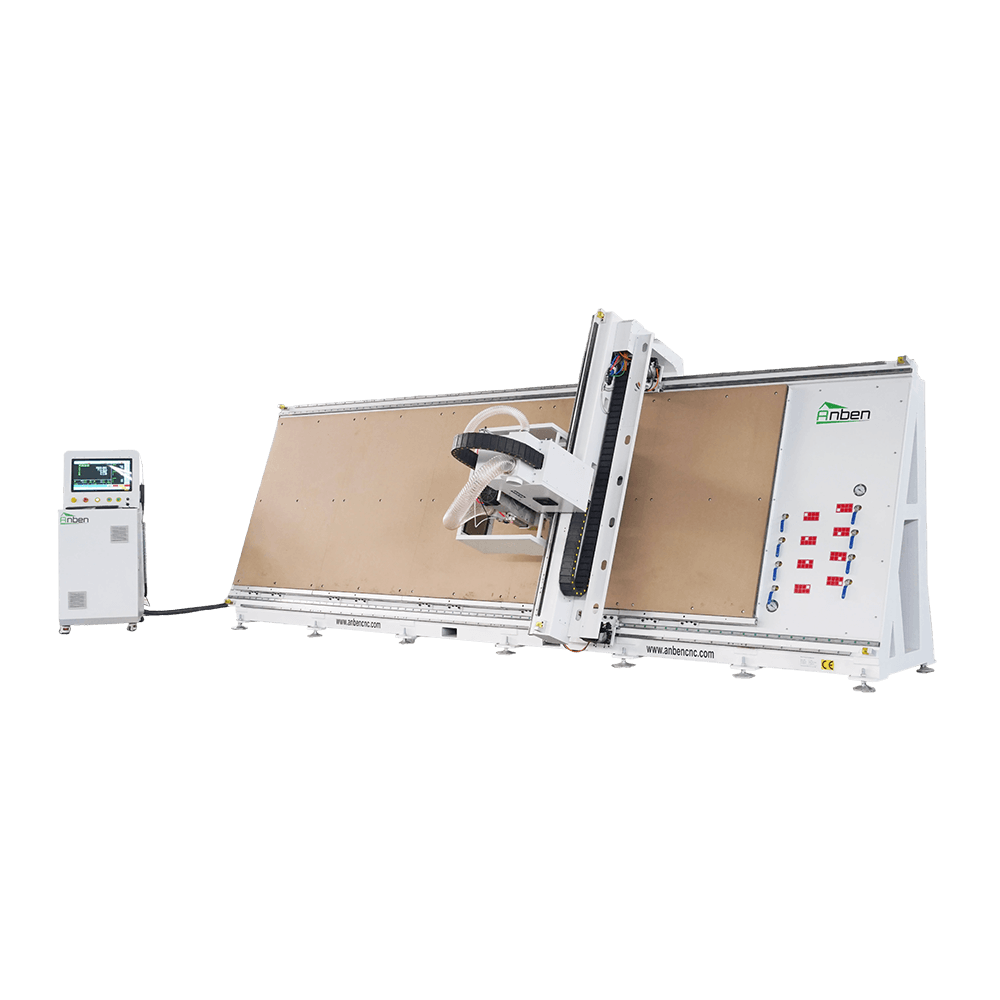

Vertical CNC Router 1650 Vertical CNC Router

ATC+ Saw

V1650

  • 8 Tool Magazines +Saw Unit
  • Working Area: 1600*5000mm
  • Spindle: 9.0kw Air Cooling Atc Spindle
  • Working Table: Vacuum Working Table
  • Control System: Taiwan Syntec Controller
  • Motors And Drivers: Syntec Servo Motor
Details
Get A Quote

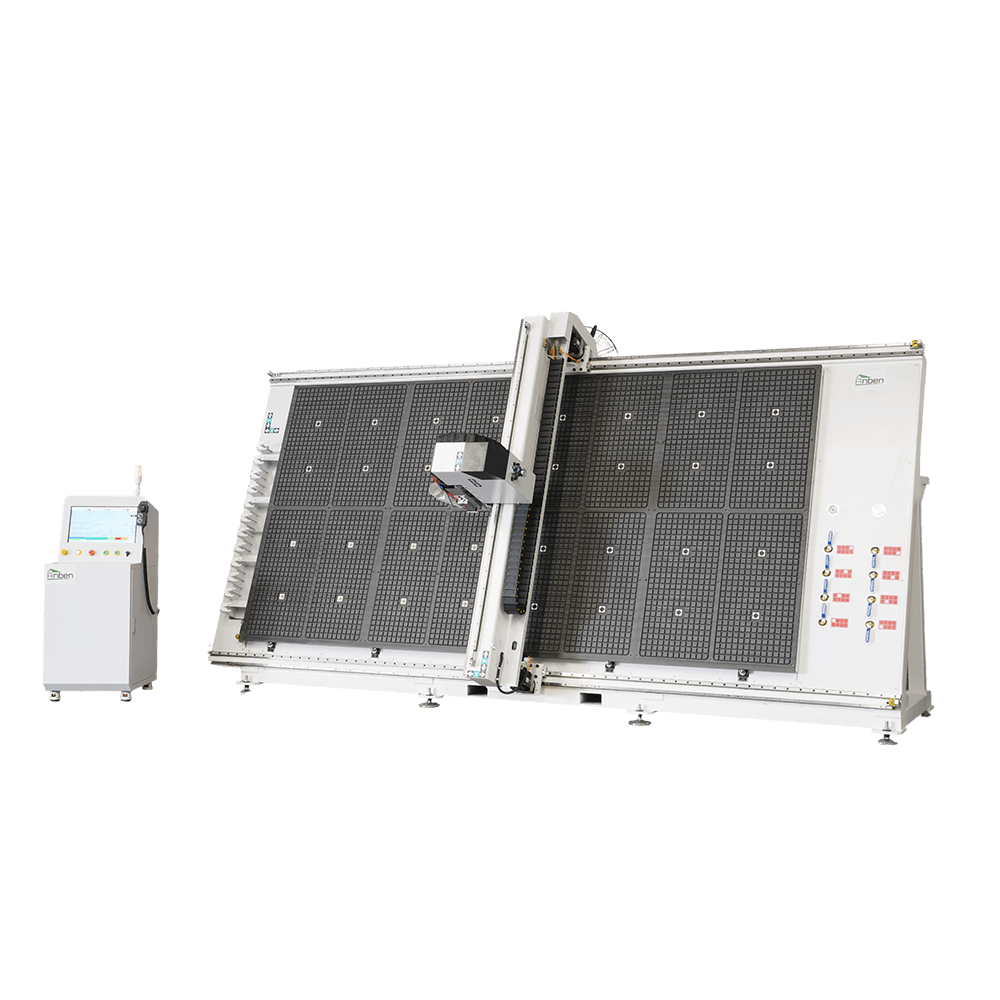

Vertical CNC Router 2142 Vertical CNC Router

ATC

V2142

  • 8 Tool Magazines
  • Working Area: 2100*4200mm
  • Spindle: 9.0kw Air Cooling Atc Spindle
  • Working Table: Vacuum Working Table
  • Control System: Taiwan Syntec Controller
  • Motors And Drivers: Syntec Servo Motor
Details
Get A Quote

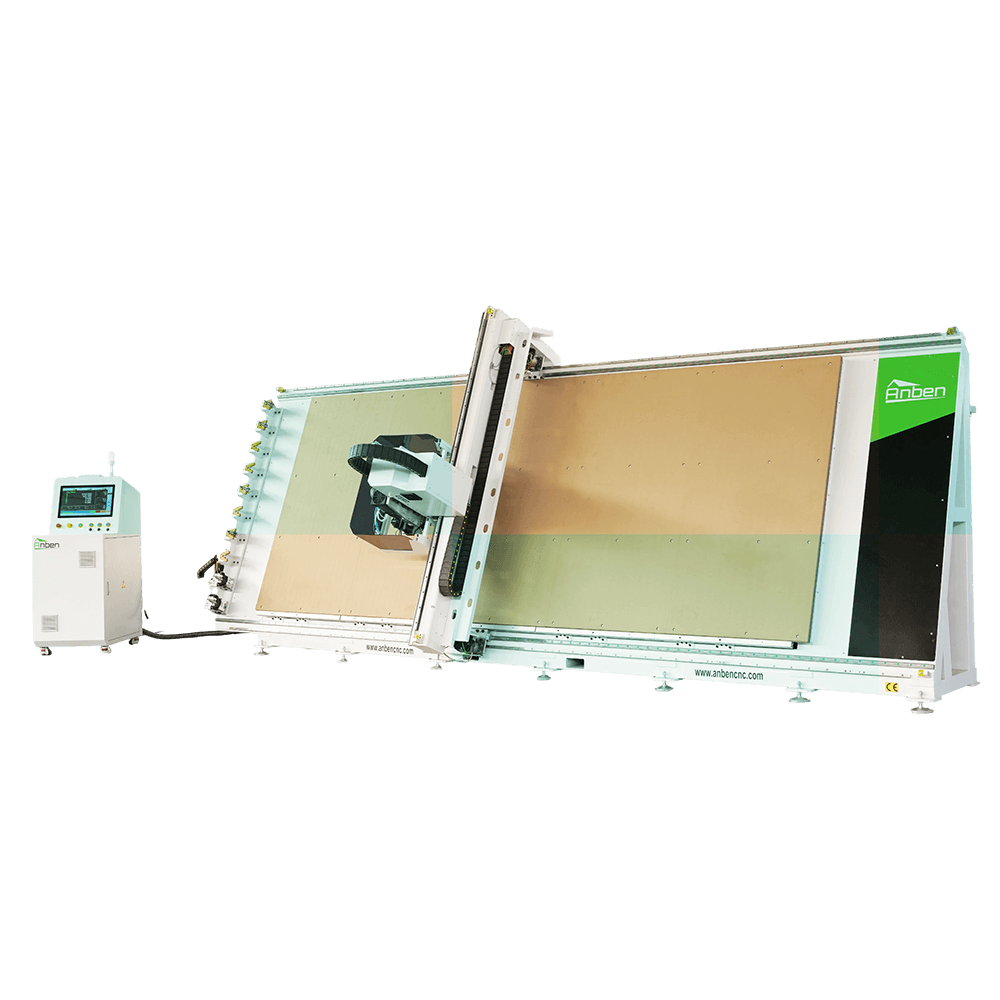

Vertical CNC Router 2151 Vertical CNC Router

ATC+ Saw

V2150

  • 8 Tool Magazines +Saw Unit
  • Working Area: 2100*5100mm
  • Spindle: 9.0kw Air Cooling Atc Spindle
  • Working Table: Vacuum Working Table
  • Control System: Taiwan Syntec Controller
  • Motors And Drivers: Syntec Servo Motor
Details
Get A Quote
Vertical CNC Router 2162 Vertical CNC Router

ATC+ Saw

V2162

  • 8 Tool Magazines +Saw Unit
  • Working Area: 2100*6200mm
  • Spindle: 9.0kw Air Cooling Atc Spindle
  • Working Table: Vacuum Working Table
  • Control System: Taiwan Syntec Controller
  • Motors And Drivers: Syntec Servo Motor
Details
Get A Quote
High-Speed CNC Spindle
A 9.0kw, 24000 rpm high-speed spindle provides stable cutting for wood, MDF, ACP, acrylic, PVC, plywood, and other sheet materials. Spindle power can be configured according to the material and production requirements.
Automatic Tool Changer
The ATC system automatically changes cutting tools during the machining process. It allows one CNC program to perform cutting, drilling, grooving, milling, and other operations without frequent manual tool changes.
Space-Saving Vertical Design
The vertical structure reduces the machine's floor-space requirement compared with many conventional horizontal CNC routers. It is suitable for workshops where production capacity and available space must be balanced.
Rigid Machine Structure
The heavy-duty machine structure is designed to minimize vibration during machining. A rigid frame helps maintain positioning stability, especially when processing large panels or using higher cutting speeds.
High-Precision Linear Motion
Precision linear guideways and drive components provide smooth and stable axis movement. This helps improve positioning accuracy, repeatability, and overall machining quality.

“Not Sure Which Machine I Should Use?”

Contact Our Expert
Vertical CNC Router What Is a Vertical CNC Router

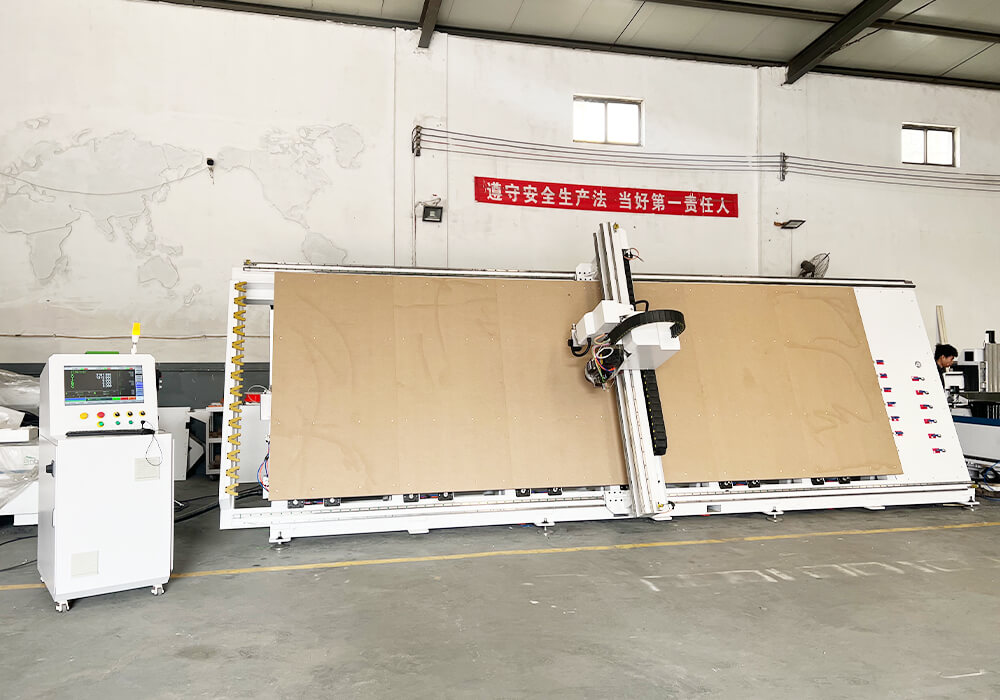

What Is a Vertical CNC Router?

A Vertical CNC Router is a computer-controlled machining machine designed to process large panels and sheet materials in a vertical or near-vertical working position.

Vertical CNC router take over less floor space while providing access to large-format materials. Depending on the machine configuration, it can perform CNC cutting, drilling, grooving, milling, engraving, and routing operations.

How to Select a Vertical CNC Router?

The model name alone does not determine whether a machine will meet your production requirement.

Use the five questions below to prepare a useful quotation request and reduce configuration changes later.

Send Your Production Requirement

1. What Is the Largest Workpiece?

Provide the maximum length, width and thickness—not only the standard sheet size. Include finished-part size, edge allowance and any overhanging fixture requirement.

2. What Material Will Be Machined?

Specify the material type, density or grade, surface layer and thickness range. Laminated panels, plywood, MDF, solid wood and non-wood materials can require different tooling, feeds and extraction.

3. Which Operations Are Required?

List routing, drilling, grooving, pocketing, engraving and profile cutting requirements. Attach a drawing, DXF, sample toolpath or finished-part photo whenever possible.

4. What Output Do You Need?

Share the required parts per shift, working hours and product mix. Cycle time should be estimated from an actual part program or representative drawing, not from rapid-traverse speed alone.

5. How Will Material Move Through the Factory?

Confirm the available floor area, loading direction, operator access, upstream and downstream equipment, dust extraction, power supply and compressed-air conditions.

Application

Our Vertical CNC Routers are designed for large-format sheet processing, CNC cutting, drilling, grooving, routing, and milling. With the right tooling and configuration, one machine can serve multiple production applications across furniture, signage, ACP fabrication, architectural panels, and industrial sheet processing.
Vertical CNC Router Furniture & Cabinet Manufacturing

Furniture & Cabinet Manufacturing

Our Vertical CNC Router can process MDF, plywood, particle board, HPL panels, and other wood-based sheet materials. It can produce both standard and customized furniture components.
Vertical CNC Router Sign Making & Advertising

Sign Making & Advertising

The advertising industry requires flexible machining for different shapes, sizes, and materials. Our Vertical CNC router can process materials such as: Acrylic, PVC, ACP. CNC programming also makes it easy to change between different designs without creating dedicated cutting templates.

Vertical CNC Router Interior Decoration

Interior Decoration

Our Vertical CNC routing provides the flexibility required for customized interior panels. Materials such as MDF, plywood, HPL, acrylic, PVC, and decorative boards can be processed into different shapes and patterns.

Vertical CNC Router Exhibition & Display Manufacturing

Exhibition & Display Manufacturing

Exhibition stands and retail displays often require customized components with short production cycles. Our Vertical CNC router can cut and machine different panels according to individual project drawings.

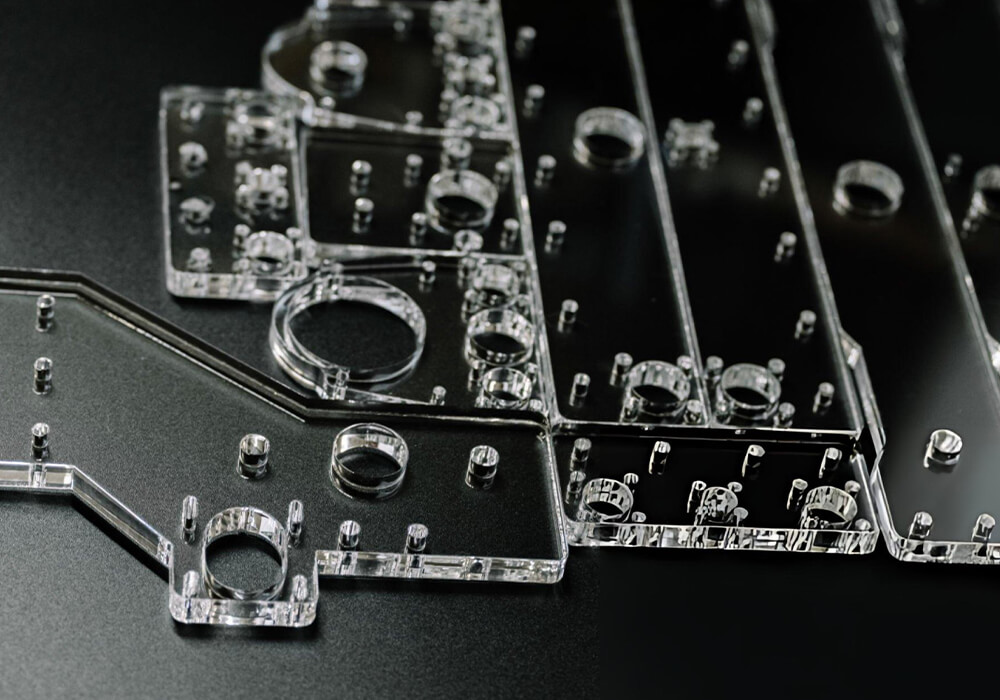

Vertical CNC Router Acrylic & Plastic Processing

Acrylic & Plastic Processing

Our Vertical CNC router can be configured for processing acrylic, PVC, and other plastic sheet materials. Tool selection and machining parameters should be matched to the specific material to achieve the required edge quality.
