CNC Woodworking Solutions for Routing and Machining.

BESTIN supplies CNC routers, nesting machines, machining centers and connected cells for furniture and wood-product manufacturing.

Send us your parts, materials, machining operations and output target. We will help you select the machine format, tooling, workholding and automation level for the job.

A CNC Solution Begins With the Finished Part.

Send Your Request
Machine travel and spindle power matter, but they do not tell you whether a part can be made in the required cycle or number of setups. Start with these eight inputs.

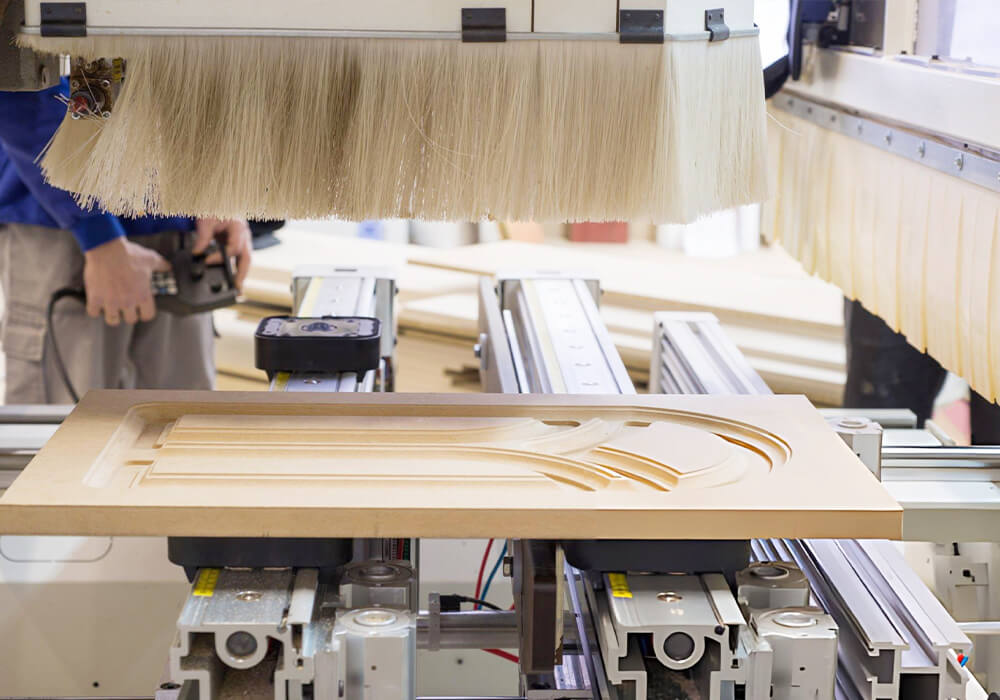

CNC Woodworking Solutions Finished Product

1. Finished Product

What are you making—cabinet components, doors, solid wood parts or shaped panels? Mark the finished dimensions, cutouts, pockets, grooves, holes, joints and visible surfaces.

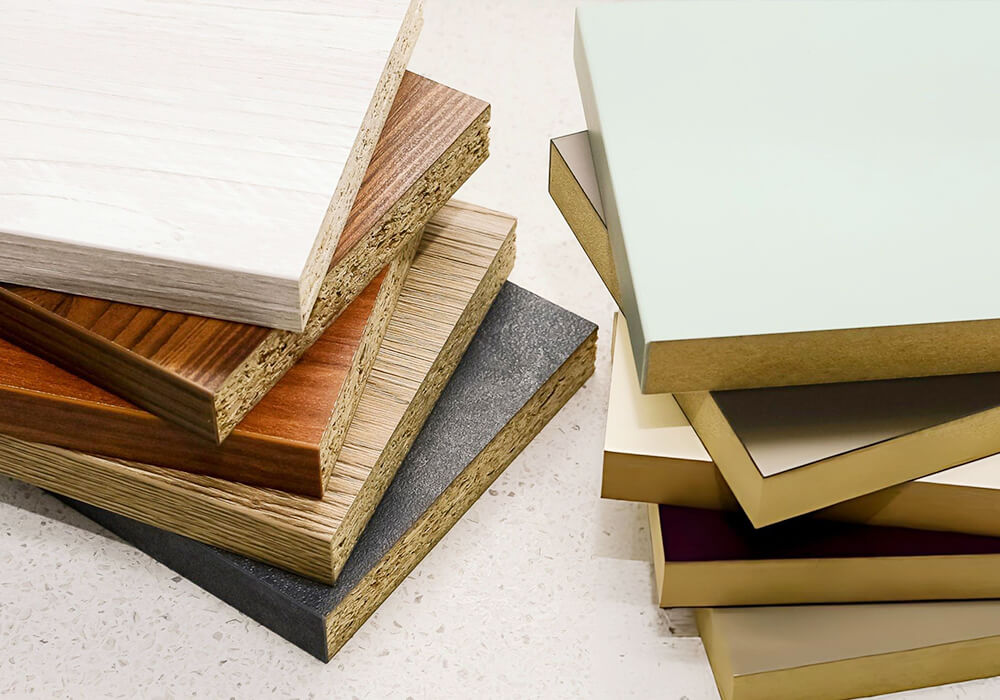

CNC Woodworking Solutions Material and Surface

2. Material and Surface

Provide the material type, thickness range, density or wood species, face material and any surface that must be protected.

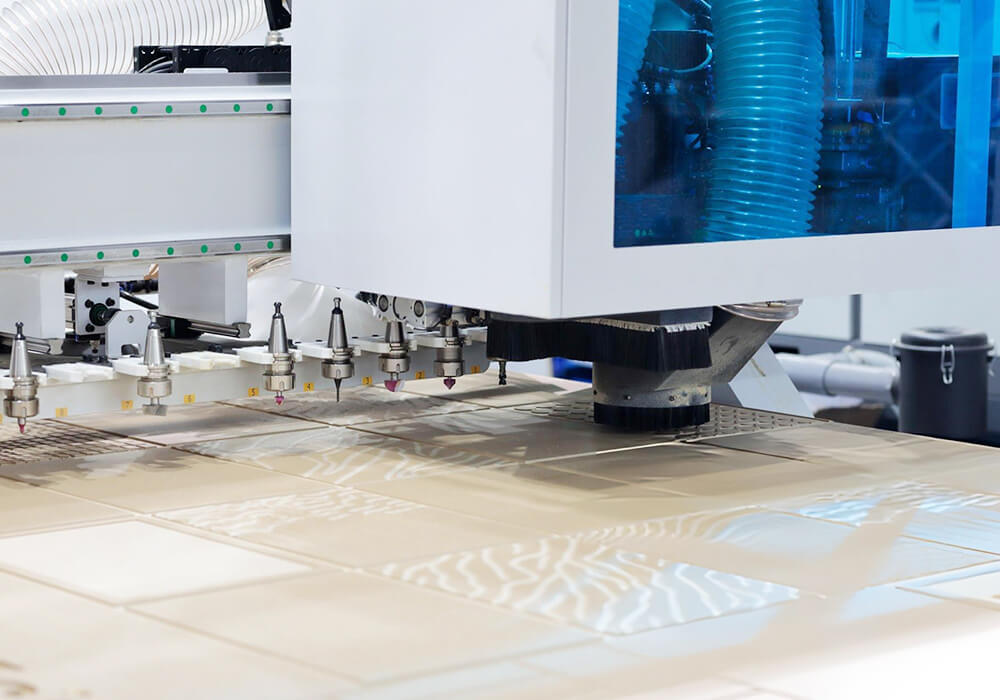

CNC Woodworking Solutions Machining Operations

3. Machining Operations

List the sizing, routing, drilling, grooving, pocketing, engraving and joint machining required on each part.

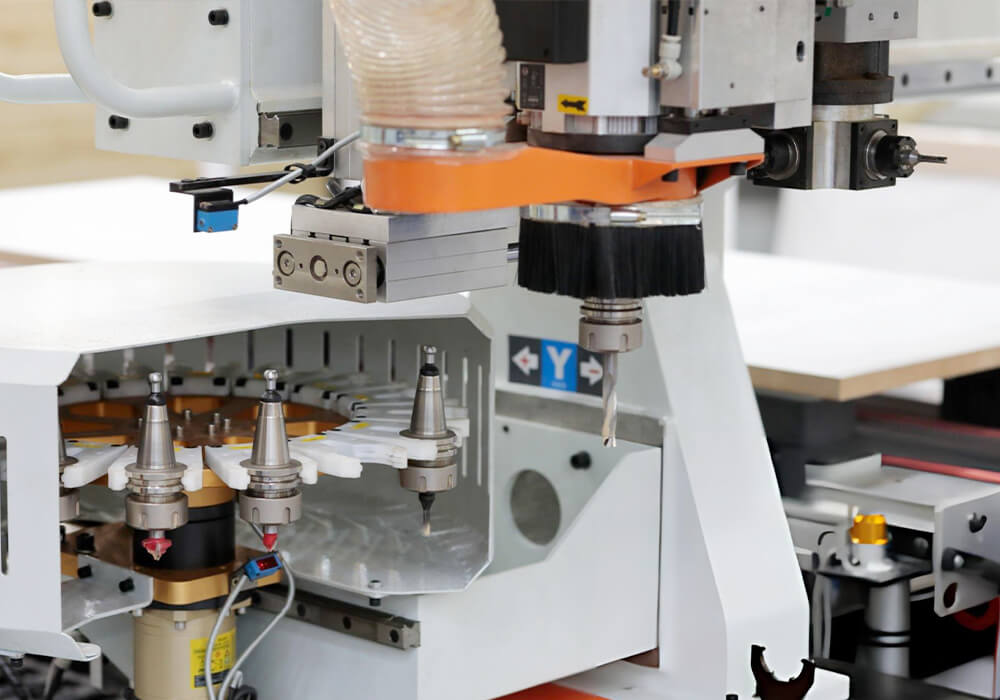

CNC Woodworking Solutions Machining Faces and Tool Access

4. Machining Faces and Tool Access

Show which features are on the top, sides, ends or underside. Tool access determines the machine architecture and the number of setups.

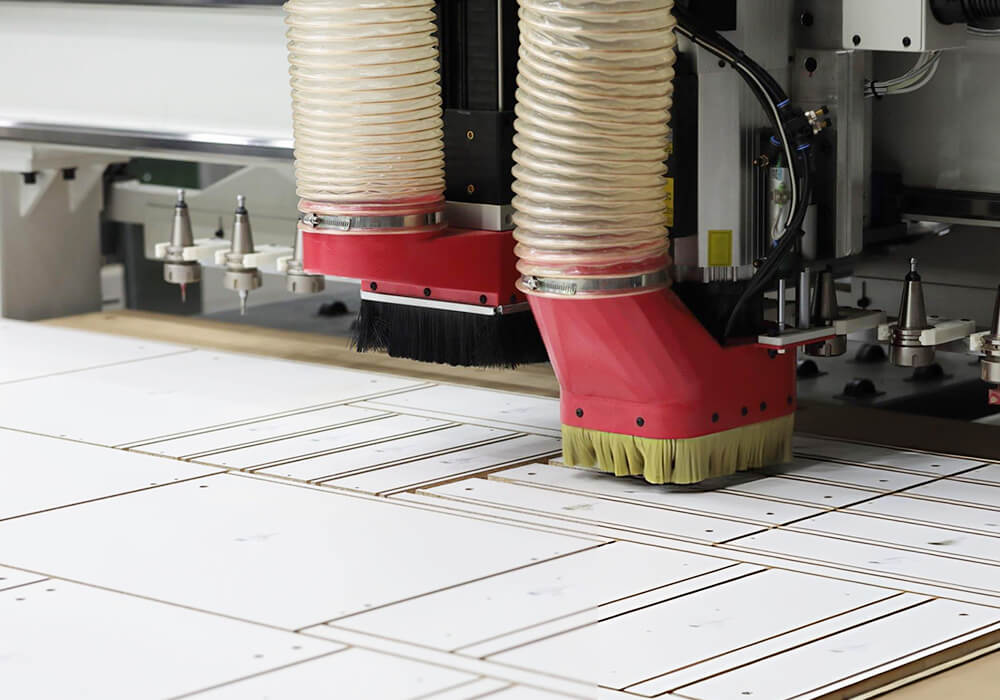

CNC Woodworking Solutions Quality and Acceptance

5. Quality and Acceptance

Confirm dimensional tolerance, hole position, groove size, edge finish, surface marks and the inspection method.

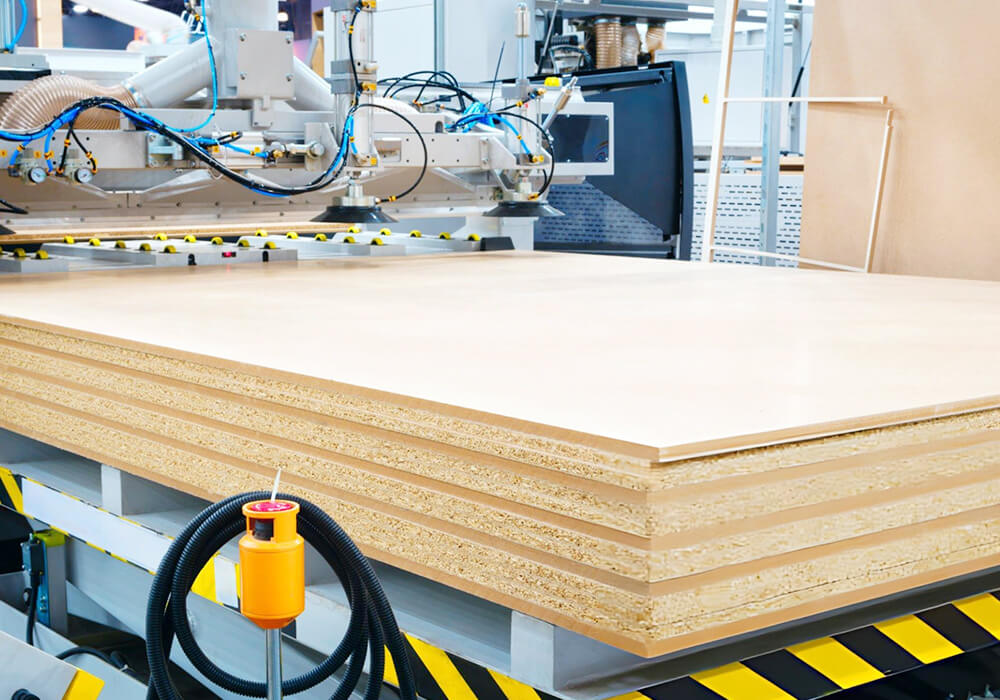

CNC Woodworking Solutions Production Mix and Output

6. Production Mix and Output

Share the batch sizes, number of part types, program changes, tool changes, shifts and acceptable parts required per shift.

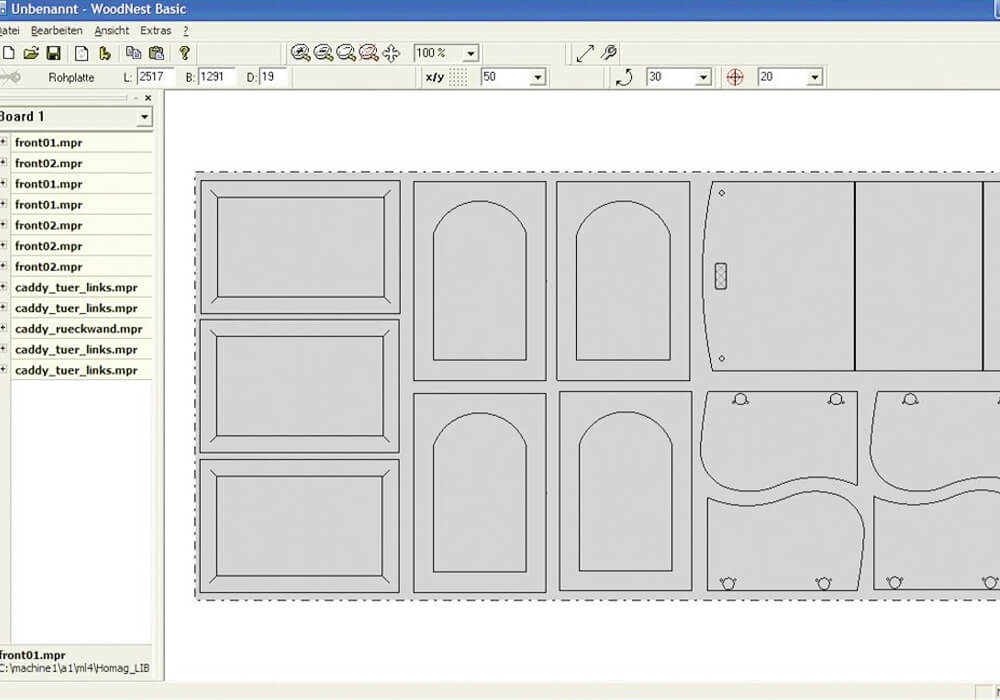

CNC Woodworking Solutions Digital Production Data

7. Digital Production Data

Tell us which CAD, CAM, nesting or factory software you use and which file formats are available.

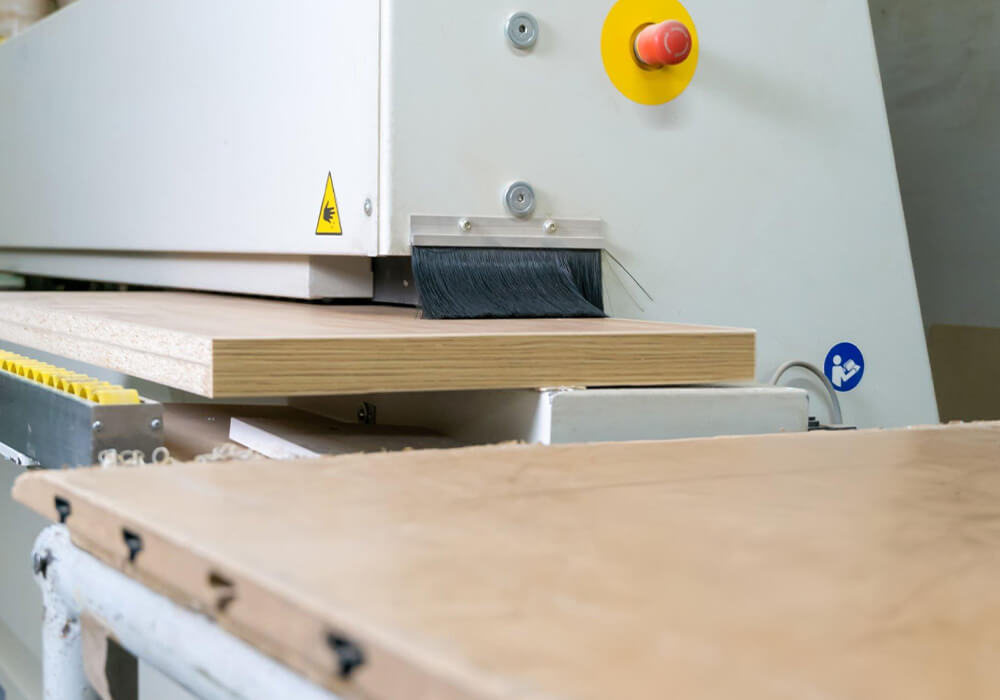

Woodworking Sawing And Cutting Solutions Yield and Material Flow

8. Factory Flow

Explain how material is loaded, parts are labeled and finished work moves to edge banding, drilling, sanding, assembly or packing.

Connect Every Step From Design Data to a Qualified Component.

A CNC machine executes the data, tooling and setup it receives. Reliable output requires the digital workflow and physical process to agree on geometry, coordinates, tools, workholding and acceptance.

Typical Panel Process:

Part Design/CAD/CAM Import/Nesting or Toolpath Planning /Post-Processor/Material Loading/Workholding/Tool Setup and Zeroing/Routing, Drilling and Grooving/Inspection/Labeling, Sorting and Downstream Transfer

1. Prepare the part data
Check dimensions, hole patterns, grooves, cutouts, material, quantity and drawing revision before programming begins.
Import or recreate the geometry, assign machining operations and confirm units, layers and feature recognition.
Choose tool direction, lead-ins, tabs or onion-skin strategy where needed, machining order and chip-clearance approach.
The post-processor must translate the CAM program correctly for the controller, tool numbers, coordinates, drilling cycles, spindle commands and machine functions.
The workpiece must stay located and stable during every cut. Use a vacuum table, vacuum pods, mechanical clamps or a dedicated fixture according to the part and operation.
Tool condition, length, diameter, holder cleanliness and coordinate zero all affect repeatability.
Run the planned sequence, then check the part against the drawing and agreed finish standard.
Use labels or job data to identify the part and route it to the next operation.

Match the CNC Process to the Part and Production Pattern.

No single CNC format is the best for every furniture component. We compare the part shape, material, operation sequence, tool access, batch pattern, loading method and downstream process before selecting a path.

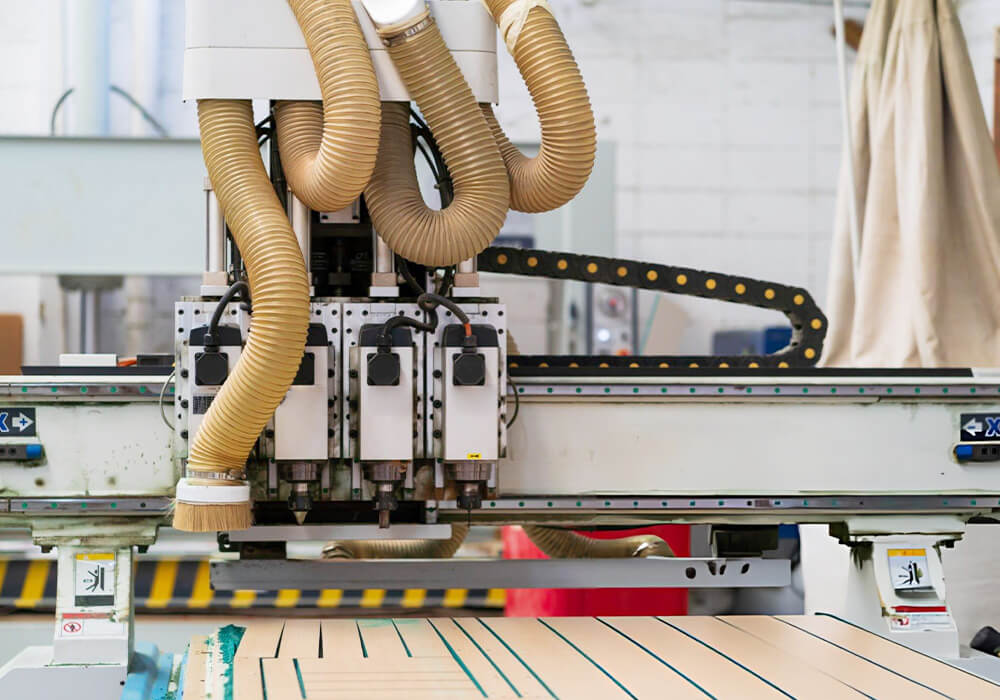

CNC Woodworking Solutions Nested-Based Panel Processing

1. Nested-Based Panel Processing

  • Typical Process:

Order or cut-list data/nesting/labeling plan/sheet loading/vacuum hold-down/routing, grooving and vertical drilling/unloading/part sorting.

Confirm before selection

  • Sheet dimensions and thickness
  • Part size distribution
  • Cut-through area and vacuum leakage
  • Drill and groove requirements
  • Label and part-identification workflow
  • Real part mix and qualified output

Explore CNC Nesting Machines

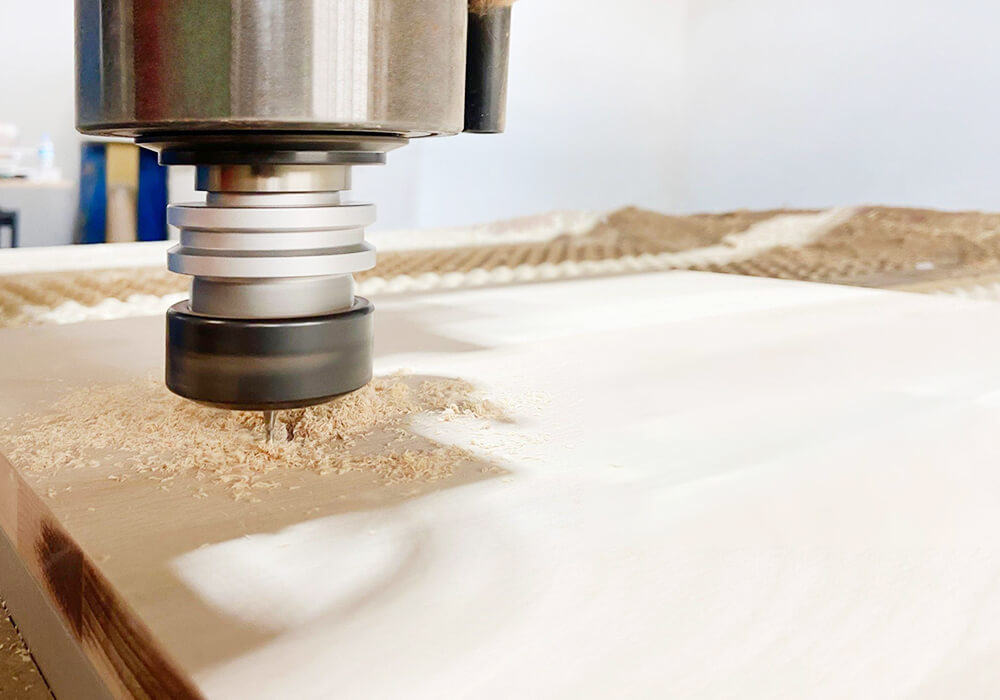

CNC Woodworking Solutions General Flatbed Routing

2. General Flatbed Routing

  • Typical process

Part or sheet loading/vacuum or fixture setup/program selectio/routing, pocketing, grooving or drilling/inspection/unloading.

Confirm before selection:

  • Max. and min. workpiece size
  • Fixture or vacuum strategy
  • Tool count and change frequency
  • Hole patterns and drilling needs
  • Surface and edge-finish requirement
  • Manual or assisted handling

Explore CNC Wood Routers

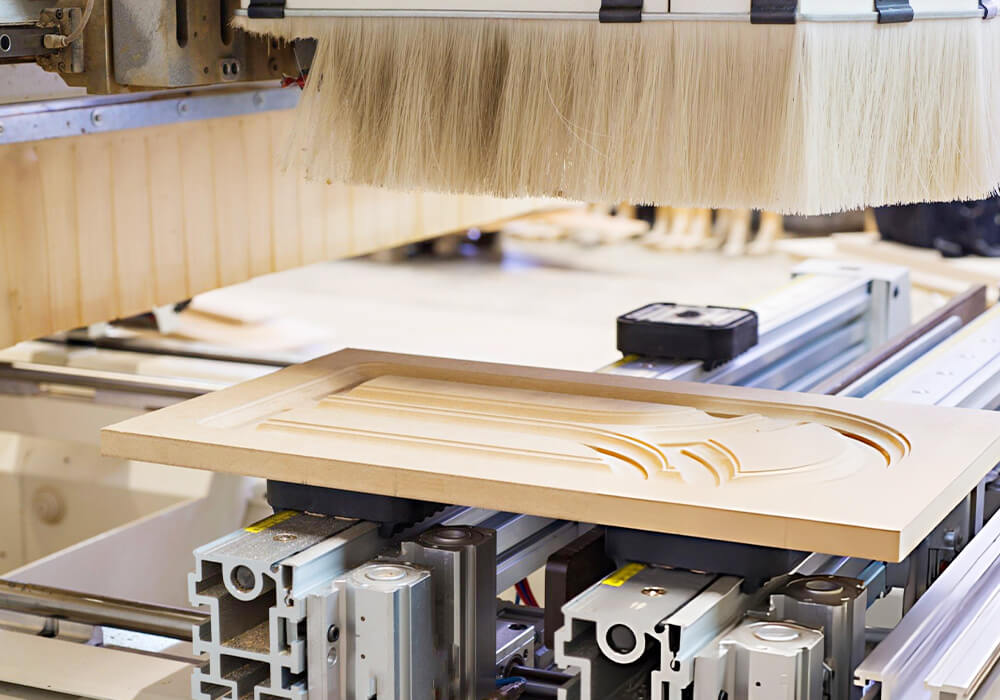

CNC Woodworking Solutions Pod-and-Rail or Point-to-Point Machining

3. Pod-and-Rail or Point-to-Point Machining

  • Typical process:

Pod or rail setup/workpiece location/ vacuum clamping/routing and drilling/repositioning if required/inspection.

Confirm before selection:

  • Part dimensions and support points
  • Pod placement and collision clearance
  • Side or end machining
  • Repositioning and registration
  • Operator changeover time

Explore CNC Machining Centers

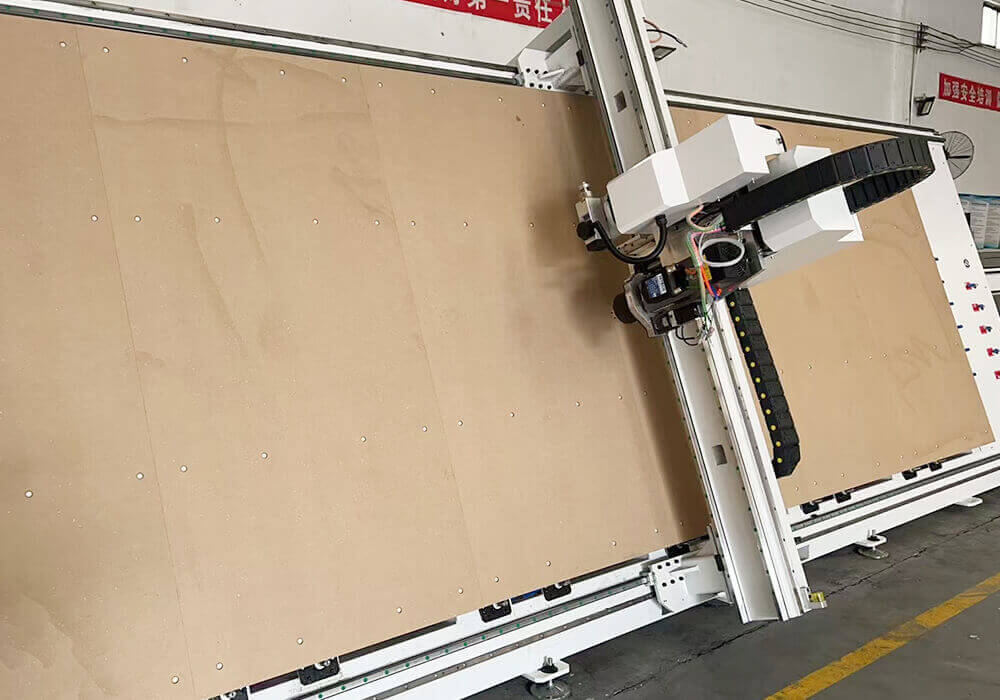

CNC Woodworking Solutions Vertical CNC Machining

4. Vertical CNC Machining

  • Typical process

Part entry/vertical location and clamping /drilling, grooving or routing /part exit/downstream transfer.

Confirm before selection

  • Supported part dimensions
  • Machining faces and edge access
  • Through-feed or return-flow requirement
  • Part identification
  • Cycle balance with upstream and downstream processes
  • Floor-space and operator route

Explore Vertical CNC Routers

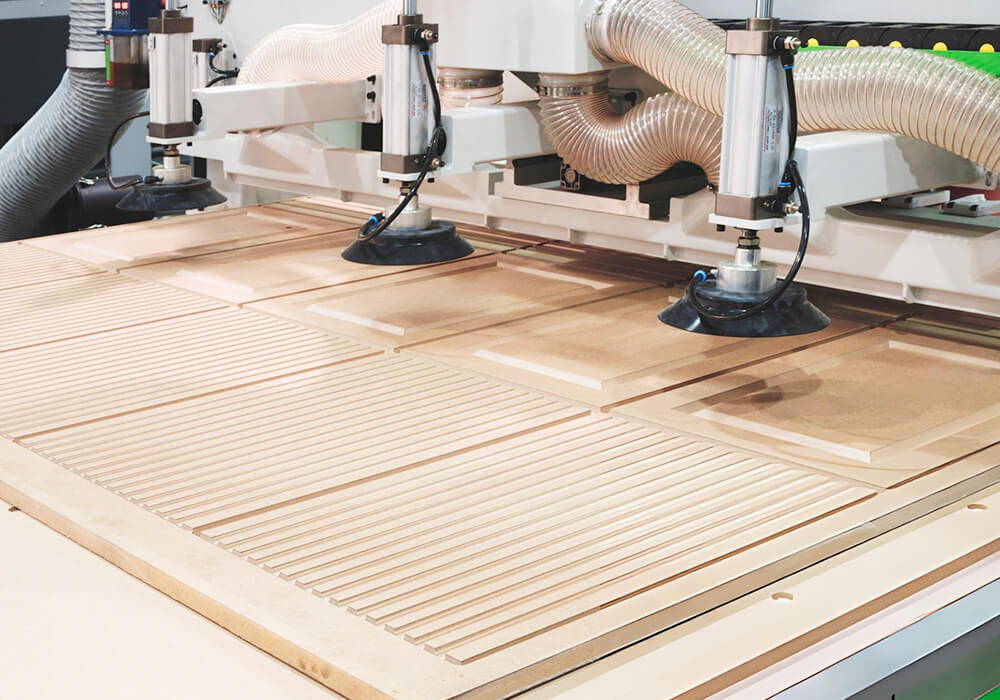

CNC Woodworking Solutions Door and Cabinet Component Machining

5. Door and Cabinet Component Machining

  • Typical process

Product data/component program/ location and hold-down/drilling, grooving, routing, pocketing or joint machining/quality check/assembly preparation.

Confirm before selection

  • Product family and construction method
  • Hinge, connector and hardware patterns
  • Door profiling or pocket requirements
  • Changeover between component types
  • Downstream edge banding and assembly logic
  • Program and label control
Explore CNC Cabinet Making Machines

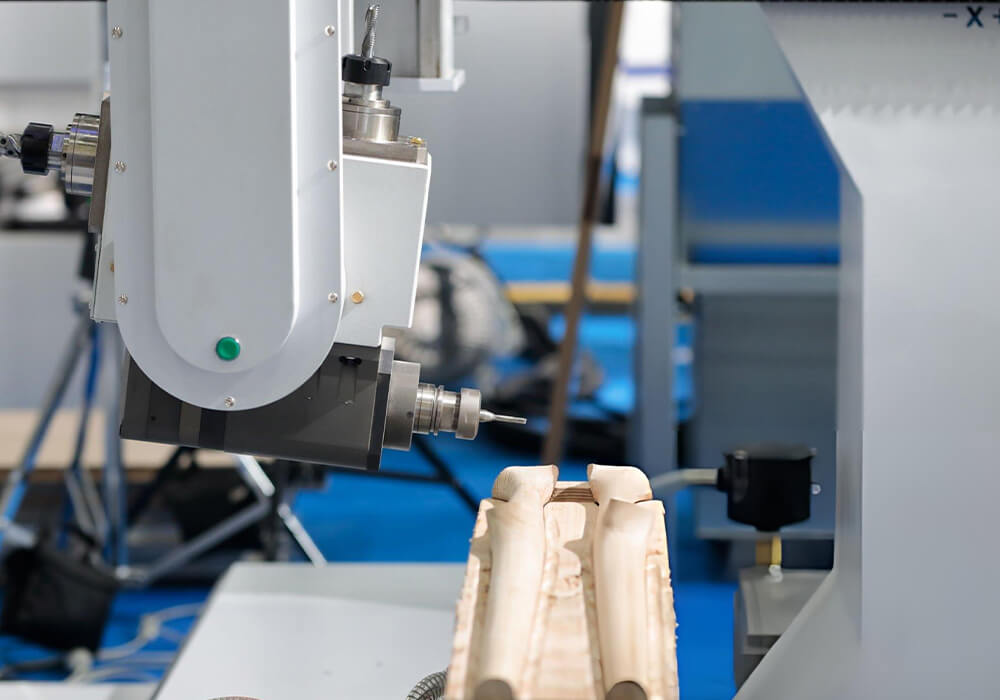

CNC Woodworking Solutions Complex Component Machining

6. Complex Component Machining

  • Typical process

3D part data/ multi-axis CAM planning/fixture and collision verification/post-processing/simulation/machining/dimensional inspection.

Confirm before selection

  • Real requirement for simultaneous or indexed axes
  • Tool access and collision envelope
  • Fixture rigidity and repeatable location
  • CAM, post-processor and simulation capability
  • Programmer and operator skills
  • Batch size and changeover economics

Explore 5-Axis CNC Machining Centers

Our Five-Step CNC Process Review.

We use the same sequence whether the project begins with a standalone CNC router, a nesting application or a connected production cell.

1. Define the Part

We check the drawings, materials, dimensions, surfaces, machining faces, operations and tolerances.

2. Map the Operations

We plan routing, drilling, grooving, tool changes, repositioning, inspection and downstream transfer.

3. Verify Data, Tooling and Workholding

We confirm file formats, CAM and post-processor requirements, tool access, tool count, vacuum or fixture strategy and operator setup.

4. Model Production

Cycle estimates include loading, setup, machining, tool changes, labeling, inspection, unloading and product changeovers.

5. Test and Confirm

For project-specific tests, the material, program, tooling, setup and acceptance method are agreed before the test begins.

Choose the Automation Level From the Production Constraint.

Automation should solve a defined problem such as repetitive handling, identification errors, unstable flow, operator dependence or insufficient qualified output. It should not be added without checking part variety, exceptions, maintenance skills and downstream balance.

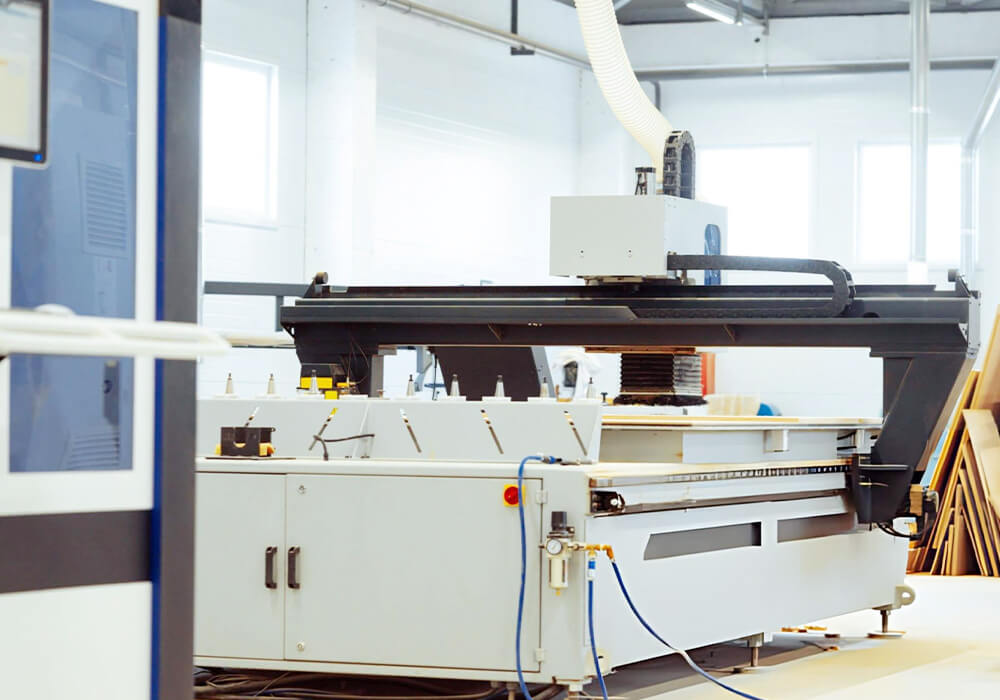

CNC Woodworking Solutions Standalone CNC Machine

Standalone CNC Machine

  • Often Evaluated For:

Flexible production, lower or variable volume, frequent process changes and factories where operators manage loading, unloading and sorting.

Typical Scope

  • Manual material selection
  • Manual or assisted loading
  • Local program selection
  • CNC machining
  • Manual inspection and unloading

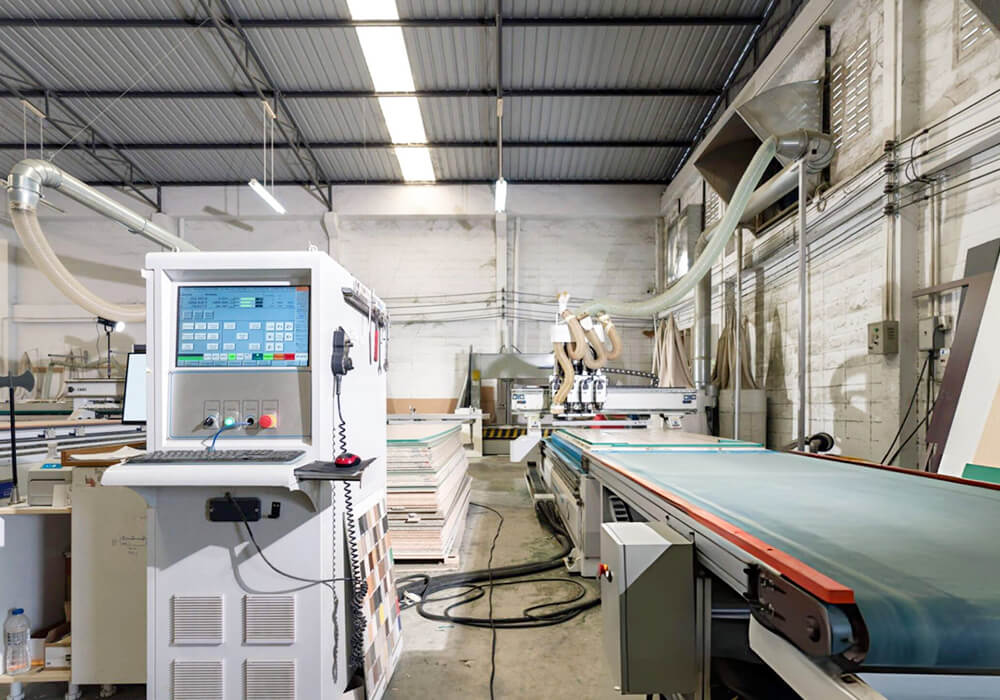

CNC Woodworking Solutions CNC With Assisted Handling

CNC With Assisted Handling

  • Often Evaluated For

Processes where lifting, part return, panel alignment, labeling or unloading is the main constraint.

Typical Scope

  • Lifting assistance or loading table
  • Positioning support
  • Labeling or part identification
  • Manual exception handling

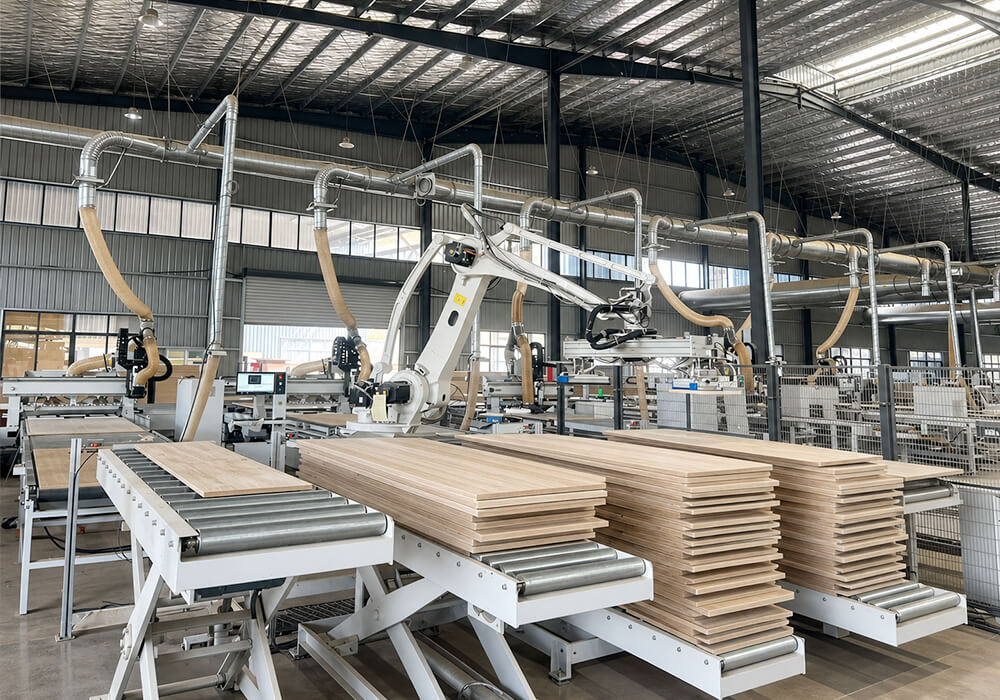

Woodworking Sawing And Cutting Solutions Connected Cutting Cell

Connected CNC Production Cell

Often Evaluated For:

Repeatable digital order flow, higher volume, reduced manual handling and coordinated labeling, loading, machining and sorting.

Typical Scope

  • Order or production data
  • Material storage or loading
  • Program and label generation
  • CNC machining
  • Unloading and sorting
  • Downstream data or material transfer

Explore CNC Machinery and Production Paths.

Once the process requirement is clear, compare only the machine categories and system paths that match the application.

CNC Wood Routers

For flexible flatbed routing, profiling, pocketing, grooving and selected drilling applications.
Explore CNC Wood Routers

CNC Machining Centers

For component machining where tool access, fixtures, pods or multiple operations are central.
Explore CNC Machining Centers

CNC Nesting Machines

For sheet-based cabinet and panel-furniture part production driven by nesting data.
Explore CNC Nesting Machines

Vertical CNC Routers

For confirmed panel-machining applications where vertical processing or factory flow may be appropriate.
Explore Vertical CNC Routers

CNC Nesting Production Cell

For projects connecting order data, loading, nesting, machining, labeling, unloading and sorting.
Plan a CNC Nesting Production Cell

Tell Us What a Qualified Part Looks Like.

Send the part, material, machining and production information you already have. We will use it to identify the process questions, suitable machine formats and any information still needed before a configuration is prepared.
wood moulders for sale

FAQ About CNC Woodworking Solutions.

What is the difference between a CNC router and a CNC machining center?
A CNC router commonly describes a machine used for routing, profiling, grooving, pocketing and selected drilling on a flat work area. A CNC machining center may include a broader combination of tools, drilling units, workholding systems, edge access or multiple-axis functions. Product terminology varies by manufacturer, so the actual operations, workholding and tool access should be compared.
A nesting machine is configured around full-sheet processing, nested layouts, vacuum hold-down and repeated panel-component flow. A general CNC router may support a wider mix of sheet, component, fixture and shaped-part work. The distinction depends on the table, drilling and tool configuration, software, handling and intended workflow.
Nesting is often evaluated when varied components, shaped parts and combined routing or grooving are important. A panel-saw-based process is often evaluated for repeated rectangular cutting, stack opportunities and a separate drilling workflow. The correct comparison uses the real cut list, part mix, quality, yield, cycle, labor and downstream process.
Start with the machining faces, angles, tool approaches and number of setups required by the part. Three-axis machines commonly address top-face operations. Additional axes may support angled, rotary or complex multi-direction machining, depending on the architecture. More axes also add programming, post-processing, fixture, collision and skill requirements, so axis count should not be selected in isolation.
Start with the machining faces, angles, tool approaches and number of setups required by the part. Three-axis machines commonly address top-face operations. Additional axes may support angled, rotary or complex multi-direction machining, depending on the architecture. More axes also add programming, post-processing, fixture, collision and skill requirements, so axis count should not be selected in isolation.
A vacuum table is often evaluated for full sheets and broad flat support. Pod-and-rail systems are often evaluated for finished-size parts, underside clearance and selected edge access. Part size, porosity, machining faces, cut-through area, tool clearance, setup time and batch pattern determine the suitable workholding concept.
