Contour and Curved Edge Banding Machine.
BESTIN curved edge banding machines are built for band round, oval, L-shaped and irregular components.
Tell us your panel dimensions, panel shape, minimum curve radius, edge banding material, edge thickness and expected production volume. We can recommend a suitable curved edge banding machine to you.
Machine Type
Curved/“L”
KN810
- Double Arm
- Fully Automatic
- Edge Banding/Trimming
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 2650*1780*1580mm
Curved/“L”
KN700-3
- Single Arm
- Fully Automatic
- Edge Banding/Trimming
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 1870*1920*1530mm
Curved/“L”
F14-3Pro
- Single Arm
- PLC
- Edge Banding
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 161*104*152
Curved/“L”
F13-3Pro
- Single Arm
- Edge Banding
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 140*120*140cm
What is a Curved Edge Banding Machine?
Curved Edge Processing Capabilities.

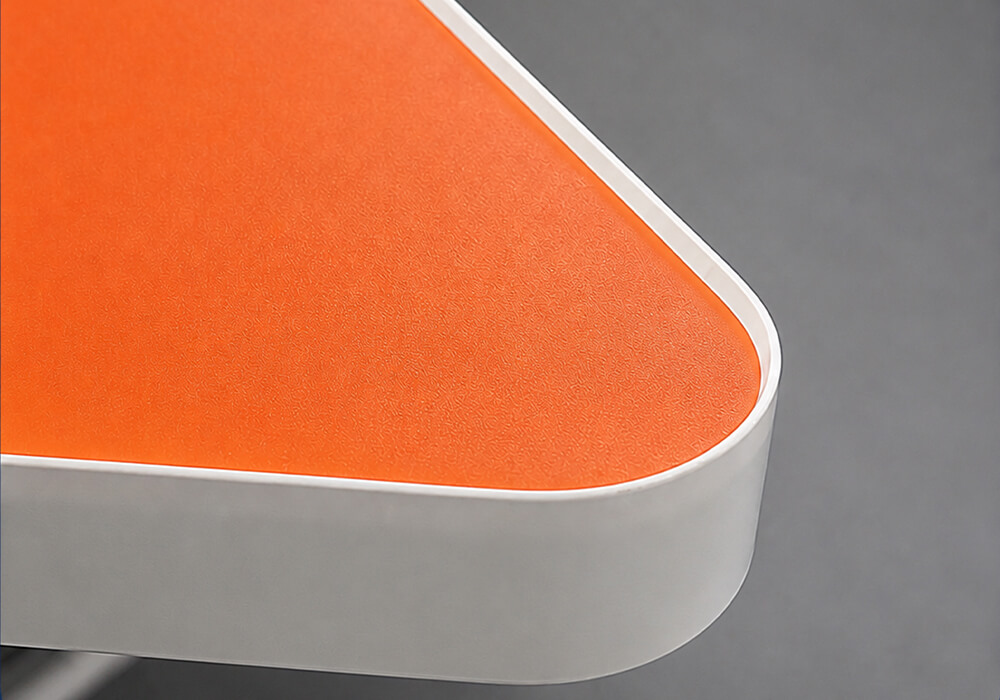

Outside Curves
Outside curves, also known as convex curves, extend outward from the panel. Rounded cabinet doors, curved tabletops, and semicircular panels are common.

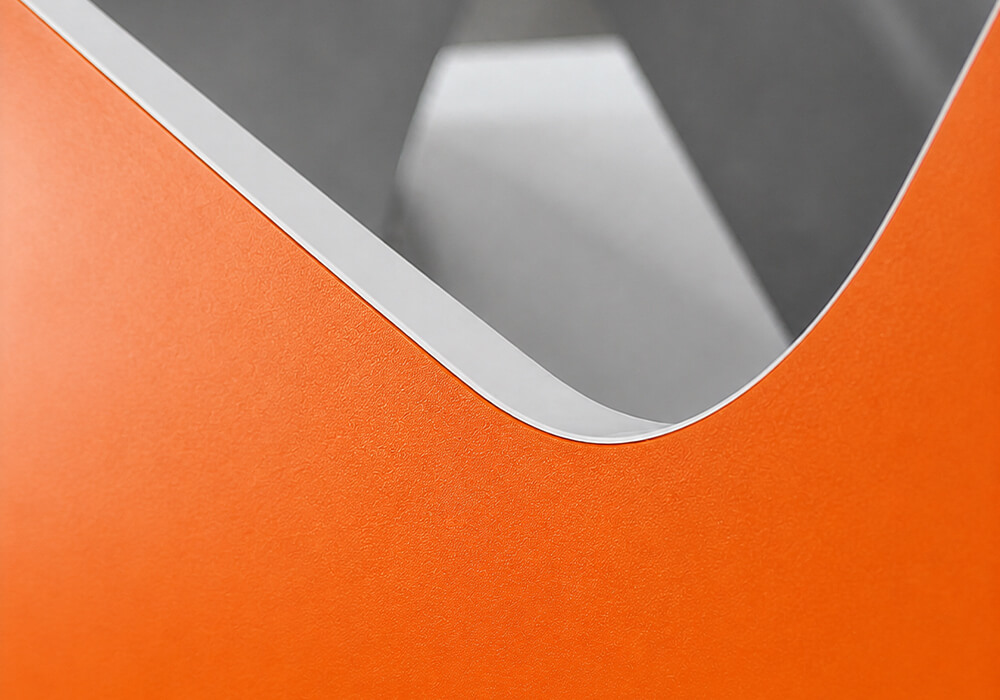

Inside Curves
Inside curves, or concave curves, extend inward into the panel. They are often found on custom furniture components, shaped worktops, reception desks and decorative panels.

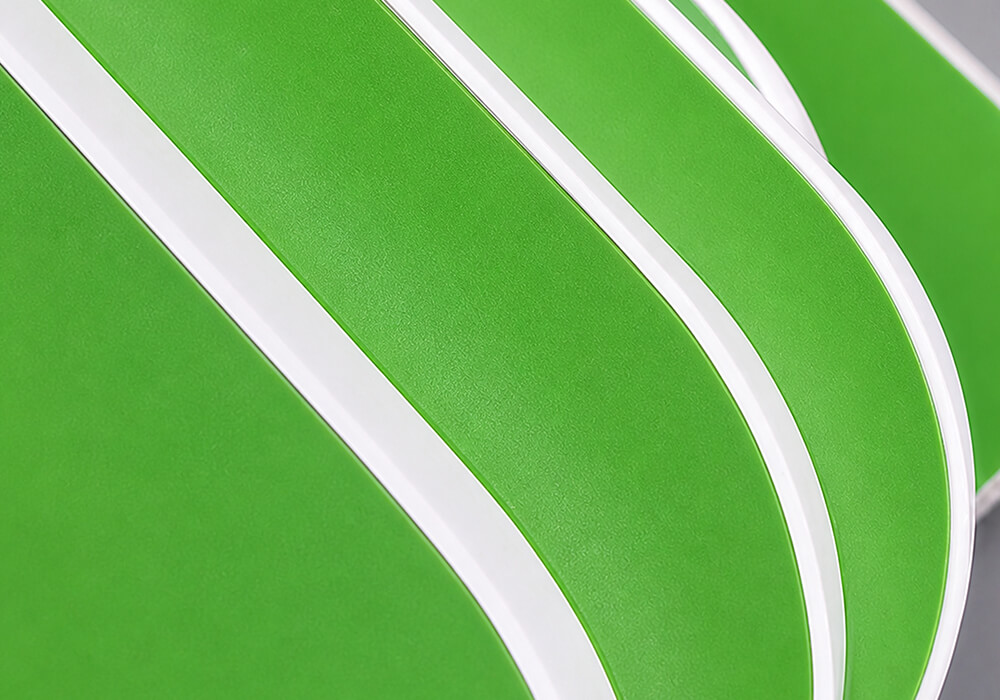

Rounded Rectangles
Rounded rectangular panels combine straight sections with rounded corners. They are frequently used for tabletops, cabinet doors, desktops and other furniture components where sharp corners are replaced with smooth radii.

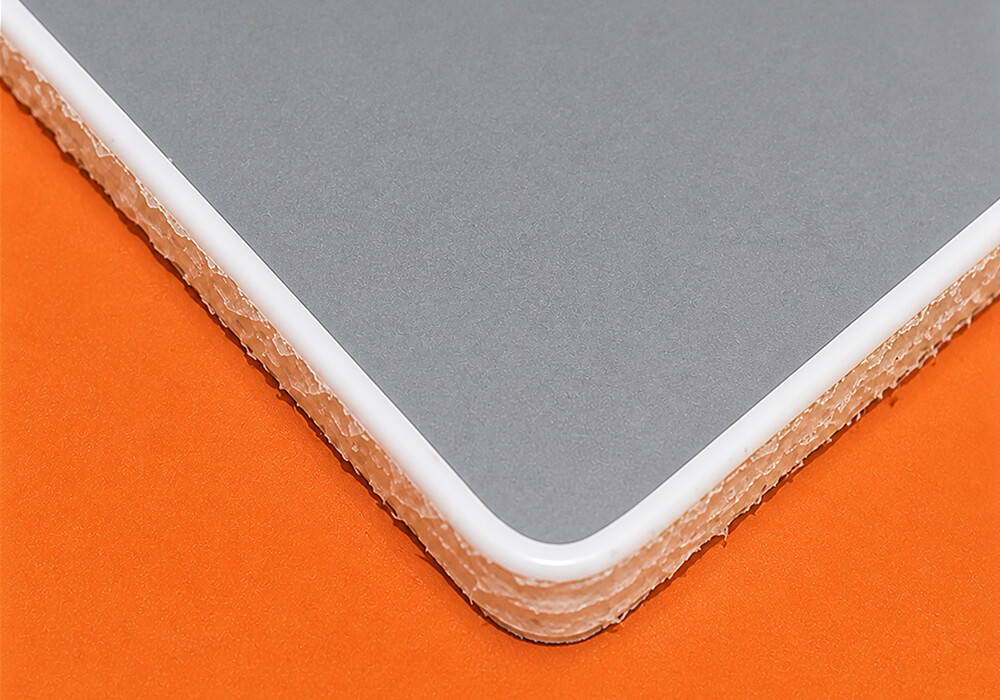

L-Shaped
L-shaped panels can combine straight sections with internal or external corners. Depending on the specific geometry and radius, a suitable curved edge banding machine can process these shaped components while maintaining consistent edge banding along the contour.

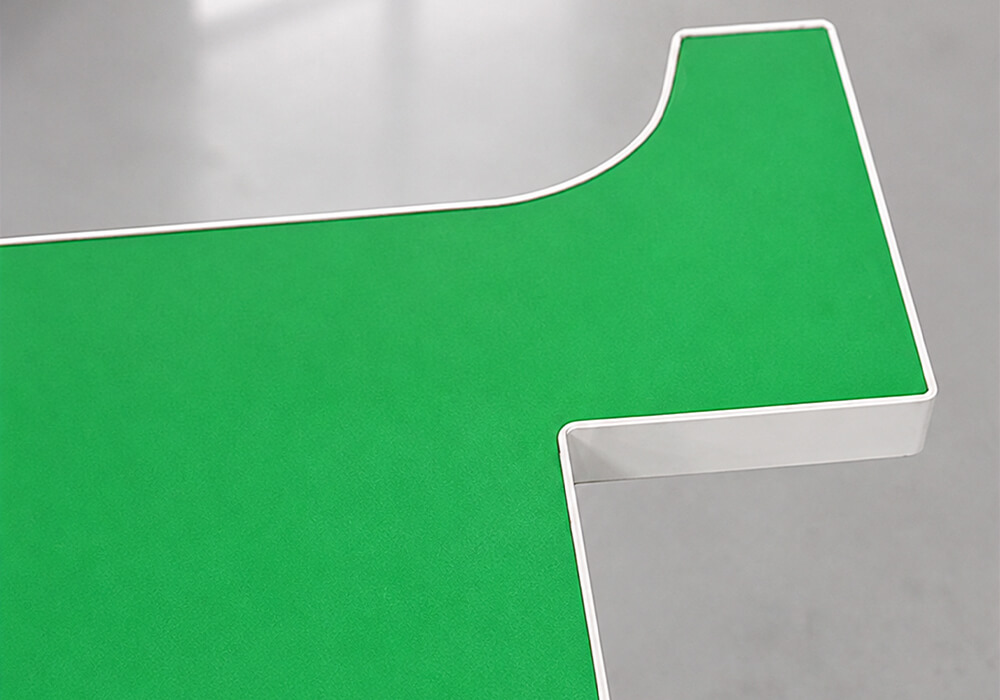

Other Irregular Outlines
Curved edge banding machines can also be used for wave-shaped, organic and other custom outlines. It makes them particularly useful for custom furniture, commercial interiors, hotel furniture, retail displays and other applications.
How to Select a Curved Edge Banding Machine?
1. Define every part geometry
List circles, ovals, outside curves, inside curves, L-shapes, right-angle sections and free-form outlines. Include the smallest and largest parts.
2. Measure the tightest radius
State whether it is an inside or outside radius. Add the adjacent straight length, panel thickness and joint location.
3. Confirm part size, thickness and weight
Large parts need support and balance. Provide overall dimensions, weight and any area that cannot be clamped or supported.
4. Define the edge material
Provide material, width, thickness, tape.
5. Choose the adhesive process
Confirm EVA, PUR or another approved hot-melt. Include moisture, heat and joint-quality requirements.
6. Define the required finishing scope
State whether the machine should only apply and cut the edge, or also trim, scrape, clean and finish it.
7. Confirm factory conditions
Provide voltage, phase, frequency, compressed air, floor space, access doors, extraction needs and destination country.
Curved Edge Banding Machine Application

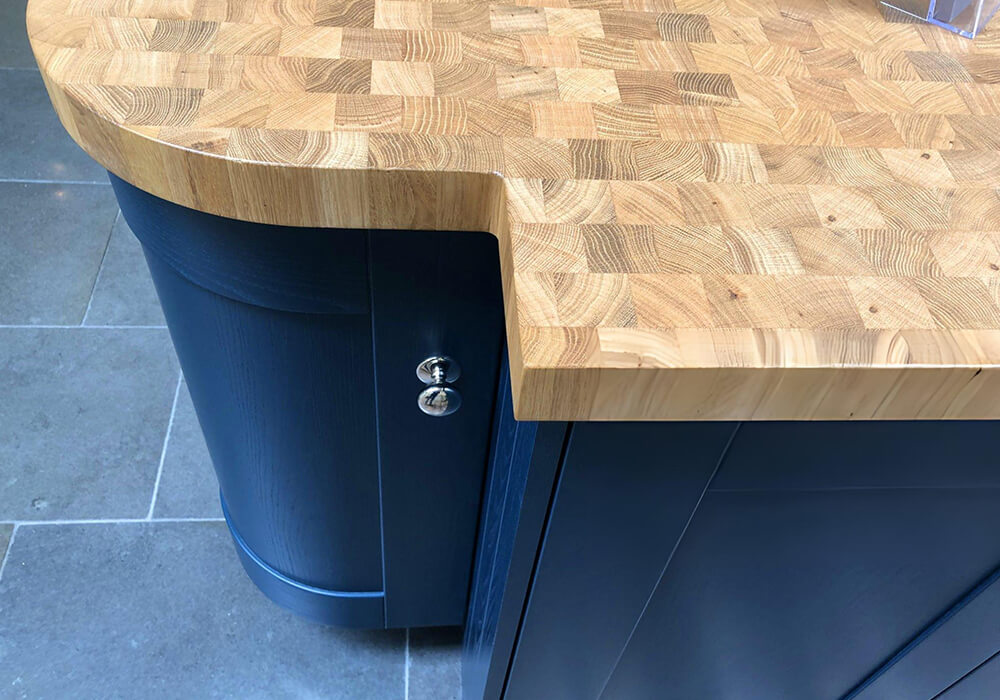

Round and Oval Tabletops
Round and oval tabletops are common applications for curved edge banding. The machine follows the continuous curved perimeter of the tabletop and applies edge banding around the complete profile.

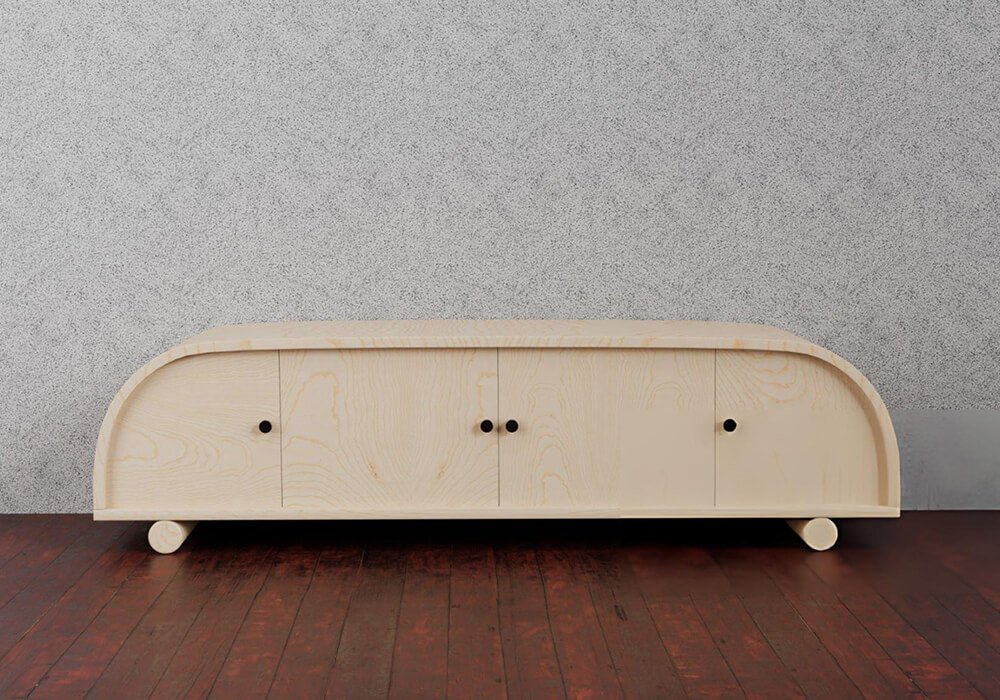

Curved Cabinet Doors
Curved and rounded cabinet doors are widely used in modern kitchen, wardrobe and custom furniture designs. A curved edge banding machine can process the shaped edges of these components while maintaining a consistent finished appearance.

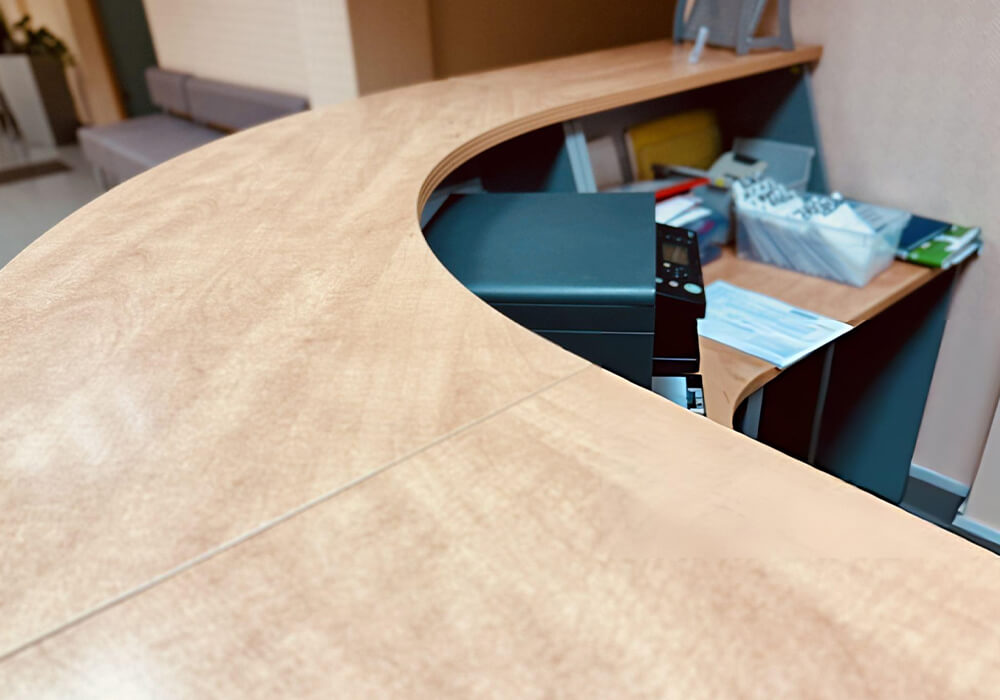

Reception Desks and Curved Counters
Commercial interiors often use curved reception desks and counters to create distinctive shapes. These components may combine straight sections, outside curves and inside curves.

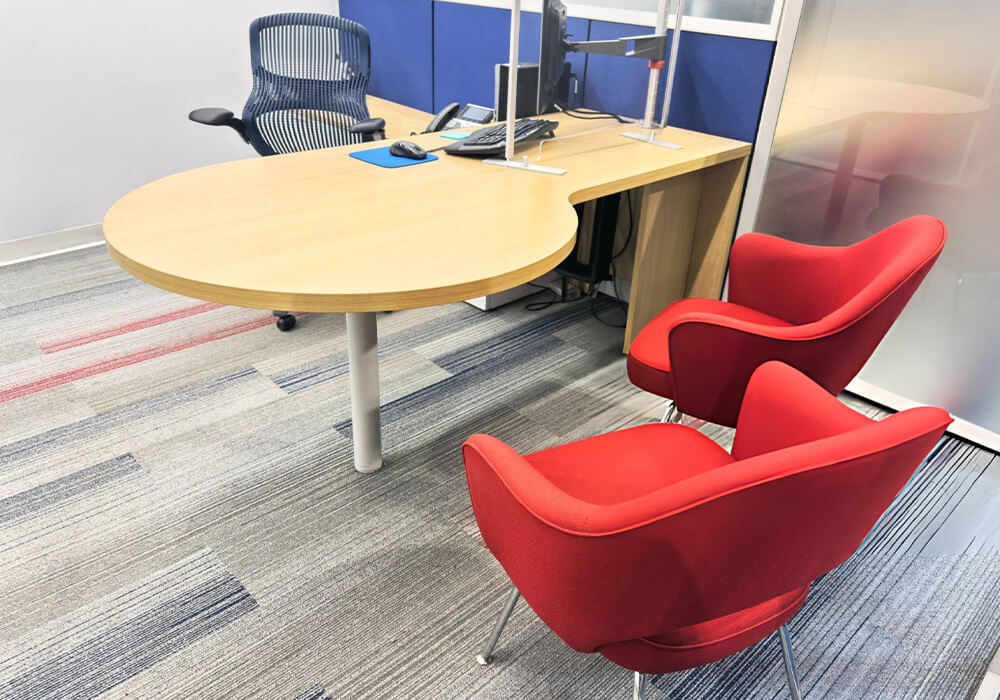

Office Furniture
Office furniture manufacturers may use curved and shaped panels for both functional and decorative purposes.
Children's Furniture
Rounded furniture components are also common in children's furniture, where smooth edges can be an important design consideration.
Tell Us About Your Shaped Panel.
FAQ About Curved Edge Banding Machine
Is corner rounding the same as curved edge banding?
No. Corner rounding finishes the front and rear corners of a rectangular panel. Contour edge banding applies the edge around the curved or irregular perimeter.
