Furniture Cutting Machines.
BESTIN provided complete furniture cutting solutions designed for manufacturers of all sizes—from small woodworking workshops to fully automated smart factories.
Our product range includes Panel Beam Saws, Sliding Table Saws, CNC Sliding Table Saws, CNC Nesting Machines, and integrated cutting systems that work seamlessly with edge banding, drilling, sanding, and packaging equipment.
Built with industrial-grade components and intelligent CNC technology, our furniture cutting machines deliver exceptional cutting accuracy, maximum material utilization, and reliable long-term performance.

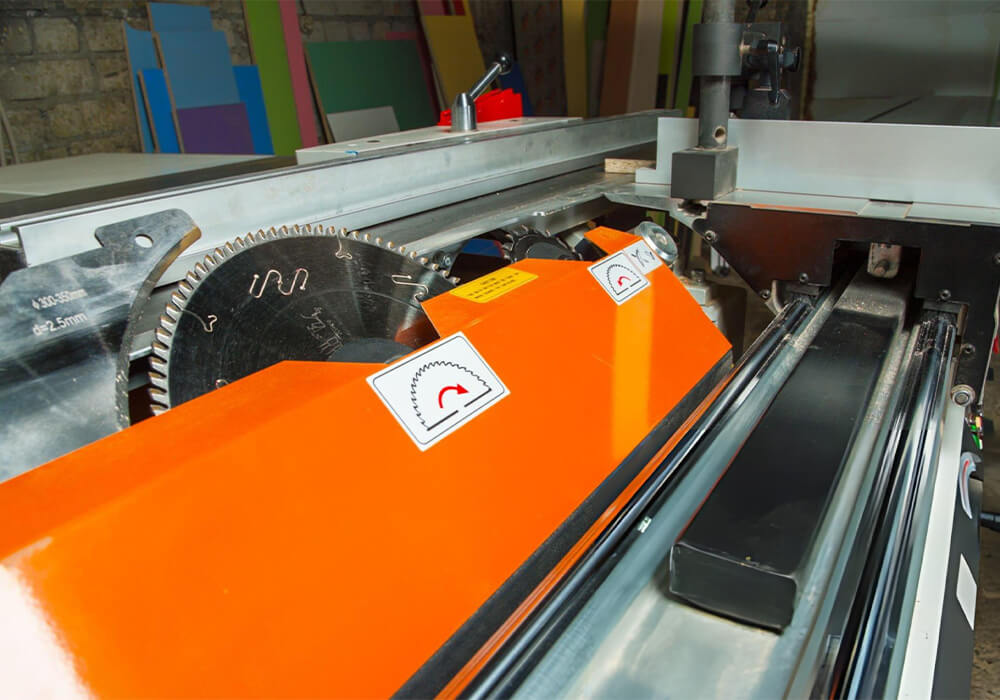

What Is a Furniture Cutting Machine?
Furniture cutting machines are industrial woodworking machines designed to cut MDF, plywood, particle board, solid wood, laminated panels and composite materials into precise components for cabinet and furniture manufacturing.
Our furniture cutting machines commendly include, Panel Beam Saw, Sliding Table Saw, CNC Sliding Saw, CNC Nesting Machine.
Machine Type
CNC Panel Beam Saw
Panel Beam Saws are the preferred cutting solution for large furniture factories requiring continuous production, exceptional accuracy, and minimal labor.
Our CNC Panel Beam Saw automatically positions the panel, calculates cutting dimensions, and completes multiple cuts in a single cycle. It significantly improves productivity while reducing operator fatigue.
CNC
KS829CP
- Max. Cut Length: 2800mm
- Max. Cut Thickness: 100mm
- Max. Cut Width: 2800mm
- Size: 5300*5600*1900mm
Slotting
KS833
- Intelligent Slotting
- Max. Cut Length: 3300mm
- Max. Cut Thickness: 100mm
- Max. Cut Width: 3300mm
- Size: 5800*6300*1900mm

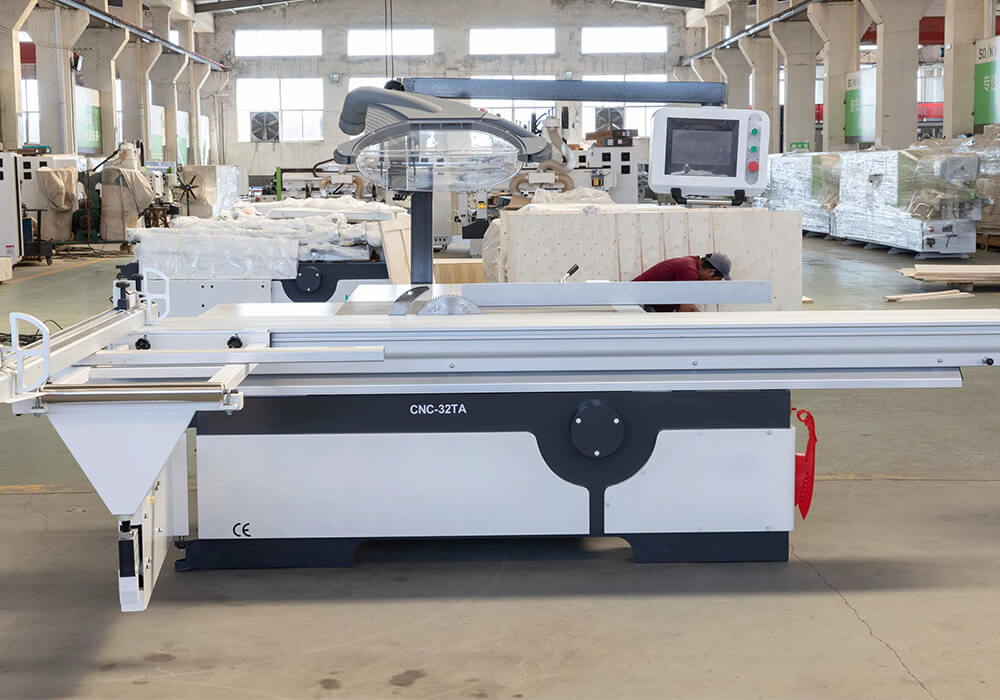

CNC Sliding Table Saw
Our CNC Sliding Table Saw combines the flexibility of a traditional sliding table saw with the precision of CNC positioning.
Instead of manually adjusting fence positions, operators simply enter the desired dimensions through the control panel.
It automatically positions the fence, improving both accuracy and productivity.
CNC

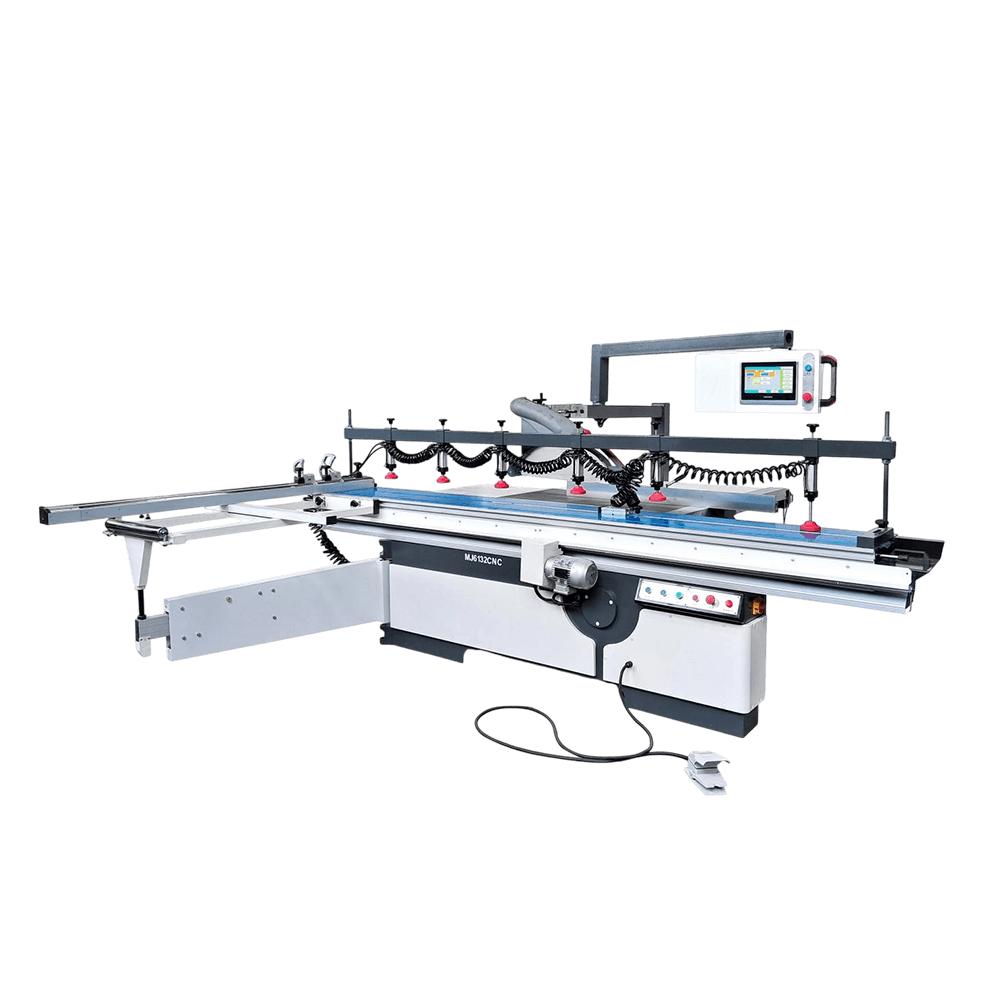

MJ6132CNC
- CNC Control
- Electric Tilting For 0-45°
- Electric Lifting For Saw Unit
- European Sliding Table
- European Dust Cover
- Sliding Table: 3200*410mm
- Main Saw Motor: 5.5kw
- Scorning Saw Moter: 1.1kw
Sliding Table Panel Saw
Semi-Auto

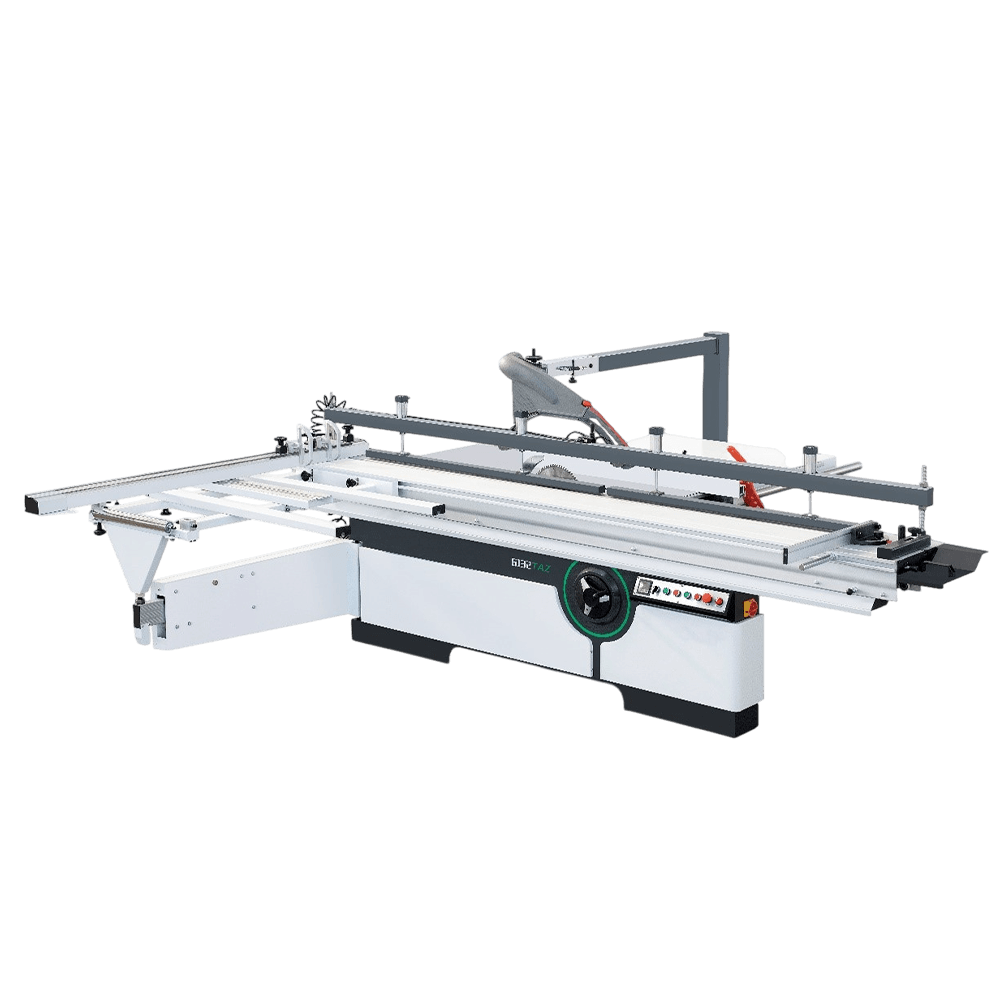

MJ6132TAZ
- Manual Tilting For 0-45°
- Electric Lifting For Saw Unit
- European Sliding Table
- European Dust Cover
- Sliding Table: 3200*410mm
- Main Saw Motor: 5.5kw
- Scorning Saw Moter: 1.1kw
Manual

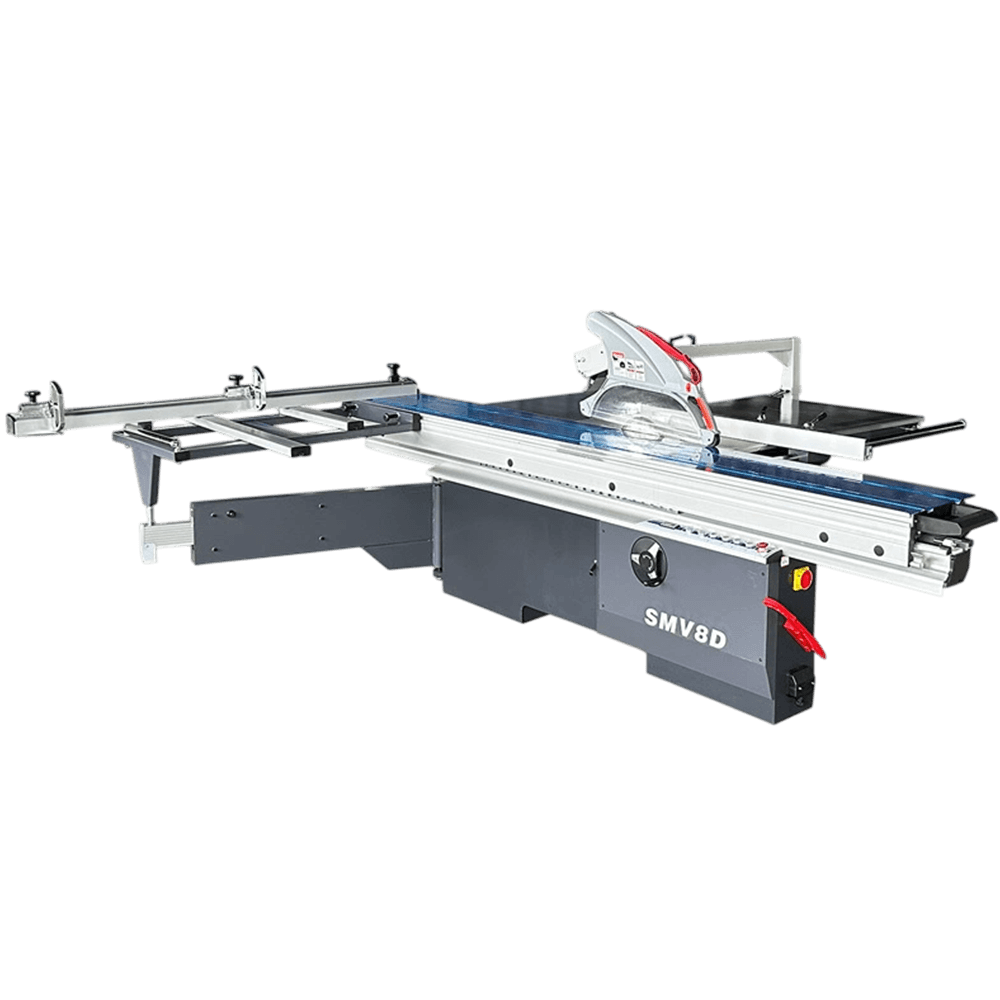

SMV8D
- Manual Tilting For 0-45°
- Manual Lifting For Saw Unit
- European Sliding Table
- European Dust Cover
- Sliding Table: 3200*375
- Main Saw Motor: 5.5kw
- Scorning Saw Moter: 1.1kw
CNC Nesting Machine
Our CNC Nesting Machine can automatelly cut, drill, groove, and engrave of wood-based panels. It combines high-speed CNC technology, intelligent nesting software, and heavy-duty construction to maximize material utilization while reducing labor costs and production time.
It can be integrated with automatic loading systems, barcode labeling, edge banding machines, CNC six-side drilling machines, and robotic material handling to create a complete furniture manufacturing solution.
Nesting
KS833Z
- ATC+16 Tool Magazine
- Traveling Size: 1220×2440×150mm
- Spindle Power: 9.0kw
- Driving System: Servo Drive
“Not Sure Which Machine I Should Use?”
Which Furniture Cutting Machines Is Right for Your Business
The right furniture cutting machine depends on your production volume, product type, factory size, budget, and automation goals.
A small woodworking shop has different requirements from a large cabinet manufacturing plant, and selecting the right equipment can significantly improve productivity, reduce material waste, and lower operating costs.
|
Feature |
Sliding |
CNC |
Panel |
CNC |
|
Automation |
Low |
Medium |
High |
High |
|
Accuracy |
★★★★☆ |
★★★★★ |
★★★★★ |
★★★★★ |
|
Speed |
★★☆☆☆ |
★★★★☆ |
★★★★★ |
★★★★☆ |
|
Material Utilization |
Good |
Better |
Excellent |
Excellent |
|
Labor Requirement |
High |
Medium |
Low |
Low |
|
Production Volume |
Small |
Medium |
Large |
Medium |
|
Best For |
Workshops |
Growing |
Industrial |
Custom |
Panel Beam Saw Feature
Our CNC Panel Beam Saws was equipped with CNC servo positioning, intelligent cutting optimization, and automatic panel clamping, these machines deliver fast, accurate, and repeatable cutting for MDF, particle board, plywood, melamine panels, and other engineered wood materials.
- High-speed CNC servo positioning system
- Automatic panel clamping for stable cutting
- Precision cutting accuracy up to ±0.1 mm
- Intelligent cutting optimization software
- Heavy-duty welded steel frame for maximum stability
- Touchscreen control with user-friendly interface
- Fast cutting cycle for mass production
- Compatible with automatic loading and robotic systems
Sliding Table Panel Saw Feature
Our Sliding Table Saws provide an economical and reliable cutting solution for woodworking shops, cabinet makers, and furniture manufacturers. Built with a rigid machine frame and precision sliding table, they ensure smooth operation and accurate cutting for a wide range of wood-based panels.
- Heavy-duty machine frame for long-term stability
- Precision aluminum sliding table with smooth movement
- Powerful industrial-grade main saw motor
- Adjustable scoring saw for chip-free cutting
- 0–45° blade tilt for straight and bevel cuts
- Accurate fence adjustment for repeatable results
CNC Sliding Table Saw Feature
Our CNC Sliding Table Saws combine the flexibility of a traditional sliding table saw with the precision of CNC-controlled positioning.
These machines automatically position the rip fence, reduce setup time, and improve cutting accuracy.
- CNC-controlled rip fence positioning
- Digital touchscreen control panel
- Heavy-duty aluminum sliding table
- Powerful industrial saw motor
- Smooth and accurate panel cutting
- 0–45° blade tilting for bevel cutting
Affordable Solutions
FAQ About Furniture Cutting Machine
What Is The Price Of The Furniture Cutting Machine?
The price of a furniture cutting machine depends on several factors such as the type of machine, its features, capacity, and automation level. For instance:
- Portable Table Saws typically range from $500 to $2,000.
- DIY Sliding Table Saws cost between $1,000 and $2,000.
- Sliding Table Saws generally range from $2,000 to $10,000.
- CNC Beam Saws can range from $20,000 to $100,000+ depending on their complexity and capabilities.
- CNC Nesting Machines start from $30,000 and can go up to $200,000 depending on customization and size.
For a detailed quote, contact BESTIN with your specific requirements, and we’ll provide a tailored estimate.
What Materials Can The Furniture Cutting Machine Cut?
Our furniture cutting machines are designed to handle a wide variety of materials commonly used in furniture manufacturing:
- Plywood
- Melamine Boards
- MDF (Medium Density Fiberboard)
- Solid Wood
- HDF (High-Density Fiberboard)
- Laminate
For specialized applications, some machines may also support cutting of materials like particle board, PVC, and veneered wood.
What Is The Cutting Capacity Of Your Machines?
The cutting capacity varies based on the type of machine:
- Portable Table Saws: Ideal for light-duty work, they usually handle cuts up to 24” width and depths of around 3” to 4”.
- DIY Sliding Table Saws: Can handle cuts up to 48” width, ideal for small-scale furniture making.
- Sliding Table Saws: Capable of cutting large panels and thicker materials, usually up to 120” width and depths of 6”.
- CNC Beam Saws: These machines are ideal for large-scale operations, cutting materials with widths of up to 200” or more and depths of up to 8”.
- CNC Nesting Machines: These offer the highest capacity, with cutting areas that can accommodate large panels of 8’x4’ or 12’x5’.
Can Your Furniture Cutting Machines Handle Round Or Curved Cuts?
Yes! For curved cuts, CNC Nesting Machines offer the precision and flexibility needed for furniture round cutting machines. These machines can be programmed to make intricate and curved cuts with high accuracy.
What Is The Maintenance Schedule For The Furniture Cutting Machines?
Regular maintenance ensures optimal performance:
- Portable Table Saws: Requires basic maintenance such as blade sharpening and motor checks every 3-6 months.
- DIY Sliding Table Saws: Routine maintenance every 6 months, including blade replacement and calibration.
- Sliding Table Saws: Maintenance every 6-12 months, focusing on blade sharpness, motor checks, and calibration.
- CNC Beam Saws and CNC Nesting Machines: Maintenance should be performed every 6-12 months. This includes software updates, calibration, and parts inspection.
Can I Get A Custom Furniture Cutting Machine For My Specific Needs?
Absolutely! BESTIN specializes in customizing machines based on your specific needs. If you have special requirements in terms of cutting size, automation, or material handling, we can provide tailored solutions to meet your demands.
