Wood Sanding Machine.
Bestin offer wide belt sanding machine, brush sanding machine, edge sanding machine, and manual sander for woodworking production. We organize the range by the work each machine is designed to perform, so you can identify the right machine category before comparing individual models and specifications.
Send us your part dimensions, material, incoming surface condition and required result. We will review the application before confirming a machine and configuration.
Machine Type
Wide Belt Sanding Machine
Our Wide Belt Sanding Machines are designed to process large flat workpieces with high precision, delivering consistent thickness, excellent flatness, and outstanding surface quality.
Heavy
R-R
- Two Sanding Unit
- Working Thickness: 3-110mm
- Working Width: 1300mm/ 1000mm/ 630mm
- Variable Speed Control
Vacuum
B-R-RP
- Two Sanding Unit+Planer Unit
- Working Thickness: 3-110mm
- Working Width: 1300mm/ 1000mm/ 630mm
- Variable Speed Control
Brush Sanding Machine
Heavy
6P
- Disc Brush Unit +Longitudinal Brushing Unit+ Cross Brush Unit
- Vacuum Table (Optional)
- Pull-Out Brush Unit
- Working Width: 1400/1100mm
- Working Thickness: 8-150mm
- Variable Speed Control
Economic
S
- Disc Brush Unit +Longitudinal Brushing Unit+ Cross Brush Unit
- Working Width: 1300/1000/630mm
- Working Thickness: 8-150mm
- Variable Speed Control
Edge Sanding Machine
Although surface quality is important, customers often notice the edges of furniture first. Poorly sanded edges can negatively affect edge banding quality, paint adhesion, and the overall appearance of the finished product.
Our Edge Sanding Machines are specifically designed to create smooth, consistent, and accurate edges before painting, laminating, or assembly.
Multi-unit
120DSX
- Belt Sanding +Edge Trimming +Brush Sanding +Pre-milling +Profile Milling +Profile Sanding+ Buffing
- Custom Unit
- Working Thickness: 5-40mm
- Working Width: min. 110mm
- Working Length: mini. 150mm
- Inverter Control
- Size:3350*810*1240mm
Compact
60DS
- 2 Brush Sanding Units +1 Belt Sanding Unit
- Custom Unit
- Working Thickness: 5-40mm
- Working Width: min. 110mm
- Working Length: mini. 150mm
- Inverter Control
- Size: 2250*800*1260mm

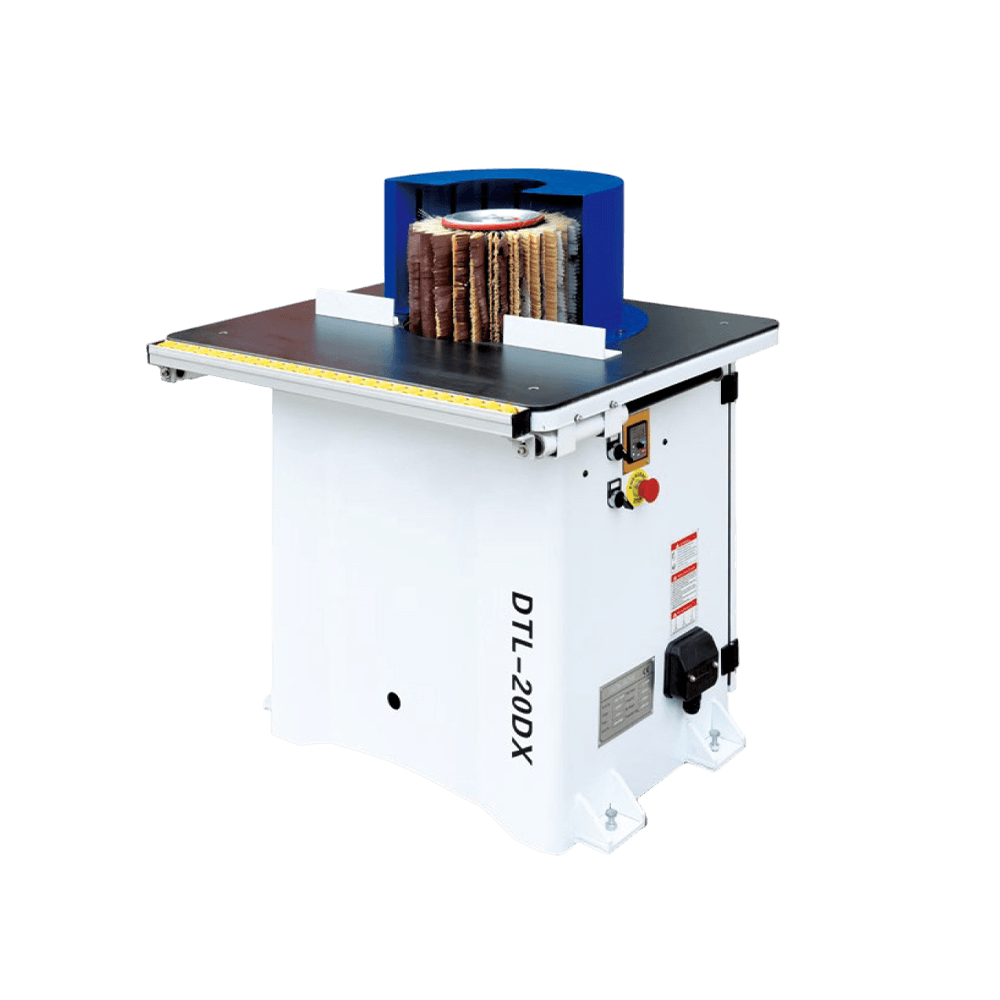

Manual Sanding Machine
Vertical
20
- Up/Down Oscillation
- Roller Diameter: 300mm
- Roller Height: 200mm
- Roller Lifting: Electric Control
- Roller Speed: Inverter Control
- Size: 870×750×1060mm

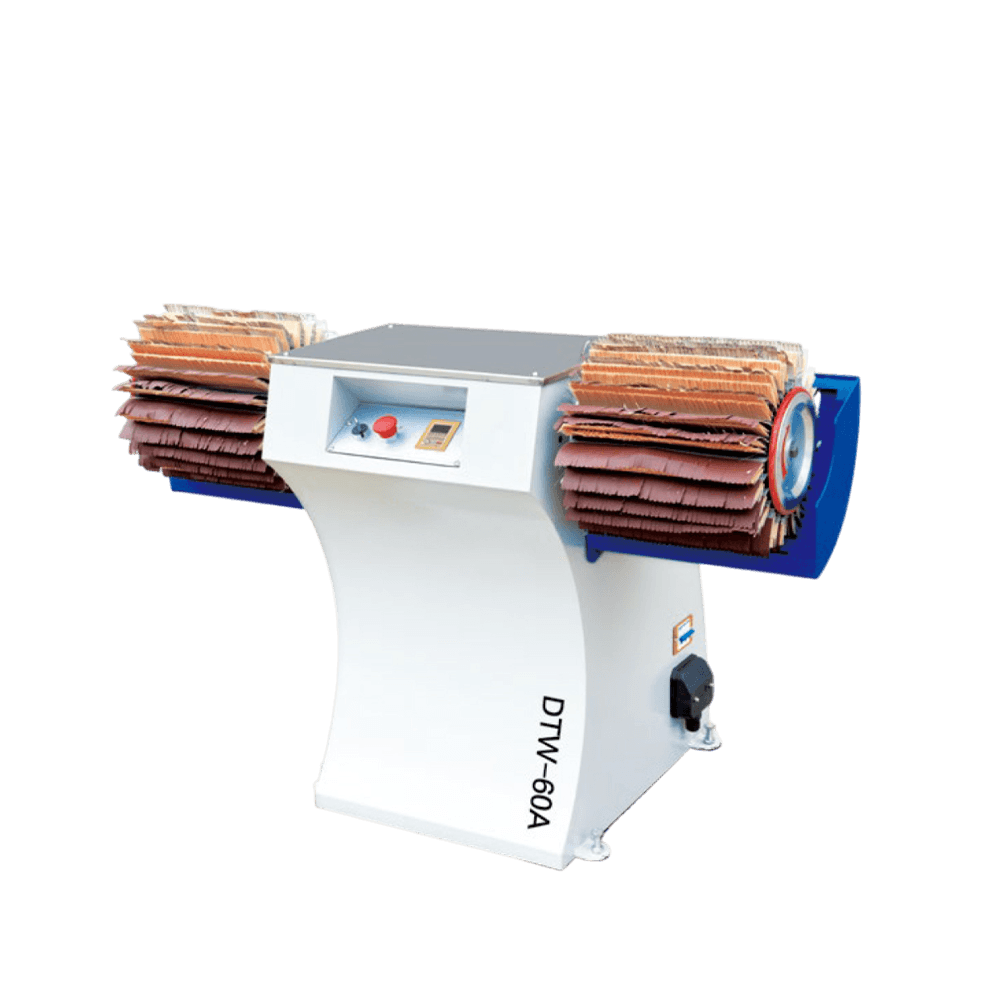

Horizontal
60A
- Two Head
- Roller Diameter: 300mm
- Roller Height: 300/300mm
- Roller Speed: Inverter Control
- Size: 1240×690×850mm
What Does Your Sanding Machine Need to Do?
Control Panel Thickness
Refine Flat Panel Surfaces
Sand CNC-Machined Doors and Profiles
Sand Straight
Sanding Special Shape
Complete Sanding Process or Line
How to Select an Industrial Sanding Machine.
1. Define the Workpiece
Provide the finished product, material, construction, dimensions and surfaces that require sanding.
2. Describe the Incoming Surface
Record thickness variation, machining marks, fibers, scratches, glue residue, coating condition or other defects. Identify which defects must be removed and which features must remain unchanged.
3. Define the Sanding Task
Separate calibration, stock removal, scratch refinement, profile sanding, edge sanding and finish preparation.
4. Define an Accepted Result
Use measurable dimensions, defect limits and, where appropriate, an approved sample under controlled lighting.
5. Calculate the Production Requirement
Provide the normal part mix, batch size, shifts and target accepted output.
6. Confirm Factory Conditions
Include available floor space, loading and unloading, operator tasks, electrical supply, compressed air, dust extraction and connection with other machines.
Application
Furniture
Kitchen Cabinet
Interior Door
Decorative Wall Panels
Affordable Solutions
Elevate your woodworking projects with our state-of-the-art sanding machine.
Contact us now to learn more about our products, request a quote, or schedule a demonstration.
FAQ About Sanding Machines
Do Your Sanding Machines Include Dust Collection Systems?
Yes! Most Bestin Group models feature integrated vacuum ports (sanding machine for wood with vacuum) to minimize airborne particles. Our brush and edge sanders prioritize dust-free operation for safer workshops. Explore Dust-Free Models →
Can I Customize A Sanding Machine For Unique Materials Or Workflows?
Absolutely. We specialize in customized sanding machines for wood, adapting grit types, feed speeds, and automation to handle exotic woods, composites, or high-volume production. Request a Custom Quote →
What Maintenance Do Industrial Sanding Machines Require?
Are Your Machines Suitable For Small Workshops?
What’s The Difference Between A Belt Sander And A Drum Sander?
- Belt sander machine for wood: Uses a continuous loop for fast, even finishes on flat surfaces (e.g., panels, tabletops).
- Drum sander: Employs rotating cylinders for heavy material removal (e.g., leveling floors, stairs).
Do Your Machines Comply With Industrial Safety Standards?
All Bestin Group equipment meets ISO and OSHA guidelines, with emergency stops, guards, and noise reduction.
Can I Automate An Existing Sanding Machine?
Yes! Upgrade older models with our automatic plywood sanding machine for wood kits, featuring robotic arms and AI-driven calibration. Learn About Automation →
What Grit Should I Use For Furniture Vs. Flooring?
- Furniture: Start with 80–120 grit (coarse) and finish with 180–240 (fine) (sanding machine for wood furniture).
- Flooring: Use 40–60 grit for leveling, then 100+ for polishing.
Do You Offer Warranties Or Spare Parts?
All machines include a 1-year warranty, with lifetime access to genuine spare parts like belts, brushes, and motors. Learn Our After-Service →
