Edge Banding Machine.
BESTIN offered edge banding machines for cabinet, wardrobe, door and panel furniture production. Our range covers straight-edged panel processing, compact and flexible production, portable work, shaped components and dedicated bevel-edge applications.
Tell us the finished edge, workpiece and process. We will help you identify the relevant machine before confirming a model, configuration and test scope.
Machine Type
Automatic Edge Banders
For compatible straight-edged panels that move through a continuous processing sequence.
Machine can be equipped with pre-milling, gluing and edge feeding, end cutting, rough and fine trimming, corner rounding, scraping, glue-line cleaning and buffing.
Straight Edge
F450DJ
- Pre-Mill —Glue —End Cut —Fine Trim —Corner Trim —Scrap —Flat Scrap—Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-60mm
- Size: 6800×950×1850mm
PUR
F450DJ-PUR
- Pre-Mill —Glue —End Cut —Fine Trim —Corner Trim —Scrap —Flat Scrap—Buff
- PUR
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-60mm
- Size: 9400×950×1850mm
Manual Edge Banding Machine
Our Manual Edge Banding Machine is a flexible and cost-effective machine for small woodworking shops, custom furniture manufacturers, and low-volume panel processing.
It is designed to apply edge banding tape to straight and curved panel edges with simple operation and easy adjustment.
Straight/Curve

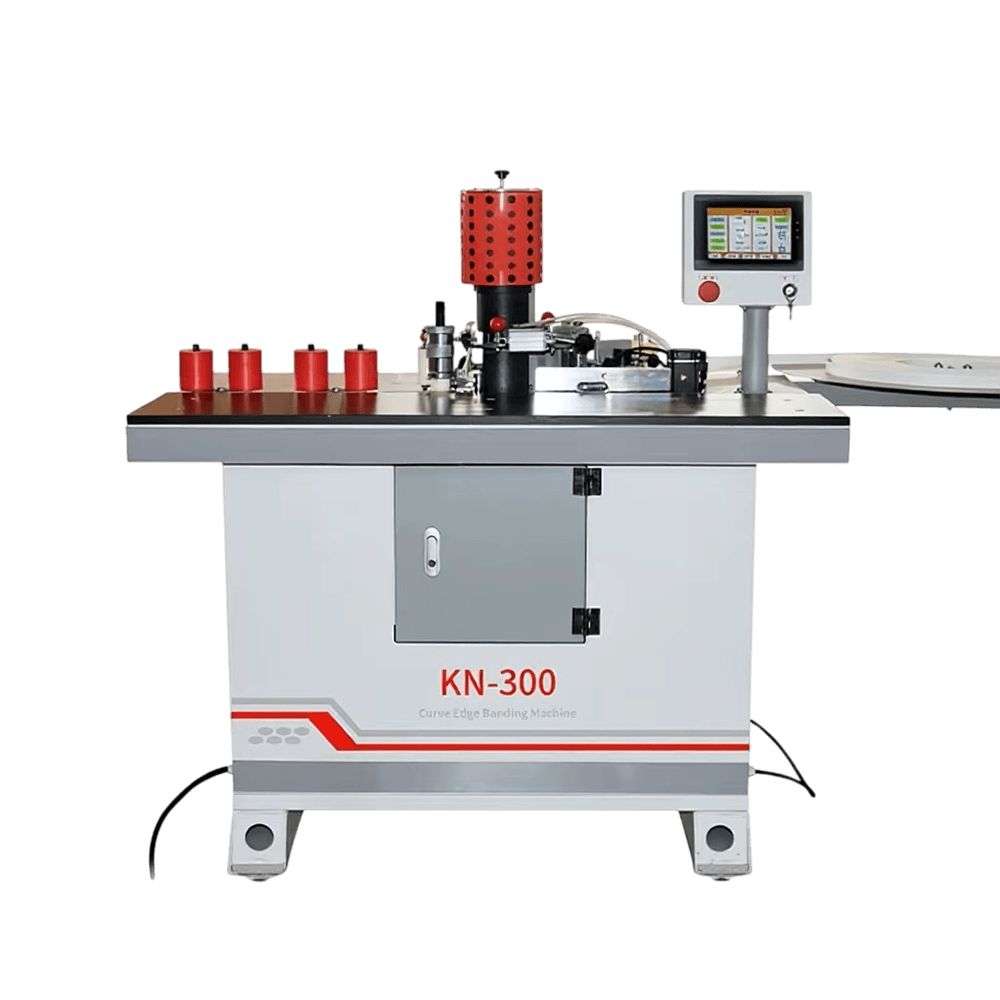

KN300
- PLC
- EVA
- Edge Thickness: 0.5-2mm
- Edge Banding Width: 14-70mm
- Size: 1220*820*1240mm
Straight

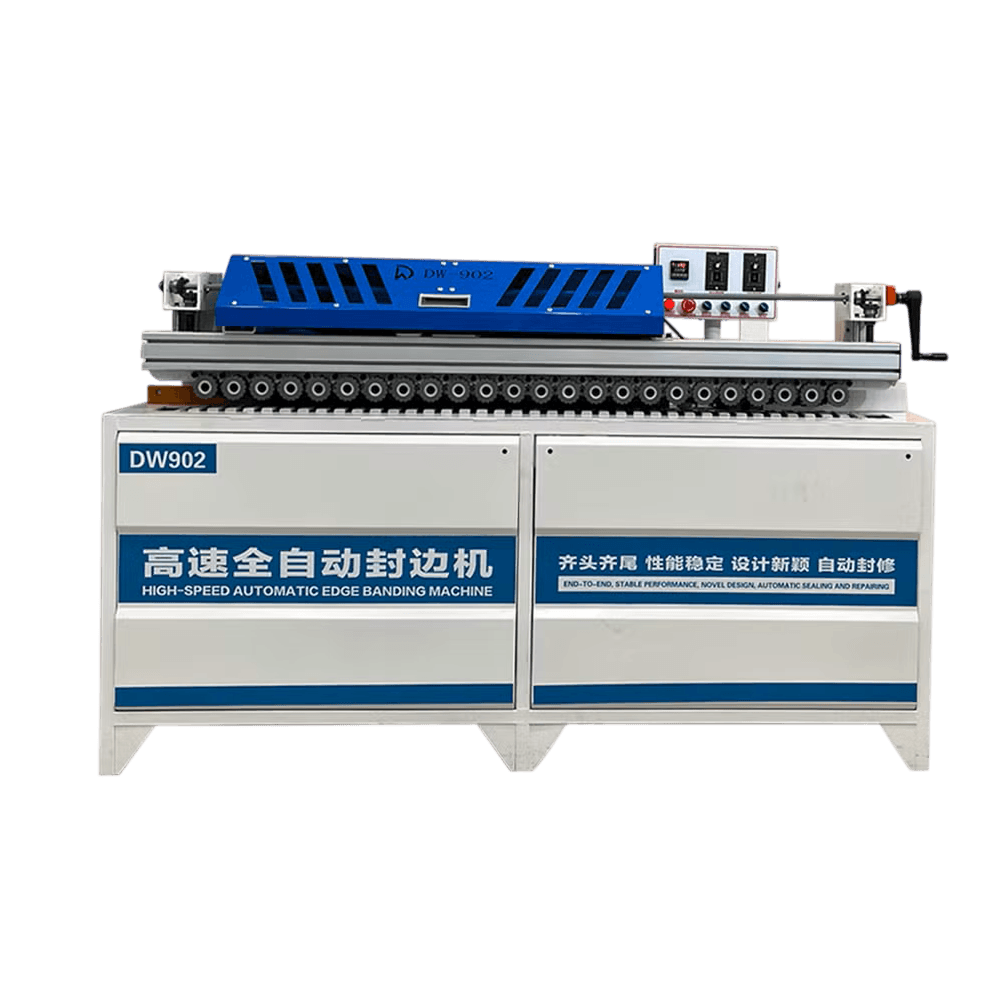

902
- Glue —End Cut —Trim —Buff
- EVA
- Edge Thickness: 0.5-2mm
- Board Thickness: 10-50mm
- Size: 2065 * 605 * 1050mm
Compact Edge Banding Machine
Our Compact Edge Banding Machine provides automatic edge banding performance in a smaller and more economical machine design.
Depending on the configuration, a compact edge bander can integrate processes such as glue application, edge tape pressing, end trimming, rough trimming, fine trimming, scraping, and polishing.
Straight Edge
F800
- Pre-Mill —Glue —End Cut —Fine Trim —Corner Trim —Scrap —Flat Scrap—Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-50mm
- Size: 3550*640*1316mm
Straight Edge
F1
- Pre-Mill —Glue —End Cut —Rough Trim —Fine Trim —Corner Trim —Scrap —Buff
- EVA
- Edge Thickness: 0.4-3mm
- Panel Thickness: 10-45mm
- Size: 4250*600*1400mm
Contour and Curved Edge Banders
Curved/“L”

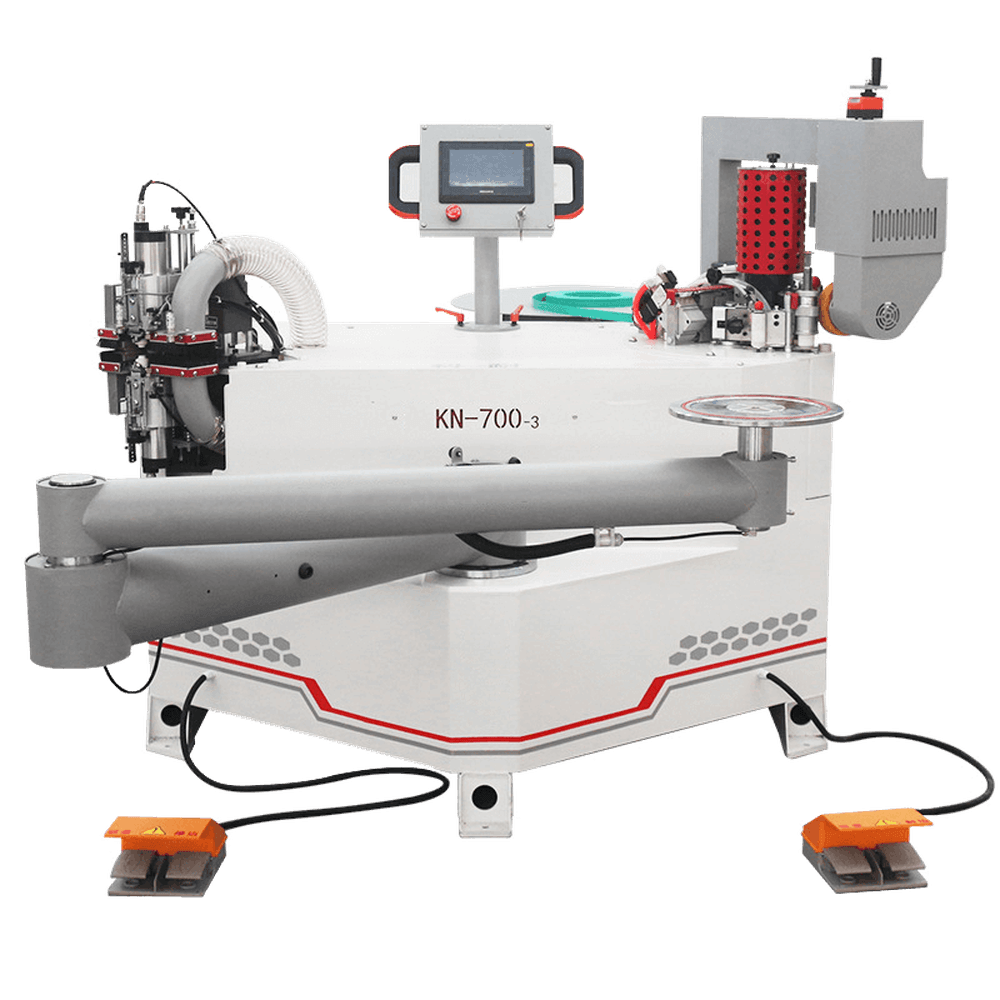

KN700-3
- Single Arm
- Fully Automatic
- Edge Banding/Trimming
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 1870*1920*1530mm
Curved/“L”

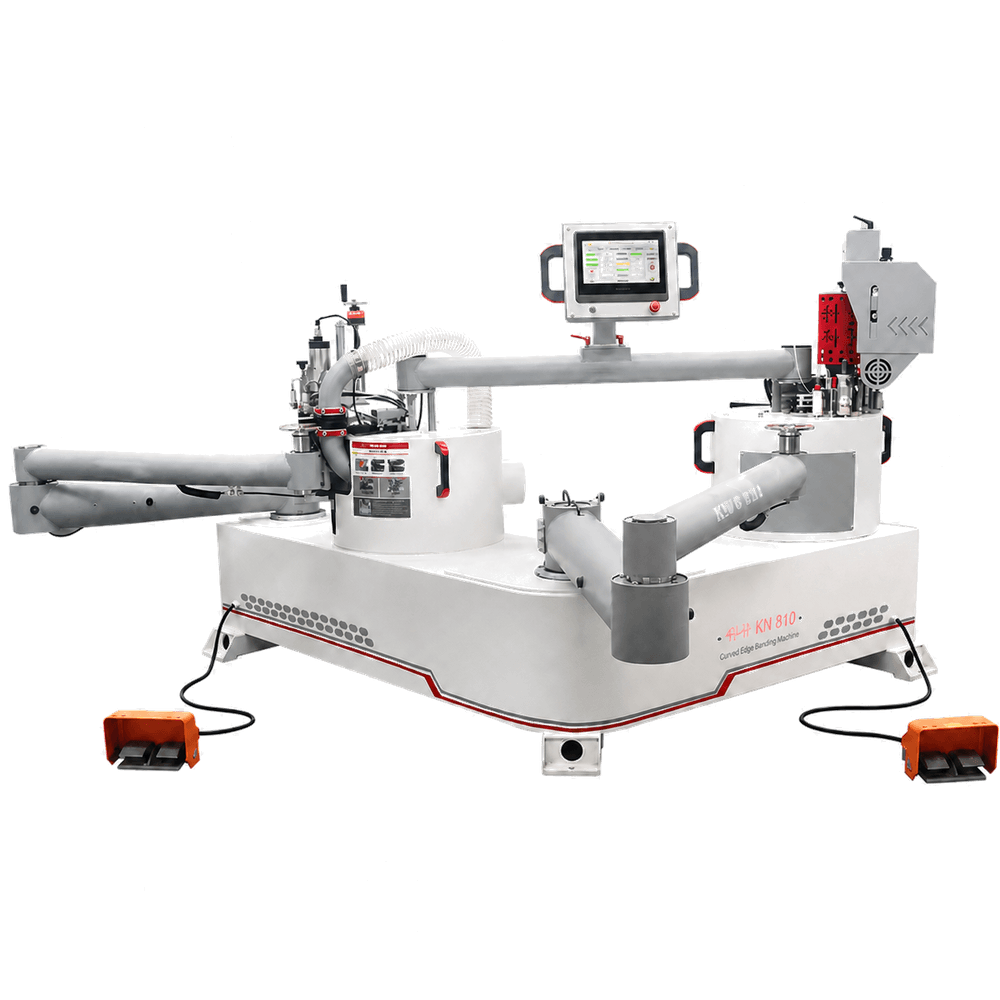

KN810
- Double Arm
- Fully Automatic
- Edge Banding/Trimming
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 2650*1780*1580mm
45-Degree and Bevel Edge Banders
45° Bevel.
F450
- 45° Bevel Straight & Pure Bevel
- EVA
- Edge Banding Thickness: 0.8-2.0mm
- Panel Thickness:15-25mm
- Size: 3750*650*1540mm
45° Bevel.
F350-2
- 45° Bevel Straight & Pure Straight
- EVA (Option: PUR)
- Edge Banding Width:14-70mm
- Edge Banding Thickness: 0.5-2mm
- Size: 510*110*175cm
What Does Your Edge Banding Machine Need to Process?
Process Straight Panels in a Continuous Pass
Fit Straight-Edge Production into a Smaller Footprint
Apply Edging in Flexible Workshop Production
Band Curved, Round or Irregular Components
Process a 45-Degree or Bevelled Edge
Plan Connected Cell
How to Select an Industrial Edge Banding Machine
1. Define the Edge Geometry
State whether the part has straight edges, outside curves, inside curves, corners, holes near the edge, a 45-degree bevel, a soft-formed profile or several geometries. Provide a drawing with dimensions and radii.
2. Define the Panel
Provide the substrate, surface, thickness, maximum and minimum length and width, edge condition and part weight.
3. Define the Edge Material
Include part dimensions, quantities, rip and cross sequences, angle requirements, décor or grain direction.
4. Define the Adhesive
State whether EVA, PUR, pre-coated edge, hot air, laser or another method is required.
5. Define the Processing Units
Confirm which operations should be completed by the machine: pre-milling, panel heating, release agent, glue application, edge feeding, pressure, end cutting, rough trimming, fine trimming, corner rounding, radius scraping, flat scraping, glue-line cleaning, buffing, grooving or sanding.
6. Define the Accepted Finished Edge
Specify bond coverage, edge position, radius or bevel, visible glue line, and downstream inspection.
7. Define Production and Handling
Provide the product mix, batch size, infeed and outfeed method, return conveyor, and downstream flow.
8. Confirm Factory Conditions
Include available floor space, electrica, compressed air, dust extraction, and installation.
Application
Cabinet Manufacturing
Our Edge banding machines are widely used for cabinet doors, cabinet sides, shelves, partitions, and other panel components. They apply edge tape to exposed panel edges to create a clean, durable, and furniture-grade finish.
Wardrobe & Closet Manufacturing
Edge banding is commonly used on wardrobe panels, shelves, side panels, doors, and drawer components. High-quality trimming and polishing help create consistent edges across large production batches.
Office Furniture
Office desks, workstations, filing cabinets, conference tables, and storage units often require precise edge finishing. Edge banding machines can process straight panel edges efficiently for commercial furniture production.

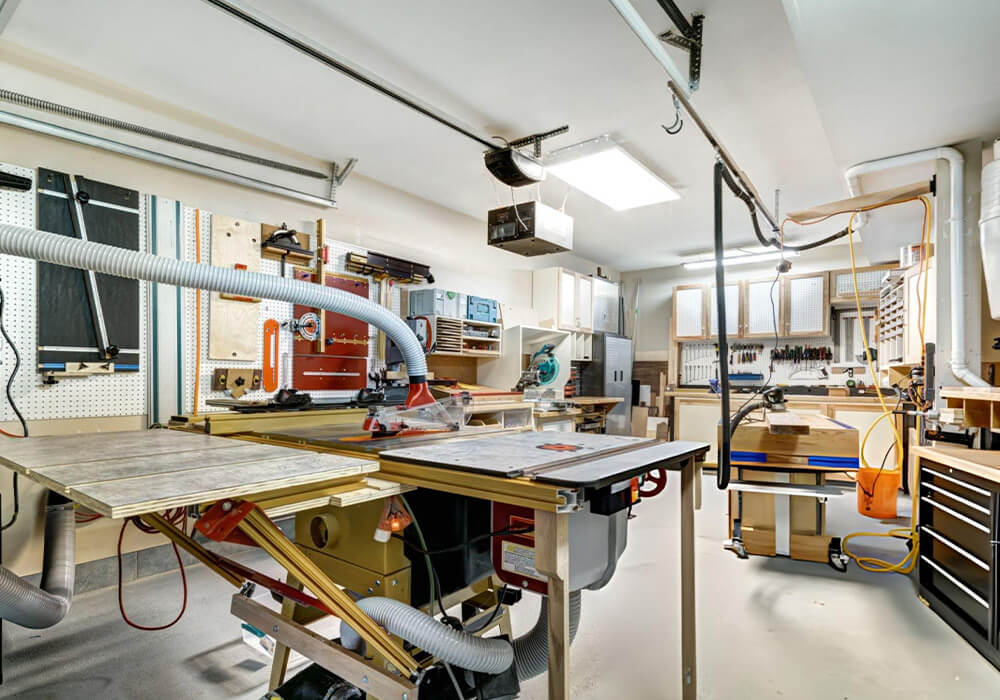

Custom Furniture & Small Workshops
Compact and semi-automatic edge banding machines are suitable for custom furniture shops and small manufacturers. They provide a more consistent finish than manual edge-banding methods while requiring less production space.
Find the Right Sawing Machine for Your Cut List.
FAQ About Edge Banding Machine.
Can one edge banding machine process straight, curved and 45-degree edges?
Which panel materials can be edge banded?
Which edge materials can an edge bander apply?
Do I need pre-milling?
Pre-milling may help prepare a consistent reference edge before adhesive application, especially when the saw-cut edge has taper, chipping or surface irregularity. Its value depends on incoming edge quality, material, accepted finish and upstream cutting process.
Do I need corner rounding?
Corner rounding is evaluated when the front and rear corners of compatible straight-edged components require a finished profile. Confirm the edge thickness, profile, panel dimensions, minimum workpiece and accepted corner result.
Can an edge bander connect to a return conveyor or automatic line?
Some straight-edge machines may be integrated with return conveyors, loading, unloading, barcode, production data or downstream handling. Integration depends on the machine interface, panel range, layout, cycle balance, safety and project scope.
