Hinge Boring Machine.

BESTIN offers hinge boring machines for cabinet doors, furniture panels, and kitchen cabinets. It can drill repeatable hinge-cup and mounting-hole patterns in cabinet doors. There are four model for your choose, one-, two-, three-, and four-head configurations. Each model serves a different door length, hinge layout, and production level.

Compare them, then send your door size and hinge drawing. We will review the boring-head pattern, factory utilities, and output before preparing a technical quotation.

Machine Type

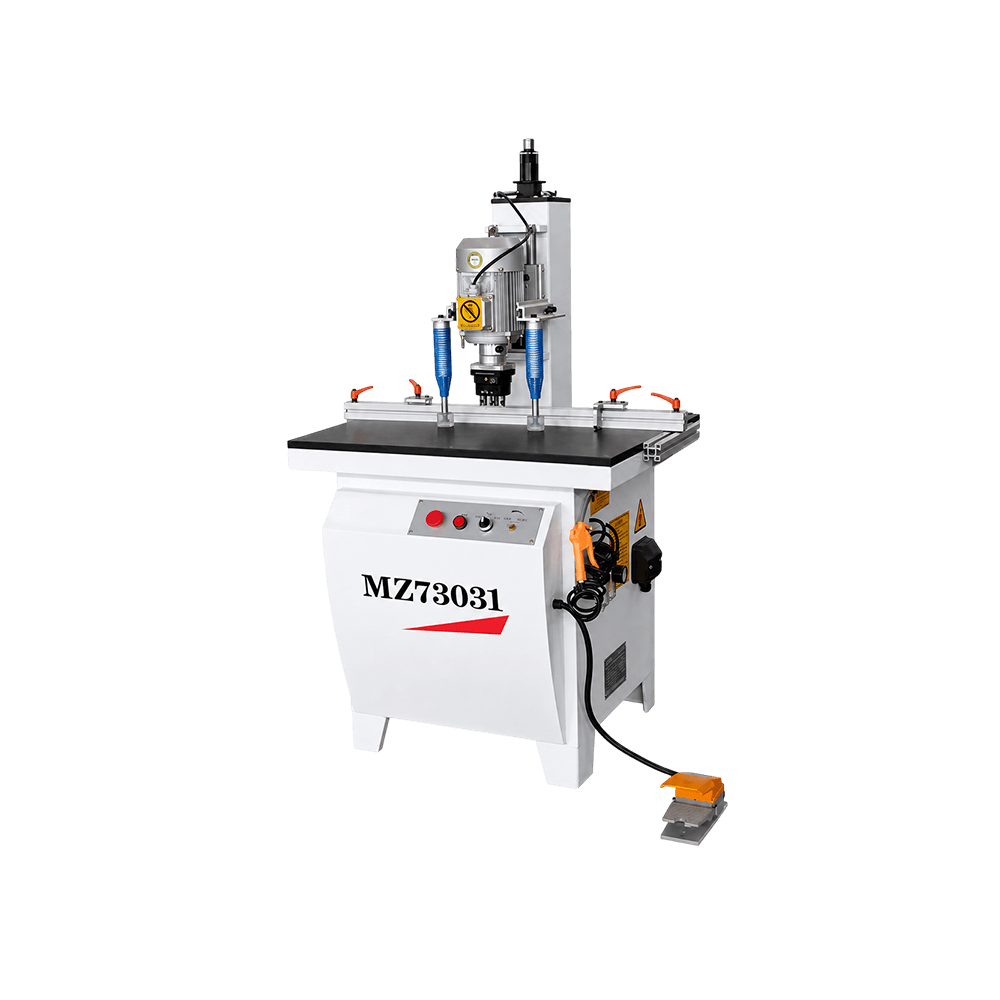

Hinge Boring Machine MZ73031

Single Head

MZ73031

  • One Boring Head
  • Three Spindles
  • Max. Drilling Diameter: 50 mm
  • Max. Drilling Depth: 60 mm
  • Spindle Speed: 2840 Rpm
  • Motor Power: 1.5 kw
  • Air Pressure: 0.6–0.8 mpa
  • Machine Size: 800 × 750 × 1700 mm

Details
Get A Quote

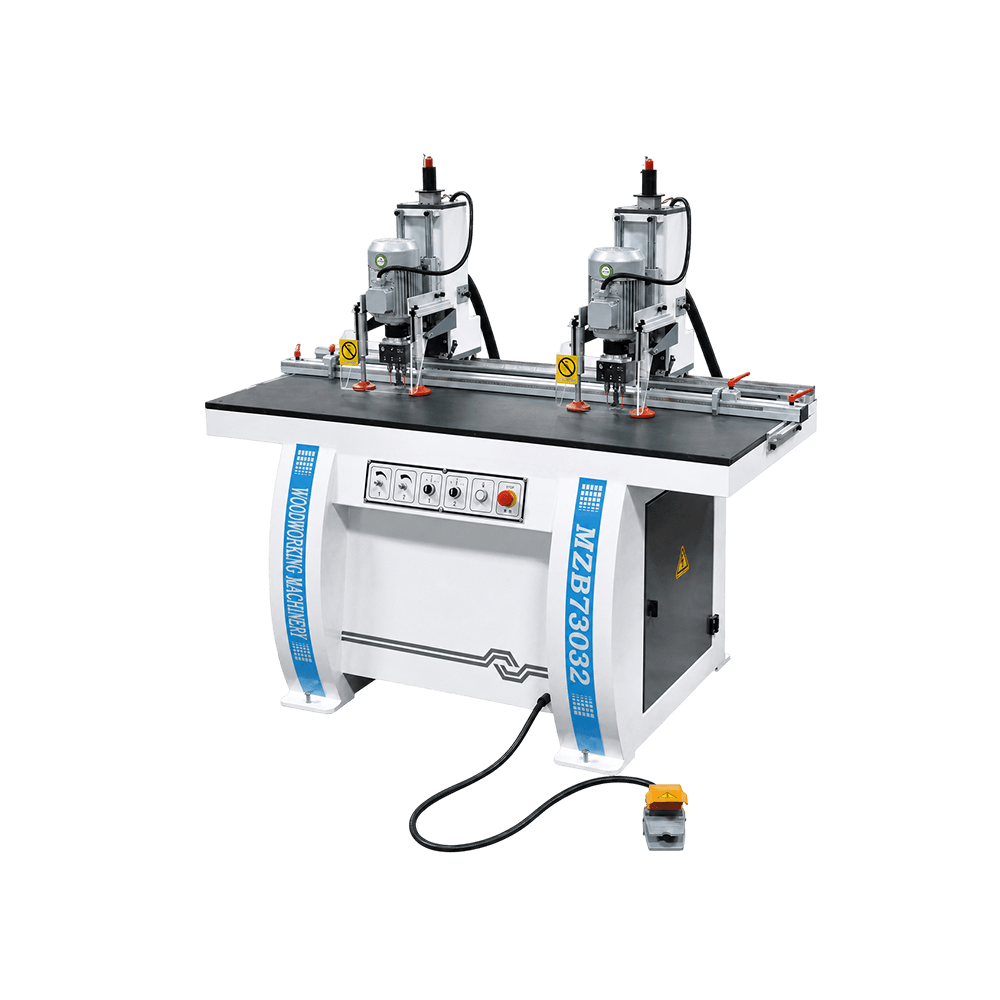

Hinge Boring Machine MZ73032

Double Head

MZ73032

  • Two Boring Heads
  • Three Spindles Per Head
  • Maximum Drilling Depth: 50 mm
  • Drill-Holde: 48-6 mm
  • Motor Power: 1.5 Kw × 2
  • Working Pressure: 0.6–0.8 mpa
  • Machine Size: 1700 × 850 × 1700 mm

Details
Get A Quote

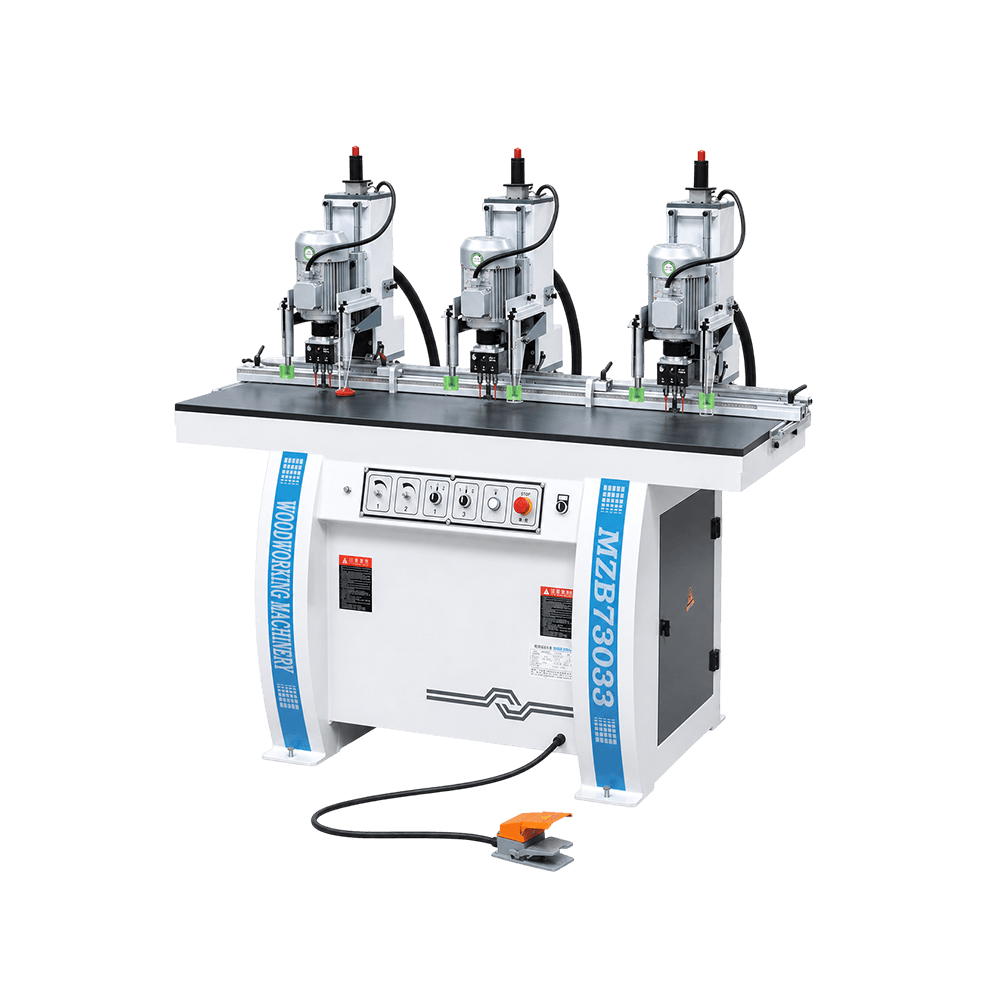

Hinge Boring Machine MZ73033

Three Head

MZ73033

  • Three Boring Heads
  • Three Spindles Per Head
  • Maximum Drilling Diameter: 35 mm
  • Maximum Drilling Depth: 50 mm
  • Maximum Processing Length: 1500 mm
  • Motor Power: 1.1 Kw × 3
  • Machine Size: 1700 × 800 × 1550 mm

Details
Get A Quote

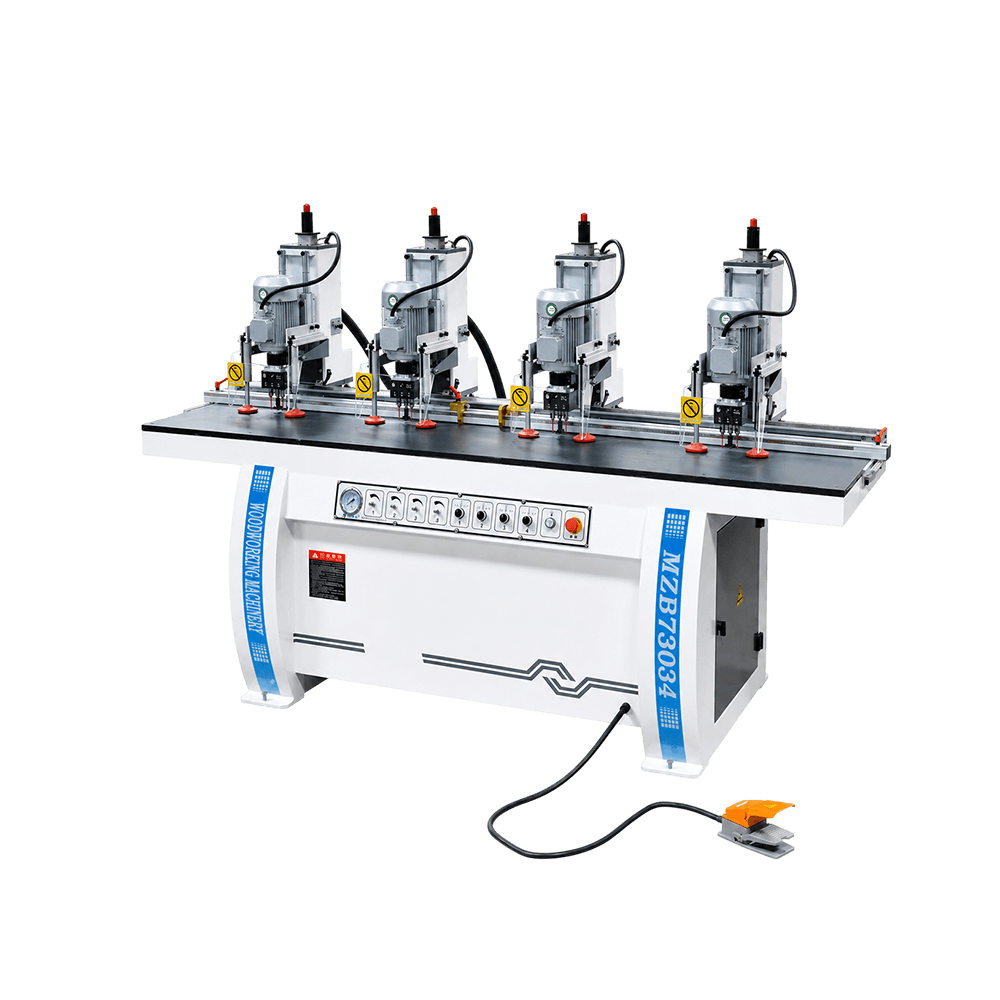

Hinge Boring Machine MZ73034

Four Head

MZ73034

  • Four Boring Heads
  • Three Spindles Per Head
  • Maximum Drilling Diameter: 35 mm
  • Maximum Drilling Depth: 50 mm
  • Maximum Processing Length: 2300 mm
  • Motor Power: 1.1 Kw × 4
  • Machine Size: 2550 × 800 × 1550 mm

Details
Get A Quote
Heavy-Duty Machine Body
Our hinge boring machine is built around a rigid, heavy-duty body designed for stable drilling under continuous workshop use. A reinforced structure helps support the worktable, drilling head, and clamping system while reducing unwanted vibration during operation.
Precision Linear Guide Rails
Precision linear guide rails provide smooth and controlled movement for the machine's positioning and adjustment components. It helps the operator make accurate position changes while keeping movement stable and repeatable during setup and production.
High-Precision Drilling Bits
High-precision drilling bits can create hole geometry while reducing rough edges, chipping, and unnecessary surface damage around the hinge cup. Accurate tooling is particularly important for 35 mm concealed hinge applications, where the hinge cup must fit correctly inside the drilled recess.
Powerful Drive Motor
The hinge boring machine is equipped with a powerful drive motor. It can maintain consistent spindle performance when drilling larger hinge cup holes or processing dense wood-based panels, reducing the risk of speed loss under load.
Adjustable Stop Flange
The adjustable stop flange provides a clear mechanical reference for positioning the cabinet door before drilling. It helps control the distance between the panel edge and the hinge cup hole, allowing operators to set a repeatable drilling position.

What Is What is 35 mm Hinge Cup Boring.

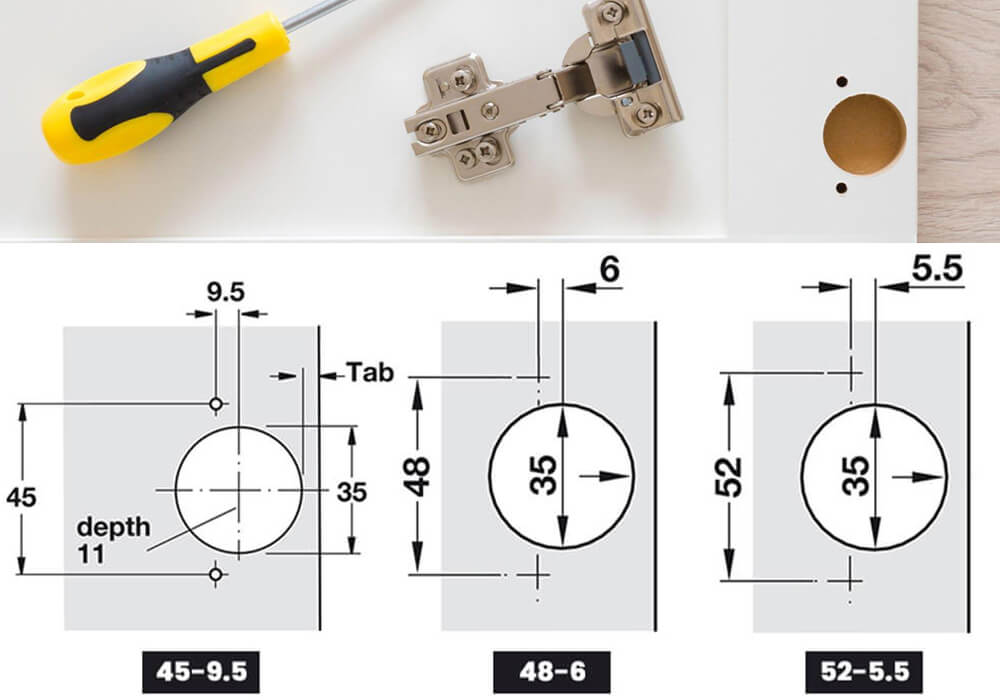

A 35 mm hinge cup hole is one of the most common configurations for European-style concealed cabinet hinges. It include 35mm the central hinge cup and the smaller mounting holes used to attach the hinge.

The hinge cup is installed into a circular recess on the back of the cabinet door. Additional mounting holes are drilled beside the cup hole to secure the hinge to the door.

Our hinge boring machines can be configured to drill the 35 mm hinge cup hole together with the required mounting holes in one operation.

Our standard drill bit model is 48-6 mm. Different drilling tools or drilling-head configurations can be supplied.

Hinge Boring Machine What Is What is 35 mm Hinge Cup Boring
Hinge Boring Machine Hinge Systems and Drilling Configurations

Hinge Systems and Drilling Configurations.

Our hinge boring solutions can be configured for a wide range of concealed hinge applications.

  • Blum Hinges: Blum concealed hinges are widely used in kitchen cabinets and furniture production.
  • Grass Hinges: Grass hinge systems can also be supported with an appropriate drilling configuration.
  • European Concealed Hinges: Many European-style concealed hinges use a 35 mm hinge cup. These hinges are commonly used in cabinet doors and furniture production.
  • Customized Hinge Configurations: If your application requires a non-standard cup diameter, special hole spacing, different drilling depth, or customized mounting pattern, We can evaluate the application and recommend a suitable drilling-head configuration.

How to Select a Hinge Boring Machine?

Start with the door and hinge pattern. Then check the batch size, required handling, and factory conditions.
Send Your Production Requirement

1. Identify the Hinge

Provide the manufacturer, model number, drawing, and fixing method. If the hinge is not selected, provide the required cup size and mounting pattern.

2. Map the Hole Positions

Show the first hinge position, spacing, final position, reference edge, and tolerances. A dimensioned door drawing is the best source.

3. Define the Workpiece Range

List the min. and max. door length, width, and thickness.

4. Review the Product Mix

State how many door sizes and hinge patterns run each day.

5. Set the Output Target

Provide doors per shift, hinges per door, shift length, batch size, and current cycle.

6. Check Factory Utilities

Provide voltage, frequency, phase, air pressure, installation space, access route, and chip-control needs.

Application

Our hinge boring machines are designed for a range of cabinet and furniture manufacturing applications.
Hinge Boring Machine Kitchen Cabinet Doors

Kitchen Cabinet Doors

Kitchen cabinet manufacturers often need to drill repeated hinge positions across large batches of doors. Our hinge boring machine provides consistent positioning and reduces manual measurement.

Hinge Boring Machine Wardrobe and Closet Doors

Wardrobe and Closet Doors

Large wardrobe doors may require multiple hinges. A multi-spindle machine can help maintain consistent hinge spacing across longer workpieces.

Request a Hinge Boring Machine Recommendation and Quote.

Explore Edge Banding Solutions
Send the finished product type, door size cup-hole diameter and depth, pilot-hole diameter and spacing. We can review the hinge pattern, and prepare the quotation.
