Manual Edge Banding Machine.
BESTIN manual edge banding machines provide a flexible and cost-effective solution for applying edge banding for small workshops, custom furniture production. Some manual edge banding machines was equipped with automatic tape feeding, cutting, trimming, or stored settings.
Send your panel drawing, edge band sample, required output, and local voltage. We will recommend a suitable model and configuration.
Machine Type
Portable Edge Bander
Our portable edge banding machine designed for flexible woodworking applications.
Its light weight makes it easier to move between work areas. It supports straight, curved and irregular edge sealing and uses an adjustable edge banding speed of approximately 2–6 m/min.
Hand Held

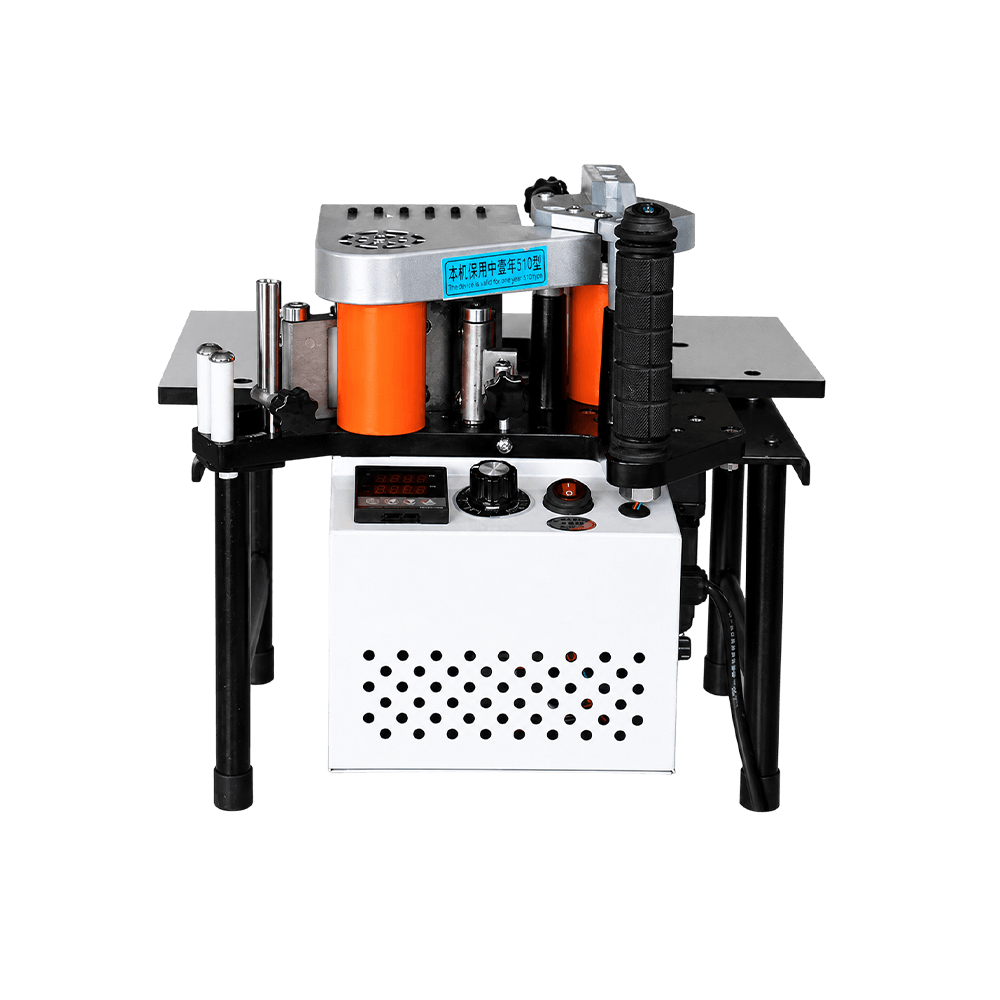

F50-3
- Straight and Curved edges
- Power: 220V, 50Hz
- Rated Power: 1.2 kW
- Glue Capacity: 1,000 mL
- Heating Time: 5–8 minute
- Edge Height: 7–60 mm
- Banding Speed: 0–6 m/min
- Manual Tape Breaking
- Weight: 14 kg
Portable

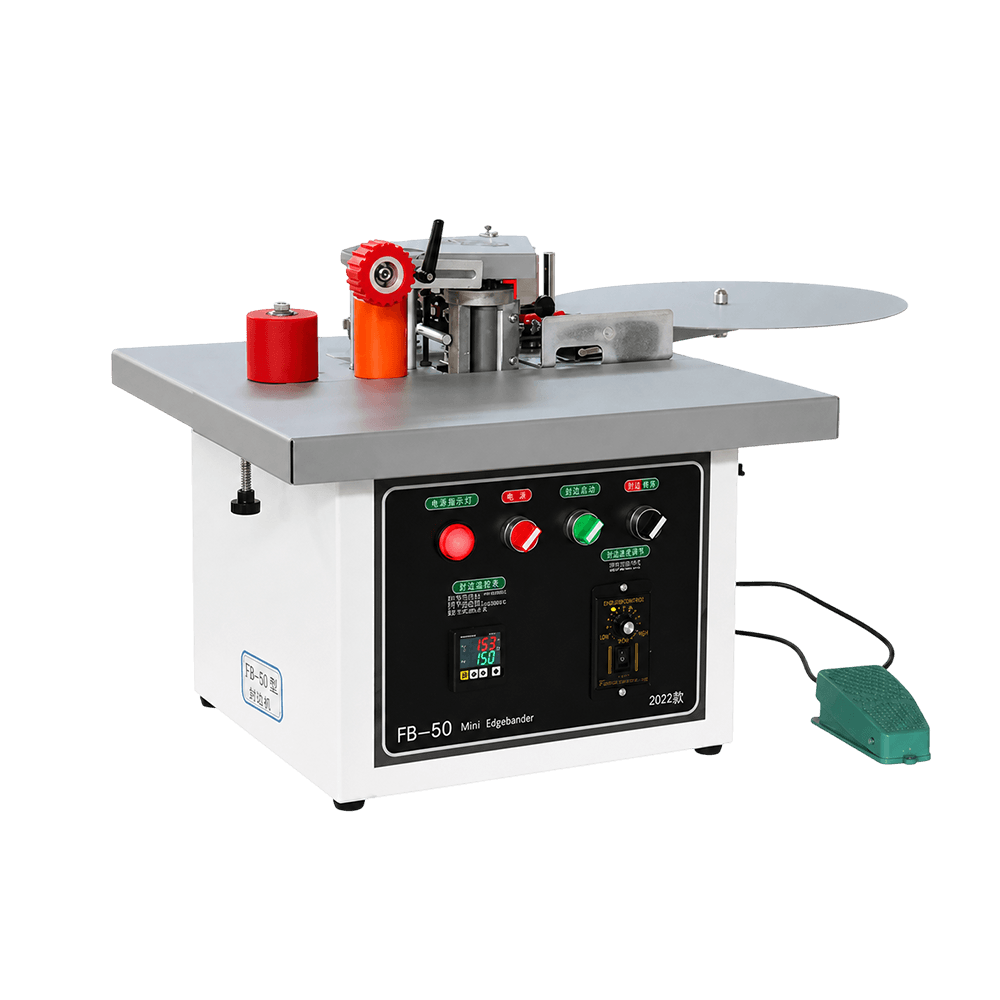

F50
- Straight, Curved, and Irregular Panels
- Power: 220V/50Hz
- Air Pressure: 0.3–0.6 mpa
- Edge Width: 10–60 mm
- Edge Thickness: 0.3–2 mm
- Banding Speed: 2–6 M/Min
- Glue Capacity: 1,000 Ml
- Weight: 24 Kg
Small Edge Banding Machine
Our Small Edge Banding Machine provides a more substantial working platform while retaining a compact footprint.
It is designed for straight and shaped boards and includes features such as speed regulation, temperature control and a large 2,800 ml glue pot.
Straight/Curve

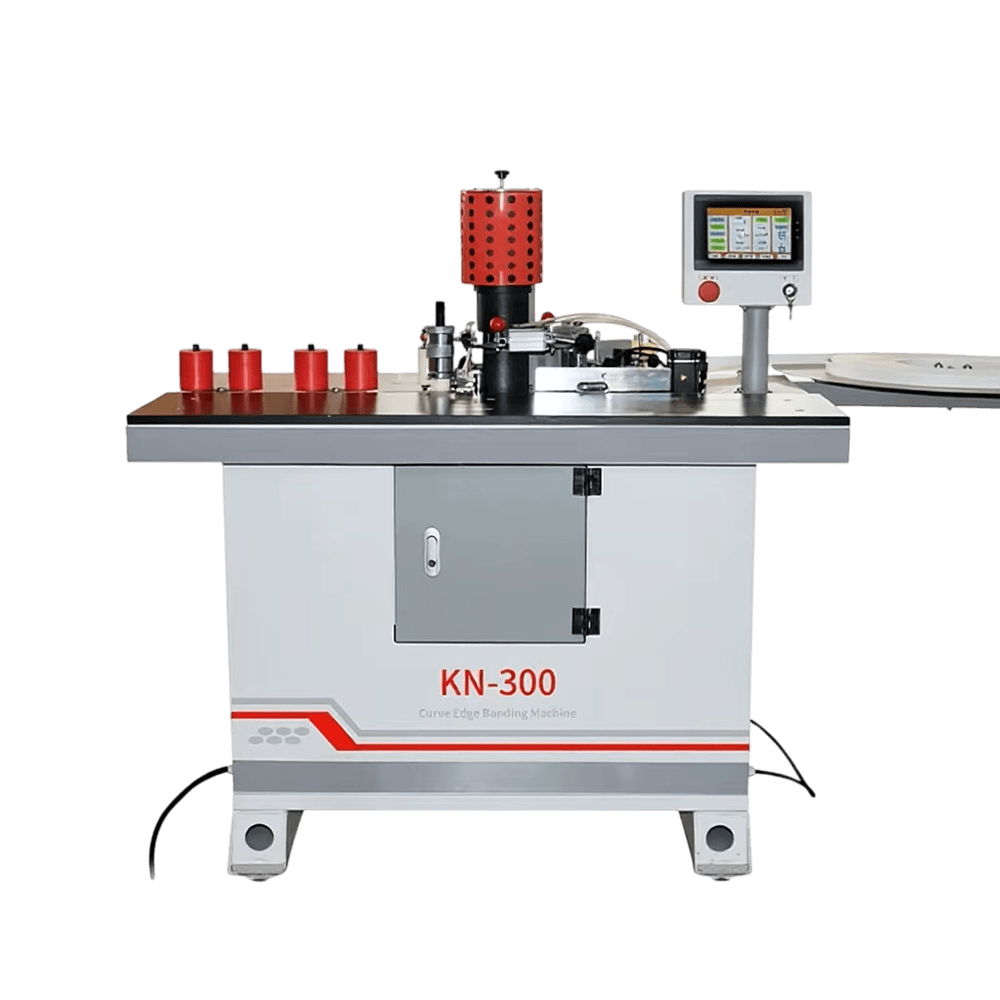

KN300
- PLC
- EVA
- Edge Thickness: 0.5-2mm
- Edge Banding Width: 14-70mm
- Size: 1220*820*1240mm
Straight

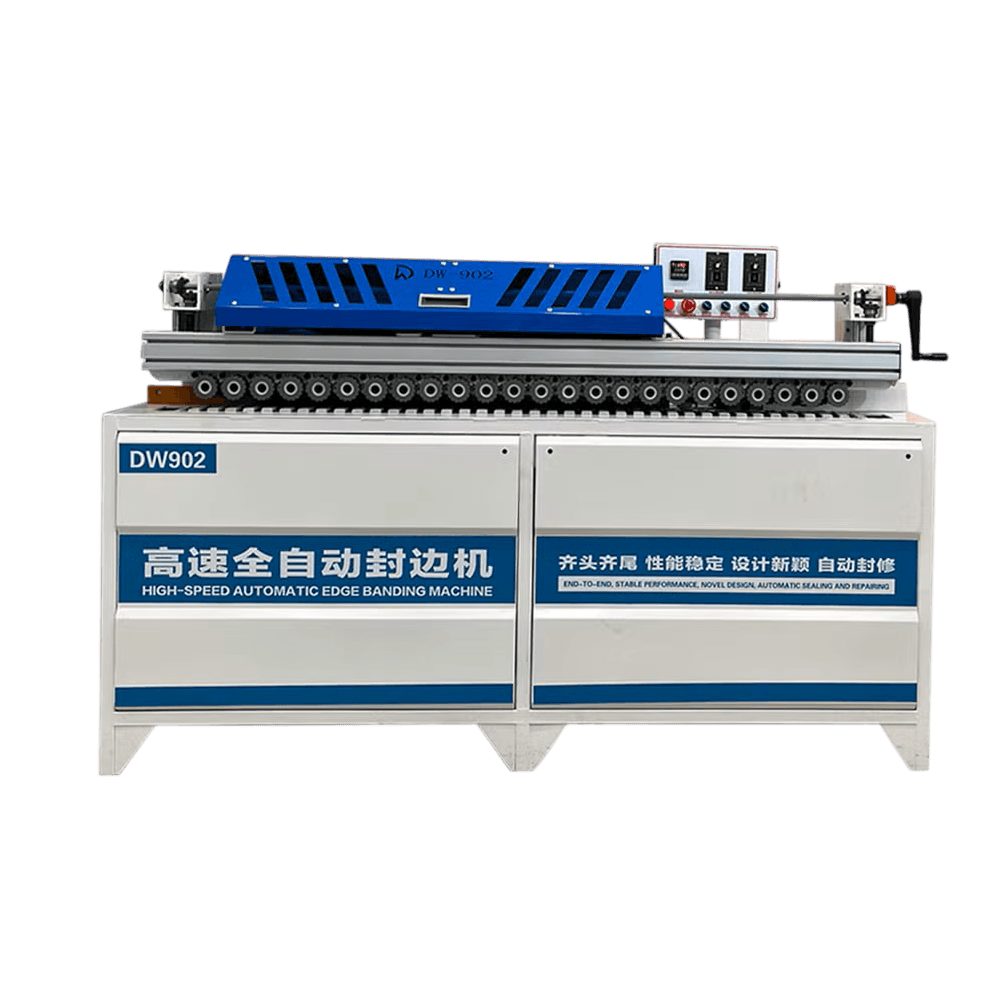

902
- Glue —End Cut —Trim —Buff
- EVA
- Edge Thickness: 0.5-2mm
- Board Thickness: 10-50mm
- Size: 2065 * 605 * 1050mm
45° Manual Edge Banding Machine
Our manual 45° edge banding machine can be used for straight, curved and bevel-related applications. It is intended for door and panel designs that use a 45-degree profile, including handleless cabinet fronts.
Manual

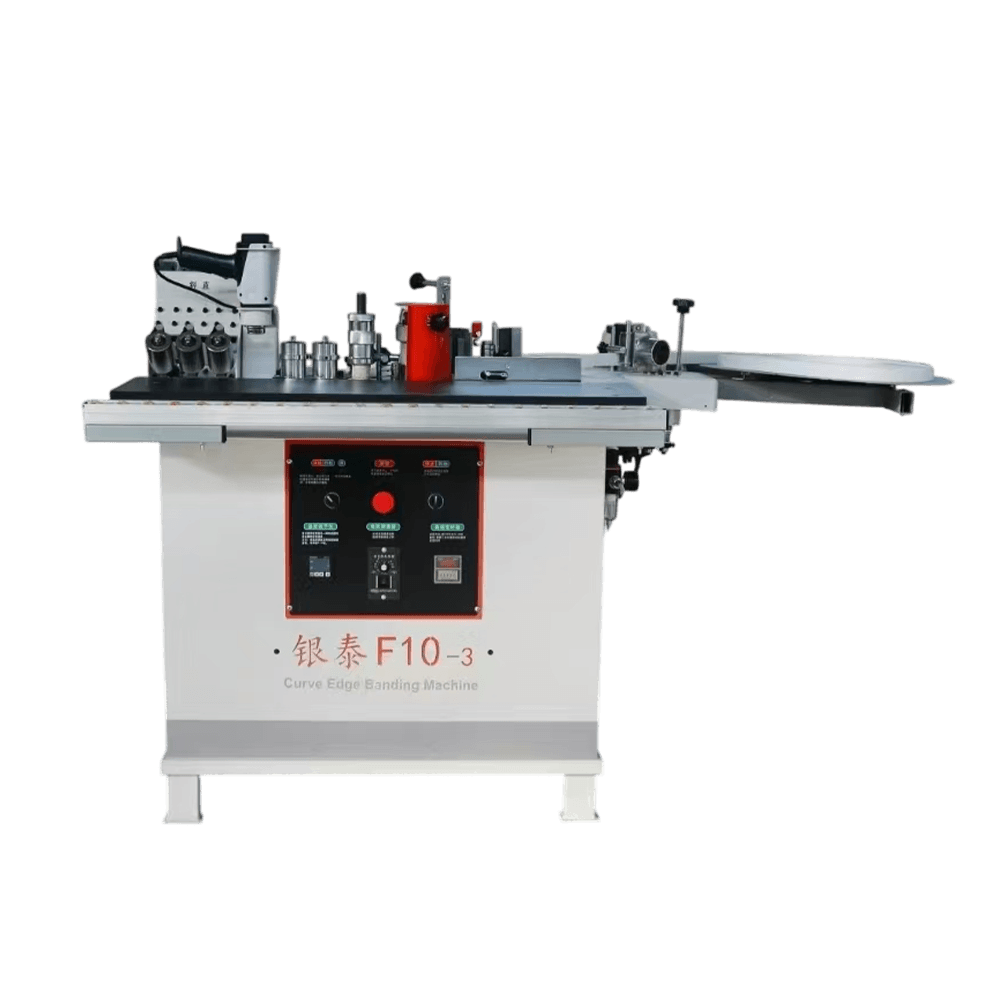

F10-3
- 45° Bevel Straight & Pure Straight &Curved
- EVA
- Edge Banding Width:14-40mm
- Edge Banding Thickness: 14-25mm
- Size: 101*80*110cm
Contour and Curved Edge Banders
Our contour edge bander supports round, curved, L-shaped or irregular components and larger workpieces that need more reach.
Its rotating banding head and stacked-arm structure help the operator guide complex parts through the banding path.
Curved/“L”

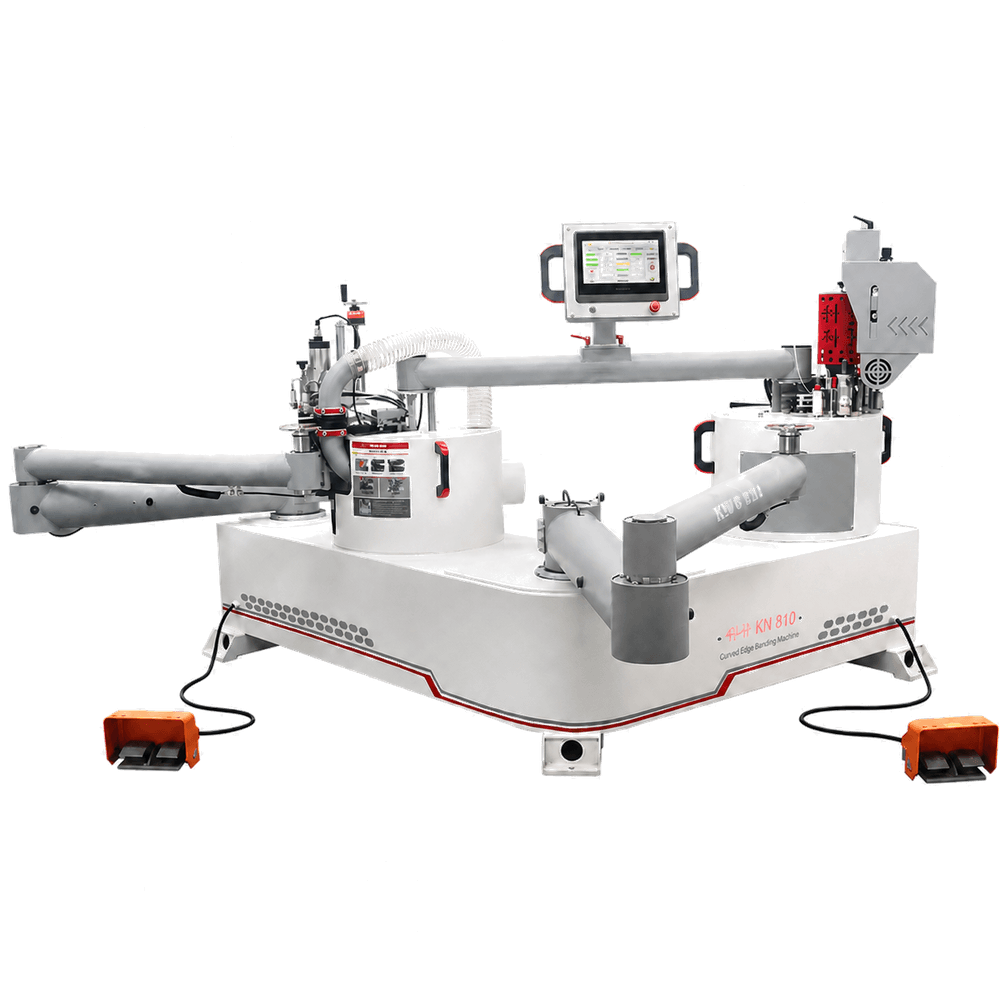

KN810
- Double Arm
- Fully Automatic
- Edge Banding/Trimming
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 2650*1780*1580mm
Curved/“L”

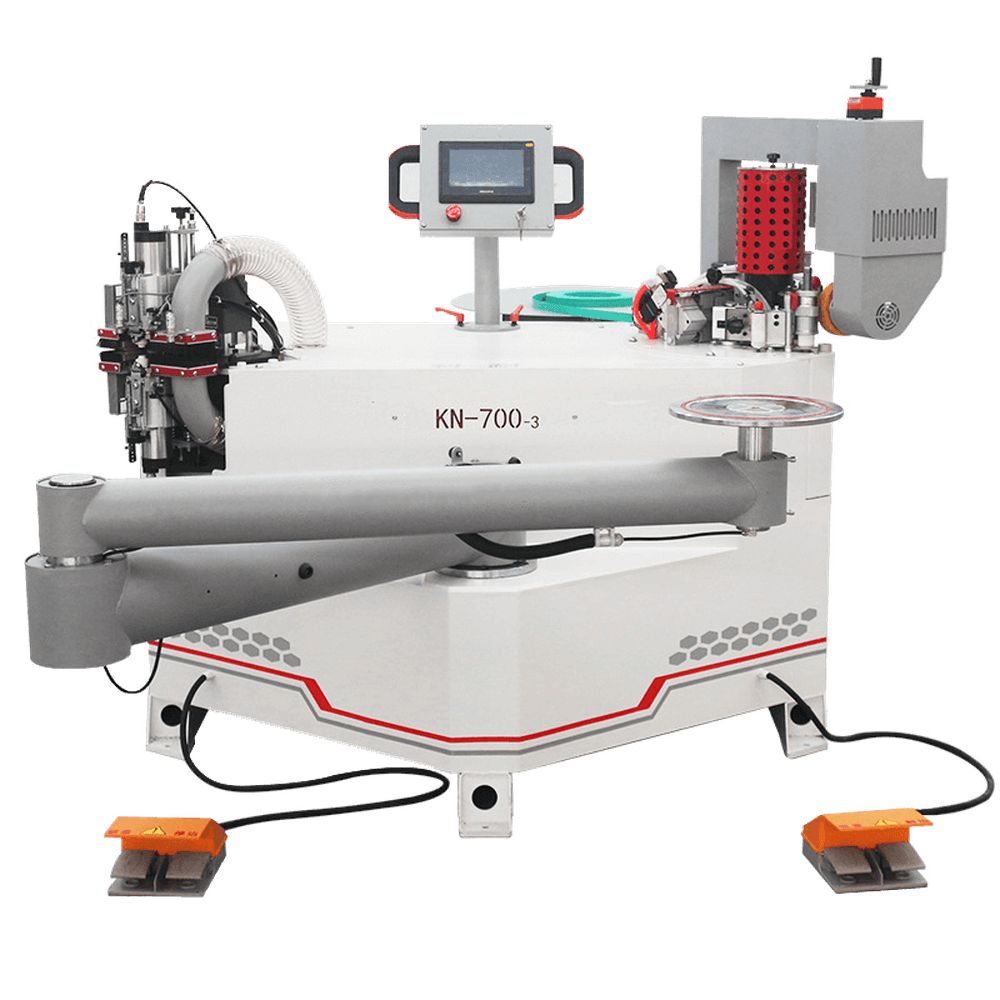

KN700-3
- Single Arm
- Fully Automatic
- Edge Banding/Trimming
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 1870*1920*1530mm
Curved/“L”

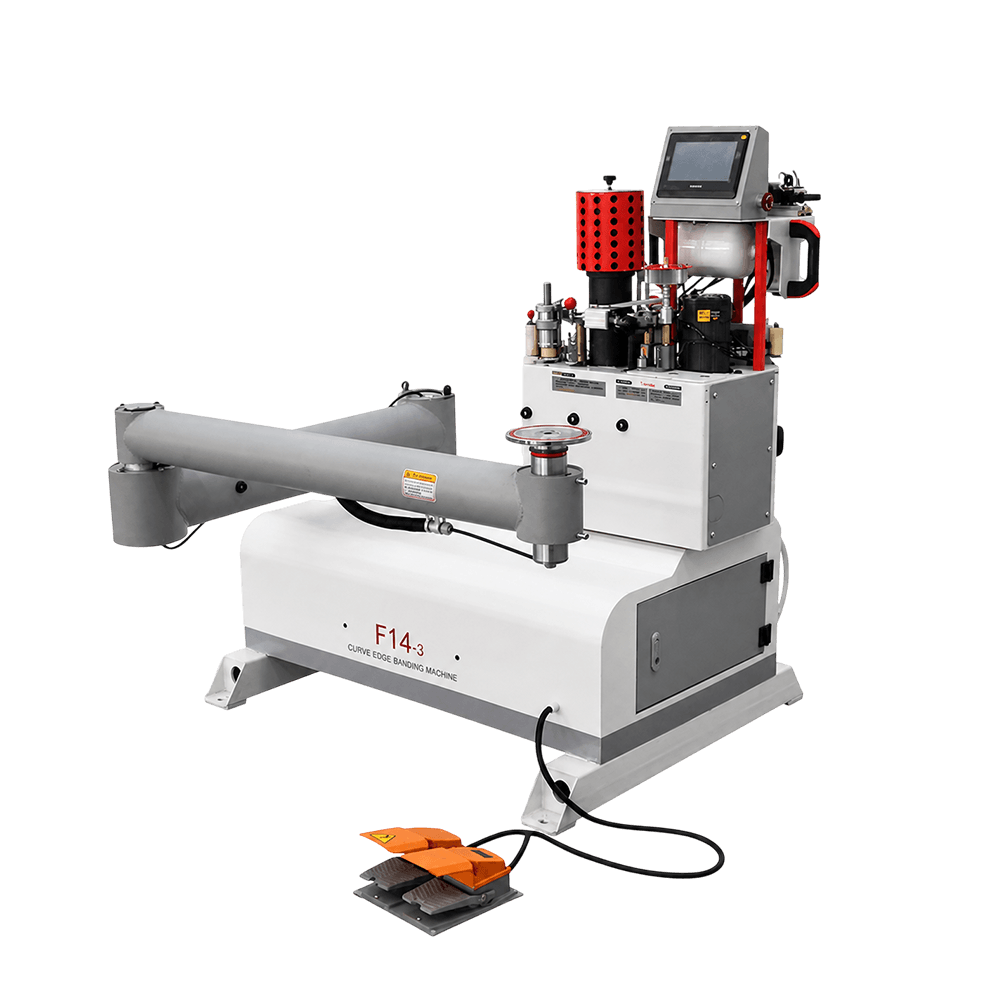

F14-3Pro
- Single Arm
- PLC
- Edge Banding
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 161*104*152
Curved/“L”

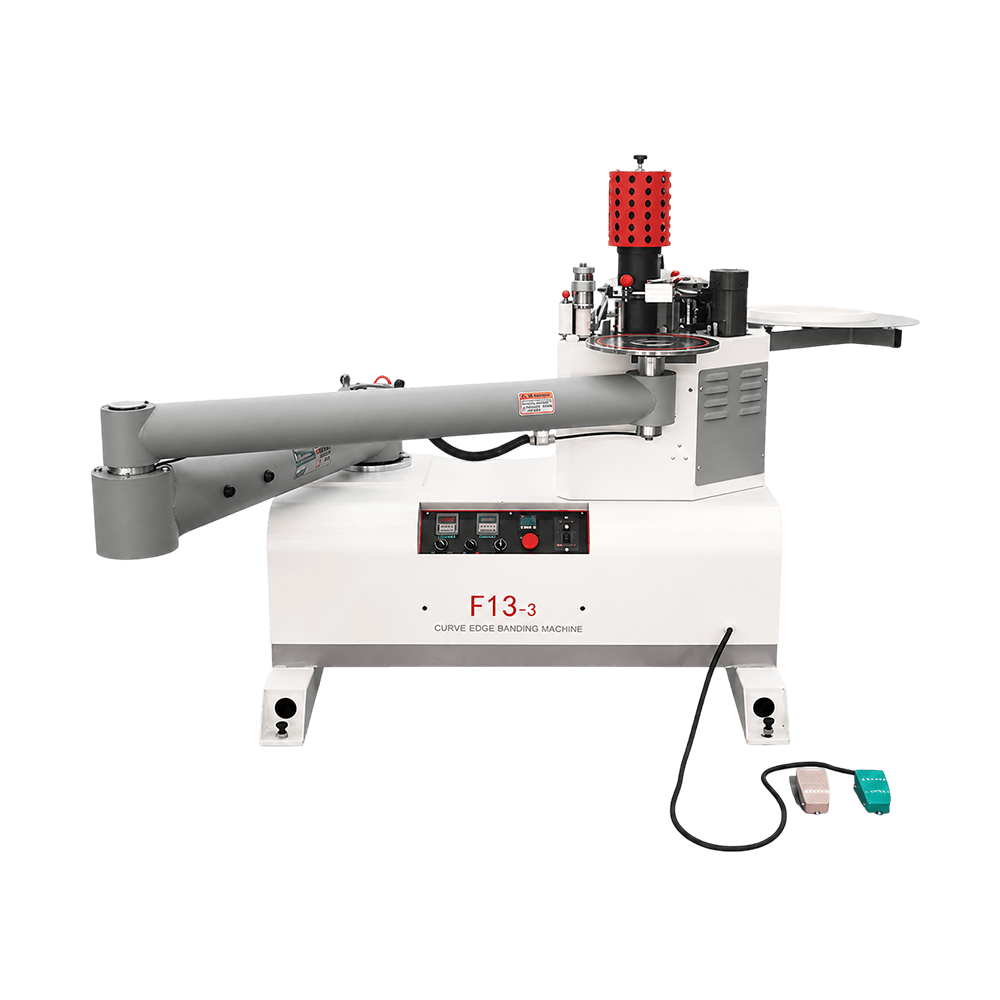

F13-3Pro
- Single Arm
- Edge Banding
- EVA/PUR
- Edge Thickness: 0.5-2mm
- Edge Banding Thickness: 12-70mm
- Size: 140*120*140cm
Manual Edge Banding Machine Feature
Sturdy Base
The heavy-weight structure makes the machine run steadily.
Lightweight
The lightweight and compact design makes the machine move easy.
Advanced Glue Unit
Advanced glue systems always make a flawless edge appearance.
Easy Operation
The "Quick-Set-System" enables you to make rapid adjustments to different materials.
Edge Processing Capabilities.

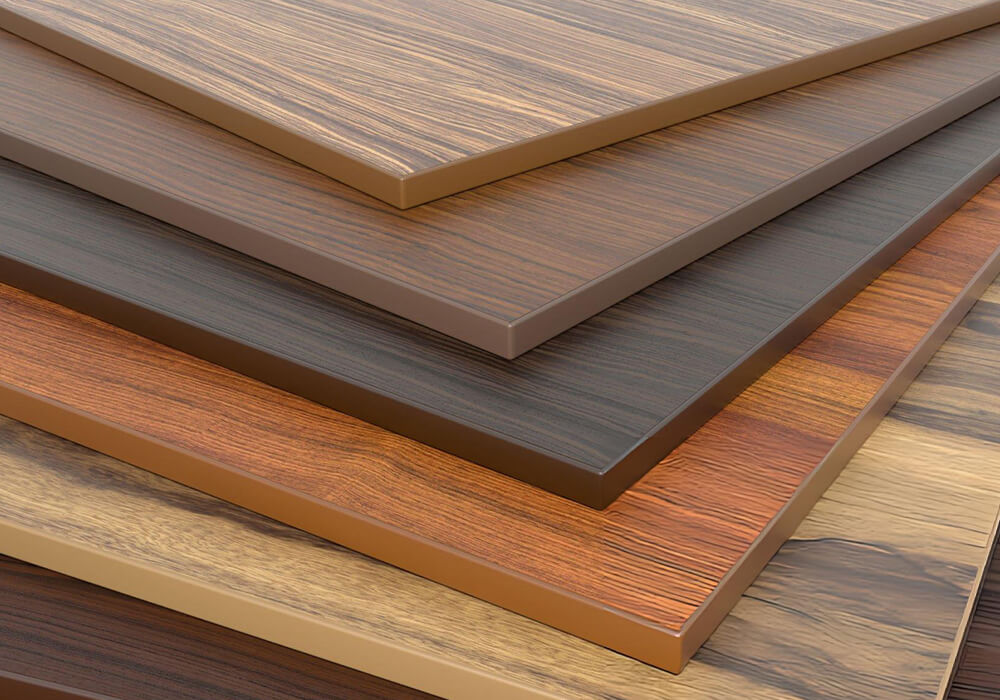

Straight Edge Banding
Straight edge banding is the most common application for furniture and cabinet panels. The machine applies edge material along a straight panel edge to cover the exposed core and create a clean, finished appearance.

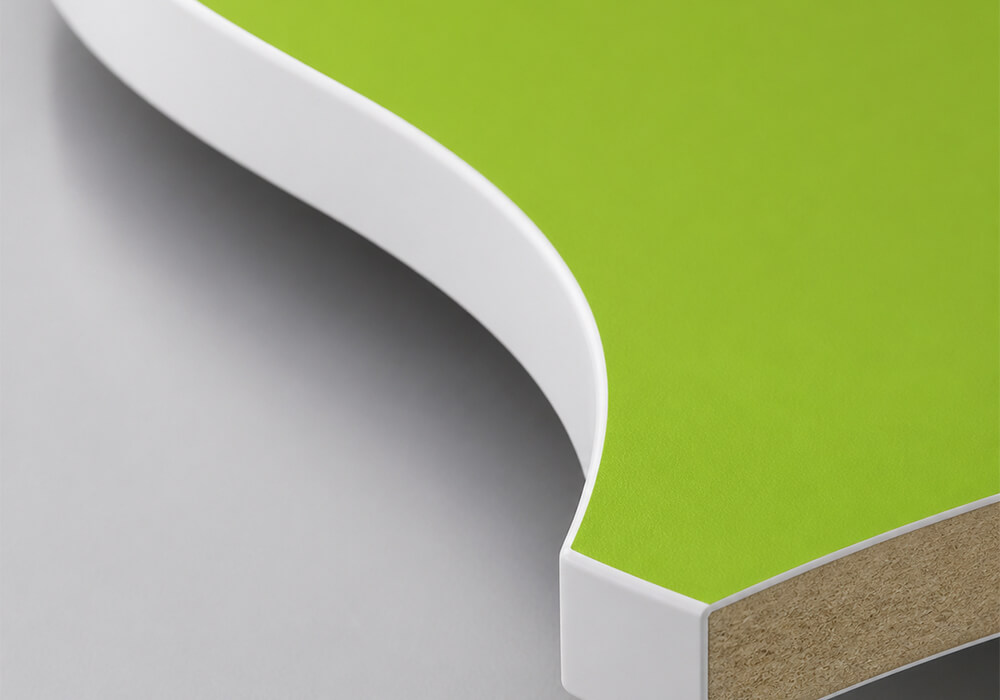

Curved Edge Banding
Curved edge banding is designed for furniture components with rounded, curved or irregular profiles. Compared with straight edge processing, the operator needs greater control when guiding the workpiece around the curve.
45° Bevel Edge Banding
45° bevel edge banding is used to finish beveled panel edges and create a distinctive modern furniture appearance. It is particularly useful for handleless cabinet designs and furniture components where the edge itself forms part of the product design.
How to Select the Right Manual Edge Banding Machine.
1. Define the workpiece geometry
List every panel type you need to process. Include straight edges, outside curves, inside curves, circles, corners, bevels, and irregular profiles. Send a drawing when the shape is difficult to describe.
2. Confirm panel and edge dimensions
Provide panel thickness, min. panel size, edge width, edge thickness, and min. curve radius.
3. Set the output
Estimate batch size, and product mix. A handheld or portable unit may suit varied low-volume work. Repeated shaped parts may justify a 700-3 banding and trimming cell.
4. Choose the adhesive process
Confirm EVA, PUR, or another hot-melt adhesive.
5. Review finishing requirements
Some machines apply and cut the edge only. Others support trimming or additional finishing steps. Define the desired finished edge before selecting a configuration.
6. Check utilities and installation
Confirm local voltage, phase, frequency, and compressed-air supply.
Manual Edge Banding Machine Application

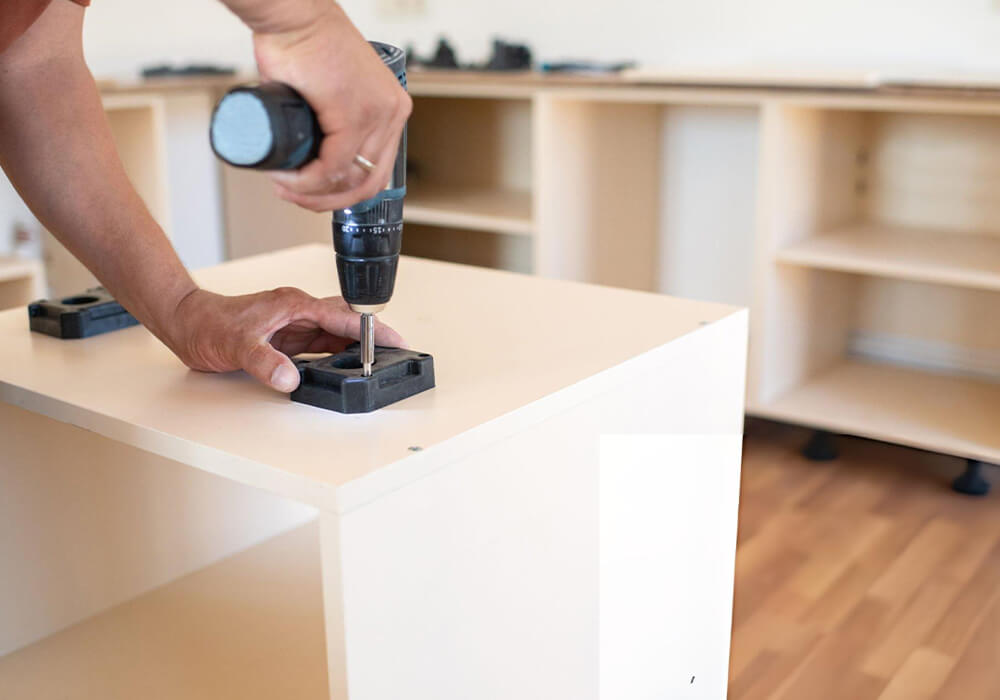

Cabinet Manufacturing
Cabinet manufacturers can use manual edge banders for cabinet sides, shelves, doors and customized components. For small cabinet shops, a manual machine can provide professional edge finishing without requiring a complete automatic production line.

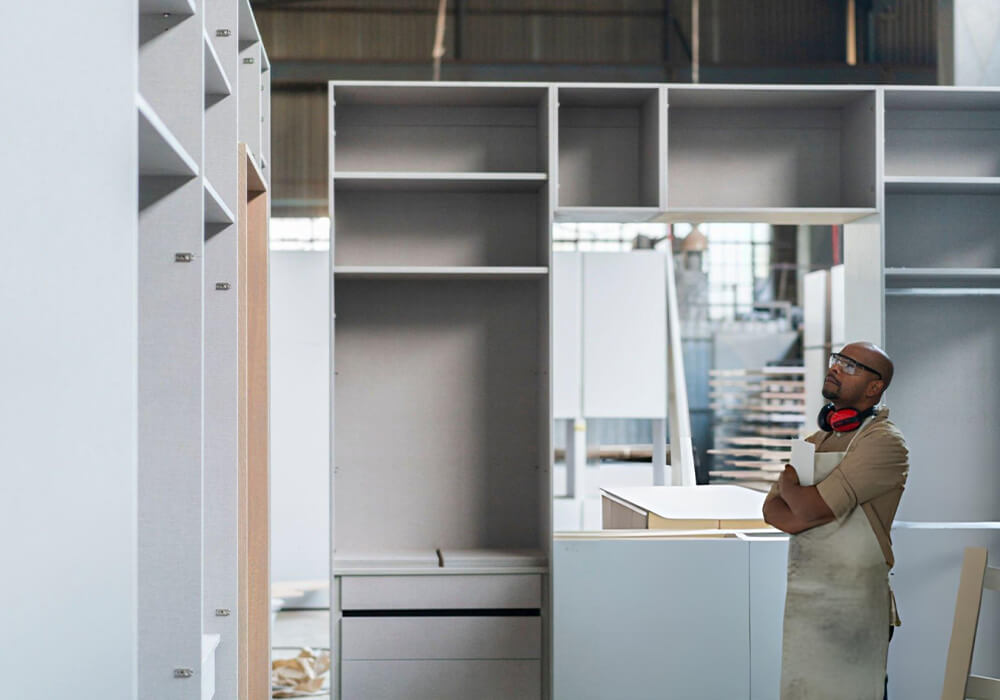

Wardrobe Manufacturing
Wardrobe manufacturers may process panels in different sizes and configurations. A flexible manual edge bander can support small-batch and custom wardrobe production.

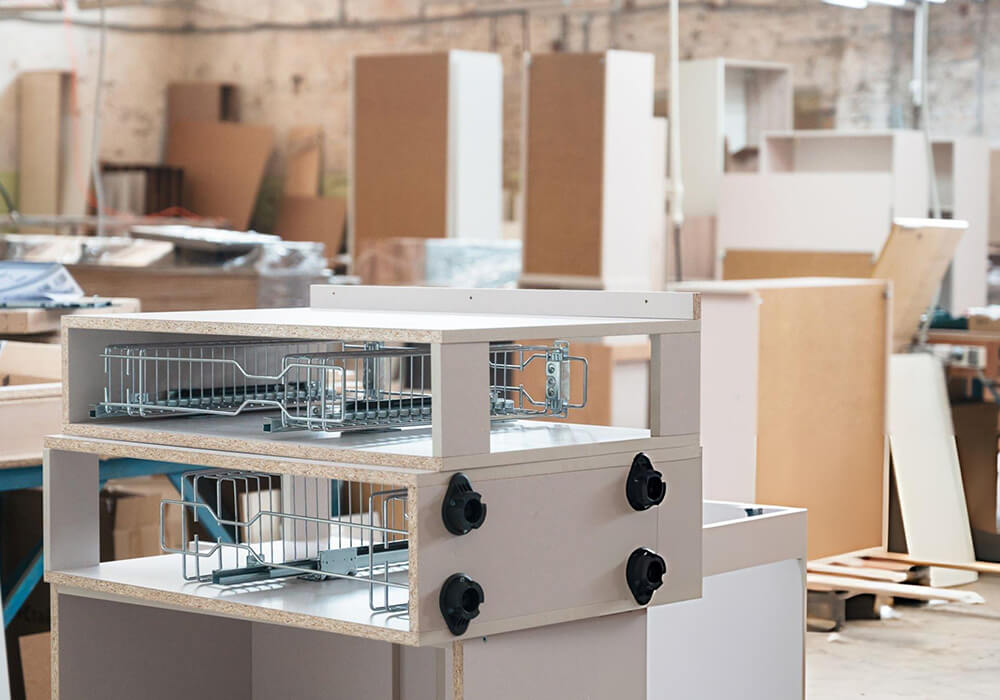

Custom Furniture
Custom furniture is one of the strongest applications for manual edge banding. Each order may involve different shapes, materials and dimensions, making flexibility particularly valuable.
Interior Fit-Out Workshops
Interior contractors may need to process furniture components as part of larger interior projects. Portable or compact manual machines can be useful when equipment needs to be moved or production space is limited.
Furniture Repair
Manual edge banders can also be used for repair and refurbishment work where only a limited number of panels need to be processed.
Find the Right Manual Edge Banding Machine for Your Parts.
