MDF Edge Sanding Machine 60DS
- Three Independent Sanding Units
- One-Pass Edge Sanding
- Easy Sandpaper Replacement
- Automatic Lifting & Positioning
- Oscillation Sanding Technology
Description

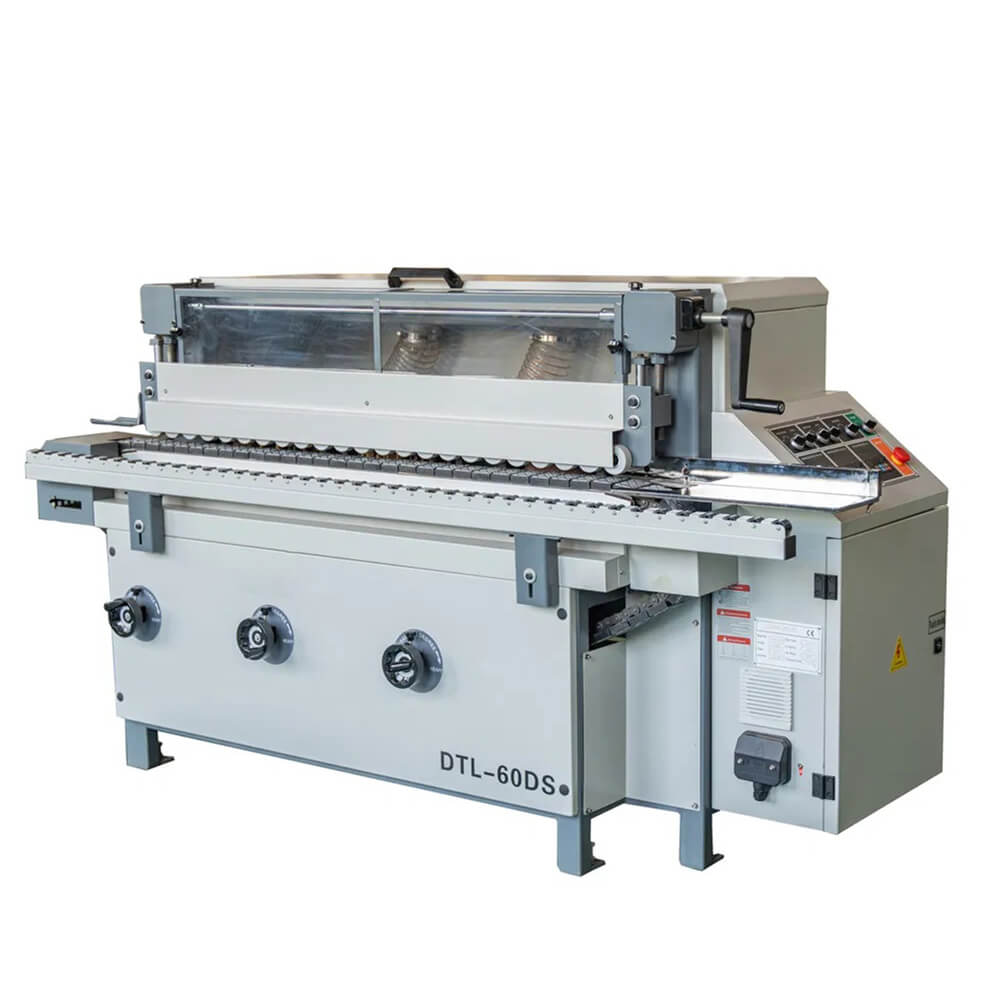

MDF Edge Sanding Machine
BESTIN MDF Edge Sanding Machine 60DS is a high-efficiency automatic edge sanding machine. It is specially engineered for sanding the edges of MDF boards, plywood, veneered panels, solid wood parts, cabinet doors, modular furniture components, and door frame elements.
Designed for modern woodworking factories, this machine delivers precise, smooth, and production-ready edge finishing in one pass. It can help furniture manufacturers improve surface quality, reduce labor costs, and increase output.
Benefits
- Increase Production Efficiency
With automatic edge sanding technology, you can reduce labor costs increase output and improve delivery speed
- Improve Surface Finish Quality
High-quality sanding directly improves painting and lamination results.
- Reduce Labor Cost
One machine can replace multiple manual sanding workers. It helps you solve labor shortages and reduce long-term operating costs.
Features
- 3 Independent Sanding Units
The machine is equipped with 2 brush sanding units and 1 belt sanding unit. It allows different sanding stages to be completed in a single pass, including rough sanding, fine sanding, and edge polishing.
- One-Pass Edge Sanding
The 60DS can complete edge sanding in one feeding cycle, greatly reducing processing time.
- Inverter Speed Adjustment
Both the roller speed and conveyor speed are controlled by frequency inverter. It allows flexible speed adjustment based on different material hardness.
- Oscillation Sanding Technology
The oscillation system helps distribute abrasive wear evenly and ensures full use of the sandpaper surface.
- Quick Sandpaper Replacement
The smart quick-change system allows fast and convenient sandpaper replacement, minimizing machine downtime and improving workshop productivity.
- Enhanced Safety Protection
For operator safety, the machine was equipped with emergency stop buttons and stable chain conveyor feeding system.
Technical Data
|
Item |
Specification |
|
Brush Roller Diameter |
300mm |
|
Sand Roller Diameter |
180mm |
|
Roller Height |
150mm |
|
Min Working Width |
100mm |
|
Min Working Length |
150mm |
|
Working Thickness |
5-40mm |
|
Sandpaper Grade |
120#-600# |
|
Lifting Way |
Electric Control |
|
Conveyor Motor |
0.75KW |
|
Lifting Motor |
0.55KW *3 |
|
Main Motor |
0.75KW *3 |
|
Total Power |
4.65KW |
|
Conveyor Speed |
Inverter Control |
|
Voltage |
380V/50HZ/3PH |
|
Roller Speed |
Inverter Control |
|
Dimension |
2500×900×1200mm |
|
Wooden Case Size |
2550x920x1360mm |
|
N.W. |
540KG |
|
G. W. |
620KG |
