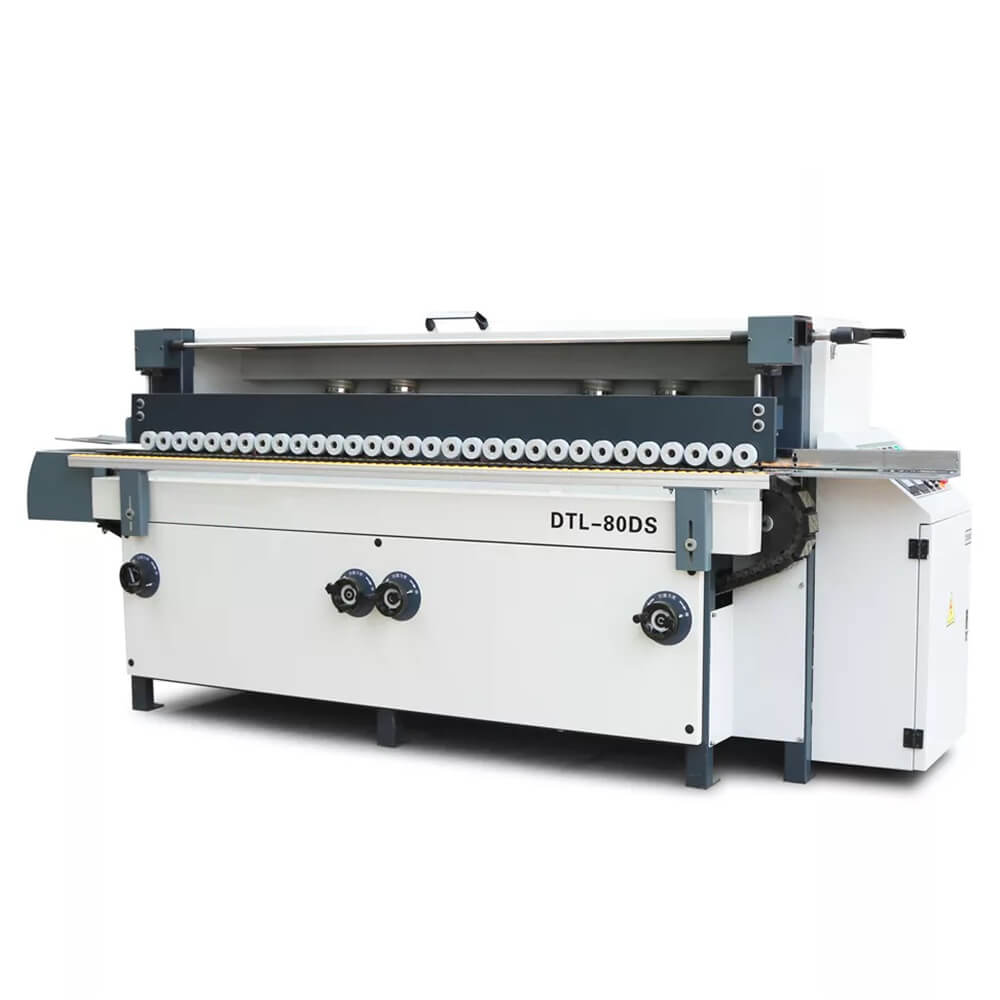

Automatic Edge Sanding Machine 80DS
Automatic Edge Sanding Machine 80DS
- 4 Unit Sanding System
- One-Pass Edge Sanding
- Easy Sandpaper Replacement
- PLC Touch Screen Control System
- Oscillation Sanding Technology
MDF Edge Sanding Machine
The Automatic Edge Sanding Machine 80DS is a high-performance industrial woodworking machine. It was designed for efficient and precise sanding of edges on a wide range of wood-based materials. It is widely used in modern furniture manufacturing, door production, cabinet making, and interior decoration industries.
This machine is engineered to handle solid wood, MDF, veneer panels, and primed surfaces. It can deliver consistent sanding quality in a single pass.
Whether you are producing cabinet doors, furniture components, door frames, or modular panels, the 80DS ensures smooth edges and perfect surface preparation for painting or finishing.
Benefits
- Significantly Improves Production Efficiency
The 80DS is built for high-speed continuous sanding. It allows factories to complete more work in less time, increasing overall output.
- Ensures Consistent and Stable Quality
Every panel is processed under the same conditions, ensuring stable and professional finishing quality.
- Achieves High-Quality Surface Finishing
The combination of brush and belt sanding units provides multi-stage.
Features
- 4 Independent Units Sanding System
The machine is equipped with 2 brush sanding units and 2 belt sanding units. It allows multi-stage sanding in one continuous pass
- One-Pass High Efficiency Processing
The 80DS is designed for single-pass edge sanding. It greatly improves production efficiency and reduces manual labor time, making it ideal for mass production environments such as cabinet factories and door manufacturers.
- PLC Touch Screen Control System
The machine adopts an advanced PLC + HMI touch screen control system.
- Automatic Sanding Unit Adjustment
All sanding units are automatically controlled by the system.
- Chain Conveyor Feeding System
The machine uses a chain conveyor with rubber pads. It provides stable feeding without slipping.
- Frequency Inverter Speed Control
Both conveyor speed and sanding roller speed are controlled by frequency converters. It can improve sanding quality and surface finish.
- Quick Sandpaper Replacement System
The machine is designed with an easy-change abrasive system.
Technical Data
| Item | Specification |
| Brush Roller Diameter | 300mm |
| Sand Roller Diameter | 180mm |
| Roller Height | 150mm |
| Min Working Width | 100mm |
| Min Working Length | 150mm |
| Working Thickness | 5-40mm |
| Sandpaper Grade | 120#-600# |
| Lifting Way | Electric Control |
| Conveyor Motor | 0.75KW |
| Lifting Motor | 0.55KW *4 |
| Main Motor | 0.75KW *4 |
| Total Power | 5.95KW |
| Conveyor Speed | Inverter Control |
| Voltage | 380V/50HZ/3PH |
| Roller Speed | Inverter Control |
| Dimension | 3000×900×1250mm |
| Wooden Case Size | 3100×1000×1400mm |
| N.W. | 800KG |
| G. W. | 920KG |
